- Page 1 DOC026.53.80211 MF pro 09/2018, Edition 7 Operating Instructions...
-
Page 3: Table Of Contents
Table of Contents Specifications ......................3 Sensor specifications ....................3 Portable meter specifications ..................3 User interface specifications ..................4 General specifications ....................4 General information ....................5 Safety information ......................5 Use of hazard information ..................5 Precautionary labels .................... 5 Certification ...................... - Page 4 Table of Contents Update the firmware ....................28 Clean the sensor ......................28 Clean the meter ......................29 Replace the battery ....................29 Troubleshooting ....................... 29 Diagnostics ........................ 29 Troubleshoot errors ....................30 Replacement parts and accessories ............... 30 Appendix ........................
-
Page 5: Specifications
Specifications Specifications are subject to change without notice. Sensor specifications Specification Details Velocity measurement Method Electromagnetic Range 0 to 6.09 m/s (0 to 20 ft/s) Minimum water depth 3.18 cm (1.25 in.) Accuracy ±2% of reading ±0.015 m/s (±0.05 ft/s) 0 to 3.04 m/s (0 to 10 ft/s); ± 4% of reading from 3.04 to 4.87 m/s (10 to 16 ft/s) Resolution 0 ≤... -
Page 6: User Interface Specifications
Specification Details Battery life 18 hours heavy typical day use ; 20 ºC (68 ºF) Battery charger External power adapter, energy efficiency VI, 100–240 VAC, 50–60 Hz, 0.5 A input; 12 VDC, 1.25 A output Dimensions (L x W x H) 21.8 x 9.3 x 5.3 cm (8.6 x 3.7 x 2.1 in.) USB connector Type Mini-B, 5-pin, rated to IP67 when capped Material... -
Page 7: General Information
General information In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages resulting from any defect or omission in this manual. The manufacturer reserves the right to make changes in this manual and the products it describes at any time, without notice or obligation. Revised editions are found on the manufacturer’s website. -
Page 8: Certification
Certification C A U T I O N This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Canadian Radio Interference-Causing Equipment Regulation, IECS-003, Class A: Supporting test records reside with the manufacturer. This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. -
Page 9: Sensor Overview

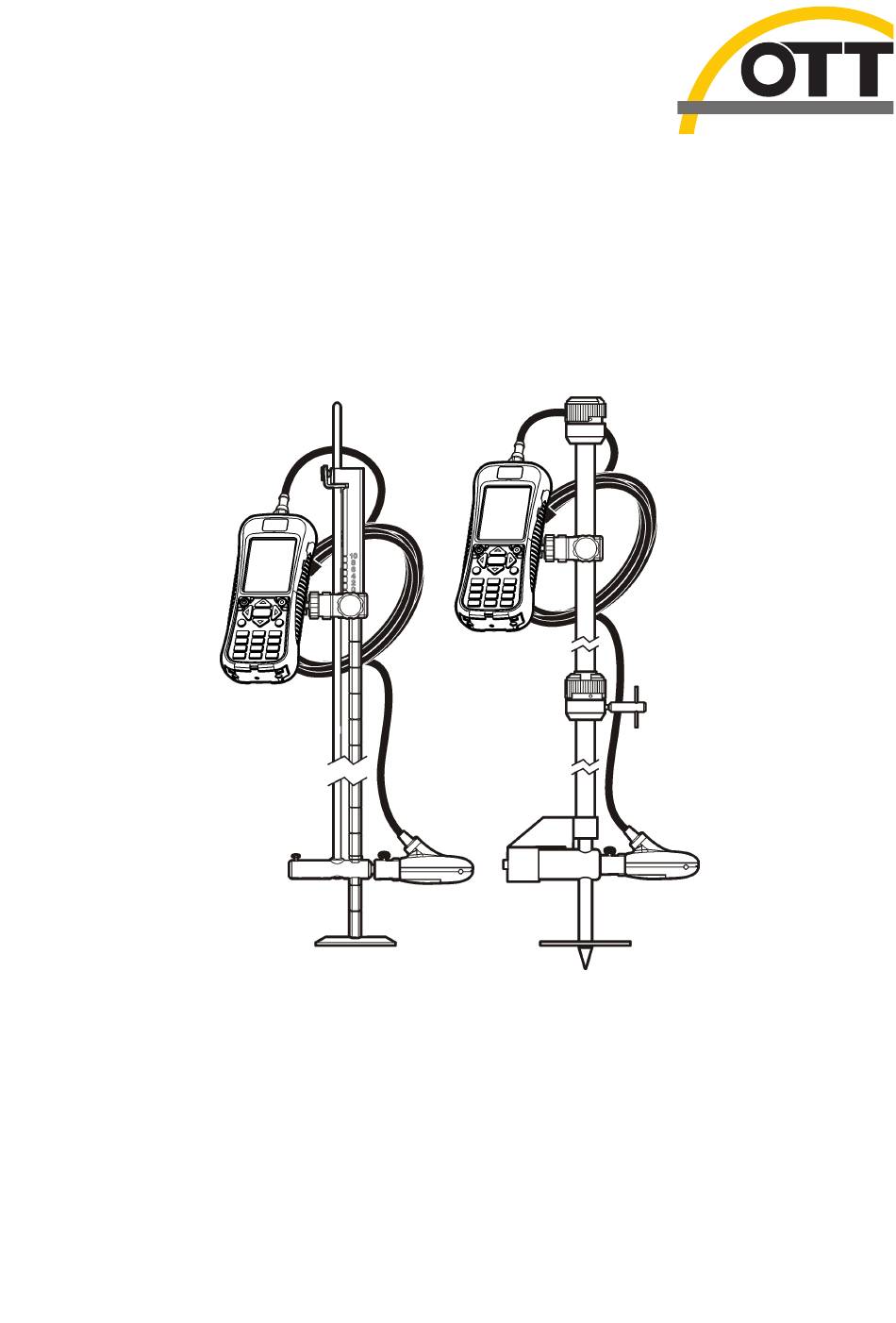

Figure 1 Assembled components 1 Portable meter 7 Sensor height lock/release screw (accessory) 2 Sensor height lock/release device 8 20 mm/HERES wading rod adapter (accessory) 3 Top setting wading rod (accessory) 9 20 mm wading rod (accessory) 4 Sensor cable 10 HERES wading rod (accessory) 5 Adjustable mount for portable meter 11 Sensor height lock/release screw... -
Page 10: Meter Overview

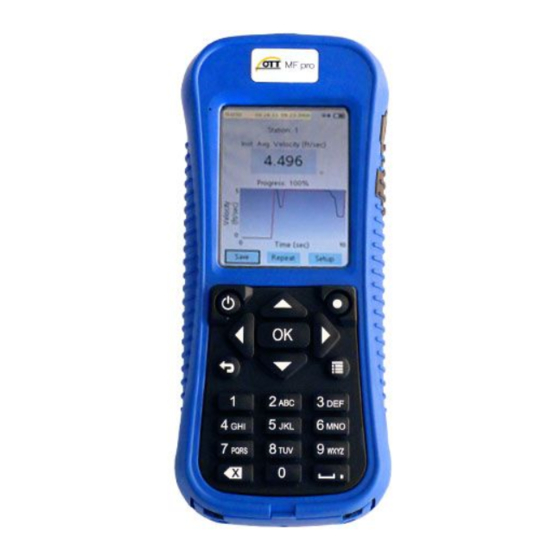

Figure 2 Sensor components 1 Sensor electrodes 5 Pressure cell (sensors with depth option) 2 Sensor body 6 Sensor with depth option 3 Sensor connection plug 7 Sensor without depth option 4 Sensor attachment thumb screw Meter overview Figure 3 shows the features of the meter. -
Page 11: Product Components
Product components When purchasing a complete system, refer to Figure 4 to make sure that all components have been received. If any of these items are missing or damaged, contact the manufacturer or a sales representative immediately. Figure 4 System components 1 Carrying case (with slot for sensor cable) 8 Universal sensor mount 2 USB cable with mini-USB connector, 1 m (3 ft) -
Page 12: Lithium Battery Safety
mounting hole at the back of the sensor. Make sure that the mounting shaft is completely engaged with the mounting hole and the thumbscrew is engaged with the groove. 2. Hand tighten the thumbscrew. 3. Move a pole 1 inch or less in diameter through the clamp of the universal sensor mount. Tighten the clamp. -
Page 13: Charge The Battery
Figure 5 Install the battery Charge the battery Note: Battery charger substitution is not permitted. Use only the charger specified in the list of parts and accessories for the instrument. Refer to Replacement parts and accessories on page 30. Before initial use, fully charge the instrument battery with the supplied battery charger. A discharged battery is fully charged in approximately 8 hours. -
Page 14: Connect The Sensor To The Meter
Connect the sensor to the meter Attach the lanyard Attach the lanyard to wear the meter safely around the neck. 12 English... -
Page 15: Attach The Velcro Strap
Attach the velcro strap Use the velcro strap to hold the extra cable. Refer to Figure Figure 6 Attach the velcro strap 1 Loop side 2 Hook side User interface and navigation Keypad and key functions Figure 7 shows the meter keypad. Table 1 gives the functions of each key or key type. -
Page 16: Status Bar
Figure 7 Keypad 1 Power On/Off 6 Main Menu 2 OK 7 Underscore or decimal 3 Up and Down arrows 8 Backspace 4 Quick Jump 9 Alpha-numeric 5 Right and Left arrows 10 Previous menu Table 1 Key description Description Power On/Off Energizes and de-energizes the meter. -
Page 17: Navigation And Main Menu
Table 2 Status bar indicators Indicator Description Time and Date Shows the current time and date. Shows when a USB cable is connected. If a USB cable is connected and this indicator does not show in the status bar, the USB cable is not fully engaged. Make sure that the USB cable is pushed in completely and makes full contact with the connection port. - Page 18 Option Description Setup Allows the user to modify the main filter parameters and enable and program the Maximum Depth sensor positioning feature. The Maximum depth feature allows a user to enter system parameters for depth measurement in Real Time mode. The user can choose to enter a maximum depth value taken directly with a ruler measurement (manual), or taken indirectly with the depth measurement (automatic).
- Page 19 Figure 9 Real time screen for sensor with depth 2. Profiler— Select this option to do stream or conduit velocity measurements. The meter shows prompts when user input is necessary. A percentage of the remaining memory is given in 1% resolution.
- Page 20 Option Description Filter Applies a data acquisition filter (Main filter or Pre-filter). The user can select the filter parameters parameters. Main filter • Fixed Period Averaging (FPA)—Fixed Period Averaging averages data over a user selectable fixed period of time (1 to 480 seconds). The default is 30 seconds. If the FPA value is 5, the velocity value shown in the display is updated once every 5 seconds.
-
Page 21: Startup And Self-Test
Option Description Station entry • Fixed—The operator puts in the width of the stream and the number of stations for measurements. The meter divides the cross-section into evenly spaced distances between the station verticals. • Non-fixed (default)—The operator selects the spacing between station verticals. This is the more commonly used option as it lets the operator include obstructions and other restrictions in the cross section. -
Page 22: Operation
Operation Stream profiles Stations and station spacing For a well-chosen cross-section, division into 25 to 30 partial sections is typically sufficient. If the cross-section is very smooth and the velocity distribution very consistent, it is possible to decrease the number of stations. Make the distance between the partial stations so that no individual station contains more than 10% of the discharge. -
Page 23: Measure Velocities In A Cross-Section
Figure 10 Position of user in the flow Measure velocities in a cross-section A typical stream cross-section is shown in Figure Figure 11 Example of a typical cross section To measure velocities in a cross-section: 1. In the Main Menu, select Profiler. 2. - Page 24 Option Description Files Used to view or delete files. Setup Used to set up filter parameters and the Maximum depth feature. 3. Select Setup > Maximum depth. Select Manual or Automatic. Option Description Manual In this mode, the instrument prompts the user to manually enter the maximum depth of each vertical.
- Page 25 Option Description Right Use this option if the station is at the right edge of water or an obstruction (i.e., sandbar, pylon or large boulder). Open water Use this option to configure the edge as an open water environment (default). 9.
-
Page 26: Insert Or Delete A Station
Insert or delete a station Prev, Next, Ins and Del options show at the bottom of the display in the Station screen. Prev and Next are used to navigate to a previous or subsequent station. Ins and Del are used to insert or delete a station. -
Page 27: 0.2/0.4/0.8 Method
The meter calculates and shows the flow, maximum and average velocity values. 4. Select Save. The information is saved to a data file. 0.2/0.4/0.8 method Do measurements at one, two or three points to calculate an average velocity. Each point represents a percentage of the maximum depth as measured on the center line as shown in Figure Figure 13 2-4-8 profile... -
Page 28: 2D Measurement Method
1. In the Select method menu, select Vel./Lev. Integ. The display shows the first measurement screen. 2. Select Measure Velocity. The sensor depth information is shown. 3. If necessary, adjust the sensor depth as shown. 4. Select Capture. The handheld unit gets information from the sensor and shows the average velocity value in numeric and graphical form. -
Page 29: Download Data
Push OK once to delete the files, then one more time to return to the previous screen. Maintenance Download the PVM utility The PVM utility is used to update the firmware in the portable meter. The PVM Utility is available at http://www.ott.com. Do the steps listed for the selected URL. English 27... -
Page 30: Update The Firmware
1. Go to http://www.ott.com. 2. Click Resources. 3. Select MF pro. 4. Click PVMSetup.msi. 5. Choose Save or Run. Update the firmware Note: All data files in mass storage are lost when the firmware is updated. To download data, refer to... -
Page 31: Clean The Meter
Table 4 Acceptable and unacceptable cleaning solutions Acceptable Do not use Dish detergent and water Concentrated bleach Window cleaner Kerosene Isopropyl alcohol Gasoline Aromatic hydrocarbons Clean the meter 1. Push the power button to de-energize the meter. 2. Use a clean, moist cloth to clean the meter exterior. Mix the water with a mild detergent if necessary. -
Page 32: Troubleshoot Errors
Table 5 Meter diagnostics Option Description About Shows information about the meter and the sensor. Includes the serial number and the firmware version. Delete files Deletes all files from memory to make space for new measurements. Make sure that the data is downloaded to a PC before this option is selected. -
Page 33: Appendix
Replacement parts Table 6 Velocity only sensor Description Item no. Sensor with 2 m (6.5 ft) cable 1040500595-0N Sensor with 6.1 m (20 ft) cable 1040500595-1N Sensor with 12.2 m (40 ft) cable 1040500595-2N Sensor with 30.5 m (100 ft) cable 1040500595-3N Table 7 Velocity with depth sensor Description... - Page 34 Figure 15 Mean-section method Where: V = velocity at vertical b = distance to vertical from bank h = depth at vertical q = flow at vertical The Mid-section method also divides the cross-section into individual flow segments. With the Mid- section method, the segments are not between verticals but are defined by half of the distance to neighbor verticals in each case.
-
Page 35: Profiles And Measurements
Figure 16 Mid-section method Where: m = station number n = total number of stations V = velocity at vertical b = distance to vertical from bank h = depth at vertical q = flow at vertical Profiles and measurements Profiles can be set up for streams or conduits. -
Page 36: Site Selection
Figure 17 Typical profile 1 Depth 2 Velocity Site selection A site with the typical profile shape gives the most accurate results. Visual inspection is typically sufficient to identify problem sites. Use the information in these guidelines to help select the best site. These guidelines apply to conduit and stream profiles. - Page 37 surface of the water, the meter sets the velocity value to zero. For a profile or real-time reading, the meter prompts the user to submerge the sensor in the water. If the specific conductivity of the water being measured is very low, adjust the threshold value for the best performance.
- Page 38 36 English...
