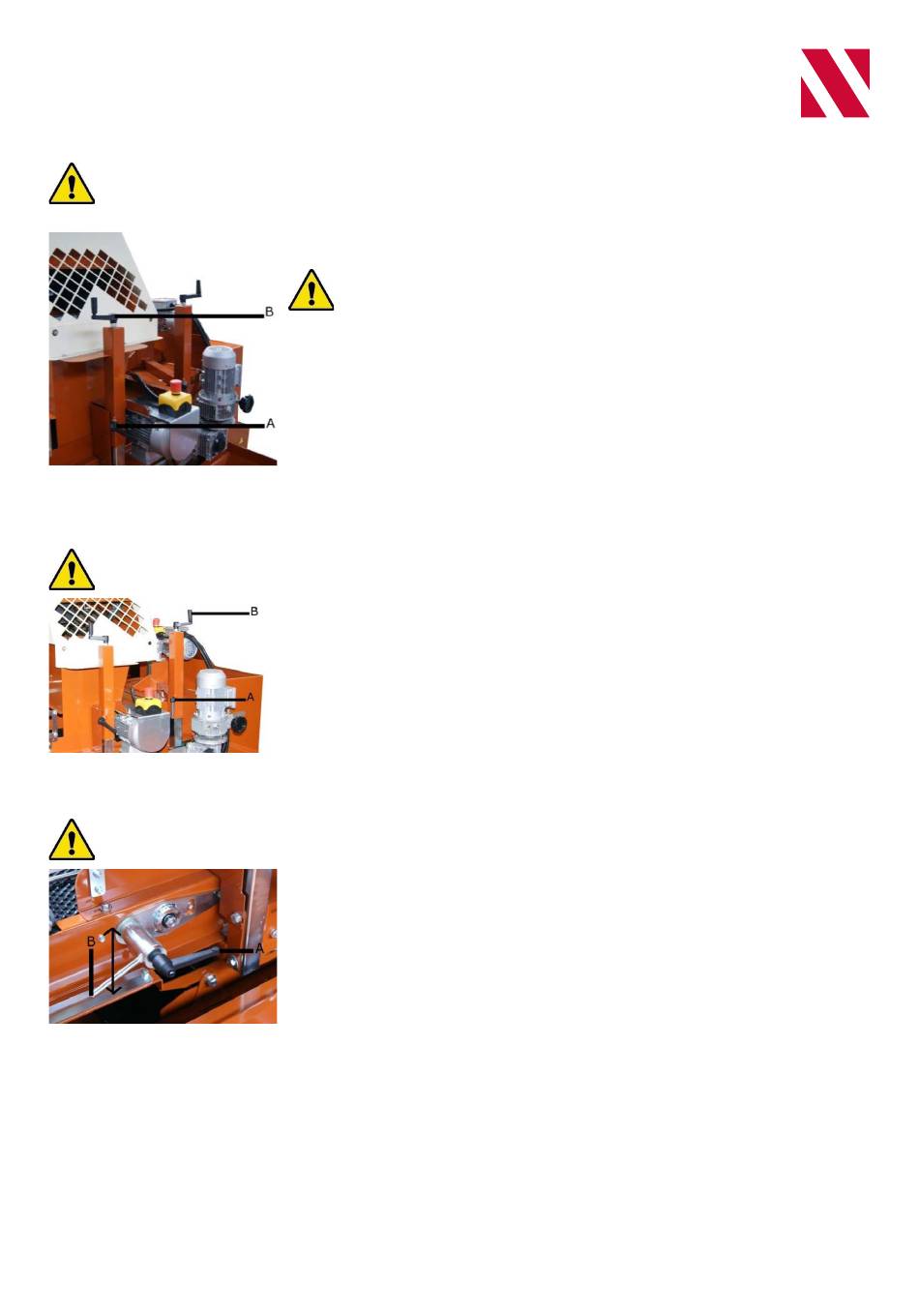

5.5.6. Adjust compactor height
Adjust the compactor height before starting work with the machine.
5.6. Adjust brush height
Adjust the brush height before starting work with the machine.
5.7. Adjust vibrator
The vibrator ensures that soil poured into the cells of tall trays fills the cells to their base.
Adjust the vibration intensity before starting work with the machine.
Procedure:
1. Check the height of the compactor relative to the tray.
The compactor must not contact the tray. The gap between compactor/tray
must be 10 mm.
2. When the gap is wrong:
a. Loosen clamp lever (A).
b. Turn crank handle (A) to adjust the compactor to the correct height.
i. The lower the compactor is above the tray, the higher the soil
pressure
ii. The higher the compactor is above the tray, the lower the soil
pressure
c. Tighten clamp lever (A)
Procedure:
1. Check the height of the brush relative to the tray. The brush must be about
5 mm above the tray. The brush must smoothen the surface evenly.
2. When the height is wrong:
a. Loosen clamp lever (A).
b. Adjust the brush to the correct height with crank handle (B).
c. Tighten clamp lever (A)
Procedure:
1. Check the vibration intensity.
2. When the vibration intensity is wrong:
a. Loosen clamp lever (A).
b. Turn lever (B) counterclockwise or clockwise.
i. Lever fully up: highest vibration intensity. Lever fully down:
lowest vibration intensity.
Tighten clamp lever (A).
