5. Assembly, installation and commissioning
Follow all the instructions given in this manual, in particular the instructions in the Safety Section.
This machine bears CE marking. When several machines are installed in one production line then the entire
production line must bear appropriate CE marking before this machine may be commissioned. This machine
may not be commissioned until CE marking has been applied to the production line.
5.1. Location
Locate the machine on a flat and solid surface with an adequate load-bearing capacity. Locate the machine where
there is sufficient space to give instructions in safety and/or carry out maintenance and/or inspections. Apply the
brakes on the castors before turning the machine on.
This machine is not suitable for outdoor use. The electrical components are only splash proof. Protect this
machine from rain and moisture. Use a ground leakage circuit breaker when you have to use the machine in a
moist area.
5.2. Facilities to be provided by the user
At the time of delivery the user, must make sure that the necessary materials and facilities (compressed air supply,
power supply and potting-up materials, etc.) are available within 3 meters of the machine.
5.3. Assembly / connection
Mount any parts supplied with the machine, where applicable. Make sure that all moving parts can move freely.
Once the machine has been assembled, an authorized person can connect the power supply (plug the power cable
into a power socket).
Keep hands, hair, loose clothing and/or jewelry, etc., clear of moving parts of the machine. Wear suitable
garments without loose parts. Wear suitable work shoes.
Do not remove any connections or guards while the machine is turned on. The machine may be used only when
all protective devices and safeguards are correctly fitted and ready for use.
5.4. Adjustment of the elevator
5.4.1. Check elevator's direction of rotation
Check the elevator's direction of rotation before starting work with the machine.
Procedure:
1. Connect the power cable.
2. Start the elevator.
a. Turn the main switch to on.
b. Press the emergency stop circuit reset button.
c. Press the elevator button to start the elevator.
3. Check the elevator's direction of rotation.

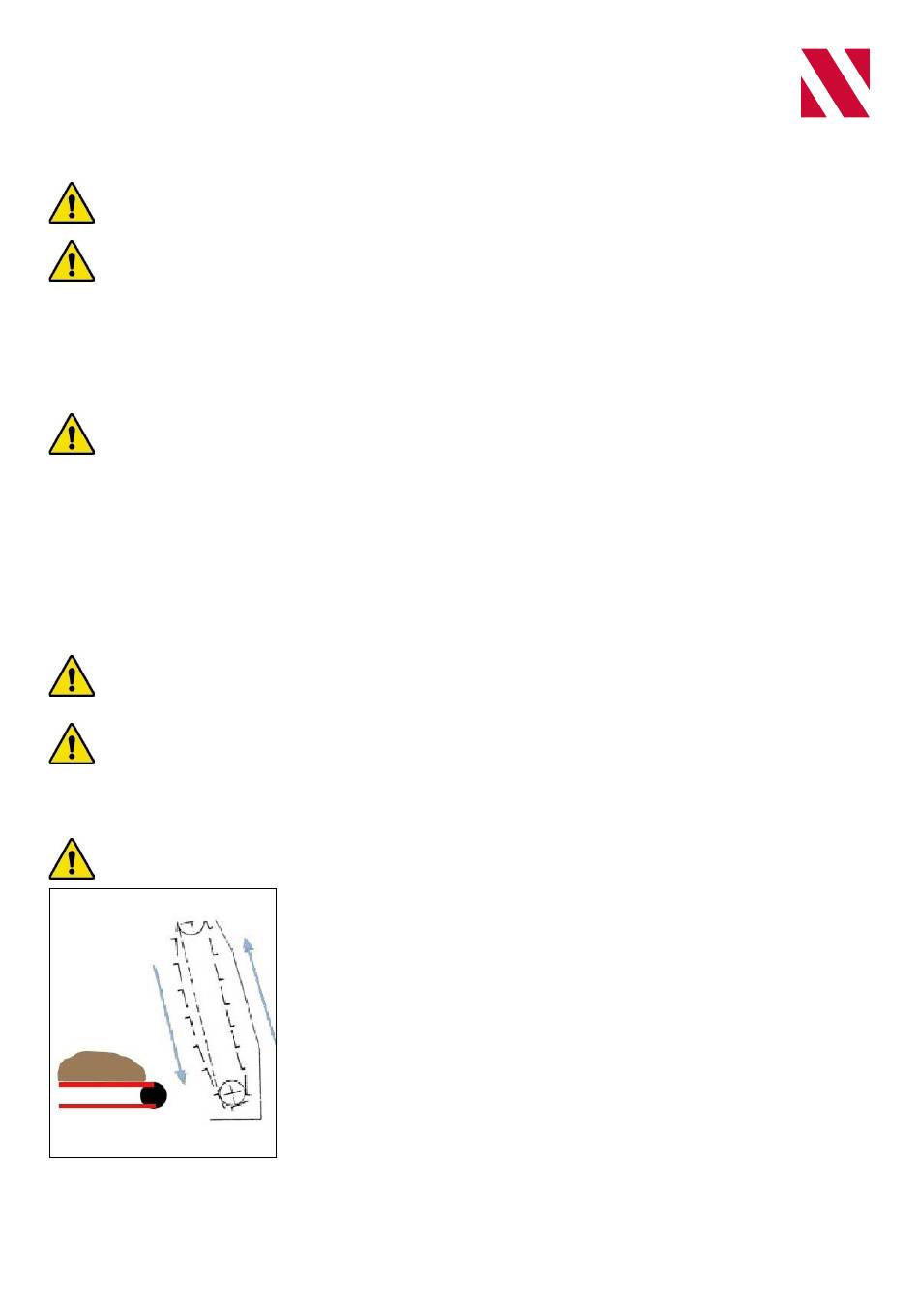

a. The correct direction of rotation is shown in this drawing.
4. Press the elevator button to stop the elevator.
5. Turn the main switch to off.
6. When the direction of rotation is wrong:
a. Remove the plug from the power socket.
b. Open the plug and interchange 2 of the 3 phase connections in the plug.
This may only be carried out by properly qualified personnel.
