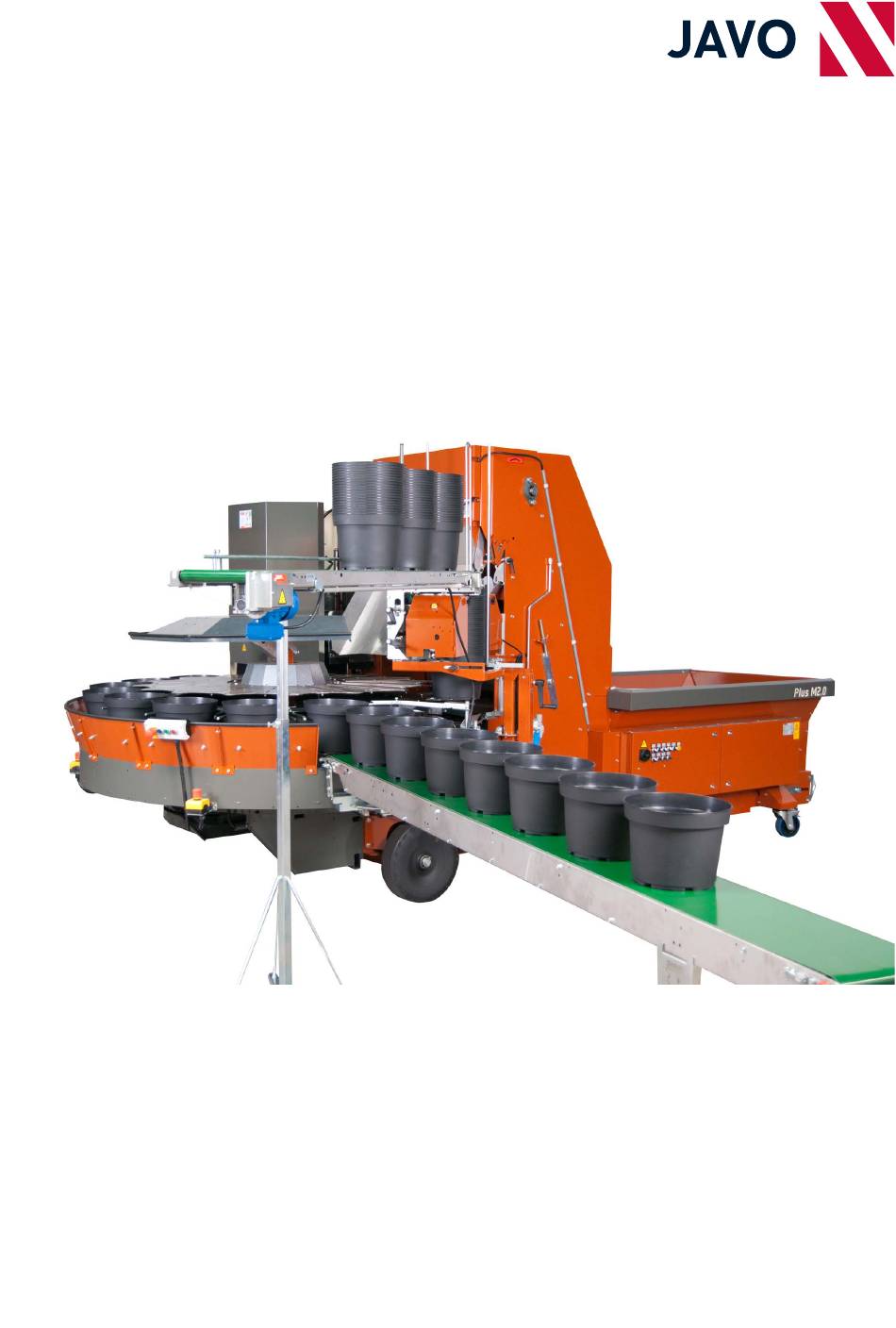

User Manual
Javo Plus M2.0
Original document
Version 22300779
© All rights reserved
No part of this publication may be reproduced and/or published by means of print, photocopy, microfilm, electronically on tape or
by whatever other means, for whatever purpose, without express prior written permission from Nobels BV.
A NOBELS GROUP COMPANY
Nobels BV
Bulb Trade Park 1
2211 SW Noordwijkerhout
The Netherlands
+31 (0) 252 343 121
info@javo.eu
www.javo.eu
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Javo Plus M2.0
Summary of Contents for Javo Plus M2.0
- Page 1 A NOBELS GROUP COMPANY User Manual Nobels BV Bulb Trade Park 1 2211 SW Noordwijkerhout Javo Plus M2.0 The Netherlands +31 (0) 252 343 121 info@javo.eu Original document Version 22300779 www.javo.eu © All rights reserved No part of this publication may be reproduced and/or published by means of print, photocopy, microfilm, electronically on tape or...
- Page 2 User manual for Javo Plus M2.0 Version 22300779 Preface This user manual is intended for all persons who work with or on the machine. You must read this manual before you start working with or on the machine. The user manual contains important instructions and information on the safe, expert and economic use of the machine.
-
Page 3: Table Of Contents
User manual for Javo Plus M2.0 Version 22300779 Index Technical specifications and tolerances 1.1. Type plate Safety 2.1. Instructions 2.2. Machine safeguards 2.3. Explanation of icons and symbols Description of the machine 3.1. Parts of the machine 3.2. Outline drawing with main dimensions 3.3. Options 3.4. - Page 4 User manual for Javo Plus M2.0 Version 22300779 Operating the machine 6.1. Starting the machine 6.2. Stopping the machine 6.3. Emergency stop Maintenance 7.1. Maintenance tools and equipment 7.2. Preventive maintenance 7.3. Emptying soil bin 7.4. Lubricating drill unit 7.5. Cleaning elevator buckets 7.6.
-
Page 5: Technical Specifications And Tolerances
User manual for Javo Plus M2.0 Version 22300779 1. Technical specifications and tolerances This machine is intended only for automatically filling pots with substrate. A hole is then drilled in the substrate, ready to receive a plant on the take-off conveyor. This machine is intended only for the processing of pots, substrates and other materials specified in this manual. The machine's function is explained in the “Operating principle” Section. This machine may be used only within the specifications and tolerances laid down in the order, assembly drawing and this manual. Nobels BV cannot accept any responsibility for this machine when it is used outside these limits. -
Page 6: Safety
User manual for Javo Plus M2.0 Version 22300779 2. Safety This machine was built on basis of the state-of-the-art technology and recognized safety regulations. Nevertheless, the use of the machine can endanger life and limb of the user or of third parties. The use of the machine can also result in damage to the machine or to other goods. -
Page 7: Machine Safeguards
User manual for Javo Plus M2.0 Version 22300779 2.2. Machine safeguards Guards and hatches are fitted for protection from moving parts. Always put the guards back in place and close the hatches before turning the machine on. The guards must be in place and the hatches closed while the machine is in use. -
Page 8: Description Of The Machine

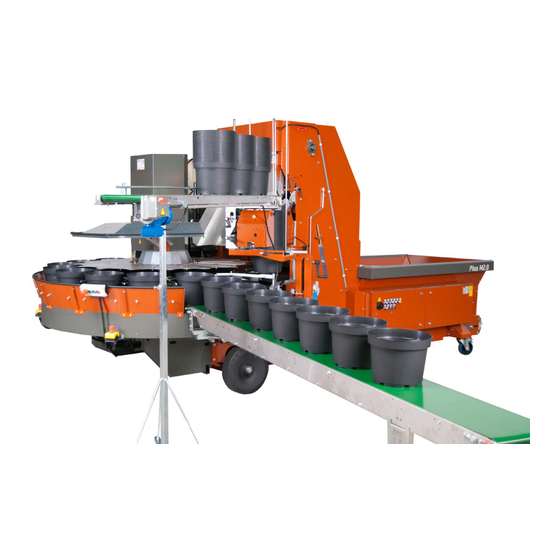

User manual for Javo Plus M2.0 Version 22300779 3. Description of the machine 3.1. Parts of the machine A. Soil bin B. Elevator C. Drill D. Pot track E. Pot dispenser (optional) 3.2. Outline drawing with main dimensions page 7 / 27... -
Page 9: Options
User manual for Javo Plus M2.0 Version 22300779 3.3. Options This machine may be fitted with various options as determined by the intensity of use and customer requirements. Contact your Sales Consultant about these. Options Code Specifications Cable, 5 x 1.5, 4 meters, incl. 16A plug 900965 Continuous plug box 900966 Nonstandard Standard 805. Extra heights of 6 x 25 Height of pot track ex factory 1600 liters extra (1.6m³) -
Page 10: Controls
User manual for Javo Plus M2.0 Version 22300779 3.6. Controls The motor is operated using the controls on the control panel, which are as follows: Stop button Start button Reset button Emergency stop The following buttons and connections are mounted on/fitted to the electrical cabinet: Drill ON/OFF Pot track ON/OFF Elevator ON/OFF Stopped / error Main switch Pot dispenser continuous / non-continuous Timer ON/OFF Soil supply ON/OFF... -
Page 11: Assembly, Installation And Commissioning
User manual for Javo Plus M2.0 Version 22300779 5. Assembly, installation and commissioning Follow all the instructions given in this manual, in particular the instructions in the Safety Section. This machine bears CE marking. When several machines are installed in one production line then the entire production line must bear appropriate CE marking before this machine may be commissioned. -
Page 12: Check Tension Of The Elevator Belts
User manual for Javo Plus M2.0 Version 22300779 5.4.2. Check tension of the elevator belts Check the tension of the elevator's belts before starting work with the machine. Procedure: Check the tension of the elevator belts. The tension is correct when the play in the middle of the belt is about 20 mm. -
Page 13: Adjust Drill
User manual for Javo Plus M2.0 Version 22300779 5.6. Adjust drill 5.6.1. Check drill's direction of rotation Check the drill's direction of rotation before starting work with the machine. Procedure: Connect the power cable. Turn the drill on. a. Turn the main switch to on. -
Page 14: Adjust Double Drill (Optional)
User manual for Javo Plus M2.0 Version 22300779 5.6.3. Adjust double drill (optional) Adjust the double drill unit before starting work with the machine. Procedure: Turn the main switch to off. Adjust the drill unit as described in “Adjust drill unit”. Remove the covers (at B) Loosen bolt (A) to adjust the position of the second drill head. -
Page 15: Adjust Soil Chute
User manual for Javo Plus M2.0 Version 22300779 5.7.3. Adjust soil chute Adjust the soil chute before starting work with the machine. The elevator empties the soil onto the soil chute. The soil chute directs the soil to the pots. Procedure: Loosen clamp lever (A). -
Page 16: Adjust The Pot Track Speed
User manual for Javo Plus M2.0 Version 22300779 5.8.2. Adjust the pot track speed Adjust the pot track speed before starting work with the machine. The speed can be adjusted with the potentiometers mounted on the switchbox or at the workstation (option). Procedure: Check the pot track speed. Adjust the pot track speed so that the pots can be filled precisely and processed. -
Page 17: Adjust The Final-Fill System (Optional)
User manual for Javo Plus M2.0 Version 22300779 5.10. Adjust the final-fill system (optional) 5.10.1. Final-fill system with fixed disk (optional) Adjust the final-fill system before starting work with the machine. Procedure: Slide the plates with the grip supplied with the unit down to the pots T urn the crank handle to adjust the height of the final-fill plate. Set the final-fill plates to just above the pots. -
Page 18: Adjust Pot Dispenser (Optional)
User manual for Javo Plus M2.0 Version 22300779 5.11. Adjust pot dispenser (optional) 5.11.1. Adjust pneumatic pot dispenser (POP) (optional) Adjust the pot dispenser before starting work with the machine. Procedure: Turn the machine on and turn it off again when the drill is at the bottom position. -
Page 19: Adjust Pneumatic Pot Dispenser (Mpo) (Optional)
User manual for Javo Plus M2.0 Version 22300779 5.11.2. Adjust pneumatic pot dispenser (MPO) (optional) Adjust the pot dispenser before starting work with the machine. Procedure: Turn the machine on and turn it off again when the drill is at the bottom position. Loosen clamp lever (A) and adjust the diameter with crank handle (B). -
Page 20: Version
User manual for Javo Plus M2.0 Version 22300779 5.11.3. Adjust pneumatic pot dispenser (LPO) (optional) Adjust the pot dispenser before starting work with the machine. Procedure: Turn the machine on and turn it off again when the drill is at the bottom position. Adjust the diameter of pot clamp (G) with crank handle (A). Turn crank handle (C) to lower pot clamper (G) until it contacts the pot row then turn 1 extra full turn so that the row is firmly clamped. - Page 21 User manual for Javo Plus M2.0 Version 22300779 5.11.4. Adjust empty pot buffer belt (optional) Adjust the empty pot buffer belt before starting work with the machine. Procedure: Turn the pot dispenser off. Place the end of the empty pot buffer belt on bracket (A) in the pot dispenser and tighten.
-
Page 22: Operating The Machine
User manual for Javo Plus M2.0 Version 22300779 6. Operating the machine Follow all the instructions given in this manual, in particular the instructions in the Safety Section. Keep hands, hair, loose clothing and/or jewelry, etc., clear of moving parts of the machine. Wear suitable garments without loose parts. -
Page 23: Maintenance
User manual for Javo Plus M2.0 Version 22300779 7. Maintenance Follow all the instructions given in this manual, in particular the instructions in the Safety Section. This machine must be maintained by qualified personnel in compliance with the warnings on the machine and in compliance with the user manual. -
Page 24: Emptying Soil Bin
User manual for Javo Plus M2.0 Version 22300779 7.3. Emptying soil bin Procedure: Turn the machine off and remove the plug from the power socket. Remove the soil from the soil bin. Clean the elevator buckets. Take the cover off (see photo). -
Page 25: Troubleshooting
User manual for Javo Plus M2.0 Version 22300779 7.7. Troubleshooting Problem Possible cause Action/solution Grid voltage differs from the nominal Provide for grid supply with the correct voltage by more than 10% voltage Cooling air temperature too high Provide for cool air... -
Page 26: Adjust (Increase) Soil Supply Belt Stroke
User manual for Javo Plus M2.0 Version 22300779 Problem Possible cause Action/solution Height of soil slide set too low, too little Raise height of soil slide. soil supplied to machine Height of soil slide set too low, tunnel of Raise height of soil slide. soil forms above soil supply belt. Soil supply rate too slow Follow procedure described in Subsection Soil supply belt supplies too little soil. -
Page 27: Spare Parts
We recommend that you register your machine on JavoNet. You then have online access to all the engineering drawings and documents for your machine. Visit our website (www.javo.eu) for more information or to request an account. 7.12. Customer service and advice Our technical department will be pleased to answer your questions about the maintenance and repair of your machine, and about replacement parts. We will also be pleased to advise you on the purchase, use and adjustment... -
Page 28: Ec Declaration Of Conformity
User manual for Javo Plus M2.0 Version 22300779 9. EC declaration of conformity In conformity with Machinery Directive 2006/42/EC, Annex II, section A Nobels BV Bulb Trade Park 1 2211SW Noordwijkerhout The Netherlands Declares that: Machine: Plus M2.0 Type: Potting machine conforms with the requirements of the Machinery Directive 2006/42/EC and of the EMC Directive 2014/30/EC complies with the follow harmonized European standards: Harmonized Harmonized...
