3.6. Controls
4. Transport
Follow all the instructions given in this manual, in particular the instructions in the Safety Section.
On delivery, a Javo engineer must be present to unload the machine from the truck or wagon.
Do not move the machine until the power cable and compressed air line have been disconnected. Make sure that
the hoses and cables are stowed properly.
Check the machine's condition before moving the machine at the company's site (when it does not need to be
lifted). First check that the route is unobstructed so that the machine can be moved to the required position without
problems.
Contact your supplier when the machine needs to be lifted for transport away from the company site, or call a
professional shipping company.
Do not move the machine until the transport belt (take-off conveyor) has been removed. The machine must be
transported upright. The relative humidity must not be too high, to avoid condensation in the machine.
Report any damage during or immediately after the delivery to the shipping company and to Nobels BV. Take all the
necessary measures to avoid further damage.
The motor is operated using the controls on the control panel. The control panel is
connected by a cable of a length sufficient to allow the use of the control panel at
any required position around the machine.

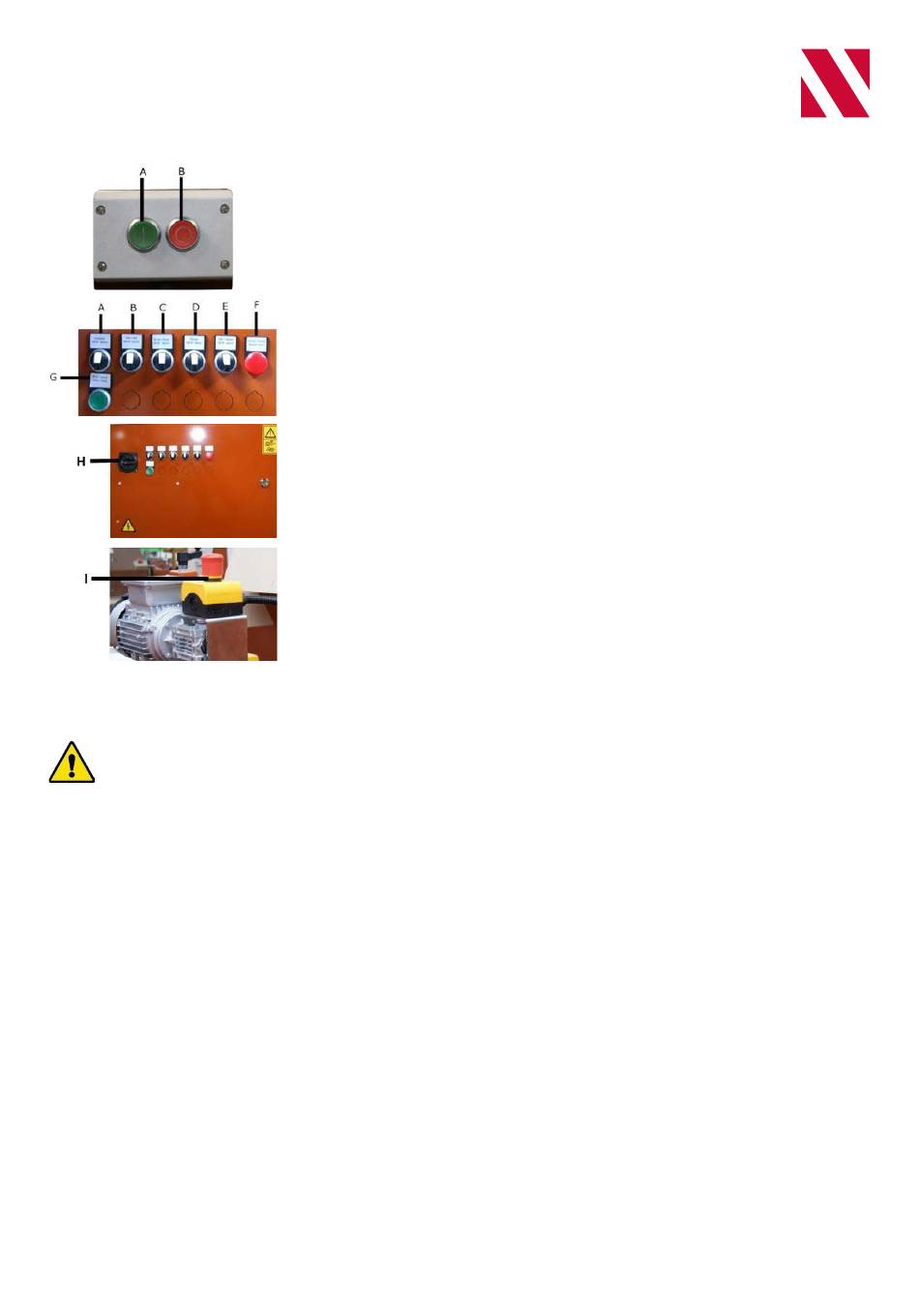

The control panel is fitted with the following buttons:
A. Start button
B. Stop button
The following buttons and connections are mounted on/fitted to the electrical
cabinet:
A. Compactor
B. Belt
C. Brush
D. Elevator
E. Vibrator
F. Stopped / error
G. Reset / ready
H. Main switch
The machine is fitted with emergency stop buttons:
I. Emergency stop button
off / on
off / on
off / on
off / on
off / on
