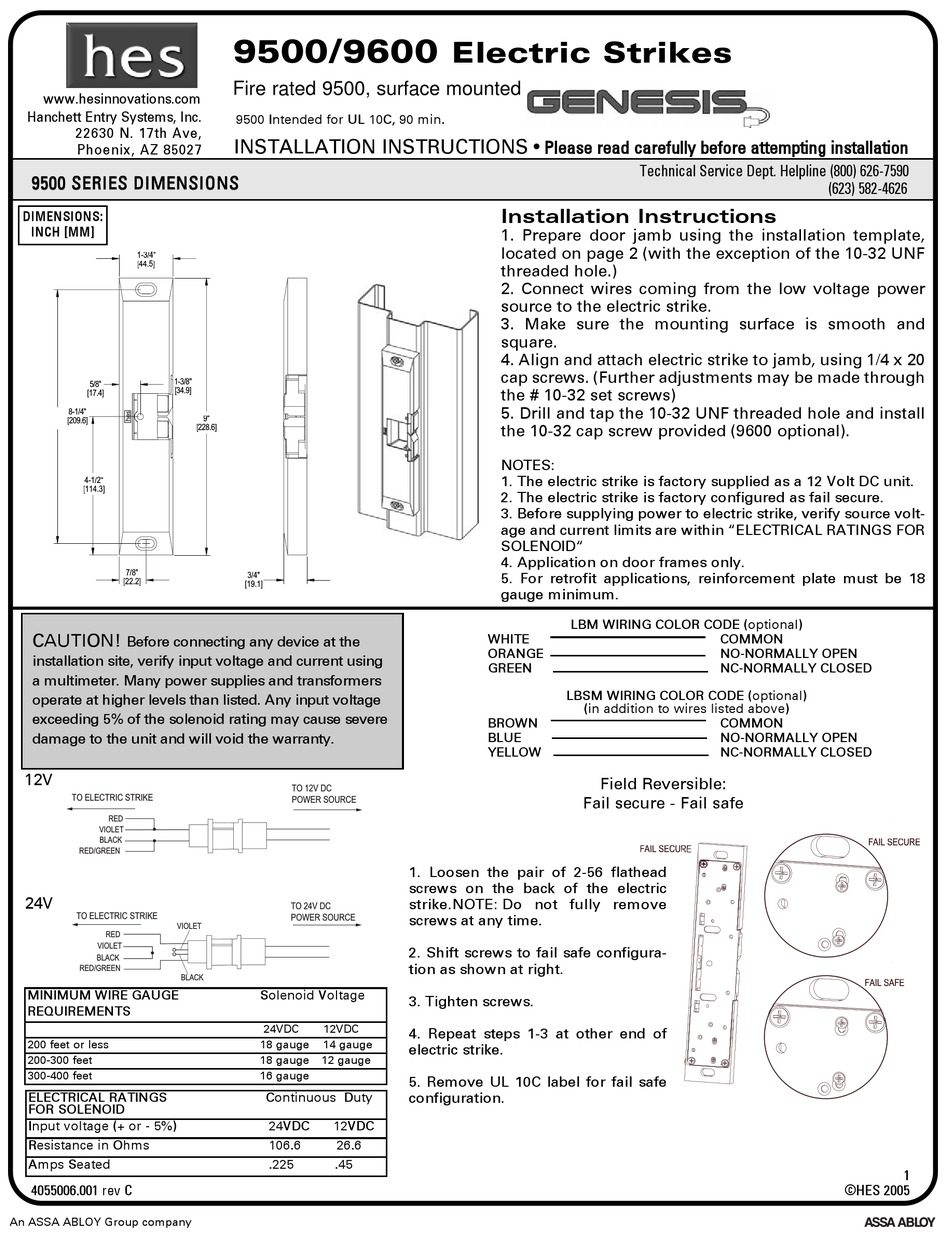

HES 9500 Series Installation Instructions

www.hesinnovations.com
Hanchett Entry Systems, Inc.
22630 N. 17th Ave,
Phoenix, AZ 85027
9 9 5 5 0 0 0 0 S S E E R R I I E E S S D D I I M M E E N N S S I I O O N N S S

DIMENSIONS:

INCH [ [ MM]
1-3/4"
[44.5]
1-3/8"
5/8"
[34.9]
[17.4]
8-1/4"
[209.6]
4-1/2"
[114.3]
7/8"
[22.2]
CAUTION!
Before connecting any device at the
installation site, verify input voltage and current using
a multimeter. Many power supplies and transformers
operate at higher levels than listed. Any input voltage
exceeding 5% of the solenoid rating may cause severe
damage to the unit and will void the warranty.
12V
TO ELECTRIC STRIKE
RED
VIOLET
BLACK
RED/GREEN
24V
TO ELECTRIC STRIKE
VIOLET
RED
VIOLET
BLACK
RED/GREEN
BLACK
MINIMUM WIRE GAUGE
REQUIREMENTS
200 feet or less
200-300 feet
300-400 feet
ELECTRICAL RATINGS
FOR SOLENOID
Input voltage (+ or - 5%)
Resistance in Ohms
Amps Seated
4055006.001 rev C
An ASSA ABLOY Group company
9500/9600
Fire rated 9500, surface mounted
9500 Intended for UL 10C, 90 min.
INSTALLATION INSTRUCTIONS •
9"
[228.6]
3/4"
[19.1]
TO 12V DC
POWER SOURCE
TO 24V DC
POWER SOURCE
Solenoid Voltage
24VDC 12VDC
18 gauge 14 gauge
18 gauge 12 gauge
16 gauge
Continuous Duty
24VDC 12VDC
106.6 26.6
.225 .45
Electric Strikes
P P l l e e a a s s e e r r e e a a d d c c a a r r e e f f u u l l l l y y b b e e f f o o r r e e a a t t t t e e m m p p t t i i n n g g i i n n s s t t a a l l l l a a t t i i o o n n

Installation Instructions

1. Prepare door jamb using the installation template,
located on page 2 (with the exception of the 10-32 UNF
threaded hole.)
2. Connect wires coming from the low voltage power
source to the electric strike.
3. Make sure the mounting surface is smooth and
square.
4. Align and attach electric strike to jamb, using 1/4 x 20
cap screws. (Further adjustments may be made through
the # 10-32 set screws)
5. Drill and tap the 10-32 UNF threaded hole and install
the 10-32 cap screw provided (9600 optional).
NOTES:
1. The electric strike is factory supplied as a 12 Volt DC unit.
2. The electric strike is factory configured as fail secure.
3. Before supplying power to electric strike, verify source volt-
age and current limits are within "ELECTRICAL RATINGS FOR
SOLENOID"
4. Application on door frames only.
5. For retrofit applications, reinforcement plate must be 18
gauge minimum.
LBM WIRING COLOR CODE (optional)
WHITE
ORANGE
GREEN
LBSM WIRING COLOR CODE (optional)
(in addition to wires listed above)
BROWN
BLUE
YELLOW
Fail secure - Fail safe
1. Loosen the pair of 2-56 flathead
screws on the back of the electric
strike.NOTE: Do not fully remove
screws at any time.
1. Loosen both screws on the back.
NOTE: Do not remove screws
at any time.
2. Shift screws to fail safe configura-
tion as shown at right.
2. Move up or down depending on
the operation.
3. Tighten screws.
3. Tighten screws.
4. Repeat steps 1-3 at other end of
electric strike.
5. Remove UL 10C label for fail safe
configuration.
Technical Service Dept. Helpline (800) 626-7590
COMMON
NO-NORMALLY OPEN
NC-NORMALLY CLOSED
COMMON
NO-NORMALLY OPEN
NC-NORMALLY CLOSED
Field Reversible:
FAIL SECURE
(623) 582-4626
FAIL SECURE
FAIL SAFE
