DPS Cable
24VDC Cable
Approved RFID Credential
Phillips P2 driver, RJ45 cable
PoE power injector (48VDC)
Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128bit encryption
Hub Power Requirement: 8-24VDC, 250mA
Lock Power: 48VDC Power over Ethernet (PoE) 802.3af compliant <OR> 24VDC Power Supply (Supply not provided)
Power Consumption: Less than 1W
Operating Temperature: -10C to 50C
Holding Force: 250 lbs
FCC Part 15, Compliant, Industry Canada Compliant
BHMA: A156.3, A156.36, A156.25 Compliant
Credentials Supported: 125kHz Proximity or 13.56MHz iCLASS, iCLASS SEOS, iCLASS SE, ISO1443B UID, Mifare, Mifare Plus,
Desfire SE, Desfire EV1, and NFC credentials are supported depending on lock model.
Part Number 3080006.008 Rev. 3
KS100-640 Aperio
Cabinet Lock Series
Installation Instructions

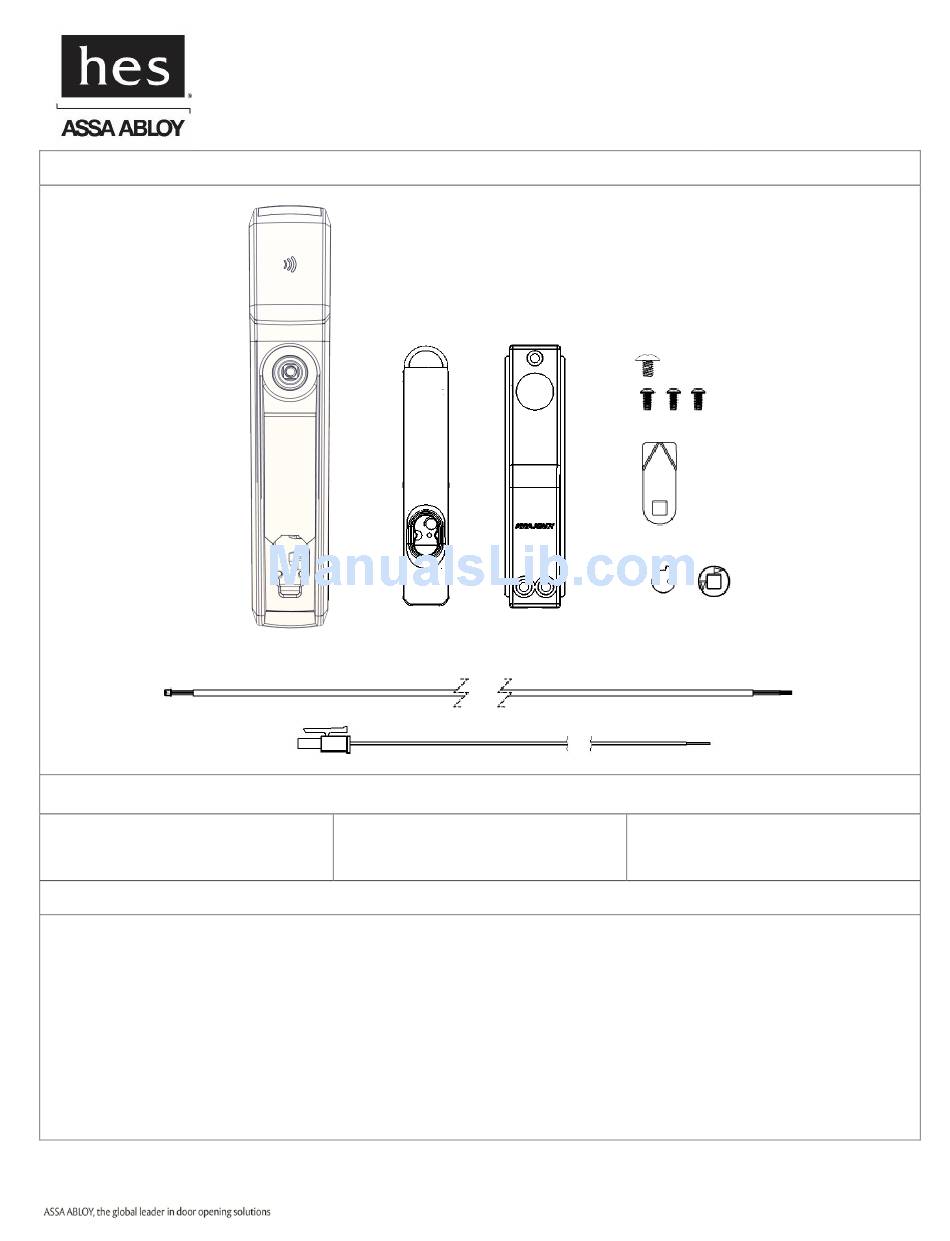

Package Contents
Lock
Handle
Recommended Tools
Optional Additional Tools:
Gang box to mount hub
SFIC Core for key override
Product Specifications
©2017, HES, Inc.
Mounting
SFIC
Plate
Cam
Optional Additional Tools:
Normally Open DPS switches
HES, Inc.
Phoenix, AZ
1.800.626.7590
www.hesinnovations.com
Mounting Screws
Cam
Handling
Selector
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HES KS100-640 Aperio
Summary of Contents for HES KS100-640 Aperio
-
Page 1: Installation Instructions
KS100-640 Aperio HES, Inc. Cabinet Lock Series Phoenix, AZ 1.800.626.7590 Installation Instructions www.hesinnovations.com Package Contents Mounting Screws Mounting SFIC Handling Lock Handle Plate Selector DPS Cable 24VDC Cable Recommended Tools Approved RFID Credential Optional Additional Tools: Optional Additional Tools: Phillips P2 driver, RJ45 cable... - Page 2 Wiegand wiring to the access control system where the decision is made to grant or deny access. Installation Steps A. Install an SFIC Core B. Prepare the Cabinet D. Install Handing Selector C. Install the Lock Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 3 1. Verify 48V POE power is available at the rack. 2. Re-use the existing cam if possible. 3. One cam is supplied. CAM LENGTH CAM DEPTH CAM 1 38mm [1-1/2"] 16mm [5/8"] CAM DEPTH Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 4 Tamper Switch NOTE: If the tamper switch is not fully depressed, you will see a flashing red light and the device will not read cards. Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 5 Note: Be careful not to insert/snap the handle all the way in as the lever will lock. Door edge 1. Insert handing selector into lock. 2. Position the arrows to point toward the door edge as shown above. 3. Secure cam with screw. Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 6 This page intentionally left blank Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 7 This page intentionally left blank Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
- Page 8 (1) cet appareil ne peut causer d’interférences, et (2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique. For Technical Support please call 1-800-626-7590 Part Number 3080006.008 Rev. 3 ©2017, HES, Inc.
