HES, Inc.
Phoenix, AZ
1.800.626.7590
www.hesinnovations.com
KS200-640 Server Cabinet Lock Series

Installation Instructions

3085006.002 Rev. 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS200-640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HES KS200-640

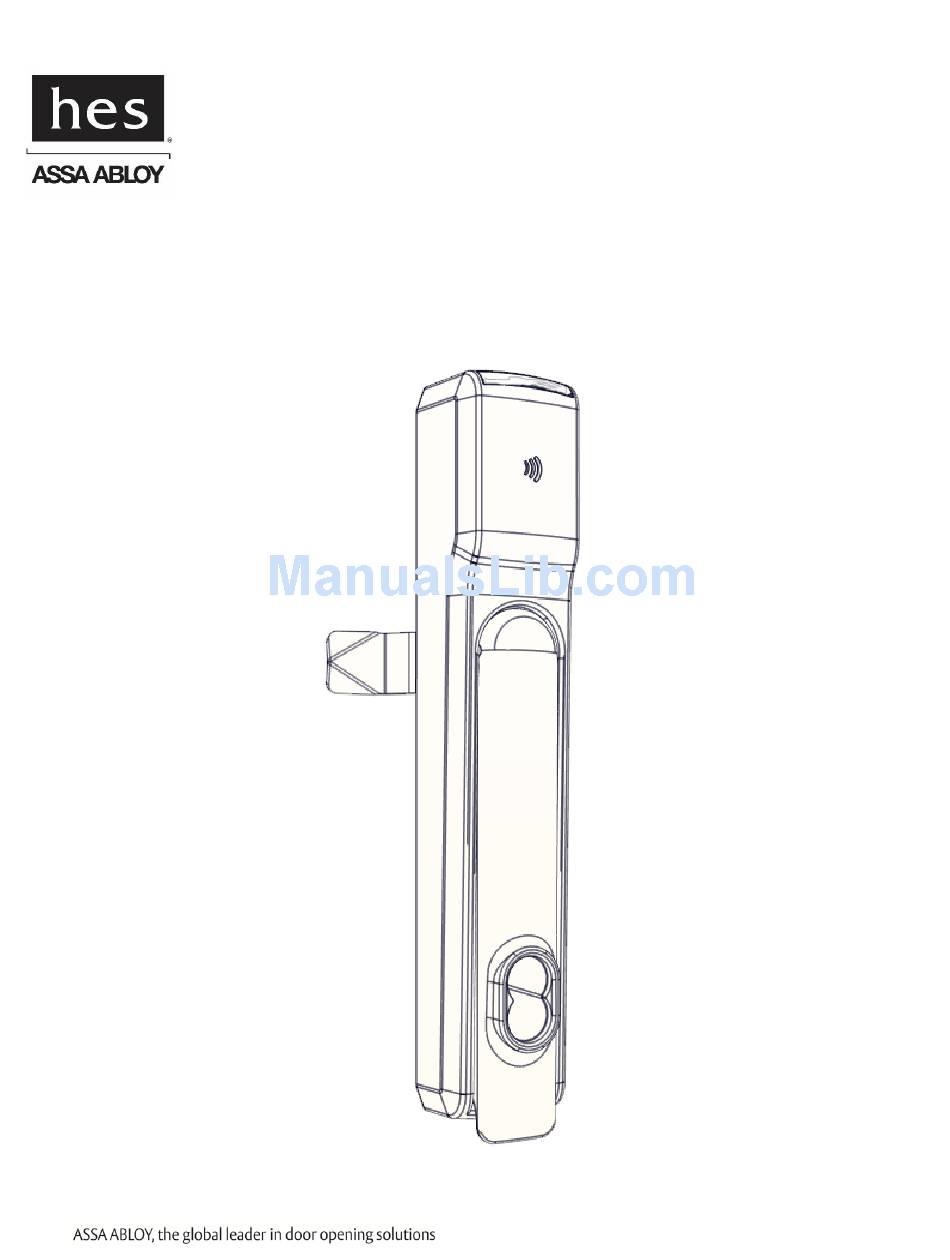

  • Page 1: Installation Instructions

    HES, Inc. Phoenix, AZ 1.800.626.7590 www.hesinnovations.com KS200-640 Server Cabinet Lock Series Installation Instructions 3085006.002 Rev. 3...
  • Page 2: Package Contents

    WT-2 Wiegand Test Box SFIC Blank Plastic Core Specifications Voltage: 12–24 VDC ±10% (Power Supply not provided) KS200-640 (Reader) Current Consumption: 12 VDC: 37 mA peak for Red and Green LED only 470 mA peak for Red and Green LED and Motor Drive...
  • Page 3 When the EAC provides an active-high unlock signal to the lock in the access granted case, the KS200-640 drives a motor to complete the unlock/lock cycle. EAC indication of user access/denial is provided to the user by way of LED control inputs on the lock. Additional lock monitoring features (e.g., door position, tamper) are monitored within the lock and status provided to the EAC.
  • Page 4: Installation

    Installation 1. Installing an SFIC Core NOTE 1: A key override (SFIC) provides a backup entry method in the rare case the KS200 or EAC is inactive (Recommended). NOTE 2: The included SFIC cam has been tested with Medeco and Sargent 6- or 7-pin SFIC cores. SFIC SFIC Core...
  • Page 5: Installing The Lock

    3. Installing the Lock 1. SLIDE lock into cutout. NOTE: (Optional) The DPS signal is closed when the handle is resting in its locked position. The DPS circuit can be extended to include normally open DPS switches arranged in a series to monitor additional doors and panels.
  • Page 6 5. ATTACH rear bracket with screws. 6. ENSURE that the lock is fully secured and flush to the mounting surface in order to depress tamper switch on back of device for correct operation. NOTE: If the tamper switch is not fully depressed, the lock opens the Tamper/DPS+/- contact.
  • Page 7 5. Attaching the Wiring New 4-/8-Pin Molex Integrated Wiegand: K/KS200 Cabinet Locks, ElectroLynx Wire Color/Function Assignments Connector 8-Pin Molex Connector 4-Pin Molex Connector Pin/Wire Color Black White Green Blue Yellow Violet Pink Gray 12/24 12/24 12 VDC Wiegand 12 VDC Wiegand Tamper/ Tamper/...
  • Page 8 Connector and Cable Diagram 3085006.002 Rev. 3...
  • Page 9 Server Cabinet Wiring Example 3085006.002 Rev. 3...
  • Page 10 6. Testing the Lock with the Access Control System 1. TEST the lock with a known good credential to confirm it will open as desired when installed. a. PRESENT a credential known to the EAC. b. LIFT lever and TURN to open the cabinet. 3085006.002 Rev.
  • Page 11 This page intentionally left blank 3085006.002 Rev. 3...
  • Page 12 (4) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique. Conformité aux normes CE HES déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE (http://ec.europa.eu/enterprise/sectors/rtte/files/guide2009-04- 20_en.pdf).
