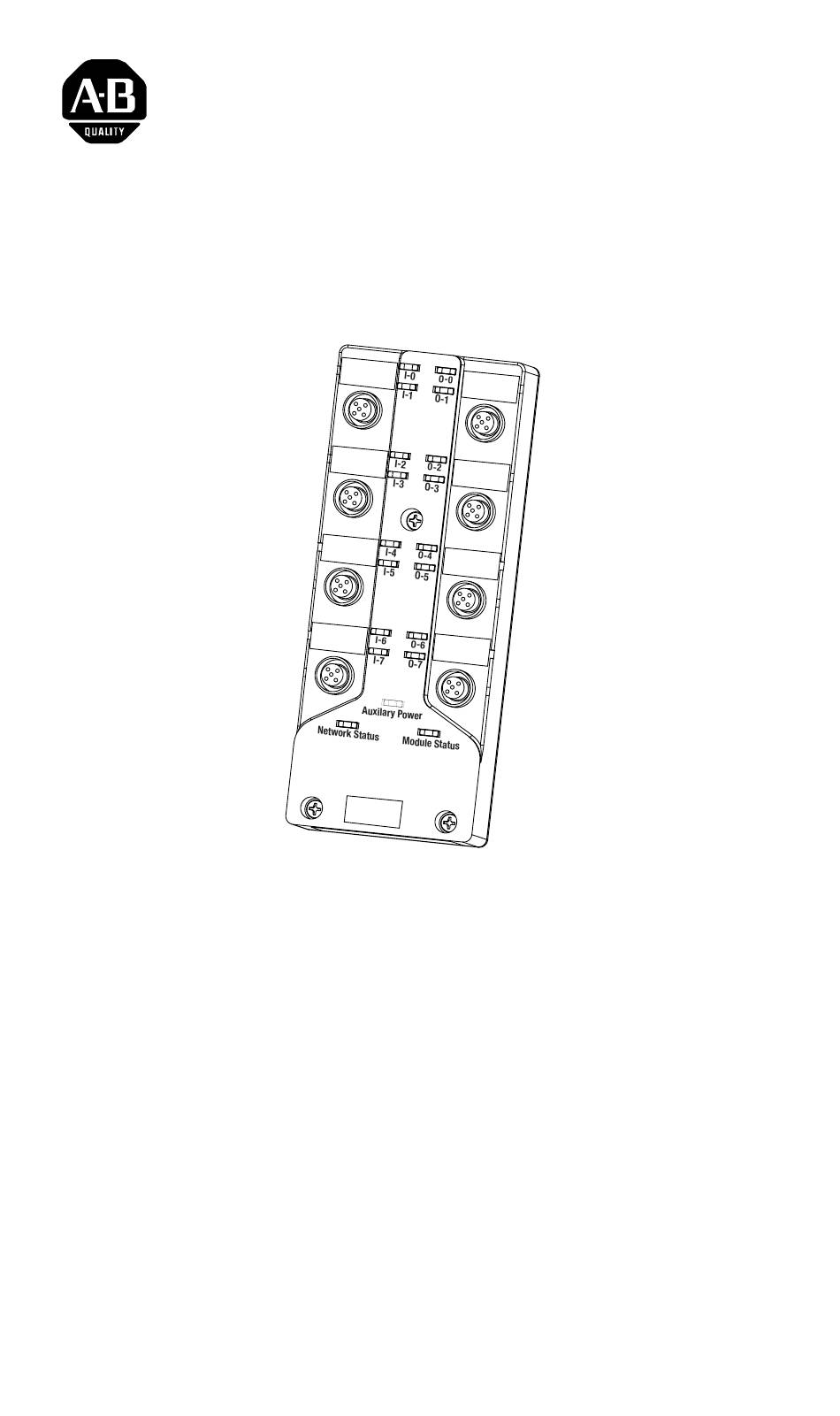

Installation Instructions
ArmorBlock MaXum 8 Input / 8 Output
Module
(Cat. No. 1792D-8BVT8D)
41516
This ArmorBlock MaXum™ I/O module (Cat. No. 1792D-8BVT8D) is a
stand-alone 24V dc I/O product which communicates via a DeviceNet
network. The sealed housing of this module requires no enclosure.
This model has 8 inputs and 8 outputs accessed through Y splitter cables.
Inputs are 24V dc automatically configured for PNP (sourcing) or NPN
(sinking) devices. Eight self-protected 24V dc outputs can provide up to
0.5 amp each. Diagnostic features included are short circuit, open wire and
no load detection reported to the point level.
Package Contents
Your package contains:
• 1 ArmorBlock MaXum Module
• Installation Instructions
(Please note: Cable bases are ordered and shipped separately.)
Publication 1792D-5.20 - October 1998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArmorBlock MaXum 1792D-8BVT8D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allen-Bradley ArmorBlock MaXum 1792D-8BVT8D

Summary of Contents for Allen-Bradley ArmorBlock MaXum 1792D-8BVT8D

  • Page 1 Installation Instructions ArmorBlock MaXum 8 Input / 8 Output Module (Cat. No. 1792D-8BVT8D) 41516 This ArmorBlock MaXum™ I/O module (Cat. No. 1792D-8BVT8D) is a stand-alone 24V dc I/O product which communicates via a DeviceNet network. The sealed housing of this module requires no enclosure. This model has 8 inputs and 8 outputs accessed through Y splitter cables.

  • Page 2: European Union Directive Compliance

    EN 61131-2 Programmable Controllers, Part 2 - Equipment Requirements and Tests. For specific information required by EN 61131-2, see the appropriate sections in this publication, as well as the following Allen-Bradley publications: • Industrial Automation Wiring and Grounding Guidelines For Noise Immunity, publication 1770-4.1...

  • Page 3: Install Your Armorblock Maxum I/O Module

    ArmorBlock MaXum 8 Input / 8 Output Module Install Your ArmorBlock MaXum I/O Module To install module: • Set the node address. • Mount the module to the cable base. • Connect the cord sets. • Communicate with the module. Set the Node Address Valid node addresses are 00 to 63.

  • Page 4: Install The Module

    ArmorBlock MaXum 8 Input / 8 Output Module Install the Module This module mounts to the following cable bases: • 1792D-CBFM for KwikLink flat media installation • 1792D-CB12 for 12mm drop cable installation • 1792D-CB18P for round media DeviceNet and output power •...

  • Page 5: Connect The Input / Output Cord Sets To The Maxum Module

    ArmorBlock MaXum 8 Input / 8 Output Module Connect the Input / Output Cord Sets to the MaXum Module This module uses 5 pin micro (12mm) style PCB mounted connectors. Eight micro caps cover the connectors on your module. Remove the caps and connect your cord sets to the appropriate ports.

  • Page 6: Output Power And Devicenet Cables

    ArmorBlock MaXum 8 Input / 8 Output Module I/O connectors for this module are shown below. Input 0 Output 0 Connector A Connector E Input 1 Output 1 Input 2 Output 2 Connector B Connector F Input 3 Output 3 Output 4 Input 4 Connector G...
  • Page 7 ArmorBlock MaXum 8 Input / 8 Output Module Polled device - a master initiates communication by sending its polled I/O message to the module. The 8 input / 8 output module consumes the message, updates outputs, and produces a response. The response has input data, input faults, output faults, and the status of the Auxiliary power.
  • Page 8 ArmorBlock MaXum 8 Input / 8 Output Module 00-07 Output no load or overload fault (OFLT): - When the bit is set (1) an output fault has occurred. OFLT0 corresponds to output 0, OFLT1 corresponds to output 1, OFLT2 corresponds to output 2, OFLT3 corresponds to output 3, Produces 2 OFLT4 corresponds to output 4, OFLT5 corresponds to output 5, OFLT6 corresponds to output 6, OFLT7...

  • Page 9: Troubleshoot With The Indicators

    ArmorBlock MaXum 8 Input / 8 Output Module Troubleshoot with the Indicators This module has the following indicators: • Network status indicator • Module status indicator • Auxiliary Power indicator • Individual I/O status indicators for inputs 0 through 7 and outputs 0 through 7.
  • Page 10 ArmorBlock MaXum 8 Input / 8 Output Module Network Status Indicator NS Indication Status None Not On-line Green Blinking On-line/No Connections Solid On-line/Connected Solid Failed Communication: A duplicate node address exists or module is at the wrong baud rate. Auxiliary Power Indication Status None...

  • Page 11: Specifications

    ArmorBlock MaXum 8 Input / 8 Output Module Specifications 8 Input / 8 Output Module - Cat. No. 1792D-8BVT8D Input Specifications Inputs per block 8 - 3 wire or dry contact PNP or NPN devices or 4 - 4 wire PNP or NPN devices Sensor Source Current (per input) 50mA Off-Wire Sense Current...
  • Page 12 ArmorBlock MaXum 8 Input / 8 Output Module 8 Input / 8 Output Module - Cat. No. 1792D-8BVT8D General Specifications Conductors Publication DN-6.7.2 Enclosure Meets or exceeds IP67 Agency Certification (when • CSA certified product is marked) • CSA Class 1, Division 2, Groups A, B, C, D certified •...
