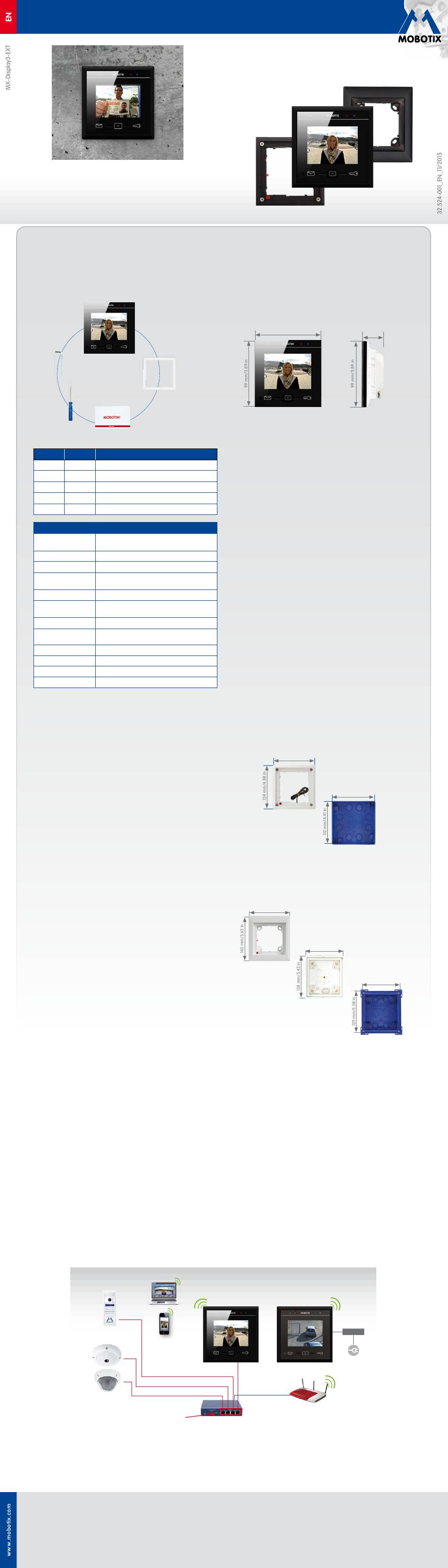

Mobotix MxDisplay Plus Quick Install

Quick Install
• IP-based intercom with touchscreen for MOBOTIX door stations
• Video Management Software for MOBOTIX systems included
• Access control: issuing, changing and disabling of RFID cards
• WiFi access point and client functionality integrated
• Flush-mounting in-wall or on-wall installation
• Fits into any MOBOTIX door station frame
The MxDisplay+ can be used as an intercom to a MOBOTIX IP video door station, but also to integrate and operate up to eight additional video sources
(cameras and door stations). When using the MxDisplay+ as an intercom, the following functions are available: live image, intercom, open door, switch
light, access mailbox, playback recordings and manage RFID cards. In addition, the MxDisplay+ can be used to configure the entire door station/camera
system and as a WiFi access point. If a wired network connection is not available, the device can also work as a WiFi client to get a network connection.

Delivered Parts

1.1
1.5
1.4
Item Number Part Name
1.1 1 MxDisplay+
1.2 1 Seal
1.3 1 RFID card (administrator)
1.4 1 Screwdriver
1.5 1 Allen wrench 2.5 mm

Technical Specifications

Operating equipment Touchscreen with 3 soft touch function keys
(multiple functions), 2 status LEDs
Interface Ethernet, WiFi (access point, client)
Display size
3.5", 320 x 240 pixels (CIF)
Outputs 1 potential-free output (max. load per pin: max.
30 W or max. 1 A or max. 48 V AC/DC)
Inputs 3 self-powered inputs, ext. temperature sensor
Operating conditions
Indoors, temperature range
0 to +40 °C/+32 to +104 °F
Power supply
PoE or 12 to 48 V DC
Cross-sectional area of
0.14 mm² – 0.5 mm² (AWG 21 – 26)
wires at the terminals
Power input
typ. 3.5 W
RFID Mifare DESFire EV1
WiFi
IEEE 802.11b/g/n, 2.4 GHz band
Ethernet
PoE (IEEE 802.3af, class 2)

Available Accessories for the FlatMount Frame

When using the FlatMount Frame, the MxDisplay+ can be installed in-wall either with an in-wall housing or without (cavity).
1. FlatMount Frame
Order No.: MX-OPT-FlatMount-EXT-PW
Order No.: MX-OPT-FlatMount-EXT-BL
2. In-wall housing
Order No.: MX-OPT-FlatMount-Box-EXT-IN

Available Accessories for the Single Frame

When installing the MxDisplay+, you can choose between two frames: the single frame and the FlatMount Frame. Using the single frame, you have
the choice between on-wall and in-wall mounting. Note that the space is quite limited when using on-wall mounting.
1. Single frame
Order No.: MX-OPT-Frame-1-EXT-PW
Order No.: MX-OPT-Frame-1-EXT-BL
2. Single on-wall and in-wall housings
• On-wall housing
Order No.: MX-OPT-Box-1-EXT-ON-PW
Order No.: MX-OPT-Box-1-EXT-ON-BL
• In-wall housing
Order No.: MX-OPT-Box-1-EXT-IN

Power Supply and Network Connection

Power Supply
To supply power to the MxDisplay+, the following options exist:
• PoE (Power over Ethernet) using a CAT.5 to CAT.7 installation cable
• using an external power supply (12 to 48 V DC) that is connected to the MxDisplay+ by a two-wire cable
Using PoE as a power supply, all you need is a PoE switch or a MOBOTIX NPA PoE Adapter. When integrating MxDisplay+ into an existing network,
using a PoE switch with several PoE ports is recommended – especially when several PoE-supplied end devices are to be connected. When powering
MxBus devices, you need to use either PoE or an 48 V DC power supply.
Network Connection
To connect MxDisplay+ to a network, the following options exist:
• together with power supply via PoE (see above)
• with Ethernet installation cable, but without PoE power supply
• via an existing WiFi network
Recommendation
The easiest and, more importantly, most reliable network connection for the MxDisplay+ is to use the network cabling for power supply and network
connectivity (PoE). By nature, WiFi networks are bound to experience temporary disruptions. Therefore, it is not recommended to use a WiFi network
connection for the MxDisplay+ if you need a reliable and permanently available door station intercom.
Installation Example with Two MxDisplay+ Units
Door station(s)
Cameras
MxDisplay+ 1 is connected via a failsafe PoE connection and serves as remote station for the door station as well as WiFi access point for
additional remote stations (iPhone, iPad). MxDisplay+ 2 is farther away and uses the WiFi network of the DSL router. It is used primarily as video
Innovations - Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video
systems cost-efficient.
MOBOTIX AG • Security-Vision-Systems • D-67722 Langmeil • Phone: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com
1.2
1.3
(white)
(black)
(white)
(black)
(white)
(black)
PoE-powered ports
management system to monitor and configure the installed cameras.
MxDisplay+

MxDisplay+: Intercom for Door Stations

Dimensions
Order No.: MX-Display3-EXT
99 mm/3.89 in
• The MxDisplay+ is only to be used together with the MOBOTIX
original frames and the in-wall and on-wall housings.
• The MxDisplay+ must not be installed in metallic materials, since
this will prevent the RFID antenna from working properly and may
even destroy the RFID chip.
• Electrical installation: Electrical systems and equipment may only
be installed, modified and maintained by a qualified electrician
or under the direction and supervision of a qualified electrician in
accordance with the applicable electrical guidelines. Make sure
to properly set up all electrical connections.
• Network security: MOBOTIX products include all of the necessary
configuration options for operation in Ethernet networks in compliance
with data protection laws. The operator is responsible for the data
protection concept across the entire system. The basic settings
required to prevent misuse can be configured in the software and
are password-protected. This prevents unauthorized parties from
accessing these settings.
• This product must not be used in locations exposed to the dangers
of explosion.
• The installation of this product must only be on or in suitable solid
materials that allow for a stable installation of the fixing devices.
• When powering MxBus devices, you need to use either PoE or an
48 V DC power supply.
• Make sure the device is not operated outside of its operating
temperature range of 0 to +40 °C/+32 to +104 °F.
124 mm/4.88 in
131 mm/5.16 in
MxDisplay+ 1
PoE switch & router
Security-Vision-Systems
37 mm/
1.46 in

Important Notes

112 mm/4.41 in
126 mm/4.96 in
117 mm/4.61 in
MxDisplay+ 2
Power supply
24 V DC
DSL router
