Mobotix T25 Integration Note
  1. Manuals
  2. Brands
  3. Mobotix Manuals
  4. Intercom System
  5. T25
  6. Integration note

Mobotix T25 Integration Note

Hide thumbs Also See for T25:

Advertisement

Quick Links

Download this manual
Manufacturer:
Model Number(s):
Comments:
Document Revision Date:
O
VERVIEW AND

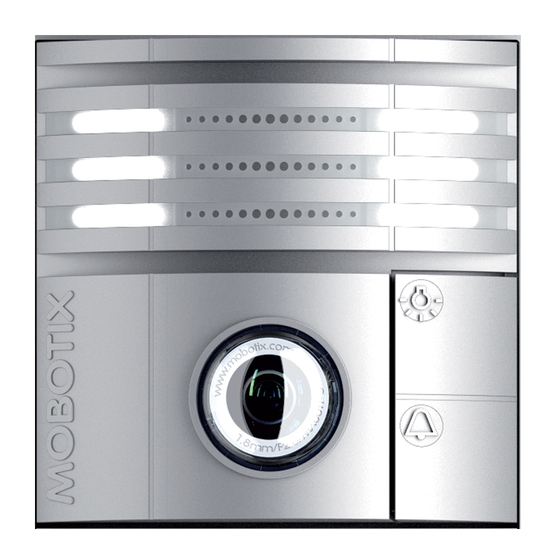

The MOBOTIX T25 SIP Door Station is a network based SIP Door Station solution with an integrated
video camera for monitoring door activity. ELAN integration with this door station supports the following
features:
1. Paging- When the "Call" button is pressed on the Door Station, it will call all appropriate Intercom
Stations based on the configured dial plan of the ELAN System. Refer to the Intercom Training
Guide on the ELAN dealer site for extensive details on setting up dial plans.
2. 2 Way Calls- A user at an Intercom Station can converse with the person who pressed the "Call"
button.
3. Video Monitoring- The camera in the Door Station may be accessed from any Intercom Station
to view the caller. Additionally, as of version 8.0 of ELAN the video may be previewed prior to
answering a call on the intercom clients when the doorbell button is pressed.
4. Relay/Door Strike Actuation through the UI and Event Mapper- As of the release of ELAN
7.3, Relays and Door Strikes are supported through the Door Station Interface. See "Setting up
the ELAN Mobotix IP relay control driver" below.
ELAN | SpeakerCraft
1800 South McDowell Blvd., Petaluma CA 94954 • Toll Free: 800.472.5555 • Fax: 707.283.5901
Mobotix
MOBOTIX T25
Board Revision 4.4, Bootloader 7.3.0.0, OS Release 2.6.37.6+, FS
Release MX-V4.4.2.51-r1
Minimum Core Module 7.2.xxx
7/12/17
S
F
UPPORTED
EATURES
| Gefen
| Furman | Niles | Panamax | Sunfire | BlueBOLT | Proficient | Xantech
Integration Note

Advertisement

loading
Need help?

Need help?

Do you have a question about the T25 and is the answer not in the manual?

Questions and answers

Related Manuals for Mobotix T25

Summary of Contents for Mobotix T25

  • Page 1 VERVIEW AND UPPORTED EATURES The MOBOTIX T25 SIP Door Station is a network based SIP Door Station solution with an integrated video camera for monitoring door activity. ELAN integration with this door station supports the following features: 1. Paging- When the “Call” button is pressed on the Door Station, it will call all appropriate Intercom Stations based on the configured dial plan of the ELAN System.

  • Page 2: Installation Overview

    Door Station. Log in to the door station. By default, the user name is admin and the password is either t25 for US versions or meinsm for euro versions. You will be taken to the Configuration Utility as shown below:...
  • Page 3 4. Select the “Admin Menu” button on the left to access the Administration Overview screen. Note: If a Quick Installation window pops up then click the Skip button at the bottom to access the page shown below: 5. Scroll down to the Network Setup section and click the link for Ethernet Interface (for experts). a.
  • Page 4 6. Scroll down to the Configuration section and Select the “Store” link. i. Click the “Store Permanently” button. ii. Follow the on-screen setups to Reboot the camera. 7. Wait for the camera to come back online then browse to the camera at its new IP address. Click the Admin Menu to continue configuring the door station.
  • Page 5 iv. Under “Network Settings” change the “Audio Data Timeout” to “60 sec.” v. Under Audio Message Settings 1. Change “Welcome Message for Incoming Calls” to “Disabled” 2. Change “Welcome Message for Outbound Calls” to “Disabled” 3. Change “Delay Before Welcome Message” to “Disabled” 4.
  • Page 6 vi. Under OSD Settings 1. Set “Auto Hide OSD” to “Enabled” 2. Set “Setup OSD to “Disabled” vii. Under Audio Codec Settings 1. Uncheck Use G.722 & PCMA Codecs 2. Check Use PCMU & GSM Codecs viii. Under “Video Settings” 1.
  • Page 7 c. Select “Outgoing Call Settings” i. Click the “Add new profile” button to create a new Profile 1. Set “Phone Number or SIP Address” to elan@x.x.x.x, where x.x.x.x is the local IP Address of the ELAN controller 2. Set “Connection Type” to “SIP Video” 3.
  • Page 8 d. Select “Incoming Call Settings” i. Set “Phone Call-In” to “VoIP” ii. In the “Accepted Phone Numbers or SIP Addresses” field, enter sip:elan@x.x.x.x, where x.x.x.x is the local IP address of the ELAN Controller iii. Clear out the Pin Code field. iv.
  • Page 9 From the “Video Door Station” heading, Select the “Bell Behavior and Video Mailbox” link i. Click the “More” button in the lower right. ii. Optional: Under Basic Settings, Check the box for Door Station Bell Sound and select DoorBell in the dropdown. iii.
  • Page 10 NOTE: This step is for configuring the relay outputs on the door station. Since some of the Mobotix units do NOT support this functionality this link maybe inactive. If this is the case then skip to the next step to Store the configuration below.
  • Page 11 9. Once the door station has come back online, navigate back to its web interface and click the Setup Menu (not the Admin Menu). a. Under the Image Control section, select “General Image Settings.” i. Set the Image Size to XGA (1024x768). ii.
  • Page 12 c. Under the Event Control section, select “Action Group Overview.” i. Click the Edit button ii. Set the Action Group drop down to “Enabled.” iii. Set the Event Selection drop down to (Signal: CameraBellButton) iv. Under the Actions section, set the Action 1 value to Phone Call: <Call Profile> v.
  • Page 13 Video tab add the Mobotix built in camera using the ELAN Generic URL Video Camera as shown below. Set the IP Address field to match the IP of the Mobotix unit. On the Configurator Messaging tab select the camera as the Video on the door station as shown above.
  • Page 14 ONFIGURE THE RELAY OUTPUTS As of the release of ELAN 7.3, the relays on the Mobotix door station may be controlled from a button on the ELAN UI. This allows the end user to press a button in the interface to open the door after verifying to whom they are speaking.

  • Page 15: Common Mistakes

    ISTAKES 1. Door station not populating in configurator. a. Verify all Mobotix configuration per above. b. Verify the door station is on the same network as the ELAN controller. c. Verify the configurator ELAN SIP Server is configured and the option is set to Enrollment Open.
