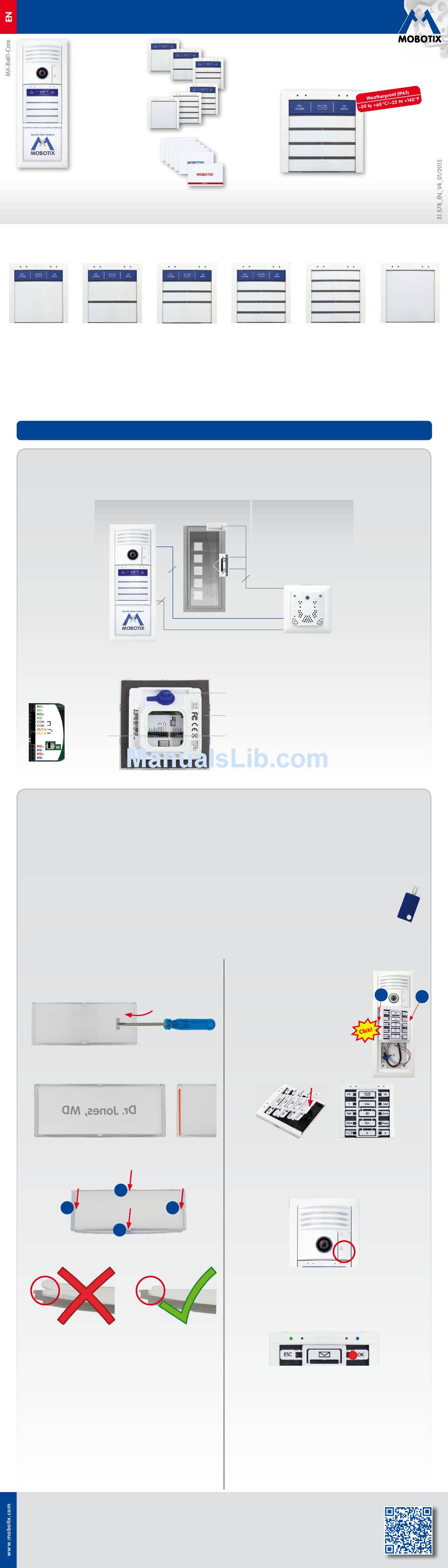

Mobotix BellRFID MX-Bell1-Core Quick Install

Quick Install
MOBOTIX BellRFID
Cindy Jones MX-Bell1-Core
(in IP Video Door Station
Thomas Jones
triple frame white)
The Jones Family
Dr. Jones, MD
(1 admin card, 5 user cards)
• BellRFID base module with 1 admin and 5 user RFID cards
• Interchangeable bell button sets (not included)
• Integrated RFID technology for keyless entry
• Available colors: white, silver, dark gray, black, amber
• Usable with/without function button for mailbox control
• Up to 60 hrs backup power supply using DoorMaster (accessory)
The Jones
Family
Dr. Jones, MD
MX-Bell1-Button-F1 MX-Bell1-Button-F2
Large bell button 2 medium-size bell buttons
with function button with function button
You can use the blue function button at the door station to listen to new mailbox
messages, record new announcements and activate/deactivate the mailbox.
Visitors can leave a message even without the function button. The remaining
mailbox features are easily controlled using the remote station of the door
station (i.e., MOBOTIX App).
Use our free-of-charge Printing Service on w w w . m o b o t i x . c o m , Support section!
BellRFID
InfoModule
I/O Terminal
Before starting the installation and initial operation, you should download part 1 and 2 of the door station's System Manual from the MOBOTIX website
(www.mobotix.com > Support > Manuals).
If the installation of the IP Video Door Station with BellRFID is not followed by the initial operation right away, MOBOTIX recommends to remove the keypad
insert and to insert the button set before starting the installation. This way, the soft rubber surface of the BellRFID base module is well protected until the
module is brought into service (bell buttons are then replaced by the keypad insert). Note that the base module is weatherproof even without the bell
buttons.
When replacing the button set or exchanging name plates, you need to remove the module from the frame of the IP Video Door Station. Use the
blue MOBOTIX key for unlocking the module. Make sure that you are activating the mechanical theft protection with the red turning knob
in the door station frame only after you have finished the initial operation (see the Section «Mechanical Anti-Theft Protection Lock» in the
door station's System Manual Part 1 ).
In order to avoid having to remove the module and install it again, you should insert the proper name plates before starting the initial operation.
Use our free-of-charge printing service on www.mobotix.com in the Support section! Or use the supplied name plates made from sturdy specialty
paper and write the names using a UV-resistant marker.
1. Insert the Name Plate(s)
Remove the silicon insert from the button. Recommendation: Take a suitable
tool without a sharp blade, cautiously insert it into the slot, gently press
inward and lift the tool as shown.
Insert the labeled or printed name plate as shown (the arrows at the side
are pointing upwards later on).
Place the silicon insert on top of the name plate, push it into the frame at
the top and at the bottom of the center, then push its sides into the frame.
3
Make sure that the silicon insert fits flush into the frame of the bell button
as shown to protect the name plate against humidity.
2. Insert the Module into the Door Station
You can use the BellRFID module as an alternative to the KeypadRFID (but
not yet side-by-side) in the frame of an IP Video Door Station. For installing
and wiring the module, follow the same steps as for the KeypadRFID.
Follow the description in the Section «Installing the KeypadRFID Access
Module» of the door station's System Manual Part 1 . Likewise, the other
connection variants listed in the Section «Overview: Connection and Wiring
Diagrams» (e.g., connecting an electrical door opener in a system without
DoorMaster).
Finish the installation of the BellRFID module by following the steps listed in
the Section «Finishing the Installation» of the door station's System Manual
Part 1 . Similar to the KeypadRFID, the blue and the green status LEDs are
flashing (power supply OK, ready for auto configuration).
