Speaker; Picture Tube And Bezel Assembly - Sony PVM-9L1 Service Manual

Trinitron color video monitor.
Hide thumbs
  • Contents

Advertisement

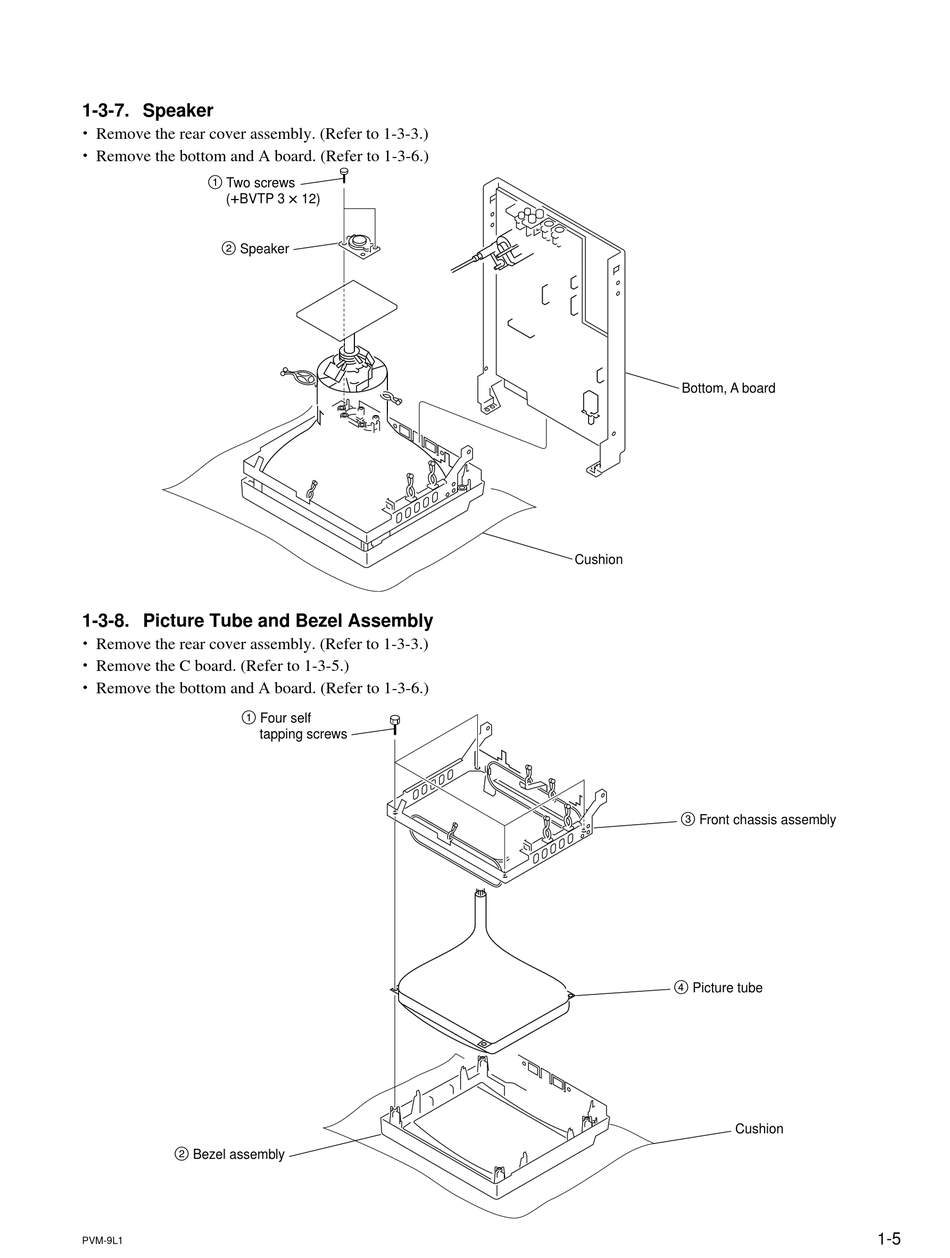

1-3-7. Speaker

. Remove the rear cover assembly. (Refer to 1-3-3.)
. Remove the bottom and A board. (Refer to 1-3-6.)
1 Two screws
(+BVTP 3 x 12)
2 Speaker
Bottom, A board
Cushion

1-3-8. Picture Tube and Bezel Assembly

. Remove the rear cover assembly. (Refer to 1-3-3.)
. Remove the C board. (Refer to 1-3-5.)
. Remove the bottom and A board. (Refer to 1-3-6.)
1 Four self
tapping screws
3 Front chassis assembly
4 Picture tube
Cushion
2 Bezel assembly
1-5
PVM-9L1
