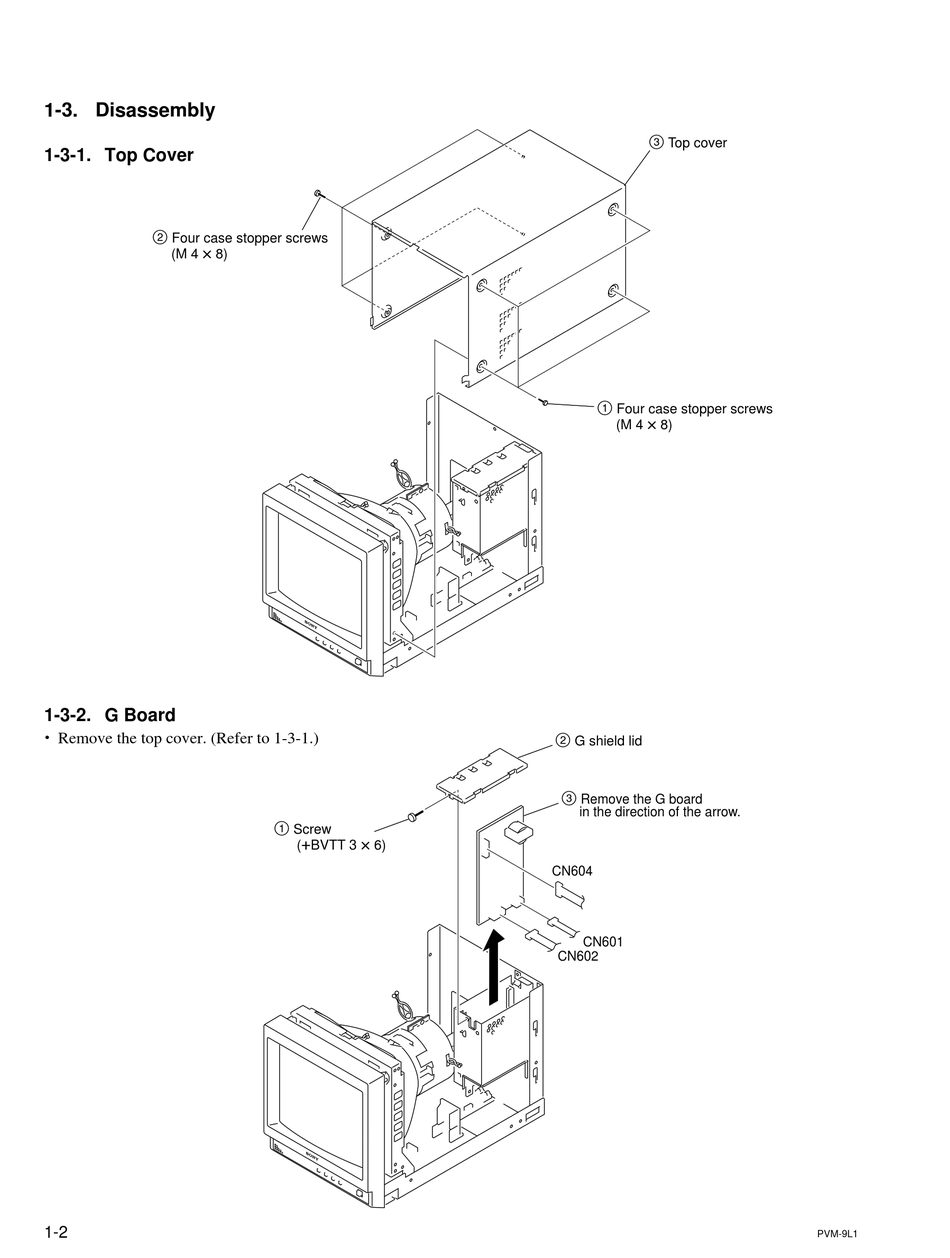

1-3. Disassembly

3 Top cover

1-3-1. Top Cover
2 Four case stopper screws
(M 4 x 8)
1 Four case stopper screws
(M 4 x 8)

1-3-2. G Board

. Remove the top cover. (Refer to 1-3-1.)
2 G shield lid
3 Remove the G board
in the direction of the arrow.
1 Screw
(+BVTT 3 x 6)
CN604
CN601
CN602
1-2
PVM-9L1
