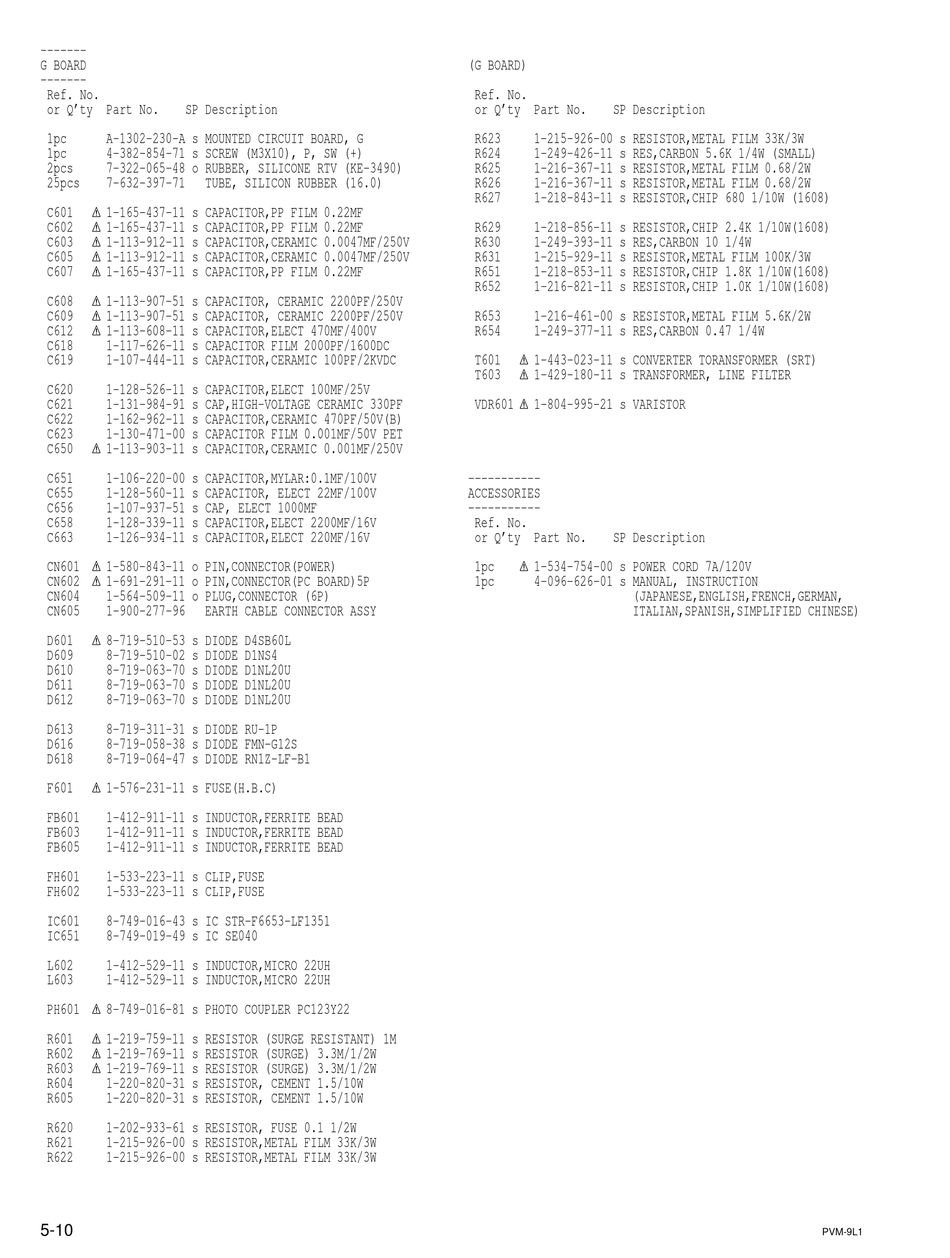

Sony PVM-9L1 Service Manual Page 40

Trinitron color video monitor.
Hide thumbs

Advertisement

-------
G BOARD
-------
Ref. No.
or Q'ty Part No.
SP Description
1pc
A-1302-230-A s MOUNTED CIRCUIT BOARD, G
1pc
4-382-854-71 s SCREW (M3X10), P, SW (+)
2pcs
7-322-065-48 o RUBBER, SILICONE RTV (KE-3490)
25pcs
7-632-397-71
TUBE, SILICON RUBBER (16.0)
C601
1-165-437-11 s CAPACITOR,PP FILM 0.22MF
!
C602
1-165-437-11 s CAPACITOR,PP FILM 0.22MF
!
C603
1-113-912-11 s CAPACITOR,CERAMIC 0.0047MF/250V
!
C605
1-113-912-11 s CAPACITOR,CERAMIC 0.0047MF/250V
!
C607
1-165-437-11 s CAPACITOR,PP FILM 0.22MF
!
C608
1-113-907-51 s CAPACITOR, CERAMIC 2200PF/250V
!
C609
1-113-907-51 s CAPACITOR, CERAMIC 2200PF/250V
!
C612
!
1-113-608-11 s CAPACITOR,ELECT 470MF/400V
C618
1-117-626-11 s CAPACITOR FILM 2000PF/1600DC
C619
1-107-444-11 s CAPACITOR,CERAMIC 100PF/2KVDC
C620
1-128-526-11 s CAPACITOR,ELECT 100MF/25V
C621
1-131-984-91 s CAP,HIGH-VOLTAGE CERAMIC 330PF
C622
1-162-962-11 s CAPACITOR,CERAMIC 470PF/50V(B)
C623
1-130-471-00 s CAPACITOR FILM 0.001MF/50V PET
C650
1-113-903-11 s CAPACITOR,CERAMIC 0.001MF/250V
!
C651
1-106-220-00 s CAPACITOR,MYLAR:0.1MF/100V
C655
1-128-560-11 s CAPACITOR, ELECT 22MF/100V
C656
1-107-937-51 s CAP, ELECT 1000MF
C658
1-128-339-11 s CAPACITOR,ELECT 2200MF/16V
C663
1-126-934-11 s CAPACITOR,ELECT 220MF/16V
CN601
!
1-580-843-11 o PIN,CONNECTOR(POWER)
CN602
!
1-691-291-11 o PIN,CONNECTOR(PC BOARD)5P
CN604
1-564-509-11 o PLUG,CONNECTOR (6P)
CN605
1-900-277-96
EARTH CABLE CONNECTOR ASSY
D601
8-719-510-53 s DIODE D4SB60L
!
D609
8-719-510-02 s DIODE D1NS4
D610
8-719-063-70 s DIODE D1NL20U
D611
8-719-063-70 s DIODE D1NL20U
D612
8-719-063-70 s DIODE D1NL20U
D613
8-719-311-31 s DIODE RU-1P
D616
8-719-058-38 s DIODE FMN-G12S
D618
8-719-064-47 s DIODE RN1Z-LF-B1
F601
!
1-576-231-11 s FUSE(H.B.C)
FB601
1-412-911-11 s INDUCTOR,FERRITE BEAD
FB603
1-412-911-11 s INDUCTOR,FERRITE BEAD
FB605
1-412-911-11 s INDUCTOR,FERRITE BEAD
FH601
1-533-223-11 s CLIP,FUSE
FH602
1-533-223-11 s CLIP,FUSE
IC601
8-749-016-43 s IC STR-F6653-LF1351
IC651
8-749-019-49 s IC SE040
L602
1-412-529-11 s INDUCTOR,MICRO 22UH
L603
1-412-529-11 s INDUCTOR,MICRO 22UH
PH601
8-749-016-81 s PHOTO COUPLER PC123Y22
!
R601
!
1-219-759-11 s RESISTOR (SURGE RESISTANT) 1M
R602
!
1-219-769-11 s RESISTOR (SURGE) 3.3M/1/2W
R603
!
1-219-769-11 s RESISTOR (SURGE) 3.3M/1/2W
R604
1-220-820-31 s RESISTOR, CEMENT 1.5/10W
R605
1-220-820-31 s RESISTOR, CEMENT 1.5/10W
R620
1-202-933-61 s RESISTOR, FUSE 0.1 1/2W
R621
1-215-926-00 s RESISTOR,METAL FILM 33K/3W
R622
1-215-926-00 s RESISTOR,METAL FILM 33K/3W
5-10
(G BOARD)
Ref. No.
or Q'ty Part No.
SP Description
R623
1-215-926-00 s RESISTOR,METAL FILM 33K/3W
R624
1-249-426-11 s RES,CARBON 5.6K 1/4W (SMALL)
R625
1-216-367-11 s RESISTOR,METAL FILM 0.68/2W
R626
1-216-367-11 s RESISTOR,METAL FILM 0.68/2W
R627
1-218-843-11 s RESISTOR,CHIP 680 1/10W (1608)
R629
1-218-856-11 s RESISTOR,CHIP 2.4K 1/10W(1608)
R630
1-249-393-11 s RES,CARBON 10 1/4W
R631
1-215-929-11 s RESISTOR,METAL FILM 100K/3W
R651
1-218-853-11 s RESISTOR,CHIP 1.8K 1/10W(1608)
R652
1-216-821-11 s RESISTOR,CHIP 1.0K 1/10W(1608)
R653
1-216-461-00 s RESISTOR,METAL FILM 5.6K/2W
R654
1-249-377-11 s RES,CARBON 0.47 1/4W
T601
!
1-443-023-11 s CONVERTER TORANSFORMER (SRT)
T603
!
1-429-180-11 s TRANSFORMER, LINE FILTER
VDR601
1-804-995-21 s VARISTOR
!
-----------
ACCESSORIES
-----------
Ref. No.
or Q'ty Part No.
SP Description
1pc
!
1-534-754-00 s POWER CORD 7A/120V
1pc
4-096-626-01 s MANUAL, INSTRUCTION
(JAPANESE,ENGLISH,FRENCH,GERMAN,
ITALIAN,SPANISH,SIMPLIFIED CHINESE)
PVM-9L1
