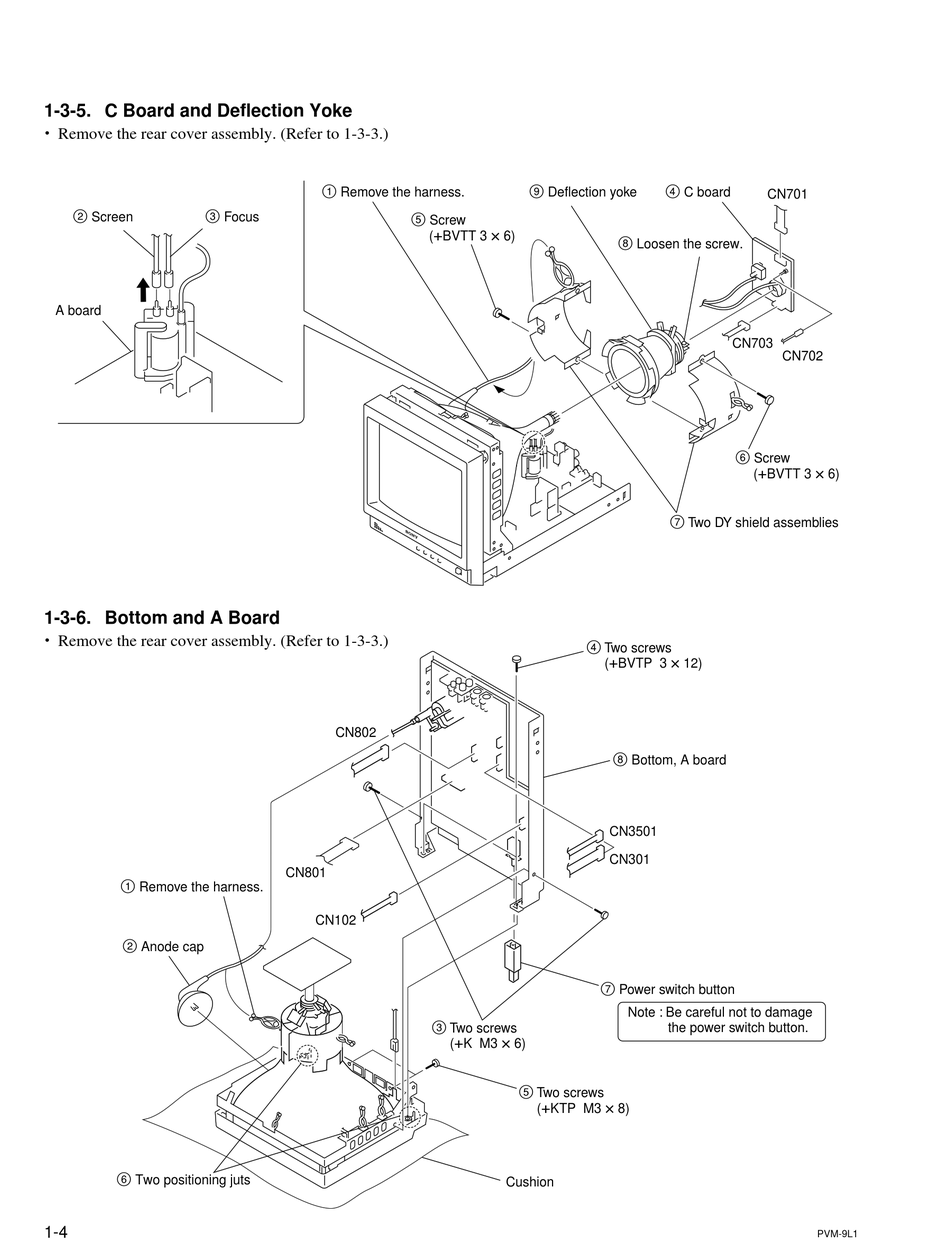

1-3-5. C Board and Deflection Yoke
. Remove the rear cover assembly. (Refer to 1-3-3.)
2 Screen
3 Focus
A board
1-3-6. Bottom and A Board
. Remove the rear cover assembly. (Refer to 1-3-3.)
1 Remove the harness.
2 Anode cap
6 Two positioning juts
1-4
1 Remove the harness.
5 Screw
(+BVTT 3 x 6)
CN802
CN801
CN102
3 Two screws
(+K M3 x 6)
9 Deflection yoke
4 C board
8 Loosen the screw.
7 Two DY shield assemblies
4 Two screws
(+BVTP 3 x 12)
8 Bottom, A board
CN3501
CN301
7 Power switch button
Note : Be careful not to damage
the power switch button.
5 Two screws
(+KTP M3 x 8)
Cushion
CN701
CN703
CN702
6 Screw
(+BVTT 3 x 6)
PVM-9L1
