- Page 1 SFX/STEREO Series INSTRUCTION MANUAL Model ST-50Led v 1.3 2017...
- Page 2 Page 2...
-
Page 3: Symbols And Conventions

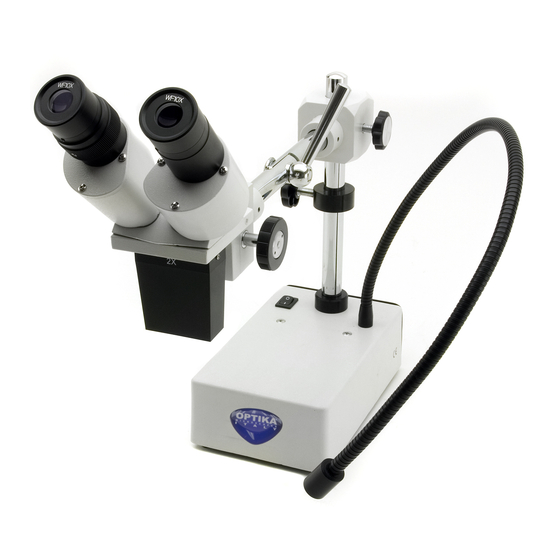

Warning This microscope is a scientific precision instrument designed to last for many years with a minimum of mainte- nance. It is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains important information on safety and maintenance, and that it must therefore be made acces- sible to the instrument users. - Page 4 Overview ST-50Led EYEPIECES DIOPTRIC COMPENSATION FOCUS KNOB STAND OBJECTIVE ON-OFF SWITCH FLEXIBLE ARM LED ILLUMINATOR Page 4...
-
Page 5: Using The Microscope
Unpacking The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it on a stable desk. - Page 6 5. Dioptric compensation This compensation makes it possible for people with glasses to adjust the microscope to their eyes and use the microscope without glasses. Adjust the diopter compensation ring of the right eyepiece tube until the image of the right eyepiece is clear and sharp.
-
Page 7: Maintenance
Do not disassemble objectives or eyepieces in attempt to clean them. For the best results, use the OPTIKA cleaning kit (see catalogue). If you need to send the microscope to Optika for maintenance, please use the original packaging. Page 7... -
Page 8: Equipment Disposal
Equipment disposal Art.13 Dlsg 25 july 2005 N°151. “According to directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduction in the use of hazardous substances in electrical and electronic equipment and waste disposal.” The basket symbol on equipment or on its box indicates that the product at the end of its useful life should be collected separately from other waste. - Page 9 OPTIKA S.r.l. ® Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA Tel.: +39 035.571.392 - Fax: +39 035.571.435 info@optikamicroscopes.com - www.optikamicroscopes.com OPTIKA Spain spain@optikamicroscopes.com OPTIKA USA usa@optikamicroscopes.com OPTIKA China china@optikamicroscopes.com OPTIKA Hungary hungary@optikamicroscopes.com OPTIKA India india@optikamicroscopes.com...
