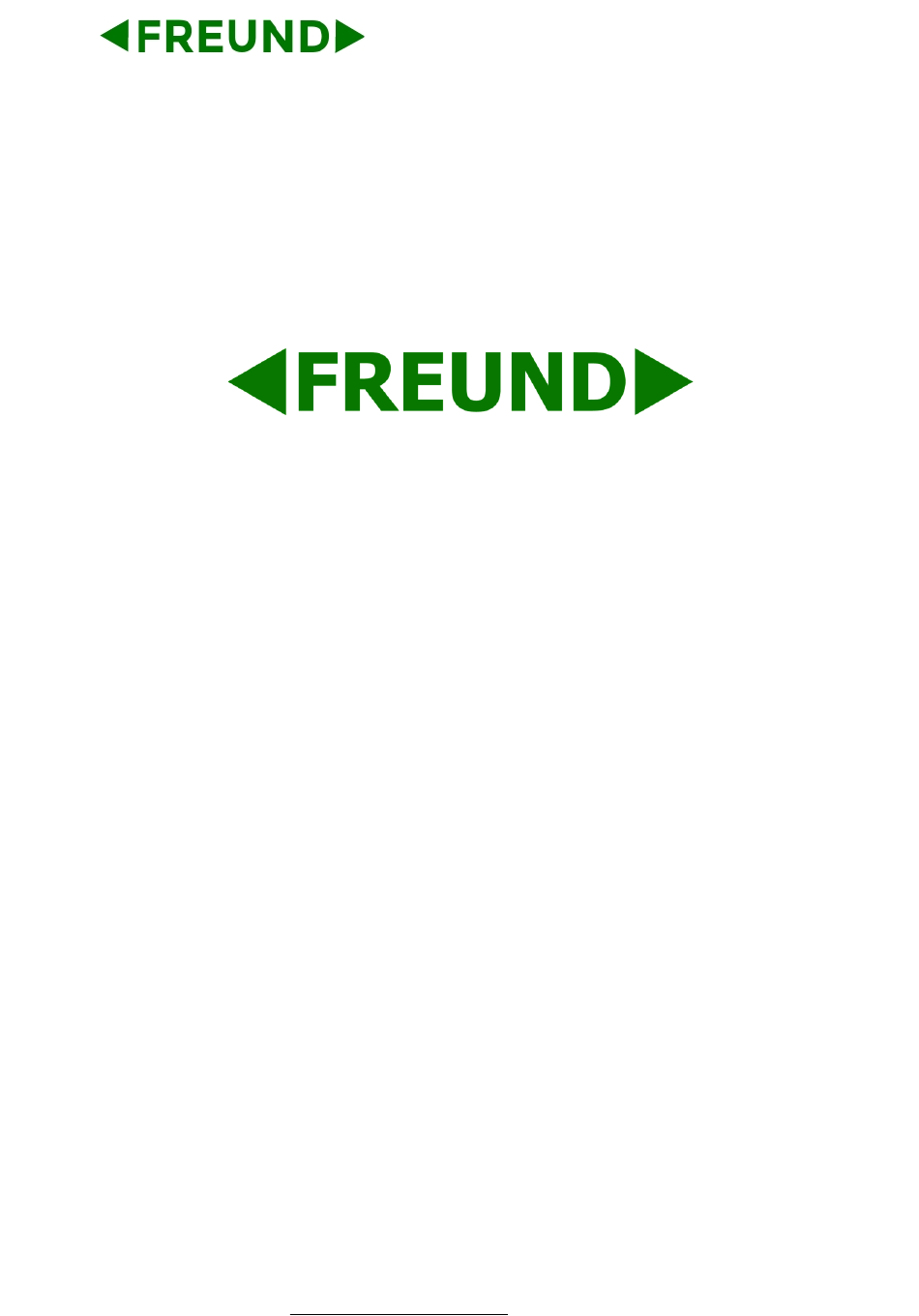

FREUND ELEKTRONIKA D.O.O.
FE-IPDS-21VP and FE-IPDS-21P
Door Phone User Manual
FREUND ELEKTRONIKA d.o.o
International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina
www.ip-integra.ba
info@ip-integra.com
Tel. +387 33 922 890
|
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FE-IPDS-21VP and is the answer not in the manual?

Questions and answers

Related Manuals for Freund FE-IPDS-21VP

Summary of Contents for Freund FE-IPDS-21VP

  • Page 1 FREUND ELEKTRONIKA D.O.O. FE-IPDS-21VP and FE-IPDS-21P Door Phone User Manual FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba info@ip-integra.com Tel. +387 33 922 890...

  • Page 2: Table Of Contents

    FREUND ELEKTRONIKA D.O.O. Contents 1.Product Overview ..............................3 1.1. Product description ............................. 3 1.2. Features ............................... 4 1.3. Panel description ............................6 1.4. Installation ..............................6 2. Basic Using ................................8 2.1. Make a call ..............................8 2.2. Receive a call..............................8 2.3.

  • Page 3: Product Overview

    FREUND ELEKTRONIKA D.O.O. 1.Product Overview 1.1. Product description Freund FE-IPDS-21 Series are outdoor-rated, SIP-compliant and hands-free Voice over IP (VoIP) Emergency Stations. It helps the emergency teams to coordinate their rescue missions with high efficiency. FE-IPDS-21X supports two types: 21P(Audio) and 21VP(Video).

  • Page 4: Features

    FREUND ELEKTRONIKA D.O.O. 1.2. Features ➢ Key Features ⚫ One panic button input for emergency intercom; ⚫ Two-way audio communication over IP networks with Echo Cancel feature; ⚫ PoE (IEEE802.3af, Power-over-Ethernet); ⚫ Camera resolution of 3M pixel;(21VP only) ⚫ MPEG-4/MJPEG compression; (21VP only) ⚫...
  • Page 5 FREUND ELEKTRONIKA D.O.O. ➢ Phone Features ⚫ Web support multi-language ⚫ Auto-answer ⚫ Volume control ⚫ Direct IP call without SIP proxy ⚫ Auto-Provision ➢ Network Features ⚫ 2x10/100Mbps Ethernet Port ⚫ Security: Password Protection, IP address filtering, SIP over TLS, HTTPS encryption, user access log ⚫...

  • Page 6: Panel Description

    FREUND ELEKTRONIKA D.O.O. 1.3. Panel description 21VP 1.4. Installation FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba info@ip-integra.com Tel. +387 33 922 890...
  • Page 7 FREUND ELEKTRONIKA D.O.O. Installation steps: Fix the back cover into wall with cement (installation height about 1500mm); 2. Place E21 panel into the back cover; 3. Fix the panel with screws. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba...

  • Page 8: Basic Using

    FREUND ELEKTRONIKA D.O.O. 2. Basic Using 2.1. Make a call Press the call button, then FE-IPDS-21X will call out the predefined number. (Please refer to chapter 3.3 about call button setting) 2.2. Receive a call FE-IPDS-21X will auto answer the incoming call by default. If users disable the auto answer function, please press the call button to answer.

  • Page 9: Configuration

    3.1. Web login 3.1.1 Obtain the IP address The Freund FE-IPDS-21X use Static IP by default, and the default IP address is 192.168.1.100. If the IP address is unknown, press and hold the call button for a short period of time (about 5s) after LED light turns blue, the phone will announce its 3.1.2 Login the web...

  • Page 10: Status

    FREUND ELEKTRONIKA D.O.O. 3.2. Status Status can be viewed from “Status -> Basic”, including the information of product, network and account. Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware version.

  • Page 11: Intercom

    FREUND ELEKTRONIKA D.O.O. 3.3. Intercom 3.3.1 Basic Sections Description ⚫ Select Account: 21X support 2 accounts. You can Account Selection choose one account or Auto mode for the following Intercom basic settings. ⚫ No Answer call: 21X will call to the No answer call number when the ringtone is time out without answer Disable by default.

  • Page 12: Led Settings

    FREUND ELEKTRONIKA D.O.O. Push to Hang up To enable or disable the Push to Hang up function. Custom Button This function is used to connect an extra button for opening the door from the inside. To select which relay (A or B) the custom button’s settings would apply to.

  • Page 13: Relay & Input

    FREUND ELEKTRONIKA D.O.O. 3.3.3 Relay & Input To configure unlock and alarm setting. Go to the path: Intercom-> Relay & Input. Sections Description Relay To configure some settings about unlock. ⚫ Relay ID: 21X support 2 relays. ⚫ Relay Type: Different locks use different relay types.

  • Page 14: Live Stream (21Vp Only)

    FREUND ELEKTRONIKA D.O.O. Input There are 2 photosensitive sensors that used for anti-vandal. When 21X are broken by violent means, the sensor will be triggered, then the management centre will receive the alarm call. ⚫ Input ID: 21X support 2 photosensitive sensor. Once the sensor is triggered, it will alarm when this function is enabled.

  • Page 15: Aec Setting

    FREUND ELEKTRONIKA D.O.O. 3.3.5 AEC Setting Sections Description AEC Level AEC (Configurable Acoustic and Line Echo Cancelers) is used to adjust the echo effect during the communication. The default value is 700. Decrease the level, the echo control is better.

  • Page 16: Rtsp (21Vp Only)

    FREUND ELEKTRONIKA D.O.O. 3.3.6 RTSP (21VP only) Section Description RTSP Basic To active the RTSP function, then 21X can be monitored. RTSP Stream To enabled RTSP video and select the video codec. 21X support H264, H263 video codec. H264 by default.

  • Page 17: Onvif (21Vp Only)

    FREUND ELEKTRONIKA D.O.O. 3.3.7 ONVIF (21VP only) Sections Description Basic Setting To setup the ONVIF function parameters. It is used to connect with the corresponding ONVIF tool. ⚫ ONVIF Mode: To modify the state of ONVIF. 21X can only be searched in Discoverable mode which is set by default.

  • Page 18: Multicast

    FREUND ELEKTRONIKA D.O.O. 3.3.8 Multicast Sections Description Multicast Audio Receiving To display and configure the Multicast setting. ⚫ Multicast Receiver Enable: Enable receiver’s multicast function. ⚫ Receiver address: Setup the multicast address. ⚫ Receiver port: Setup the multicast address port.

  • Page 19: Account

    FREUND ELEKTRONIKA D.O.O. 3.4. Account 3.4.1 Basic To configure sip account, go to the path: Account->Basic Sections Description SIP Account To display and configure the specific Account settings. ⚫ Status: To display register result. ⚫ Display Name: Which is sent to the other call party for displaying.
  • Page 20 FREUND ELEKTRONIKA D.O.O. ⚫ User Name: Allocated by your SIP server provide, used for authentication. ⚫ Password: Used for authorization. SIP Server 1 To display and configure Primary SIP server settings. ⚫ Server IP: SIP server address, it could be an URL or IP address.

  • Page 21: Advanced

    FREUND ELEKTRONIKA D.O.O. 3.4.2 Advanced For advance account settings, go to the path: Account -> Advanced. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba info@ip-integra.com Tel. +387 33 922 890...
  • Page 22 FREUND ELEKTRONIKA D.O.O. Sections Description SIP Account Select an account to display the settings. Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU(G711U), PCMA(G711A), G722 (wide-band codecs), G729 and so on.
  • Page 23 FREUND ELEKTRONIKA D.O.O. ⚫ User=phone: If enabled, IP phone will send user=phone within SIP message. ⚫ PTime: Interval time between two consecutive RTP packets. ⚫ Anonymous Call: If enabled, all outgoing call to the designated account will be anonymous number.

  • Page 24: Network

    FREUND ELEKTRONIKA D.O.O. 3.5. Network 3.5.1 Basic To configure the basic network settings, Go to the path: Network -> Basic. The static IP is set as default, and its IP address is 192.168.1.100. Sections Description LAN Port To display and configure LAN Port settings.

  • Page 25: Advanced

    FREUND ELEKTRONIKA D.O.O. 3.5.2 Advanced For advanced settings, go to the path: Network -> Advanced. Sections Description Local RTP To display and configure Local RTP settings. ⚫ Max RTP Port: Determine the maximum port that RTP stream can use. ⚫...
  • Page 26 FREUND ELEKTRONIKA D.O.O. Internet-standard protocol for managing devices on IP networks. VLAN To display and configure VLAN settings. ⚫ LAN Port/PC Port: You can configure VLAN setting for both ports respectively. ⚫ Active: To enable or disable VLAN feature for designated port.

  • Page 27: Phone

    FREUND ELEKTRONIKA D.O.O. 3.6. Phone 3.6.1 Time/Language Go to the path: Phone-> Time/Language Sections Description To configure NTP server related settings. ⚫ Time Zone: To select local Time Zone for NTP server. ⚫ Primary Server: To configure primary NTP server address.

  • Page 28: Call Feature

    FREUND ELEKTRONIKA D.O.O. 3.6.2 Call Feature Go to the path: Phone->Call Feature Sections Description Mode To enable or disable feature key sync. ⚫ Mode: Select the desired mode. DND (Do Not Disturb) allows IP phones to ignore any incoming calls.
  • Page 29 FREUND ELEKTRONIKA D.O.O. press DND when DND is on. Intercom Intercom allows user to establish a call directly with the callee. ⚫ Active: To enable or disable Intercom feature. ⚫ Intercom Mute: If enabled, once the call established, the callee will be muted.

  • Page 30: Voice

    FREUND ELEKTRONIKA D.O.O. 3.6.3 Voice Go to the path: Phone->Voice Sections Description Mic Volume To configure Microphone volume Speaker Volume To configure Speaker Volume Open Door Warning To configure door opening voice. Disable it, you won’t hear the prompt voice when the door is opened.

  • Page 31: Multicast

    FREUND ELEKTRONIKA D.O.O. 3.6.4 Multicast Sections Description Multicast Setting To display and configure the Multicast setting. ⚫ Paging Barge: Choose the multicast number, the range is 1-10. ⚫ Paging priority Active: Enable or disable the multicast. Priority List To setup the multicast parameters.

  • Page 32: Upgrade

    FREUND ELEKTRONIKA D.O.O. 3.7. Upgrade 3.7.1 Basic To upgrade your device, go to the path: Upgrade > Basic. Sections Description Upgrade To select upgrading rom file from local or a remote server automatically. Note: Please make sure it’s right file format for right model.

  • Page 33: Advanced

    FREUND ELEKTRONIKA D.O.O. 3.7.2 Advanced To do the advanced upgrade for your device, go to the path: Upgrade -> Advanced. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Hercegovina www.ip-integra.ba info@ip-integra.com Tel. +387 33 922 890...
  • Page 34 FREUND ELEKTRONIKA D.O.O. Sections Description PNP Option To display and configure PNP setting for Auto Provisioning. ⚫ PNP: Plug and Play, once PNP is enabled, the phone will send SIP subscription message to PNP server automatically to get Auto Provisioning server’s address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP...

  • Page 35: Security

    FREUND ELEKTRONIKA D.O.O. 3.8. Security 3.8.1 Basic To modify web password, go to the path: Security-> Basic Sections Description Web Password Modify To modify user’s password. ⚫ Current Password: The current password you used. ⚫ New Password: Input new password you intend to use.
