FE-IPDS-20WM & FE-IPDS-20FM Quick Guide

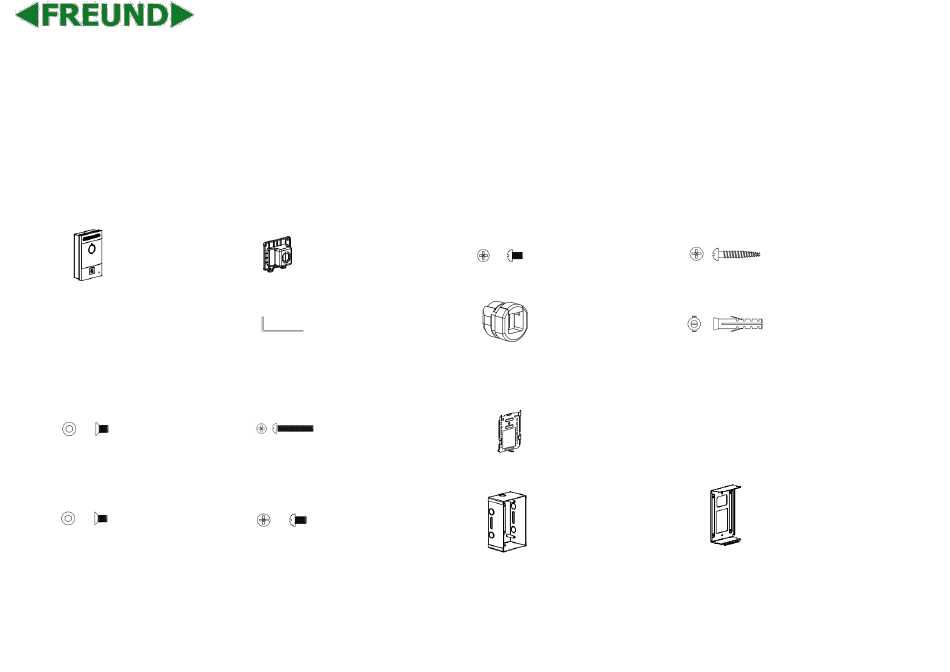

Unpacking
Please make sure the package contains the following items:
Universal Accessories :
ST4x20 screw X 4
Back cover X 1
M3x8 screw X 4
20FM/20WM X 1
Screw fixing seat X 4
Allen Wrench X 1
Cable buckle X 1
Rope X 1
Wall-mounting Accessories for FE-IPDS-20WM：
Wall-mounting bracket X 1
M3x6 screw X 1
M4x30 screw X 2
Flush-mounting Accessories for FE-IPDS-20FM：
Flush-mounting bracket x 1
Embedded box x 1
M3x6 screw X 3
M4x10 screw X 4
Advertisement
Related Manuals for Freund FE-IPDS-20WM
Summary of Contents for Freund FE-IPDS-20WM
- Page 1 FE-IPDS-20WM & FE-IPDS-20FM Quick Guide Unpacking Please make sure the package contains the following items: Universal Accessories : ST4x20 screw X 4 Back cover X 1 M3x8 screw X 4 20FM/20WM X 1 Screw fixing seat X 4 Allen Wrench X 1...
-
Page 2: Product Overview
Product Overview Speaker Infrared sensor Photosensitive sensor Camera Infrared LED RF card reader 20WM/20FM... -
Page 3: Installation
Installation Step1: Bracket/Box Installation Wall Mounting for FE-IPDS-20WM With 86 embedded box in the wall wall-mounting Take down Mark the four holes bracket M4x30 screws and of the wall-mounting embedded box with remove bracket on the wall. two M4X30 screws. - Page 4 Without 86 embedded box in the wall : Use a hand drill with 5mm Mark the four holes of diameter bit to make the hole in wall-mounting marked positions. bracket on the wall for the screws. *Please note relative position in the left figure. Fix the wall-mounting bracket with...
- Page 5 Flush Mounting for FE-IPDS-20FM square Insert the embedded box Take down hole(height*width*depth= into the hole and make embedded box, then 155*95.5*65mm). sure the cables of the use a hand drill with device can route through 5mm diameter bit to Note:The size of the hole the cable hole.
- Page 6 Or you can choose another simple method without fixing ST4x20 screws square hole(height*width*depth=155 cement 5*95.5*65mm) for inserting non-corrosive structural four M4x10 the embedded box. adhesives to fill the gap screws to fix the between the wall and Note: The size of the hole flush-mounting embedded box.
- Page 7 Step2：Back Cover Installation Make cables go through For convenient wiring, hang Make cables back cover, 20WM/20FM on the through cable connecting all-mounting/flush-mountin buckle, and then press corresponding interfaces g bracket with rope. the cable buckle into of the main board. Fasten the back cover.
-
Page 8: Step3：Device Mounting
Step3：Device Mounting Place device into wall-mounting flush-mounting bracket until the edges of which align to the wall. Then pull the device Finish the installation. downward and ensure the groove of which hooks to the lock catches of the back box. Use the Allen wrench to tighten the device with three M3 x6 screws. - Page 9 Application Network Topology (third party) Sip Video Phone Indoor Monitor Network Video Recorder (third party) 20WM/20FM 20WM/20FM 20WM/20FM 20WM/20FM...
-
Page 10: Operation
Operation IP Announcement Make a call: 1. While 20WM/20FM starts up normally, hold the call button for several seconds after the Status LED turns blue, voice system will enter IP 1. Press the call button to call indoor SIP Phone. announcement mode. - Page 11 Indicators : Light OFF : Light ON Name Status Description Status Blue Normal status indicator 0.25sec Calling 0.25sec 0.05sec 0.05sec Restarting 0.25sec 0.25sec Network is unavailable Green Initialing/Talking on a call 0.25sec 0.25sec Receiving a call 0.05sec 0.05sec Red/Blue Firmware upgrading...
- Page 12 TERMINALS, IP-SPEAKERS, ACC-CONTROLLERS AND APPLICATIONS WITH INTELLIGENT FEATURES AND THE MOST ADVANCED TECHNOLOGY, BUT AT THE SAME TIME EASY FOR OUR CUSTOMERS TO USE. FREUND GROUP IS ONE OF THE TOP PROVIDERS ON THE MARKET FOR IP-BASED BUILDING CONTROL AND COMMUNICATI ON AND RELATED SYSTEMS.
