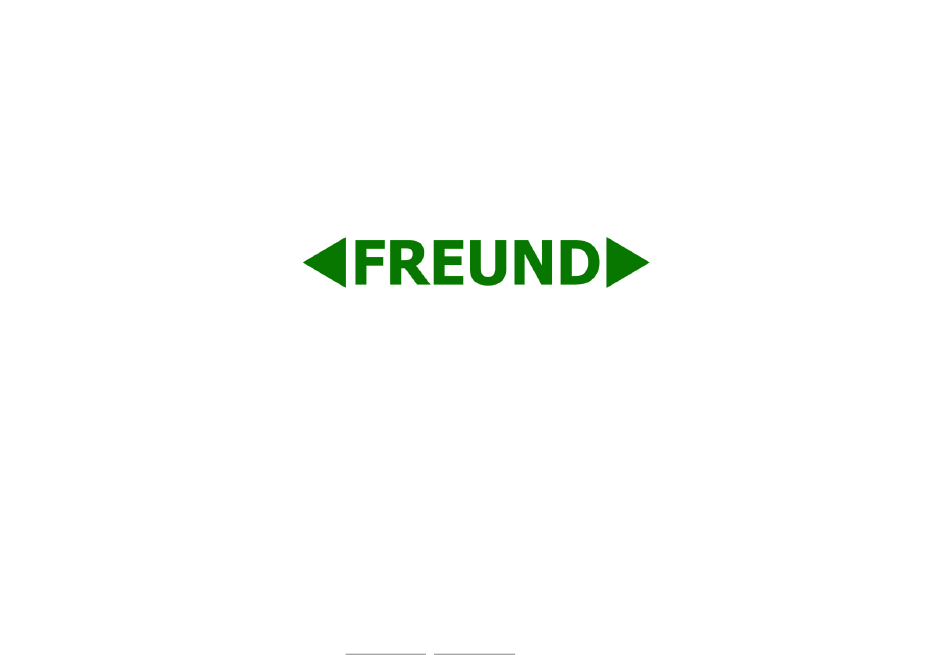

- Page 1 FREUND SIP FE-IPDS-20WM INTERCOM USER MANUAL FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890...
-
Page 2: Table Of Contents
2.6.2 Obtain and Add Card ............................................18 2.6.3 Door Card Management ........................................... 19 2.7 Relay Setting ................................................20 2.7.1 Relay ..................................................20 FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... - Page 3 3.12.2 Upgrade-Advanced ............................................35 3.13 Security-Basic ................................................36 3.13.1 Web Password Modify ............................................ 36 3.13.2 Session Time Out ............................................36 FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890...
-
Page 4: Product Overview
FREUND FE-IPDS-20A is a SIP-compliant, hands-free one button video outdoor phone. It can be connected with your FREUND IP Phone for remote unlock control and monitor. Users can operate the indoor phone to communicate with visitors via voice and video and use RF card to unlock the door. -
Page 5: At A Glance
4Ω / 3W Ethernet port RJ45, 10/100Mbps adaptive Water-proof and Dust-proof IP65 Installation Wall-mounted & Flush-mounted FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... - Page 6 DTMF In-band, out-of-band DTMF (RFC2833), SIP info Echo cancelation, voice activation detection, comfort noise generator VIDEO FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890...
- Page 7 Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP DEPLOYMENT & MAINTENANCE Auto – Provisioning FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com...
- Page 8 Auto-night mode with LED illumination Minimum illumination: 0.1LUX APPLICATION SCENARIO Office door phone with on-site or hosted IP-PBX FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890...
-
Page 9: Daily Use
Place the predefined RF card on the card sensor area. The door phone will announce ‘the door is now opened’ and open the door 13.56MHz and 125KHz RF card is supported by 20A. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com... -
Page 10: Connector Introduction
Trigger signal input terminal (e.g. Press indoor button to open DOORA/B relay). Relay A/B NO/NC Relay control terminal. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 11: Basic Setting
Open a Web Browser, access the corresponding IP address. Then, enter the default username and password to login. The default administrator Username and Password are shown below: Username: admin Password: admin FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 12: Network Setting
If selected, you could manually set IP address, Subnet Mask, Default Gateway and DNS server. The figure below shows static IP setting. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 13: Account
Register Name: To enter extension number you want, and the number is allocated by SIP server. Username: To enter username of the extension. Password: To enter password for the extension. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 14: Sip Sever 1
If you would like to call multiple numbers at same time, divide them by semicolon. No Answer Call 1&2: To setup one or two no answer call number. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 15: Push Button Action
Dial In Time: To configure the max incoming dial time, available when auto answer is disabled. Dial Out Time: To configure the max no answer call time FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 16: Push To Hang Up
SMTP server address: To configure SMTP server address of sender. SMTP user name: To configure user name of SMTP Service (usually it is same with sender’s email address). FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 17: Ftp Notification
FTP Test: To test whether FTP notification is available. 2.5.3 SIP Notification SIP Call Number: To configure sip call number. SIP Call Name: To configure display name of 20A. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 18: Card Setting
④Click 'Add' to add it into list. Note: User can use card to access only when card status has been switched to 'Normal'. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 19: Door Card Management
2.6.3 Door Card Management Valid card information will be shown in the list. Administrator could delete one card’s access permission or empty all the list. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 20: Relay Setting
Note: Relay operate a switch and does not deliver power, so user should prepare power adapter for external devices which connects to relay FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com... - Page 21 Relay Status: Low means that COM is connecting to NC while High means that COM is connecting to NO. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com...
-
Page 22: Webrelay
Username & password: Users can setup the username and password for HTTP unlock. URL format: http://IP_address/fcgi/do?action=OpenDoor&UserName=&Pa ssword=&DoorNum= FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 23: Input
Http URL: To configure URL, If HTTP action is chosen. Open relay: To configure relay to open Door status: To show the status of input signal. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 24: Advance Setting
Tamper Alarm, if the gravity of 20A changes dramatically, the phone will alarm. Gravity Sensor Threshold stands for sensitivity of sensor. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 25: Led Setting
Go to Intercom->Live Stream, check the real-time video from 20A. In addition, user also can check the real-time picture via URL: http://IP_address:8080/picture.jpg FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 26: Rtsp
Switching Onvif Mode to undiscoverable means that User must program Onvif’s URL manually. The Onvif’s URL is: http://IP_address:8090/onvif/device_servic FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 27: Motion
Http URL: To configure URL, If HTTP action is chosen. Motion Detect Time Setting: To make Motion Detect Time for a whole week. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 28: Account-Advanced
PCMA: 64kbit/s 8kHz PCMU: 64kbit/s 8kHz G729: 8kbit/s 8kHz Least consumption G722: 64kbit/s 16kHz Best quality FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 29: Video Codec
Codec Payload: To configure RTP audio video profile. 3.7.3 DTMF To configure RTP audio video profile for DTMF and its payload type. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 30: Call
Missed Call Log: If enabled, any missed call will be recorded into call log. Prevent Hacking: If enabled, it will prevent sip message from hacking FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 31: Session Timer
If enabled, voice will be encrypted. 3.8 Time/Lang Go to Phone->Time/Lang, to select local Time Zone for NTP server. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com Tel. +387 33 922 890... -
Page 32: Call Feature
Auto Answer Mode: To choose Video or Audio mode for auto answer. Multicast Codec: To configure video codec for multicast. Direct IP: If disabled, incoming direct IP call will be blocked. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 33: Voice
RingBack Upload: To upload the ring back tone by yourself. Opendoor Tone Upload:To upload the Opendoor tone by yourself. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 34: Log
3.11.2 Door Log Go to Phone->Call Log, user can see a list of door log which records card information and date. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com... -
Page 35: Upgrade
When device failure occur, user can export System Log send to FREUND tech support and we would try our best to address the issue for you. PCAP: To capture packet which is useful for us to address issue. -
Page 36: Security-Basic
3.13.2 Session Time Out To configure session time out value. Over the value, user need to login again to continue configuring. FREUND ELEKTRONIKA d.o.o International Burch University | Francuske revolucije bb | 71210 Ilidza | Bosnia and Herzegovina www.ip-integra.com info@ip-integra.com...
