FE-IPDS-27S Quick Guide

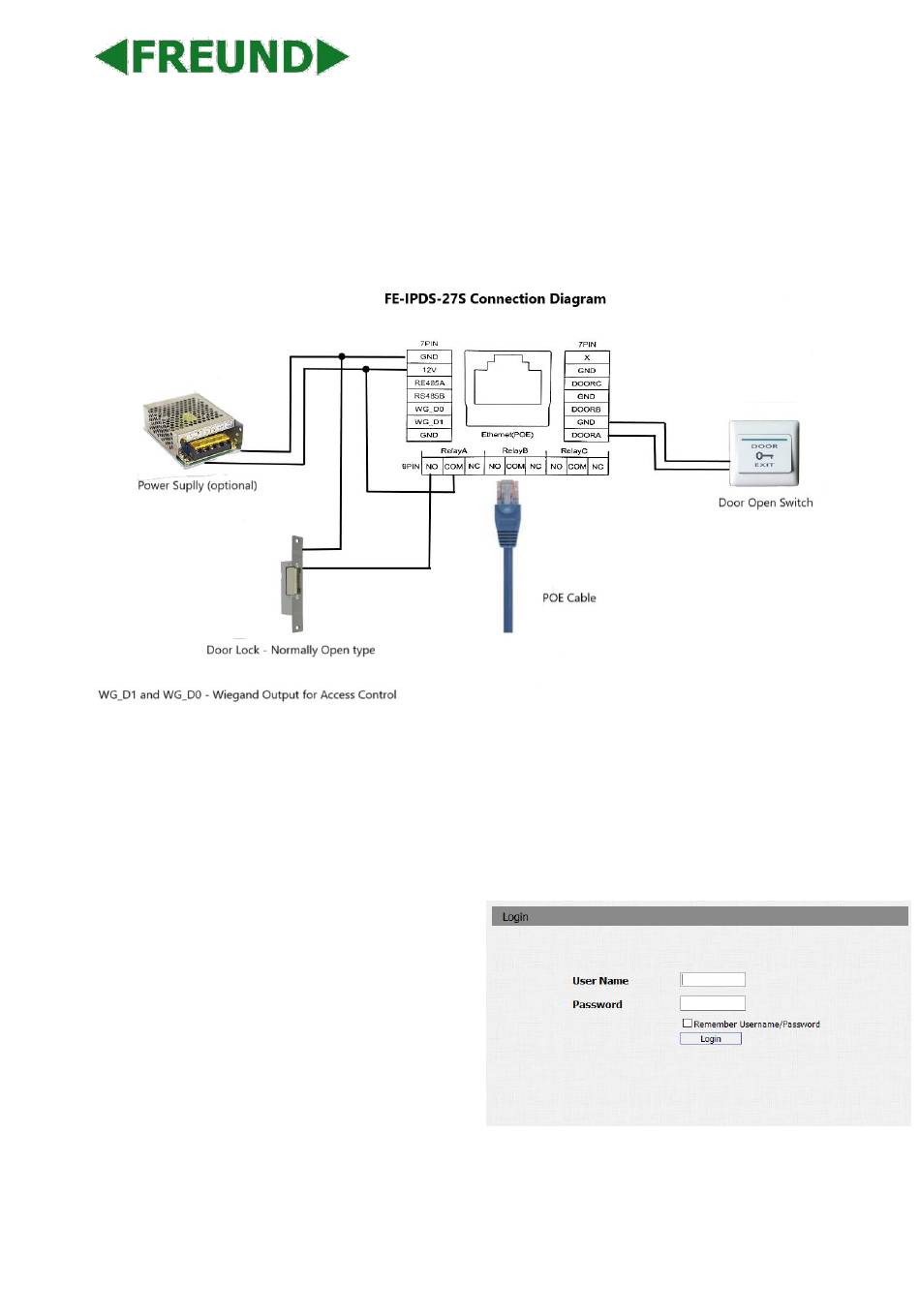

Product Overview
Plug in PoE cable, or connect ethernet cable and external power supply. Door Open Switch is needed
so doors can be opened from the inside.
After FE-IPDS-27S is powered on, enter *2396#, click
System Information to obtain its IP address.
Enter IP address into Web Browser. Log in page will
show up.
Default values for User Name and Password is
admin.
Note: Make sure that Video option is enabled as an option on SIP-server and video codecs are enabled
on SIP-server Extension setup.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Freund FE-IPDS-27S
Summary of Contents for Freund FE-IPDS-27S
-
Page 1: Product Overview
Plug in PoE cable, or connect ethernet cable and external power supply. Door Open Switch is needed so doors can be opened from the inside. After FE-IPDS-27S is powered on, enter *2396#, click System Information to obtain its IP address. - Page 2 After login go to Account->Basic to connect intercom to SIP server. Status: To display register result. Display Label: To configure label displayed on the phone’s LCD screen. Display Name: To configure name sent to the other call party for displaying. Register Name: To enter extension number you want and the number is allocated by SIP server.
- Page 3 Go to Intercom -> Input to configure Door Open Switch from diagram on the first page. Trigger Option: According to different lock connection to choose different trigger mode. If users connect in normal open contact, select low. If you choose High, please connect in normal close contact.
