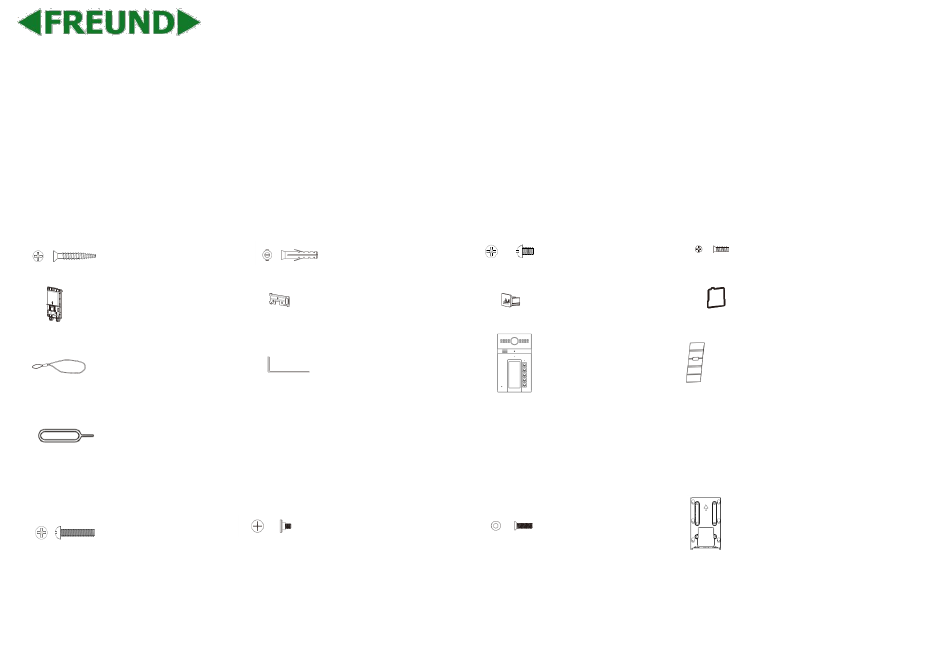

FE-IPDS-26B Quick Guide Unpacking Please make sure the package contains the following items: Universal Accessories : ST1.7x4 screw X 2 M3x5 screw X 4 ST4x20 screw X 4 Screw fixing seat X 4 Silicon rubber sealing ring x 1 Rubber Plug X 3...
Installation Step1: Bracket/Box Installation Wall Mounting With 86 embedded box in the wall Mark the four holes Take down wall-mounting of the wall-mounting M4x30 screws and bracket bracket on the wall. remove embedded box with wall-mounting two M4X30 screws. bracket. Fix the wall-mounting Use a hand drill Insert four screw fixing...
Page 4
Without 86 embedded box in the wall: Mark the four holes of Use a hand drill with 5mm wall-mounting diameter bit to make the hole in bracket on the wall for marked positions. the screws and all cables will go through the green *Please note relative...
Page 5
Step2:Back cover Installation For convenient wiring, hang Fix six wall-mounting six IPDS-26B on the wall-mounting screws in the back of bracket with rope. Then insert IPDS-26B. (only for wall silicon rubber sealing ring mounting installation) into the groove. Make cables go through the back cover, connecting corresponding interfaces of the...
Page 6
Step3: Device Mounting 1.Place device into ① wall-mounting bracket until the edges of which align to the wall. Then pull the device downward and ensure the groove of it hooks to the lock catches of the back box. 2.Use the Allen wrench to tighten the device with the screws.
Page 7
Change the Button Label Insert the proking needle into the label cover opening hole of the surface housing until the label cover is opened. Take out the label papaer and write down the name. Press the top of the cover by hand and press back to the original state with force.
Page 8
Application Network Topology (third party) Sip Video Phone Network Video Recorder (third party) IPDS-26B IPDS-26B IPDS-26B IPDS-26B...
Operation IP Announcement Make a call: 1. While IPDS-26B starts up normally, hold the call button for several seconds after the LED light turns blue, voice system will enter IP 1. Press the call button to call indoor SIP Phone. announcement mode.
Page 10
0.25sec Network is unavailable Green Initialing/Talking on a call 0.25sec 0.25sec Receiving a call 0.05sec 0.05sec Red/Blue Firmware upgrading FREUND ELEKTRONIK A/S | Fuglebakken 119 | 5210 Odense NV | Denmark | www.freund.dk | Tlf. +45 66 16 24 14...
