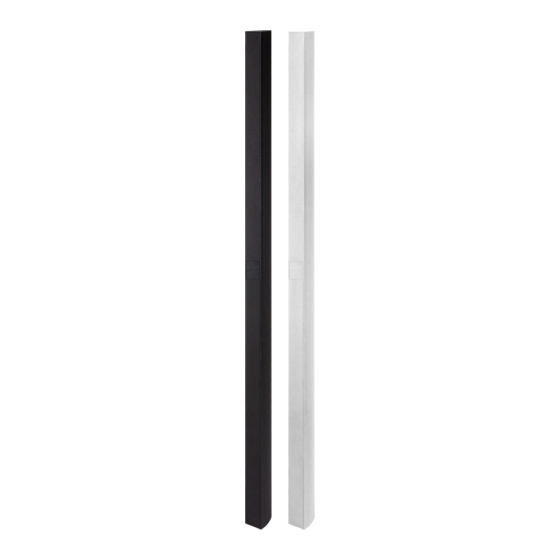

- Page 1 GIAX Design Column Speaker AUDAC PROFESSIONAL AUDIO EQUIPMENT GIAX Design Column speaker User Manual & Installation Guide...
- Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.eu info@audac.eu...
-
Page 3: Table Of Contents
WARNING - CAUTION ........................................3 INSTALLATION ............................................4 DETERMINING LISTENING AREA AND MOUNTING HEIGHT ..........................4 OTHER POINT TO PAY ATTENTION TO ..................................6 CONNECTING THE GIAX ........................................7 CONNECTIONS ........................................... 7 ADDITIONAL INFORMATION GIAX ....................................8 TECHNICAL SPECIFICATIONS ......................................8... -
Page 4: Introduction
This introduction briefly describes the possibilities of the GIAX design column speaker.. he GIAX was designed to meet professional demands en proves its worth in auditoria, conference rooms, meeting rooms, churches,… any place that requires a great flexibility in positioning and tuning, ass well as state-of-the-art audio quality and design. -
Page 5: Safety Requirements
Chapter Warning Only use the correct amplifier output voltage and impedance, exceeding these limits could cause damage, fire or other failures. Only install the speaker on surfaces that can accommodate the weight of the speaker and the mounting bracket. ... -
Page 6: Installation
The dimensions of the desired listening area has to be determined where out the correct mounting height and angle can be derived. A step by step installation procedure describes the method to determine the mounting height and angle for the GIAX. DETERMINING LISTENING AREA AND MOUNTING HEIGHT STEP 1: Determine the dimensions of the desired Listening Area. - Page 7 A column speaker produces, through constructive interference between the different drivers, a focused sound beam in the acoustical centre of the speaker. The acoustical centre of the GIAX is precisely located in the middle of the loudspeaker. So, to achieve the best speech intelligibility in all situations, this sound beam needs to cover the listening area over the largest surface at the listeners ear height.
-
Page 8: Other Point To Pay Attention To
OTHER POINTS TO PAY ATTENTION TO: While mounting a column speaker, there are still some other points where has to be paid attention to. - Make sure that the loudspeaker array is always visible for everyone in the listening area, to ensure a good audibility of the high tones. High tones can be compared with light. -
Page 9: Connecting The Giax
Chapter Connecting the GIAX CONNECTIONS: At the back of the GIAX is a 3 pole euro terminal block connector provided to connect the amplifier with the GIAX column speaker. Warning: Notice the polarity markings when wiring the loudspeaker cables. 4 Ω... -
Page 10: Additional Information Giax
Chapter Additional information GIAX TECHNICAL SPECIFICATIONS RMS Power 240 W Max Power 480 W Impedance 4 Ohm Sensitivity 1W / 1m 102 dB Sound pressure MAX / 1 m 118 dB Frequency response (-3 dB) 100 Hz – 17 kHz Horizontal coverage 170 °... -
