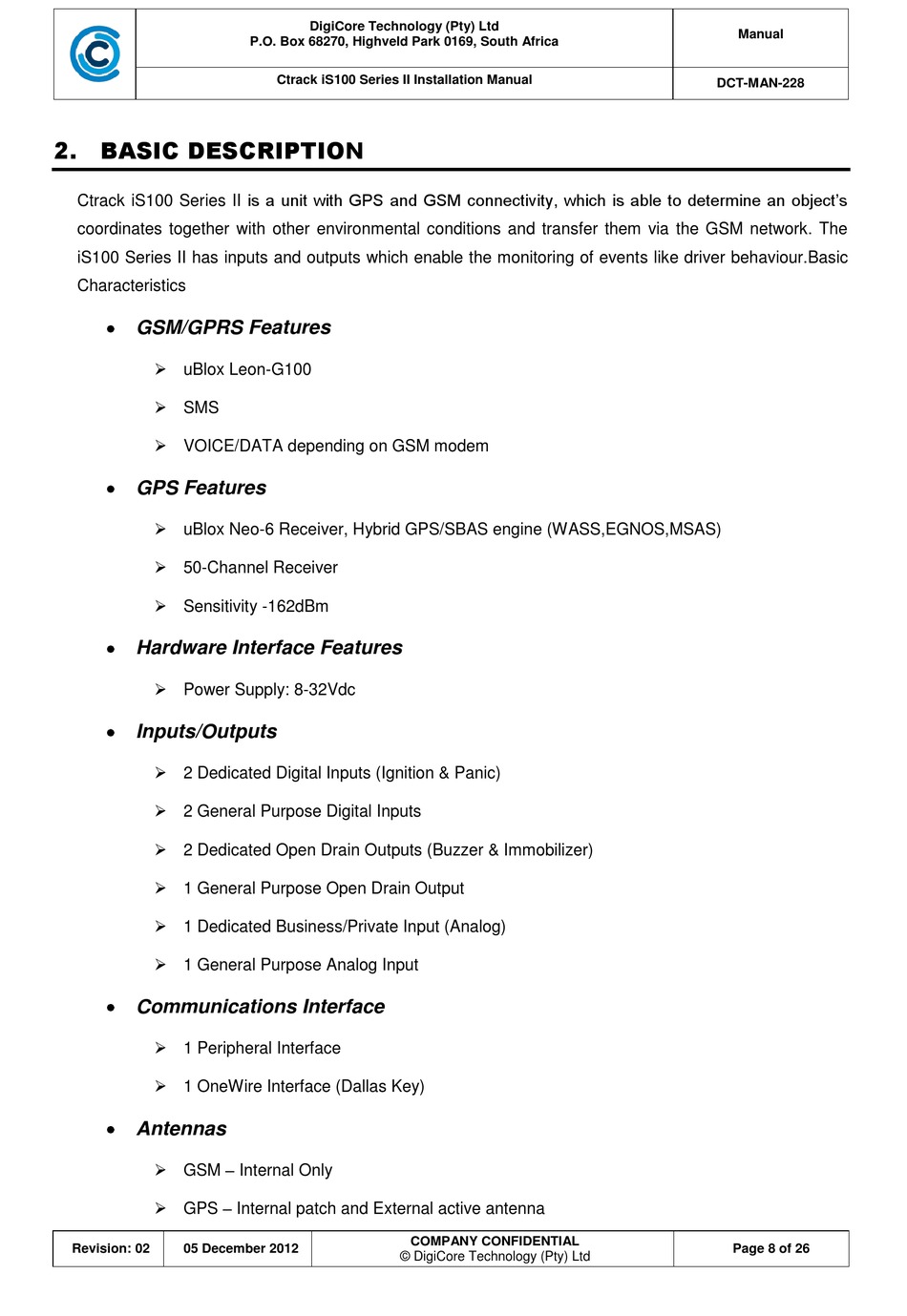

2. BASIC DESCRIPTION

Ctrack iS100 Series II is a unit with GPS and GSM connectivity, which is able to determine an object's
coordinates together with other environmental conditions and transfer them via the GSM network. The
iS100 Series II has inputs and outputs which enable the monitoring of events like driver behaviour.Basic
Characteristics
GSM/GPRS Features
 uBlox Leon-G100
 SMS
 VOICE/DATA depending on GSM modem
GPS Features
 uBlox Neo-6 Receiver, Hybrid GPS/SBAS engine (WASS,EGNOS,MSAS)
 50-Channel Receiver
 Sensitivity -162dBm
Hardware Interface Features
 Power Supply: 8-32Vdc
Inputs/Outputs
 2 Dedicated Digital Inputs (Ignition & Panic)
 2 General Purpose Digital Inputs
 2 Dedicated Open Drain Outputs (Buzzer & Immobilizer)
 1 General Purpose Open Drain Output
 1 Dedicated Business/Private Input (Analog)
 1 General Purpose Analog Input
Communications Interface
 1 Peripheral Interface
 1 OneWire Interface (Dallas Key)
Antennas
 GSM – Internal Only
 GPS – Internal patch and External active antenna
