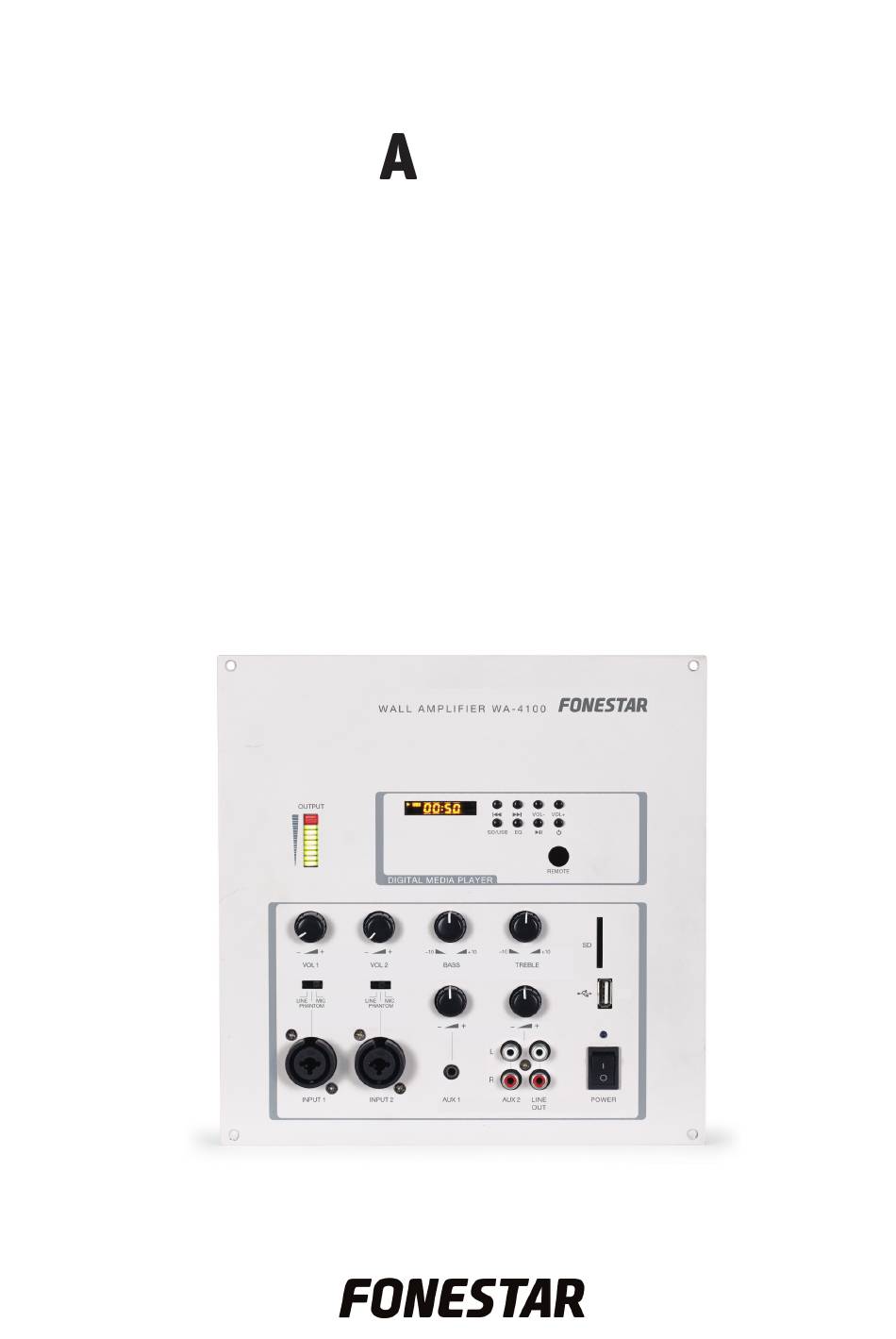

- Page 1 W -4100 WALL AMPLIFIER WITH USB/SD/MP3 PLAYER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions

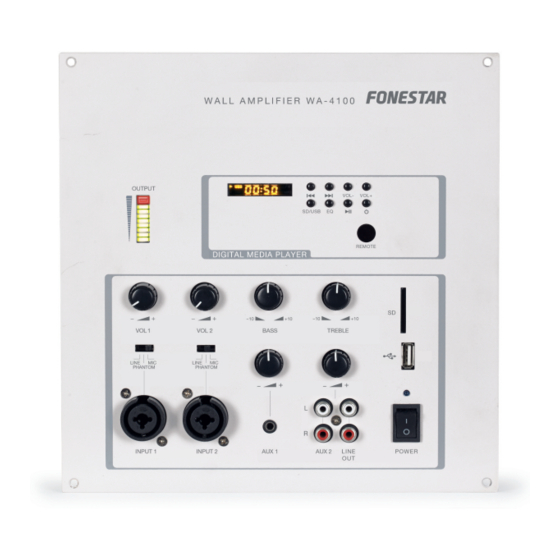

DESCRIPTION - Wall amplifier for surface or flush mounting. 100 W RMS. - Surface box which makes installation and connection easier. - Class D amplifier circuit. - Switched power supply source. - USB/SD player of MP3 files. - MP3 player remote control. CONTROLS AND FUNCTIONS FRONT PANEL 1.- OUTPUT: LED indicators of output signal level. - Page 5 6.- EQ: USB/SD/MP3 player audio signal equalization control. Press this button repeatedly if you wish to choose between the different established equalizations. 7.- 12: play and pause USB/SD/MP3 playback. With a long press, change among the different modes of playback: play all (ALL), play folder (FOLDER) or random play (RANDOM).
- Page 6 REAR PANEL 1.- MONO SPEAKER OUTPUT 4-16 Ω TOTAL: amplifier loudspeaker output 4-16 Ω. 2.- 230 V/115 V AC SELECT: power supply voltage selector. 3.- FUSE: AC power supply circuit protective fuse. 4.- AC socket: to connect AC power supply cable. REMOTE CONTROL q: USB/SD/MP3 player on/off button.
- Page 7 CONNECTION AND OPERATING - Make the connections with the amplifier and all components of the audio system switched off and disconnected from the mains supply. - Connect the audio equipment or microphones required to the corresponding inputs. If you wish, connect the USB storage device or the SD memory card in the appropriate inputs.
-
Page 8: Technical Specifications
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de...
