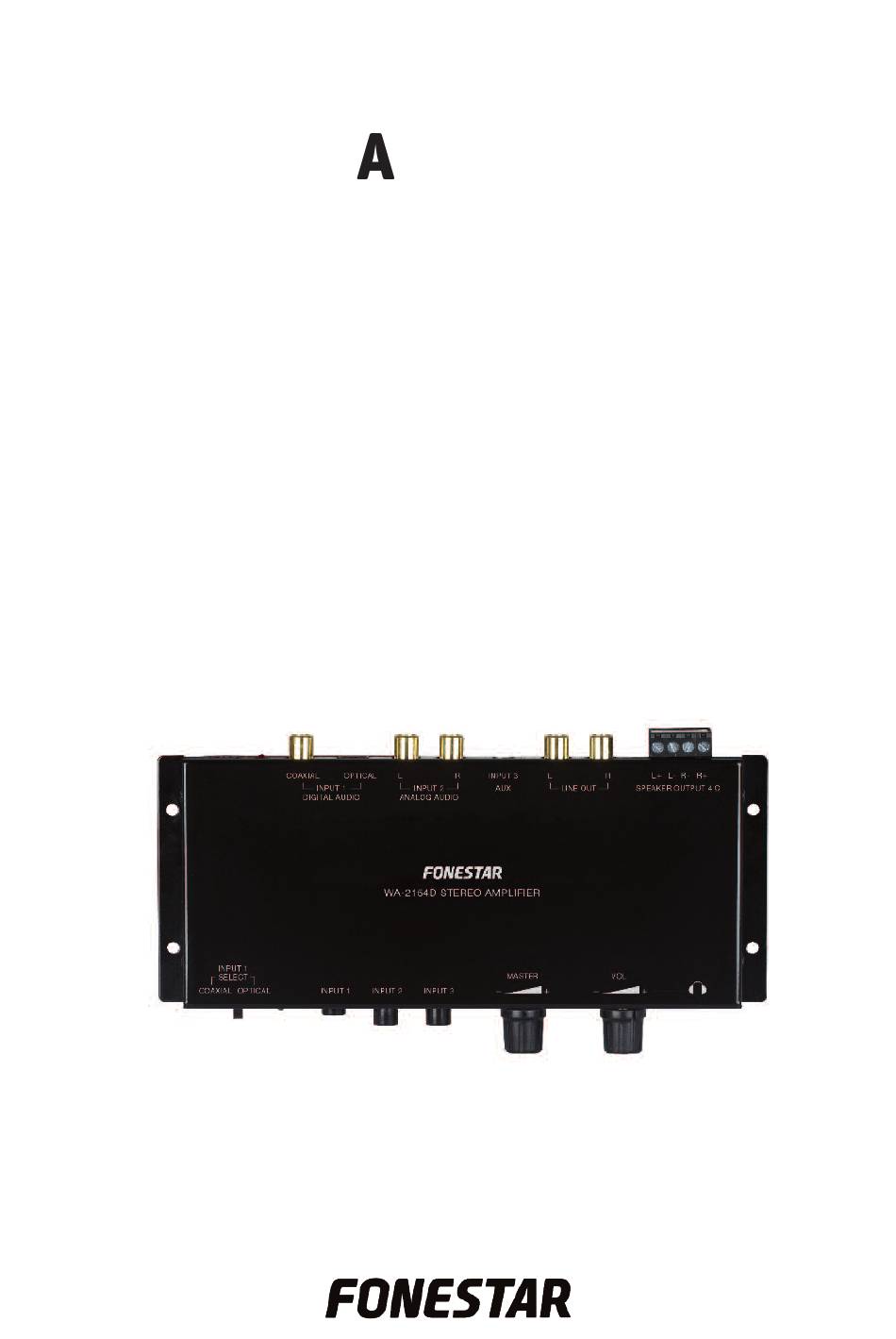

- Page 1 W -2154D COMPACT CLASS D STEREO AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

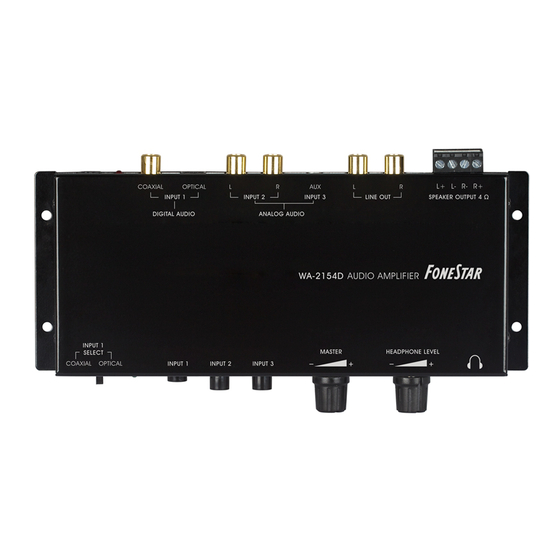

- Page 4 DESCRIPTION Amplifier designed specially for use in audio installations. Highly reliable with high quality audio. Compact and robust construction. Highly efficient class D amplification circuit. Assembly recommended in small installations, behind flat screens, newsstands or stalls, digital billboards or classrooms. CONTROLS AND FUNCTIONS FRONT PANEL 1.- 12 V DC: power supply input for the mains adapter supplied.
- Page 5 CONNECTION - Make the connections with the amplifier and all the audio system components switched off and disconnected from the mains. - Connect the required audio sources to inputs INPUT 1 - 3. Then select the required source by pressing the corresponding switch.
- Page 6 TECHNICAL SPECIFICATIONS WA-2154D CHARACTERISTICS Compact class D stereo amplifier. Steel case for surface assembly. Digital and analogue audio inputs. Stereo loudspeaker output. Headphone output. POWER 2 x 15 W RMS at 4 Ω PROTECTION Short circuit and temperature RESPONSE 20-20,000 Hz DISTORTION Harmonic: 0.06 % at 1 kHz...
- Page 7 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
- Page 8 www.fonestar.com...
