BAC 13361
IM-P133-61
ST Issue 1
M10Si ISO, M10Si ISO Automation
and M10Vi ISO Ball Valves
Screwed, SW, BW and Flanged versions
Installation and Maintenance Instructions
1. Safety information
2. General
product information
3. Installation
4. Commissioning
5. Operation
6. Maintenance
7. Spare parts
IM-P133-61 ST Issue 1
1
Printed in the UK
© Copyright 2005
Advertisement
Table of Contents
Related Manuals for Spirax Sarco M10Si
Summary of Contents for Spirax Sarco M10Si
-
Page 1: Product Information
BAC 13361 IM-P133-61 ST Issue 1 M10Si ISO, M10Si ISO Automation and M10Vi ISO Ball Valves Screwed, SW, BW and Flanged versions Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation 4. Commissioning 5. Operation 6. Maintenance 7. -
Page 2: Safety Information
Determine the correct installation situation and direction of fluid flow. iv) Spirax Sarco products are not intended to withstand external stresses that may be induced by any system to which they are fitted. It is the responsibility of the installer to consider these stresses and take adequate precautions to minimise them. -
Page 3: Pressure Systems
1.9 Tools and consumables Before starting work ensure that you have suitable tools and / or consumables available. Use only genuine Spirax Sarco replacement parts. 1.10 Protective clothing Consider whether you and/or others in the vicinity require any protective clothing to protect against the hazards of, for example, chemicals, high / low temperature, radiation, noise, falling objects, and dangers to eyes and face. -
Page 4: Returning Products
1.17 Returning products Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Spirax Sarco they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk. -
Page 5: General Product Information
2. General product information Fig. 1 M10Si and M10Vi screwed version shown Fig. 2 M10Si automation screwed version shown IM-P133-61 ST Issue 1... -
Page 6: General Description

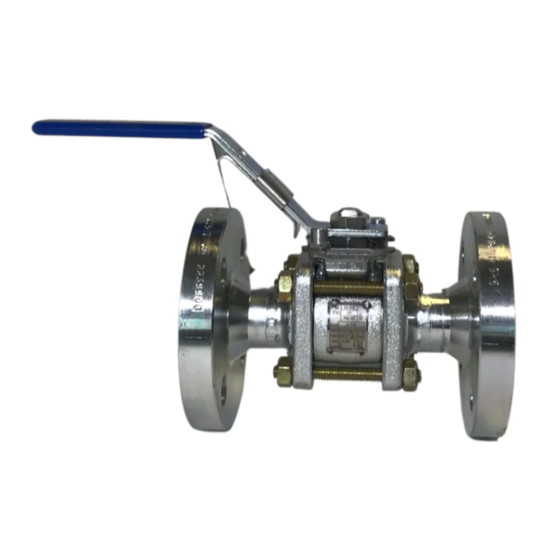

2.1 General description The M10Si ISO, M10Si ISO Automation and M10Vi ISO are three piece body ball valves designed for steam, process and other industrial fluids for services ranging from vacuum to the higher temperatures and pressures. They can be serviced without removing the valve from the pipeline (screwed and welded versions only). -
Page 7: Pressure / Temperature Limits
Pressure / temperature limits 2.3.1 M10Si ISO and M10Si automation ball valves Pressure psi g � ��� ��� ��� ���� ���� ��� ��� ��� ��� ��� ��� Steam ��� ��� saturation �� curve ��� � � ��� � �� ��... - Page 8 (446°F @ 0 psi g) Minimum operating temperature -29°C (-20°F) Note: For lower operating temperatures consult Spirax Sarco PMX Maximum differential pressure is limited to the PMO Designed for a maximum cold hydraulic test pressure of: 105 bar g (1 523 psi g)
-
Page 9: Installation
3. Installation Note: Before actioning any installation observe the 'Safety information' in Section 1. Although the valve has great structural integrity, severe misalignment and/or the pulling effect of incorrect pipe length will have a detrimental effect on the valve and must be avoided. Particular attention should be paid to correct pipe alignment such that the inlet pipework and valve are all on the same axis. -
Page 10: Operation
4. Commissioning After installation or maintenance ensure that the system is fully functioning. Carry out tests on any alarms or protective devices. 5. Operation The valve is operated manually by a handle. Special care must be taken to ensure that the movement is made in the correct direction. - Page 11 Table 1 Recommended tightening torques Item no. Part Size (lbf ft) ¼", ", ½" RB ½" FB ¾" RB Securing bolts ¾" FB 1" RB 18.0 Nuts 1" FB 1¼" RB 18.0 1¼" FB 1½" RB 30.0 1½" FB 2" RB 42.0 2"...
-
Page 12: Spare Parts
Always order spares by using the description given in the column headed 'Available spare' and state the size and type of ball valve required. Example: 1 - Seat, stem seals and body gasket set for a Spirax Sarco ½" M10Si2FB ISO ball valve.
