Operators Manual / Manuel d'utilisation / Manual de uso
EN p. 2

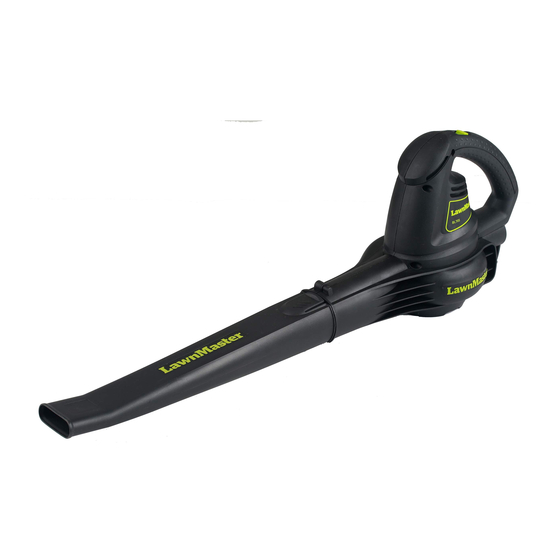

8 Amp Electric Blower BL705
FR p. 18
Souffleuse électrique 8 Amp BL705
ES p. 35
Sopladora eléctrica de 8 amperes BL705
LawnMaster_BL705_V1
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lisez attentivement toutes les règles de sécurité ainsi que les instructions avant de faire fonctionner cet outil.
Distribué par Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Lea todas las reglas e instrucciones de seguridad cuidadosamente antes de utilizar esta herramienta.
Distribuido por Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
3084514
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LawnMaster BL705
Summary of Contents for LawnMaster BL705
- Page 1 FR p. 18 Souffleuse électrique 8 Amp BL705 ES p. 35 Sopladora eléctrica de 8 amperes BL705 LawnMaster_BL705_V1 Read all safety rules and instructions carefully before operating this tool. Distributed By Cleva North America, Inc. 601 Regent Park Court Greenville, SC 29607 (866)-384-8432 Lisez attentivement toutes les règles de sécurité...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions Specific Safety Rules Symbols Electrical Information Features Assembly 10-11 Operation 11-13 Maintenance Troubleshooting Warranty Exploded View Parts List PRODUCT SPECIFICATIONS 8 AMP BLOWER Voltage 120 V ~ 60Hz 160 MPH Max Air Speed 160 CFM Max Air Volume 4 lbs.( 1.8kg ) Weight... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all WARNING: instructions listed below may result in electric shock, fire, and/or serious personal injury. READ THESE INSTRUCTIONS BEFORE USING THIS BLOWER Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. - Page 4 IMPORTANT SAFETY INSTRUCTIONS Do not use on steps, a ladder, roof top, tree, or other unstable support. Stable footing on a solid surface enables better control of the blower in unexpected situations. Secure long hair so it is above shoulder level to prevent entanglement in any moving parts. ...
-
Page 5: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result DANGER: in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result WARNING in death or serious injury. -
Page 6: Electrical Information
ELECTRICAL INFORMATION DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual threewire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded. WARNING: The double insulated system is intended to protect the user from shock resulting from a break in the tool’s internal insulation. - Page 7 ELECTRICAL INFORMATION Make sure your extension cord is properly wired and in good electrical condition.Always replace a damaged extension cord or have it repaired by a qualified person before use. Keep extension cords away from sharp objects,excessive heat and damp or wet areas. Use a separate electrical circuit for your tools.
-
Page 8: Features
FEATURES KNOW YOUR BLOWER This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate. See Figure 1. A - ON/OFF switch B - Blower tube Cord retainer... -
Page 9: Assembly
ASSEMBLY ASSEMBLING THE BLOWER TUBE See Figure 2. Slide blower tube forward until the lock button clicks into the top of the tube. A - Air outlet B - Lock button C - Blower tube Fig. 2 OPERATION WARNING: Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. - Page 10 OPERATION APPLICATIONS You may use this product for the purposes listed below: Clearing leaves and other yard debris from your lawn Keeping decks, patios, garages and driveways free from leaves, pine needles and other debris STARTING/STOPPING THE BLOWER See Figure 3-4.
- Page 11 OPERATION OPERATING THE BLOWER See Figure 5. To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile. To reduce sound levels, limit the number of pieces of equipment used at any one time. ...
-
Page 12: Maintenance
MAINTENANCE WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. -
Page 13: Exploded View
EXPLODED VIEW... -
Page 14: Parts List
PARTS LIST PART DESCRIPTION PART CODE NUMBER GF26BL.00.01 Blower Tube GF26BL.A0.01 Right motor shell assembly TM8264.00.00 Motor assembly TODXL1.A1.UL Wire WODQ10.02.06 Micro-switch GF26BL.10.03 Switch button TODXD1.44.UL Buit-in plug GF26BL.10.01 Left motor shell GF26BL.10.04 Shaft housing GF26BL.10.30 Heat output fan blade GF26BL.10.40 Fan blade TM8201.00.01... - Page 15 SPECIFIC SAFETY RULES Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier gauge.
- Page 16 ASSEMBLY UNPACKING This product requires assembly. Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. WARNING: Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it.
- Page 17 WARRANTY We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty will apply.
