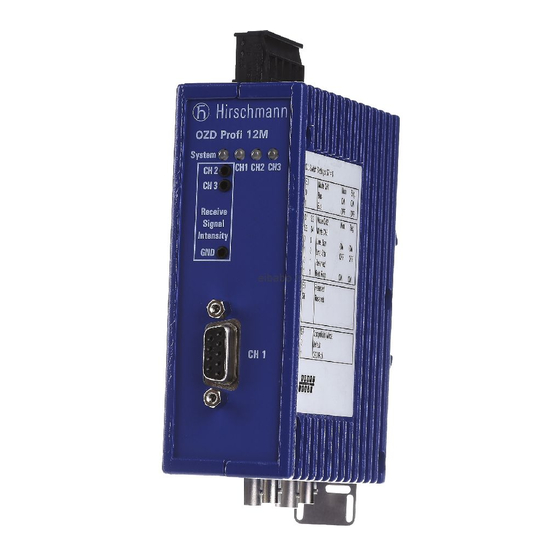

Hirschmann OZD Profi 12M G11 User Manual

Installation fiberoptic repeater
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Installation
Fiberoptic Repeater
OZD Profi 12M ...
Installation OZD Profi 12M ...
Technical Support
Release 01 07/2017
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OZD Profi 12M G11 and is the answer not in the manual?

Questions and answers

Related Manuals for Hirschmann OZD Profi 12M G11

Summary of Contents for Hirschmann OZD Profi 12M G11

  • Page 1 User Manual Installation Fiberoptic Repeater OZD Profi 12M ... Installation OZD Profi 12M ... Technical Support Release 01 07/2017 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents Safety instructions About this manual Description Non operating mode related functions Operating mode related functions 1.2.1 Segment monitoring at the RS 485 port Device views Display elements Network Topologies Line topology 2.1.1 Line topology with optical fiber link monitoring and segmentation 2.1.2 Line topology without optical fiber link monitoring Star topology...
  • Page 4 Mounting the device 4.2.1 Installing the device onto the DIN rail Setting compatibility Setting the operating mode and transmitting power 4.4.1 Setting the operating mode of the electrical ports (CH1, CH2) 4.4.2 Setting the operating mode of the optical ports (CH3, CH4) 4.4.3 Reducing the optical transmitting power Connecting the optic bus cables...

  • Page 5: Safety Instructions

     Operate the device with undamaged components exclusively.  The device is free of any service components. In case of a damaged or malfunctioning the device, turn off the supply voltage and return the device to Hirschmann for inspection. Qualification requirements for personnel ...
  • Page 6 Certified usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 57.  Connect to the product only components suitable for the requirements of the specific application case.
  • Page 7 Requirements All of the following requirements are complied with:  The supply voltage corresponds to the voltage specified on the type plate of the device.  The power supply conforms to overvoltage category I or II.  The power supply has an easily accessible disconnecting device (e.g., a switch or a plug). This disconnecting device is clearly identified.
  • Page 8 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany The product can be used in the industrial sector.
  • Page 9 FCC note:  This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations.

  • Page 10: About This Manual

    About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. The symbols used in this manual have the following meanings:  Listing Work step ...

  • Page 11: Description

    Description The PROFIBUS Repeaters are designed to be used in optical PROFIBUS field bus networks according to IEC 61784. They enable electrical PROFIBUS interfaces (RS 485 level) to be converted into optical PROFIBUS interfaces and vice-versa. By profiting from the familiar advantages of optical transmission technology, the repeaters can be integrated into existing PROFIBUS field bus networks.
  • Page 12 Port  Depending on a device variant, each device has 2,3,4 mutually independent ports (channels), which in turn consist of a transmitting and a receiving component. The electric ports are a 9-pole D-Sub socket (female). A PROFIBUS bus segment can be connected to this ports. The optical ports are BFOC/2.5 (ST ®) sockets.
  • Page 13 Power supply  The power supply is 24 V direct current. To improve the operating safety, a redundant operating power supply consisting of two separate sources can be used. For this purpose, you must connect the two supply voltages to two different terminals of the 8-pin screw-type terminal block.Both connections are uncoupled by means of diodes to prevent reverse voltage supply or destruction through incorrect pole connection.
  • Page 14 Measuring output  One measuring output is available for each optical port. The measuring output is connected to the 8-pin screw type terminal block. +24V Fault +24V Configuration  You can easily set the configuration to meet your specific requirements by means of DIP switches, which can easily be operated from outside.

  • Page 15: Non Operating Mode Related Functions

    Non operating mode related functions Transmission rate  The OZD Profi 12M ... support all the transmission rates defined in the EN 50170 standard: 9.6 kBit/s, 19.2 kBit/s, 45.45 kBit/s, 93.75 kBit/s,187.5 kBit/s and 500 kBit/s and additionally 1.5 MBit/s, 3 MBit/s, 6 MBit/s and 12 MBit/s. The transmission rate is set automatically as soon as the OZD Profi 12M ...

  • Page 16: Operating Mode Related Functions

    Operating mode related functions The operating mode is set using switches located on the front of the repeater. A sticker attached to the side of the repeater provides assistance with the settings. The OZD Profi 12M ... must be switched off when switching over DIP switches.
  • Page 17 Segmentation  If an echo monitoring error or a frame falsification arises at an optical port, the repeater assumes that the line is faulty and blocks this port for user data. The connected field bus partial network is then segmented (cut off). This segmentation causes the repeater at the other end of the optical fiber to be segmented as well.

  • Page 18: Device Views

    Device views Front view using example of device variants OZD Profi 12M ... – G11/G11-1300 – G12/G12-1300/G12-EEC/G12-1300-EEC – P11/P12 8-pin terminal block for power supply, signal contact, measuring output 8-pin DIP switch CH1 - electrical port Grounding screw CH3 - optical port (only applies to the device variants OZD Profi 12M ...
  • Page 19 Front view using example of device variants OZD Profi 12M ... – G22/G22-1300/G22-EEC/G22-1300-EEC – 8-pin terminal block for power supply, signal contact, measuring output 8-pin DIP switch CH2 - electrical port Grounding screw CH3, CH4 - optical ports CH1 - electrical port LED display element for system status and port status Installation OZD Profi 12M ...

  • Page 20: Display Elements

    Display elements Color Meaning System green lights up The transmission rate has been recognized and the power supply is in order Signal contact: no signal flashes Transmission rate has not yet been recognized – No transmitting bus subscriber present – No connection to a partner repeater sending frames –...
  • Page 21 Color Meaning electrical yellow lights up Signals are being received on the RS 485 bus line. ports Signal contact: no signal flashes/light Sporadic interference signals because s up – the RS 485 bus line being insufficiently shielded – an open RS 485 bus line, i.e. it is only connected to the repeater at one end –...
  • Page 22 Color Meaning lights up – Send and receive optical fibers have been transposed. – No partner repeater connected or partner repeater is not switched on. – Connected partner repeater is defective – Send time of connected partner repeater has been exceeded –...
  • Page 23 Color Meaning optical ports yellow lights up Signals are received at the optical channel. Signal contact: no signal none – No transmitting bus subscriber present – Send and receive optical fibers have been transposed – No partner repeater connected or partner repeater is not switched on –...

  • Page 24: Network Topologies

     Optically only OZD Profi 12M ... of the same type can be connected together: OZD Profi 12M P11 with … P12, OZD Profi 12M G11 with …G12 and …G12 EEC, OZD Profi 12M G11-1300 with … G12-1300 and …G12-1300 EEC.

  • Page 25: Line Topology

    Line topology Terminal unit(s) / Terminal unit(s) / Terminal unit(s) / bus segment bus segment bus segment OZD … OZD … OZD … G11 (-1300) G12 (-1300) G11 (-1300) CH 1 CH 1 CH 1 Figure 1: Network structure in an optical line topology In a line structure, the individual OZD Profi 12M ...

  • Page 26: Line Topology With Optical Fiber Link Monitoring And Segmentation

    2.1.1 Line topology with optical fiber link monitoring and segmentation This operating mode should preferably be used if an interrupted fiber segment is to be separated from the rest of the network. Monitoring mechanisms Send echo Monitor echo Suppress echo Monitor Segmentation In this operating mode the individual fiber links are monitored by the two...

  • Page 27: Line Topology Without Optical Fiber Link Monitoring

    2.1.2 Line topology without optical fiber link monitoring Use this operating mode if you connect a OZD Profi 12M ... with another optical fiber network component, which does not send a frame echo and does not expect or is not compatible with a frame echo in accordance with PROFIBUS guidelines (optical/electrical converter).

  • Page 28: Star Topology

    Star topology Electrical star segment OZD … OZD … OZD … OZD … G11 (-1300) G12 (-1300) G11 (-1300) G11 (-1300) OZD … OZD … G11 (-1300) G11 (-1300) OZD … OZD … G11 (-1300) G11 (-1300) OZD … G11 (-1300) Terminal unit(s) / Terminal unit(s) / Terminal unit(s) /...
  • Page 29  CH1 in mode ”Monitor off“ (S0 = 1) must be activated on all OZD Profi 12M ... which are connected to the electrical star segment. This deactivates the segmenting function of the RS 485 port on these OZD Profi 12M ..., providing a high degree of availability of the electrical star segment.

  • Page 30: Redundant Ring

    Redundant ring Terminal unit(s) / Terminal unit(s) / Terminal unit(s) / bus segment bus segment bus segment OZD … OZD … OZD … G12 (-1300) G12 (-1300) G12 (-1300) Figure 3: Network structure in a redundant optical ring topology This network topology represents a special form of line topology. A high degree of network operating safety is achieved by ”closing“...
  • Page 31 The following ambient conditions must be fulfilled to ensure that the network configuration functions correctly:  The operating mode ”Redundant optical ring“ must be set at both optical ports of all the OZD Profi 12M .. All repeaters in a ring must be connected to one another by fiber lines. The ring may not include an RS 485 bus line.

  • Page 32: Installation Guidelines

    Installation guidelines Electromagnetic compatibility (EMC) Electromagnetic compatibility (EMC) covers all aspects regarding the effects of radiated and received electrical, magnetic, and electromagnetic emissions. In order to prevent interference in electrical systems, these effects must be reduced to a minimum. The structural design and correct connection of bus lines as well as the interference suppression of switched inductances play a major role in limiting interference.

  • Page 33: Arrangement Of Devices And Cables

    Arrangement of devices and cables 3.3.1 Reducing interference by providing adequate space: A simple yet effective way of reducing interference is to separate devices and cables causing interference from those affected by interference. Inductive and capacitive interference injection decreases by the square of the distance between the elements concerned.

  • Page 34: Shield Connections

    Note: If differences in potential occur between the grounding points, an inadmissibly high compensating current could flow across the shielding connected at both ends. Never eliminate this problem by removing the shielding from the bus line. The following solution is permissible: Lay an additional equipotential bonding cable parallel to the bus line.

  • Page 35: Laying Cables Inside Of Buildings

    Laying cables inside of buildings Laying cables within control cabinets  If a repeater is installed within a control cabinet, the cable shield of the incoming bus cable should be electrically connected to a grounding rail as close as possible to the cable lead through using a shield grounding clamp or similar.
  • Page 36 Potential equalization and screening  Control cabinet 1 Control cabinet 2 Potential equalization Potential equalization Bus cable Figure 5: Laying cables inside of buildings The cable screen should be connected to ground at both ends of the cable. The use of fiber optic cable is recommended if problems are experienced with interference.

  • Page 37: Laying Cables Outside Of Buildings

    Laying cables outside of buildings Potential equalization Potential equalization Lightning protection Lightning protection Plastic pipe Bus cable Bus cable Functional ground Functional ground Figure 6: Laying cables outside of buildings Requirements:  It is recommended to use fiber optic cables for bus installations which are outside of buildings.

  • Page 38: Installation

    Installation The devices have been developed for practical application in a harsh industrial environment. Hirschmann supplies the device ready for operation. To configure a subdomain, follow these steps:  Checking the package contents  Mounting the device  Setting compatibility ...

  • Page 39: Mounting The Device

    Mounting the device 4.2.1 Installing the device onto the DIN rail Note: The device is for mounting on a 35 mm DIN rail in accordance with DIN EN 60715. Requirements:  Install the device in a location where the climatic threshold values specified in the technical data are adhered to.

  • Page 40: Setting Compatibility

    Setting compatibility Note: The functional compatibility on OZD Profi 12M ... is switched on or switched off with the DIP switch S8. – When operating OZD Profi 12M ... with OZD Profi PRO or with previous OZD Profi 12M ... the functional compatibility must be switched off (S8=0).
  • Page 41 OZD Profi G3a... / G4a... OZD Profi 12M G... Meaning of the DIP switches DIP switch Function DIP switch Function S1 - Mode S1 = 0 Mode 0 S2=0 Mode 0 S1 = 1 Mode 1 S2=1 Mode 1 S2 - Redundancy function S2 = 0 S3=0 S2 = 1...
  • Page 42 OZD Profi P3a... / P4a... OZD Profi 12M G... Meaning of the DIP DIP switch Function DIP switch Function switches S1 - Mode S1 = 0 Mode 0 S2=0 Mode 0 S1 = 1 Mode 1 S2=1 Mode 1 S2 - Redundancy function S2 = 0 S3=0 S2 = 1...

  • Page 43: Setting The Operating Mode And Transmitting Power

    Setting the operating mode and transmitting power Note: – S1 does not have a function on OZD Profi 12M ... with only one electrical interface. – S7 does not have a function on OZD Profi 12M ... with only one optical interface.

  • Page 44: Setting The Operating Mode Of The Optical Ports (Ch3, Ch4)

    Operating mode: electrical ports (CH1,CH2) without  segment monitoring CH1 is activated in this operating mode if S0 is in Position 1. Please note that this operating mode should only be set in the star segment of the star topology. CH 1 CH 2 CH 3...

  • Page 45: Reducing The Optical Transmitting Power

    Operating mode: Line without optical fiber link monitoring  CH3 is activated in this operating mode if S2 is in Position 1 and S3 is in Position 0. CH 1 CH4 is activated in this operating mode if S4 is in Position 1 and S5 is in CH 2 Position 0.

  • Page 46: Connecting The Optic Bus Cables

     Switch S6 to Position 0 (reduced) if overloading is detected at non-OZD Profi device at CH3. CH 1  Switch S7 to Position 0 (reduced) if overloading is detected at a non-OZD CH 2 Profi device at CH4. CH 3 CH 4 CH 3 CH 4...

  • Page 47: Connecting The Electric Bus Cables

    Connecting the electric bus cables Ground n.c. RxD/TxD – N RxD/TxD - P n.c. n.c. + 5 V Output n.c. Figure 7: Assignment of D-Sub socket  Depending on the device variant, the repeaters are fitted with one or two RS 485 electrical ports.
  • Page 48 Note: – If the repeater is at the beginning or end of a bus segment, this connector must have an activated bus terminal resistor combination. – Ensure that the bus segment connected to the RS 485 interface is terminated at both ends. –...

  • Page 49: Connecting The Function Ground And The Shield Of The Bus Cable

    Properties of cable type A: – Characteristic impedance: 135 - 165 Ohm – Capacity coating: ≤ 30 pF/m – Loop resistance: ≤ 110 Ohm/km – Wire diameter: > 0.64 mm – Wire cross section: > 0.34 mm Connecting the function ground and the shield of the bus cable WARNING There is no contact separation between the bus lines and the...

  • Page 50: Connecting The Power Supply

    Connecting the power supply Note: To connect the lines for the power supply, remove the 8-pin terminal block on the top of the repeater from the device. +24V Fault +24V Proceed as follows:  Only supply the OZD Profi 12M ... with a stabilized safety extra-low voltage (SELV) in accordance with IEC/EN 60950-1, EN 61131-25, 24 V maximum.

  • Page 51: Connecting The Signal Contact (Optional)

    Connecting the signal contact (optional) Note: – To connect the signal contact lines, remove the 8-pin screw terminal block on top of the repeater from the device. – Use the correct pin assignment for the 8-pin terminal block. – Make sure that the electrical insulation of the connection cables of the signal contacts is sufficient.

  • Page 52: Connecting The Analog Voltage Outputs (Optional)

    4.10 Connecting the analog voltage outputs (optional) +24V Fault +24V Figure 8: Analog voltage outputs – connections for 3-pin terminal block The device has two analog voltage outputs, Ua1 and Ua2. These voltage outputs are connected using a 8-pin screw terminal on top of the repeater. The screw terminal is suitable for cable leads that have a cross section between 0.2 - 2.5 mm The analog voltage outputs supply a short-circuit-proof output voltage...
  • Page 53 Signal output voltage Reserve Optical power input [μW] Figure 9: Correlation of measured output voltage to signal quality Note: For a measured value to be valid, it is necessary that the partner OZD Profi 12M ... on the other end of the optical fiber transmits regular PROFIBUS telegrams.

  • Page 54: Configuration

    Configuration During configuration, the PROFIBUS network parameter "Slot time" must be adapted to the network coverage, network topology and the data rate due to frame delays caused by lines and network components, as well as by monitoring mechanisms in the network components. Configuration of redundant optical rings ...
  • Page 55 12 MBit/s 3800 t 6 MBit/s 2000 t 3 MBit/s 1000 t 1.5 MBit/s 530 t Table 9: Minimum slot time on OZD Profi 12M G11-1300 and OZD Profi 12M G12- 1300 (EEC) Installation OZD Profi 12M ... Release 01 07/2017...

  • Page 56: Disassembly

    Disassembly To remove the device, pull down on the locking slide. Installation OZD Profi 12M ... Release 01 07/2017...

  • Page 57: Technical Data

    Technical data General technical data  OZD Profi 12M ... G11-1300 G12-1300 G12-EEC G12-1300-EEC Dimensions See “Dimension drawings” on page 60. W × H × D Weight approx. 19.75 oz (560 g) Supply voltage See “Requirements for connecting electrical wires” on page 6. Nominal voltage DC 24 V Voltage range DC incl.
  • Page 58 Climatic conditions during operation Ambient temperature  OZD Profi 12M ... +32 °F ... +140 °F +32 °F ... +140 °F +32 °F ... +140 °F without “EEC” feature (0 °C ... +60 °C) (0 °C ... +60 °C) (0 °C ... +60 °C) ...
  • Page 59 Transmission distance G-1300 Transmission distance: Fiber 10/125 15000 m Fiber 50/125 (default) 3000 m 10000 m Fiber 62.5/125 (default) 3000 m 10000 m Fiber 200/230/125 (default) 400 m Fiber 200/230/125 (reduced) 800 m (12 MBit/s) 1000 m (<12 MBit/s) Fiber 980/1000 (default) 80 m Fiber 980/1000 (reduced) 57 m...
  • Page 60 Dimension drawings  inch 83,95 3.31 39,5 1.56 0.79 Installation OZD Profi 12M ... Release 01 07/2017...

  • Page 61: Scope Of Delivery, Order Numbers And Accessories

    1 × Device 1 × General safety instructions Order numbers/product description  Device name Order number OZD Profi 12M G11 942 148-001 OZD Profi 12M G12 942 148-002 OZD Profi 12M G22 942 148-003 OZD Profi 12M G11-1300 942 148-004...

  • Page 62: Underlying Technical Standards

    Underlying technical standards Name CSA C22.2 No. 142 Canadian National Standard(s) – Process Control Equipment – Industrial Products FCC 47 CFR Part 15 Code of Federal Regulations UL/IEC 61010-1, Safety for Control Equipment UL/IEC 61010-2-201 EN 55022 Information technology equipment – Radio disturbance characteristics –...

  • Page 63: 10 Help With Problems

    10 Help with problems 10.1 Troubleshooting This chapter helps you to localize faults after they have been indicated (by LEDs or signal contacts). Fault indicated on the system LED  For more details see chapter “Display elements” on page Fault indicated on CH1, CH2 ...

  • Page 64: Systematic Troubleshooting

    10.2 Systematic troubleshooting This chapter helps you to localize an error systematically with the help of the following questions. See also the description of the LED displays. See “Display elements” on page 20. Check the following points:  Are all the electrical bus lines terminated at both ends in accordance with PROFIBUS specification (even for short electrical lines)? ...

  • Page 65: Problem Reporting

    Note: Configuration (these settings can usually be set on the PROFIBUS master using configuration software, not on the OZD Profi 12M … ): – Slot time configured correctly? (for basics, see chapter “Redundant ring” for calculation, see “TSLOT.exe”) – Retry value configured correctly? (target value ≥ 3, see chapter “Redundant ring”).

  • Page 66: A Further Support

    Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.eu.com.
  • Page 67 Installation OZD Profi 12M ... Release 01 07/2017...
  • Page 68 Installation OZD Profi 12M ... Release 01 07/2017...
  • Page 69 Installation OZD Profi 12M ... Release 01 07/2017...
  • Page 70 Installation OZD Profi 12M ... Release 01 07/2017...
  • Page 71 Installation OZD Profi 12M ... Release 01 07/2017...
