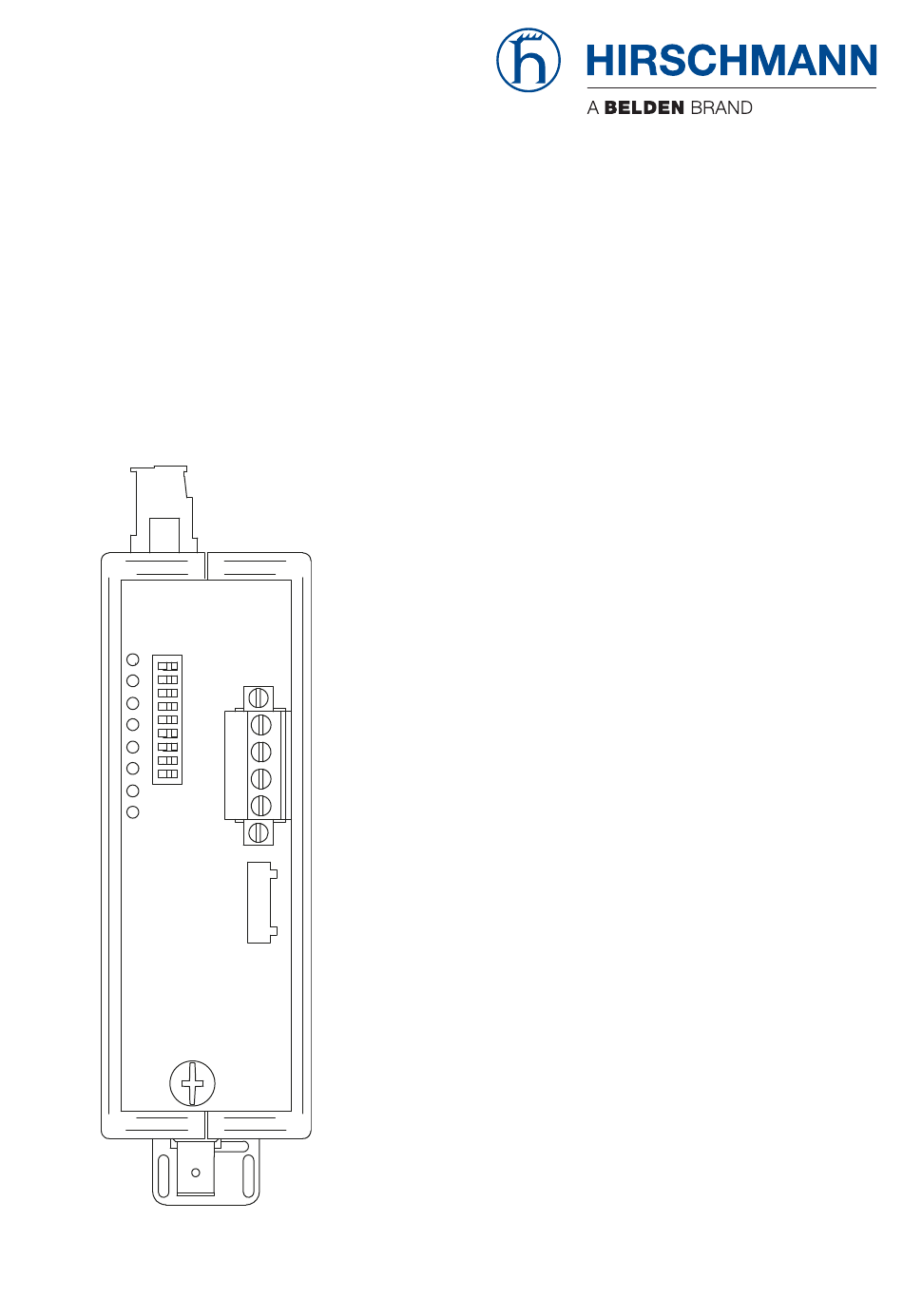

- Page 1 User Manual Installation Fiberoptic Repeater OZD Genius... Installation OZD Genius... Technical Support Release 01 09/2017 https://hirschmann-support.belden.eu.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Contents Safety instructions About this manual Description General description Device view Display elements Network Topologies Line topology without redundancy Redundant optical ring Installation Checking the package contents Installing and grounding the device 3.2.1 Installing the device onto the DIN rail 3.2.2 Mounting the device on a mounting plate 3.2.3 Grounding the device Connecting the optic bus cables... - Page 4 Technical data Scope of delivery, order numbers and accessories Underlying technical standards Troubleshooting Further support Installation OZD Genius... Release 01 09/2017...
-
Page 5: Safety Instructions
Operate the device with undamaged components exclusively. The device is free of any service components. In case of a damaged or malfunctioning the device, turn off the supply voltage and return the device to Hirschmann for inspection. Qualification requirements for personnel ... - Page 6 Certified usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product only according to the technical specifications. See “Technical data” on page 33. Connect to the product only components suitable for the requirements of the specific application case.
- Page 7 Requirements All of the following requirements are complied with: The supply voltage corresponds to the voltage specified on the type plate of the device. The power supply conforms to overvoltage category I or II. The power supply has an easily accessible disconnecting device (e.g., a switch or a plug). This disconnecting device is clearly identified.
- Page 8 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany The product can be used in the industrial sector.
- Page 9 FCC note: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations.
-
Page 10: About This Manual
About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Installation OZD Genius... Release 01 09/2017... -
Page 11: Key
The symbols used in this manual have the following meanings: Listing Work step Subheading Installation OZD Genius... Release 01 09/2017... -
Page 12: Description
– due to the potential separation – on the Repeater itself. Data rate The fiber-optic repeater OZD Genius G12… supports the data rates 153.6 kBaud (standard and extended),76.8 kBaud and 38.4 kBaud. Redundancy Redundant optical signal transmission ensures a very high level of transmission reliability. - Page 13 Port The repeater has three mutually independent ports (channels), each of which consists of a transmitter and receiver. The electrical port is a 4-pin connector, the optical ports are BFOC/2.5 (ST ®) sockets. Installation OZD Genius... Release 01 09/2017...
- Page 14 Power supply The power supply is 24 V direct current. To improve the operating safety, a redundant operating power supply consisting of two separate sources can be used. For this purpose, you must connect the two supply voltages to two different terminals of the 8-pin screw-type terminal block. There is no load distribution between the sources.
- Page 15 Measuring output One measuring output is available for each optical port. The measuring output is connected to the 8-pin screw type terminal block. +24V Fault +24V Signal regeneration The OZD Genius... regenerates the signal form and amplitude of the received data.
-
Page 16: Device View
SHD OUT SHD IN SER2 SER1 Front view using example of device variants OZD Genius... / OZD Genius G12-1300 8-pin terminal block for power supply, signal contact, measuring output Pin assignment of the signal contact Pin assignment of the power supply... -
Page 17: Display Elements
8-pin DIP switch Meaning of the DIP switches: – S0 and S1 with function (Setting the data rate) – S0 and S1 with function (Setting the optical transmit power) – S2, S3, S4, S5, S8 without function CH1 - electrical port The information field for the electrical port 1 (CH1) SHD OUT - Shield line, output (connected to casing) SHD IN - Shield line, input (connected to casing via a capacitor) - Page 18 Display Color Meaning Signal contact Open – Supply voltage is too low – No data reception for 500 ms at minimum one port Closed Data reception at all ports Installation OZD Genius... Release 01 09/2017...
-
Page 19: Network Topologies
Network Topologies Line topology without redundancy OZD Genius G12 OZD Genius G12 OZD Genius G12 OZD Genius G12 Terminal unit(s)/ Terminal unit(s)/ Terminal unit(s)/ Terminal unit(s)/ bus segment(s) bus segment(s) bus segment(s) bus segment(s) Genius bus line Fiber optic cable... -
Page 20: Redundant Optical Ring
Redundant optical ring OZD Genius G12 OZD Genius G12 OZD Genius G12 OZD Genius G12 Terminal unit(s)/ Terminal unit(s)/ Terminal unit(s)/ Terminal unit(s)/ bus segment(s) bus segment(s) bus segment(s) bus segment(s) Genius bus line Fiber optic cable Figure 2: Network structure in a redundant optical ring topology This network topology is used in the case of an optical link between end devices or bus segments. - Page 21 It is advisable to install the duplex optical cables of the two optical channels along different routes. The maximum permissible network range for the ring topology depends on both the number of OZD Genius G12... devices used and the data rate. Installation OZD Genius... Release 01 09/2017...
-
Page 22: Installation
Installation The devices have been developed for practical application in a harsh industrial environment. Hirschmann supplies the device ready for operation. To configure a subdomain, follow these steps: Checking the package contents Installing and grounding the device ... -
Page 23: Installing And Grounding The Device
Installing and grounding the device You have the following options for mounting your device: Installing the device onto the DIN rail Mounting the device on a mounting plate Prerequisites: Install the device in a location where the climatic threshold values specified in the technical data are adhered to. -
Page 24: Mounting The Device On A Mounting Plate
3.2.2 Mounting the device on a mounting plate 61,2 mm Ø 3 mm Ø 3 mm Toothed washer in (inch) 81,2 61,2 2.45 40,6 0.12 Note: The repeater has 3 through-holes. The through-holes allow to mount the repeater to any flat surface, e.g. to the mounting plate of a switch cabinet. Proceed as follows: ... -
Page 25: Connecting The Optic Bus Cables
Connecting the optic bus cables optical output (Sending direction) optical input (Receiving direction) Proceed as follows: Use a duplex fiber-optic cable with BFOC/2.5 (ST ®) connectors to connect the individual repeaters. Pay attention to the maximum cable length of the fiber-optic cable as well as the possible types of fibers specified in the Technical Data. -
Page 26: Connecting The Electric Bus Cables
Connecting the electric bus cables SHD OUT SHD IN SER2 SER1 WARNING Genius bus lines which are completely or partially installed outdoors should not be connected. Any lightning strikes in the immediate vicinity could otherwise destroy the repeaters. Use F/O cables for bus connections outside buildings. -
Page 27: Connecting The Power Supply
Connecting the power supply +24V Fault +24V Proceed as follows: The OZD Genius... should only be supplied with a regulated safety extra- low voltage of between 18 V and 32 V as defined in IEC 60950/EN 60950 /VDE 0805. ... -
Page 28: Connecting The Signal Contact
Connecting the signal contact Note: To connect the signal contact lines, remove the 8-pin screw terminal block on top of the repeater from the device. Use the correct pin assignment for the 8-pin terminal block. Make sure that the electrical insulation of the connection cables of the signal contacts is sufficient. -
Page 29: Setting The Data Rate
Note: Use the dip switches S0 and S1 on the front panel of the OZD Genius... to set the desired data rate. The fiber-optic repeater OZD Genius G12... supports the data rates 153.6 kBaud (standard and extended),76.8 kBaud and 38.4 kBaud. -
Page 30: Setting The Optical Transmitting Power
Setting the optical transmitting power Note: S2, S3, S4, S5 and S8 do not have function on OZD Genius.. The DIP switch S6 is used to set the transmit power of CH3. The DIP switch S7 is used to set the transmit power of CH4. ... - Page 31 Serial 1 Serial 2 Shield in Shield out Terminating resistor Serial 1 Serial 2 Shield in Shield out 5 x OZD Genius G12 Terminating resistor Serial 1 Serial 2 Terminating Shield in resistor Shield out Serial 1 Serial 2...
-
Page 32: Disassembly
Disassembly To remove the device, pull down on the locking slide. Installation OZD Genius... Release 01 09/2017... - Page 33 Technical data General technical data Device variant OZD Genius... OZD Genius G12-1300 Dimensions See “Dimension drawings” on page 35. W × H × D Weight approx. 19.75 oz (560 g) Supply voltage See “Requirements for connecting electrical wires” on page 6.
- Page 34 Fiber 50/125 (default) 2700 m 10000 m Fiber 62.5/125 (default) 3100 m 10000 m a. The specified distance allowed between two OZD Genius G12-1300 must not be exceeded regardless of the optical power budget. Installation OZD Genius... Release 01 09/2017...
- Page 35 Dimension drawings 16,75 inch 0.66 96,7 39,5 1.56 Power consumption/power output Device name Maximum power consumption Maximum power output OZD Genius... 4.8 W 16.3 Btu (IT)/h Installation OZD Genius... Release 01 09/2017...
- Page 36 Scope of delivery, order numbers and accessories Scope of delivery Number Article 1 × Device 1 × General safety instructions Order numbers/product description Device name Order number OZD Genius G12 942 148-012 OZD Genius G12-1300 942 148-013 Installation OZD Genius... Release 01 09/2017...
- Page 37 Underlying technical standards Name C-Tick Declaration Australian Radiocommunication Act 1998 Australian Radiocommunication Standard 2008 CSA C22.2 No. 142 Canadian National Standard(s) – Process Control Equipment – Industrial Products FCC 47 CFR Part 15 Code of Federal Regulations DNVGL-CG-0339 Environmental test specification for electrical, electronic and programmable equipment and systems.
- Page 38 Troubleshooting This chapter helps you to localize faults after they have been indicated (by LEDs or signal contacts). Fault indicated on the system LED Check that the supply voltage is being supplied. Check that the supply voltage is connected correctly. Fault displayed at CH1 ...
- Page 39 Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http://www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.eu.com.
- Page 40 Installation OZD Genius... Release 01 09/2017...
- Page 41 Installation OZD Genius... Release 01 09/2017...
