Falling Prevention - Sharp HT-SL70 Operation Manual

System preparation (continued)
Caution:
●
Be very careful to prevent the sound bar [1.46 lbs
(0.66 kg)] from falling when mounting on the wall.
●
Before mounting, check the wall strength. (Do not put
on the veneer plaster or whitewashed wall. The sound
bar may fall.) If unsure, consult a qualified service
technician.
●
Mounting screws are not supplied. Use appropriate
ones.
●
Check all wall mount angle screws for looseness.
●
Select a good location. If not, accidents may occur or
the sound bar may get damaged.
●
SHARP is not responsible for accidents resulting
from improper installation.
●
Do not let children dangle on the sound bar once it is
attached on the wall as it can cause damage and injury.

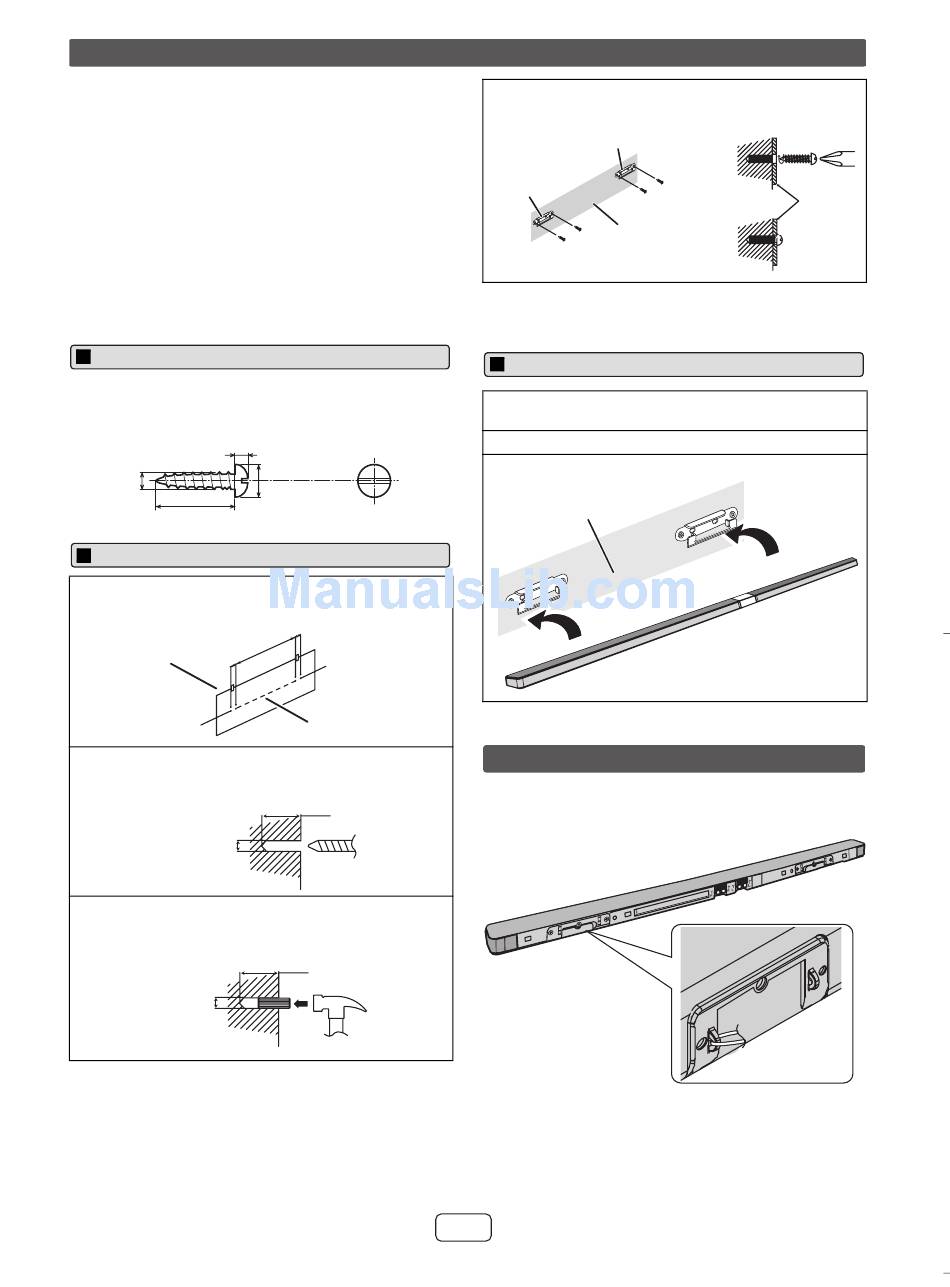

Driving screws
SHARP designed the sound bar so you may hang them on
the wall. Use proper screws (not supplied). See below for
size and type.
1/8" (3.2 mm)
3/16"
(5 mm)
7/8" (Min. 22 mm)
Fixing wall mount angle
1
Fix the pattern paper to the wall in horizontal
position as below.
523 mm
Wall surface 30 mm
2
Make a hole on the wall following the screw point
marks on the pattern paper by using a drill.
3/8" (8-9 mm)
Wall surface
3
Fix a wall mount plug (not supplied) into the hole
using a hammer, until it is flush with the wall
surface.
3/8" (8-9 mm)
Wall surface
3/8" (9 mm)
30 mm
Pattern paper
1-1/4" (32 mm)
1-1/4" (32 mm)
4
Screw the wall mount angle to the wall as shown in
the illustration. (Total screw is 4 pieces)
Wall mount angle
Wall mount
angle
(screws x 2)
Wall surface
(screws x 2)
Note:
Make sure all screws are fully tightened. (screws are not
supplied)
Installing the sound bar
1
Align the wall mount slot at the sound bar to the
wall mount angle.
2
Slot the sound bar into the wall mount angle.
3
Fix them securely.
Wall surface

Falling prevention

Safety wires (not supplied) are useful to prevent the sound
bar from falling off the table.
Loop the safety wires (not supplied) into each hole as
shown and tie the safety wires to the LCD TV stand.
