ENGLISH
TINSZB037AWZZ
Quick Start Guide
This product has HDMI CEC (Consumer Electronics Control), a feature which will enable you to use
your TV's remote control to power on/off and adjust the volume of this product.
Recommended Connection:
Your TV Type HDMI CEC function
HDMI
(with Audio Return
MUST BE ENABLED
Channel)
with HDMI
HDMI TV without
CEC & ARC or non NONE
HDMI TV
Notes:
This product is controlled via HDMI CEC (Consumer Electronics Control) specifi cation, therefore for HDMI

connection, your TV's CEC must be enabled. For details, refer to the operation manual of the TV.
For TV without HDMI CEC, headphone or RCA (variable output) analogue connection is available.

For TV without HDMI, headphone or RCA (variable output) connection is required.

Volume level can be controlled via TV remote control.

Accessories
The following accessories are included. This product has no remote control.
RCA to Headphone
Subwoofer Stand x 2
Cable (1 pin - 2 pins) x 1
System connections
Method 1. Recommended connection : Connecting a TV with ARC (Audio Return Channel)
DVD or similar device
HDMI OUTPUT
TV
HDMI INPUT
HDMI (ARC)
Wall socket
(AC 220-240V ~ 50/60 Hz)
Example for your TV setting
1. Activation of CEC (e.g.: AQUOS TV (LC40LE810E))
1
Go to the MENU of the TV and the MENU screen will be displayed.
2
Press b/B (or v/V) to select "Link Operation".
3
Press V/v (or b/B) to select "AQUOS LINK Setup".
(For Sharp LCD TV, the HDMI CEC is named as AQUOS LINK)
4
Press v/V (or b/B) to select "AQUOS LINK Control".
5
Press v/V (or b/B) to select "On".
6
Press MENU to exit.
Method 2. Connecting a TV without ARC (Audio Return Channel)
Subwoofer
DVD or similar device
HDMI OUTPUT
Activate the CEC feature of your TV and select the appropriate speaker output. For details, refer

to the operation manual of the TV.
To turn the power on
Plug the AC power lead into a wall socket, the stand-by indicator turns RED.
This unit will automatically power on if:
1. DVD which supports HDMI CEC, is turned on.
2. Audio signal is detected from TV (DVD must POWER OFF).
The stand-by indicator will turn BLUE if TV signal is detected.
Power Off
This unit will automatically go to stand-by mode (indicator turns RED) if:
1. DVD which supports HDMI CEC, is turned off.
2. No signal from TV is detected after 20 minutes.
HT-SL70 / HT-SL75
SOUND BAR HOME THEATER SYSTEM
Quick Start Guide
Connection
Connection method
HDMI IN (ARC) Method 1
HDMI IN Method 2
HEADPHONE OUT Method 3
RCA
Method 3
(VARIABLE OUT)
Audio Cable x 1 HDMI Cable x 1 Wall Mount Bracket x 2

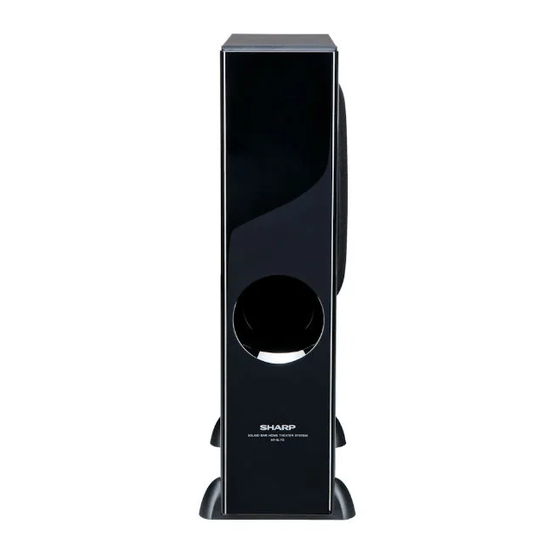

Subwoofer
To HDMI terminal
To audio output terminal
or
To HEADPHONE terminal
Printed in Malaysia
11K R MW 1
Accessories
Wall Mount
Angle x 2
Connection
method
For HT-SL75 only.
refer operation
manual
Page 8, Method 1
Page 8, Method 2
Page 9, Method 1
Page 9, Method 2
Sound bar cover joint for
60" (152 cm) TV (short) x 1
For HT-SL70 only.
Sound bar cover joint for
46" (117 cm) TV (short) x 1
The illustrations printed in this operation manual are for the model HT-SL70.
Right
R
White
Red
2. Selection of speaker
Listening with the Sound Bar System
1
Select OPTION and the AQUOS LINK menu screen will be displayed.
2
Press v/V to select "By AQUOS AUDIO SP", and then press OK.
To turn the power on/off
Plug the AC power lead into a wall socket, the stand-by indicator turns RED.
This unit will automatically power on/off if TV is turned on/off.
The stand-by indicator will turn BLUE if TV signal is detected.
Method 3. Connecting a TV (with AUDIO IN (TV))
Subwoofer
TV
Select the appropriate speaker output on your TV. For details, refer to the operation manual of

the TV.
To turn the power on
Plug the AC power lead into a wall socket, the stand-by indicator turns RED.
This unit will automatically power on if audio signal is detected from TV.
The stand-by indicator will turn BLUE if TV signal is detected.
Power Off
This unit will automatically go to stand-by mode (indicator turns RED) if no signal from TV is detected after
20 minutes.
Note:
In some cases, a small background noise could emit from the sound bar, when you use the headphone
connection with a TV-Set. In such case, please change the connection to the HDMI/ARC or RCA-connection!
This effect depends on the used TV-Brand, model and age, and it is not a quality matter from the sound bar!
Pattern Paper Speaker Wire Sound Bar Stand x 2 Screw for Brackets x 6
Sound bar cover joint for
Stand Cover x 2
70" (177 cm) TV (long) x 1
Sound bar cover joint for
Stand Cover x 2
52" (132 cm) TV (long) x 1
Left
L
Sound Bar
Make sure to unplug the AC power lead before making any connections.
This unit can be operated (power on/off or volume up/down) via a TV or similar

component which supports HDMI CEC (Consumer Electronics Control). If this
does not work, it does not mean this system is faulty. Refer to the operation
manual of the respective component on how to activate the CEC.
To audio output terminal
or
To HEADPHONE terminal
Sound Bar Stand
Cushion x 2
Stand Base x 2
Stand Base x 2
DVD or similar device
TV
