Instructions

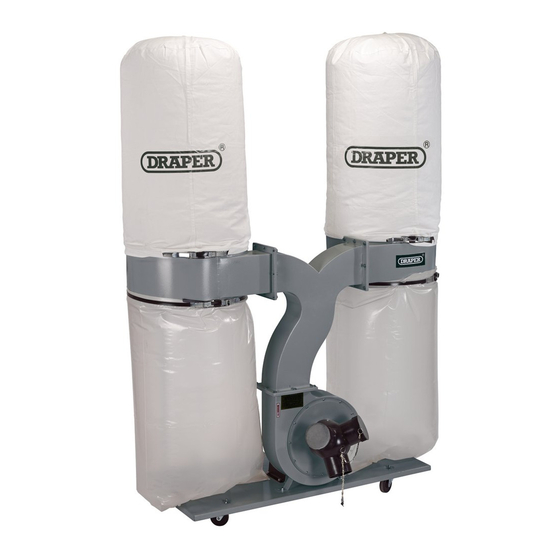

INSTRUCTIONS FOR
2200W
Dust Extractor
Stock No.80947
Part No.DE2200
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 2200W
Summary of Contents for Draper 2200W
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period. -
Page 5: Introduction
INTRODUCTION 4.1 SPECIFICATION Stock no..........................80947 Part no.......................... DE2200 Voltage ........................230V~50Hz Motor........................2200W (3HP) Air flow...................... 65m³/min (2300cfm) Filtration .....................5 micron (bag type) Intake diameter......................100mm x 3 Bag dimensions .................... 500(D)x850(H)mm Vibration level .......................<2.5m/s² Weight ..........................59kg 4.2 HANDLING & STORAGE Care must be taken when handling and lifting. -
Page 6: Health & Safety Information
IMPORTANT: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 7: Additional Safety Instructions For Dust Extractors
HEALTH & SAFETY INFORMATION 20. CHECK DAMAGED PARTS: Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. -
Page 8: Connection To The Power Supply
HEALTH & SAFETY INFORMATION 14. TO AVOID INJURY: From accidental starting, unplug the power cable before changing or cleaning the dust bag. 15. DO NOT: Use without the dust bag in place. 16. DO NOT: Unplug by pulling on the cable. To unplug, grasp the plug, not the cable. 17. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Motor/ducting unit. Collection bag ducting. No-volt on/off switch. Collection bag. Extraction chute. Base. Filter bag. Castors (x4). -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the dust extractor. -
Page 11: Preparing The Dust Extractor
PREPARING THE DUST EXTRACTOR NOTE: Remove the plug from the socket before carrying FIG.1 out adjustment, servicing or maintenance. 8.1 CASTORS - FIG. 1 Align the castors on the underside of base secure with the four 8mm (M4) nuts 8.2 MOTOR SUPPORT - FIG. 2 FIG.2 Align the motor/ducting unit to the motor support... - Page 12 PREPARING THE DUST EXTRACTOR Locate a gasket each side at the top of the FIG.6 extraction chute and fix a collection bag duct to each side using 8 x M8 x 16mm bolts FIG.7 FIG.8...
-
Page 13: Bag Supports
PREPARING THE DUST EXTRACTOR 8.4 BAG SUPPORTS - FIGS. 9 - 11 Position the supports on the base and secure with 2 x M8 x 16mm bolts on each. NOTE: Ensure there is one washer per bolt. Position the collection bag duct and fix to the supports with 2 x M8 x 16mm NOTE: Ensure there is one washer... -
Page 14: Collection Bags
PREPARING THE DUST EXTRACTOR 8.6 COLLECTION BAGS - FIGS. 13 - 14 FIG.13 Put the strap through the loops on the filter bag (Fig.13). Locate on top edge of collection bag duct, hook the spring over one of the teeth Close the clamp to secure the bag in place. -
Page 15: Operating Instructions
OPERATING INSTRUCTIONS 9.1 NO-VOLT ON/OFF SWITCH - FIG. 15 FIG.15 The dust extractor is equipped with a no-volt on/off switch. In the event of a power supply disruption, the machine will require manually restarting once power has been returned. To switch the machine on, press the green button marked ‘... -
Page 16: Explanation Of Symbols
10. EXPLANATION OF SYMBOLS 10.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish... -
Page 17: Disposal
11. DISPOSAL 11.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 - Sales Fax: (023) 8049 4209 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST PSCH0715...
