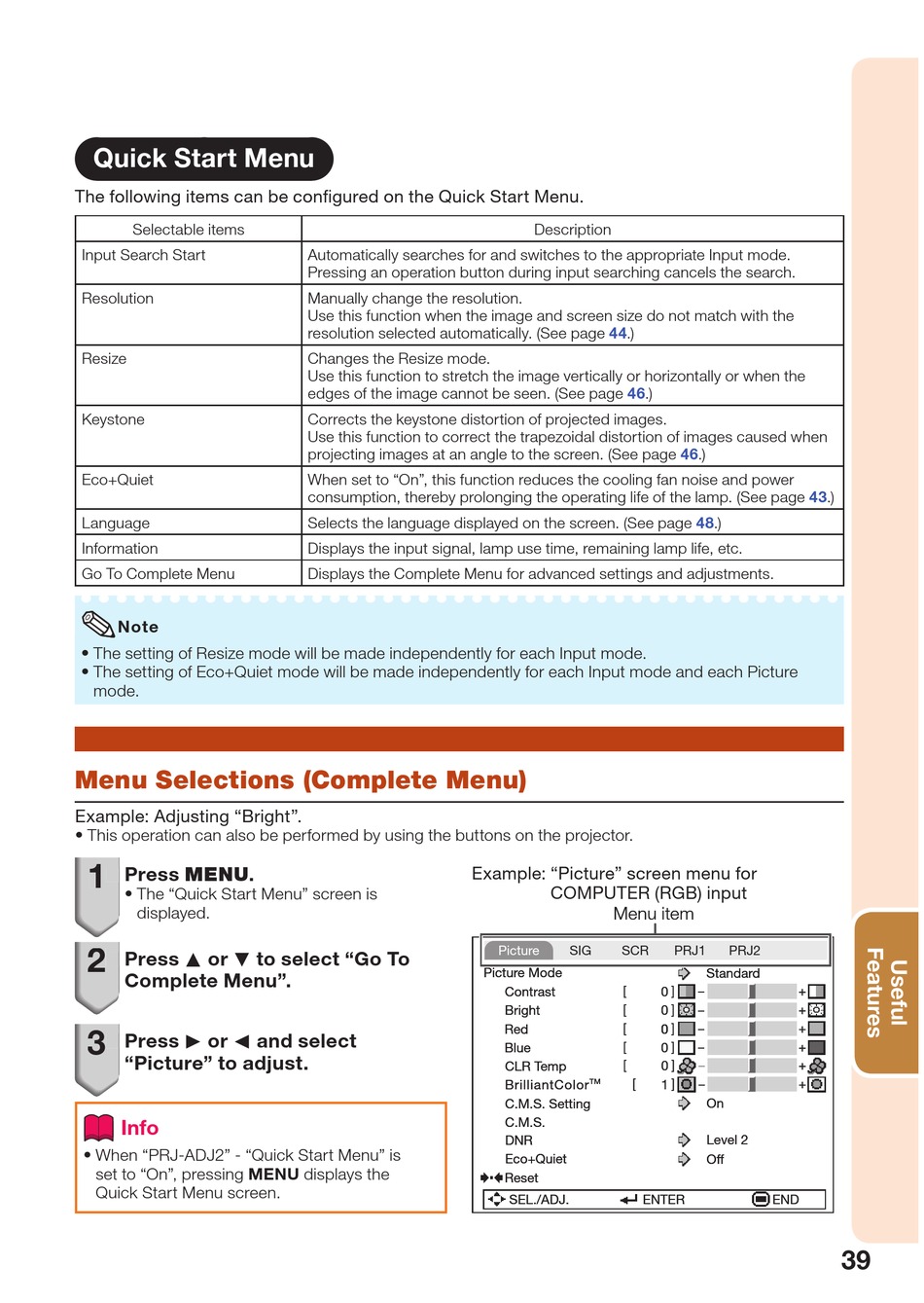

Quick Start Menu

The following items can be confi gured on the Quick Start Menu.
Selectable items
Input Search Start
Resolution
Resize
Keystone
Eco+Quiet
Language
Information
Go To Complete Menu
Note
• The setting of Resize mode will be made independently for each Input mode.
• The setting of Eco+Quiet mode will be made independently for each Input mode and each Picture
mode.

Menu Selections (Complete Menu)

Example: Adjusting "Bright".
• This operation can also be performed by using the buttons on the projector.
1 1
Press MENU.
• The "Quick Start Menu" screen is
displayed.
2 2 Press P or R to select "Go To
Complete Menu".
3 3 Press Q or O and select
"Picture" to adjust.
Info
• When "PRJ-ADJ2" - "Quick Start Menu" is
set to "On", pressing MENU displays the
Quick Start Menu screen.
Automatically searches for and switches to the appropriate Input mode.
Pressing an operation button during input searching cancels the search.
Manually change the resolution.
Use this function when the image and screen size do not match with the
resolution selected automatically. (See page 44.)
Changes the Resize mode.
Use this function to stretch the image vertically or horizontally or when the
edges of the image cannot be seen. (See page 46.)
Corrects the keystone distortion of projected images.
Use this function to correct the trapezoidal distortion of images caused when
projecting images at an angle to the screen. (See page 46.)
When set to "On", this function reduces the cooling fan noise and power
consumption, thereby prolonging the operating life of the lamp. (See page 43.)
Selects the language displayed on the screen. (See page 48.)
Displays the input signal, lamp use time, remaining lamp life, etc.
Displays the Complete Menu for advanced settings and adjustments.
Example: "Picture" screen menu for
Description
COMPUTER (RGB) input
Menu item Menu item
Picture Picture SIG SIG SCR SCR
Picture Mode Picture Mode
Contrast Contrast
Bright Bright
Red Red
Blue Blue
CLR Temp CLR Temp
TM TM
BrilliantColor BrilliantColor
C.M.S. Setting C.M.S. Setting
C.M.S. C.M.S.
DNR DNR
Eco+Quiet Eco+Quiet
Reset Reset
SEL./ADJ. SEL./ADJ. ENTER ENTER
PRJ1 PRJ1 PRJ2 PRJ2
Standard Standard
0 0
0 0
0 0 0 0
0 0
0 0
1 1
On On
Level 2 Level 2
Off Off
END END
39
