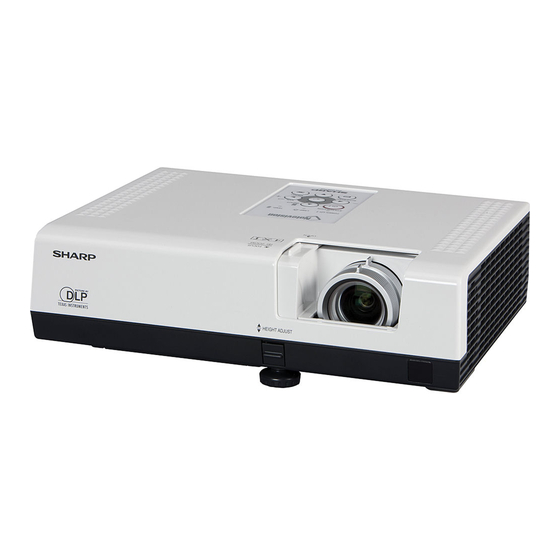

DATA PROJECTOR
MODEL
PG-D2500X

OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Sharp PG-D2500X

Summary of Contents for Sharp PG-D2500X

  • Page 1: Operation Manual

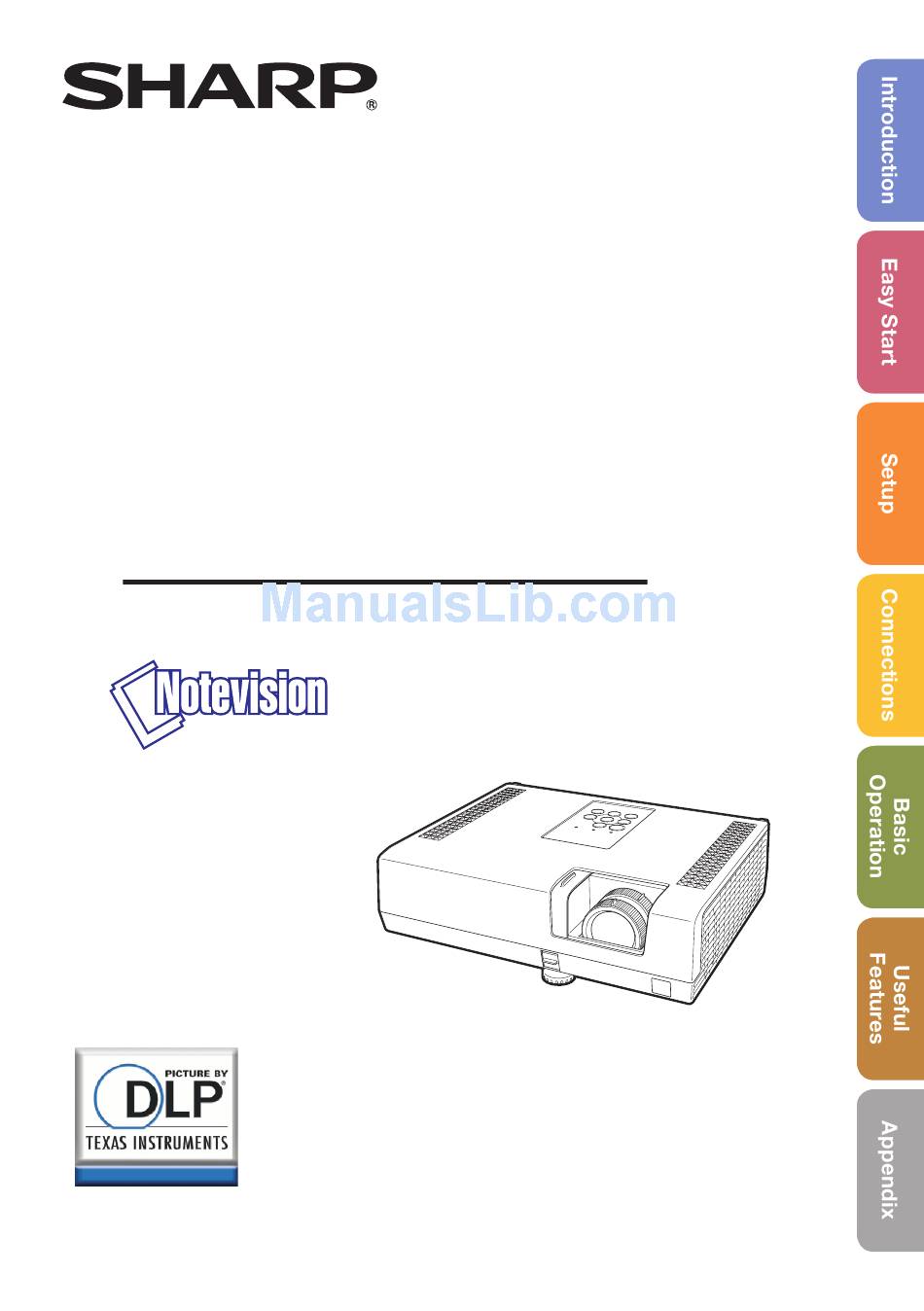

    DATA PROJECTOR MODEL PG-D2500X OPERATION MANUAL...
  • Page 2 IMPORTANT • For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information. • Before recycling the packag ing, please ensure that you have checked the con- tents of the carton thoroughly against the list of “Supplied accessories”...
  • Page 3 The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. Authorized representative responsible for the European Union Community Market SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg or coloured green E.U. ONLY...
  • Page 4 The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish, Portuguese, Chinese, Korean and Arabic. Carefully read through the operation instructions before operating the projector. Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch, Niederländisch, Schwedisch, Portugiesisch, Chinesisch, Koreanisch und Arabisch.
  • Page 5 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notifi cation of inspection, modifi cation, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY”...

  • Page 6: Product Disposal

    * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 7: How To Read This Operation Manual

    How to Read this Operation Manual ■ The specifi cations are slightly different, depending on the model. However, you can connect and operate all models in the same manner. • In this operation manual, the illustration and the screen display are simplifi ed for explanation, and may differ slightly from the actual display.

  • Page 8: Table Of Contents

    Contents Preparing Introduction How to Read this Operation Manual ...3 Contents ...4 IMPORTANT SAFEGUARDS ...6 How to Access the PDF Operation Manuals...10 Accessories ...11 Part Names and Functions ...12 Front View ... 12 Top View ... 12 Rear View (Terminals) ... 13 Inserting the Batteries ...
  • Page 9 Removing and Installing the Lamp Unit ... 57 Resetting the Lamp Timer ... 58 Connecting Pin Assignments ...59 RS-232C Specifi cations and Commands ...61 Computer Compatibility Chart ...66 Troubleshooting ...67 For SHARP Assistance ...69 Specifi cations ...70 Dimensions ...71 Index ...72...

  • Page 10: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use. Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS.
  • Page 11 15. Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fi re or electric shock. 16. Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fi...
  • Page 12 As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center. Rest your eyes occasionally.
  • Page 13 Caution regarding usage of the projector ■ If you are not to use the projector for a long time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it. ■...

  • Page 14: How To Access The Pdf Operation Manuals

    How to Access the PDF Operation Manuals PDF operation manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe ® (Windows or Macintosh Please download Adobe Accessing the PDF Manuals for Windows Insert the CD-ROM in the CD-ROM drive.

  • Page 15: Accessories

    ■ DIN-D-sub RS-232C adaptor (5 Note • Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center. Two R-6 batteries (“AA” size, UM/SUM-3, HP-7 or similar) For Europe, For U.K.

  • Page 16: Part Names And Functions

    Part Names and Functions Numbers in refer to the main pages in this operation manual where the topic is explained. Front View Exhaust vent Zoom ring For enlarging/reducing the picture. Focus ring For adjusting the focus. Lens shutter 25, 29 HEIGHT ADJUST lever Adjustment foot Remote control sensor...

  • Page 17: Rear View (Terminals)

    Rear View (Terminals) RS-232C terminal Terminal for controlling the projector using a computer. USB terminal Terminal connecting with the USB terminal on the computer for using the supplied remote control as the computer mouse. MONITOR OUT terminal (Output terminal for computer RGB and component signals) Terminal for connecting a monitor.
  • Page 18 Part Names and Functions (Continued) Numbers in refer to the main pages in this operation manual where the topic is explained. ON button For turning the power on. STANDBY button For putting the projector into the Standby mode. INPUT buttons ( / ) For switching Input mode.

  • Page 19: Inserting The Batteries

    Inserting the Batteries Pull down the tab on the cover and remove the cover towards the direction of the arrow. Insert the batteries. • Insert the batteries making sure the polarities correctly match the m and n marks inside the battery compartment. Insert the lower tab of the cover into the opening, and lower the cover until it clicks in place.

  • Page 20: Easy Start

    Easy Start This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step. Setup and Projection In this section, connection of the projector and the computer is explained using one example. 1.
  • Page 21 4. Adjust the projected image with the Setup Guide After the projector turns on, the Setup Guide appears. (When “Setup Guide” is set to “On”. See page 48.) Follow the steps in the Setup Guide and adjust the focus, height (angle) and picture size. After adjusting the focus, height (angle) and picture size, press ENTER to fi...

  • Page 22: Setting Up The Projector

    Setting Up the Projector Setting Up the Projector For optimal image quality, position the projector perpendicular to the screen with the projector's feet fl at and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

  • Page 23: Screen Size And Projection Distance

    Screen Size and Projection Distance Screen Lens center 4:3 Signal Input (Normal Mode) Picture (Screen) size Diagonal [ ] Width Height 300" (762 cm) 610 cm (240") 457 cm (180") 10.4 m (34' 0") 12.6 m (41' 3") 250" (635 cm) 508 cm (200") 381 cm (150") 200"...

  • Page 24: Projection (Prj) Mode

    [Menu item ➞ “Rear”] a Ceiling-Mount Setup It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

  • Page 25: Connecting The Projector To Other Equipment

    Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the specifi c instructions in your computer's operation manual to enable your computer's external output port.
  • Page 26 Connecting the Projector to Other Equipment (Continued) Terminal on Equipment connected equipment Video equipment Component video output terminal S-video output terminal Video output terminal Camera/Video game Component video output terminal S-video output terminal Video output terminal Note • When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fi...
  • Page 27 RGB signals and Component signals can be output to the monitor. Cable ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ) RCA audio cable (commercially available) Cables for a camera or a video game RGB cable (supplied or commercially...

  • Page 28: Controlling The Projector By A Computer

    Controlling the Projector by a Computer When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS- 232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector.

  • Page 29: Turning The Projector On/Off

    Turning the Projector On/Off Turning the Projector On Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages Open the lens shutter fully and press STANDBY/ON on the projector or ON on the remote control.

  • Page 30: Image Projection

    Image Projection About the Setup Guide After turning on the projector, the Setup Guide screen appears to assist you with projector setup. Guidance items 1 FOCUS 2 HEIGHT ADJUST 3 ZOOM Press ENTER to exit the Setup Guide screen. Note •...

  • Page 31: Adjusting The Height

    2 Adjusting the Height The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector. When the screen is above the projector, the projection image can be made higher by adjusting the projector. Lift the projector to adjust its height while lifting the HEIGHT ADJUST lever.

  • Page 32: Correcting Trapezoidal Distortion

    Image Projection (Continued) Correcting Trapezoidal Distortion When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction. Note •...

  • Page 33: Switching The Input Mode

    Switching the Input Mode Select the appropriate Input mode for the connected equipment. Press INPUT to display the INPUT list. Use INPUT to select the Input mode, and use O/Q to select the audio input terminal. Adjusting the Volume Press VOL +/– on the remote control or –O/Q+ on the projector to adjust the volume.

  • Page 34: Resize Mode

    Image Projection (Continued) Resize Mode This function allows you to modify or customize the Resize mode to enhance the input image. Depending on the input signal, you can choose a desired image. Press RESIZE. • See page for setting on menu screen. COMPUTER Main resolution SVGA (800 ×...
  • Page 35 VIDEO/DTV Input signal Video/DTV Image type 4:3 aspect ratio , 480P, , 576P, NTSC, PAL, SECAM Squeeze Letter box 720P, 1035 1080 , 1080P 16:9 aspect ratio 16:9 aspect ratio 540P (4:3 aspect ratio in 16:9) : Cutout area on which images cannot be projected : Area on which the image is not included in the original signals *1 The Image Shift function can be used for these images.

  • Page 36: Operating With The Remote Control

    Operating with the Remote Control BREAK TIMER button FREEZE button MAGNIFY buttons POINTER button SPOT button Adjustment buttons (P/R/O/Q) EFFECT button PICTURE MODE button ECO+QUIET button AUTO SYNC button Displaying and Setting the Break Timer Press BREAK TIMER. • The timer starts to count down from 5 minutes.

  • Page 37: Auto Sync (Auto Sync Adjustment)

    Auto Sync (Auto Sync Adjustment) Auto Sync function works when detecting input signal after the projector turns on. Press AUTO SYNC to manually adjust with Auto Sync function. Note • When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments.

  • Page 38: Using The Remote Control As The Wireless Computer Mouse

    You cannot use this function when displaying the menu screen. • Confi rm that the computer recognizes the USB connection. To USB terminal To USB terminal USB cable (commercially available or available as Sharp service part QCNWGA014WJPZ) ® ® Windows OS and Mac OS Computer Remote receiver...

  • Page 39: Menu Items

    *2 Items when inputting component signal through COMPUTER, or when selecting S-VIDEO or VIDEO. Sub menu Picture Mode Standard Presentation Page Movie Game sRGB*1 Contrast Bright Color Tint Sharp Blue Page CLR Temp Page BrilliantColor™ Page C.M.S. Setting [On/Off] Page C.M.S. Page Film Mode Auto Page...
  • Page 40 Menu Items (Continued) “Signal adjustment (SIG-ADJ)” menu Main menu -150 +150 SIG-ADJ Clock Page Phase H-Pos -150 +150 V-Pos Reset Page Resolution Page Signal Type Page Video System Page Video Setup Page Signal Info Page *3 Items when inputting RGB signal through COMPUTER/COMPONENT.
  • Page 41 “Projector adjustment (PRJ-ADJ1/2)” menu Main menu PRJ-ADJ1 Auto Sync [On/Off] Page Page Auto Power Off [On/Off] Page Auto Restart [On/Off] Page Speaker [On/Off] Page RS-232C Page Fan Mode Page System Lock [Enable/Disable] Page Keylock [On/Off] Page Main menu PRJ-ADJ2 Quick Start Menu [On/Off] Page Page FUNCTION Button...

  • Page 42: Using The Menu Screen

    Using the Menu Screen Select from the Quick Start Menu, which is a collection of the most frequently used functions, or the Complete Menu, which enables advanced settings and adjustments. Adjustment buttons (P/R/O/Q) ENTER button MENU button Menu Selections (Quick Start Menu) •...

  • Page 43: Quick Start Menu

    Quick Start Menu The following items can be confi gured on the Quick Start Menu. Selectable items Input Search Start Automatically searches for and switches to the appropriate Input mode. Pressing an operation button during input searching cancels the search. Resolution Manually change the resolution.

  • Page 44: Press Menu

    Using the Menu Screen (Continued) Press P or R and select “Bright” to adjust. • The selected item is highlighted. To adjust the projected image while watching it Press ENTER. • The selected item (e.g. “Bright”) is displayed by itself at the bottom of the screen.

  • Page 45: Picture Adjustment ("Picture" Menu)

    Picture Adjustment (“Picture” Menu) Q PAGE1 Picture PRJ1 Picture Mode Contrast Bright Color Tint Sharp Blue SEL./ADJ. ENTER 1 Selecting the Picture Mode Selectable Description items Standard For standard image Presentation Brightens portions of image for more enhanced presentations. Movie Gives natural tint to the projected image.

  • Page 46: Adjusting The Image

    For less contrast. Bright For less brightness. Color* For less color intensity. Tint* For making skin tones purplish. Sharp* For less sharpness. Red* For weaker red. Blue* For weaker blue. BrilliantColor™* For making the effect weaker. *1 Not displayed in the RGB input mode.

  • Page 47: Selecting The Film Mode

    5 Selecting the Film Mode This function provides high-quality playback of images originally projected at 24 fps, such as movies on DVDs. Selectable Description items Auto Films are detected automatically. Films are not detected. Note • This function is available for the following signals.

  • Page 48: Signal Adjustment ("Sig-Adj" Menu)

    Signal Adjustment (“SIG-ADJ” Menu) 1 Adjusting the Computer Image If the optimum image cannot be obtained with Auto Sync adjustment, use the SIG-ADJ function. Selectable Description items Clock Adjusts vertical noise. Phase Adjusts horizontal noise (similar to tracking on your VCR). H-Pos Centers the on-screen image by moving it to the left or right.

  • Page 49: Setting The Video System

    4 Setting the Video System The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the Video signal difference. In that case, switch the Video signal. Selectable items Auto SECAM...

  • Page 50: Adjusting The Projected Image ("Scr-Adj" Menu)

    Adjusting the Projected Image (“SCR-ADJ” Menu) 1 Setting the Resize Mode Use this function to stretch the image vertically or horizontally or when the edges of the image cannot be seen. Note • For details of the Resize mode, see pages and 31.

  • Page 51: Setting The Overscan

    4 Setting the Overscan This function allows you to set the overscan area (display area). Selectable Description items The input area is displayed without the screen edges. The whole input area is displayed. Note • This function is available for the following signals.

  • Page 52: Selecting The Background Image

    Adjusting the Projected Image (“SCR-ADJ” Menu) (Continued) 7 Selecting the Background Image Selectable items Logo Sharp logo screen Blue Blue screen None — 8 Selecting the Setup Guide Selectable items Displaying the Setup Guide when turning the projector on. Not displaying the Setup Guide.

  • Page 53: Adjusting The Projector Function ("Prj-Adj1/2" Menu)

    Adjusting the Projector Function (“PRJ-ADJ1/2” Menu) Q PRJ-ADJ1 Pict. PRJ-ADJ1 Auto Sync Auto Power Off Auto Restart Speaker RS-232C 9600bps Fan Mode Normal System Lock Disable Keylock SEL./ADJ. ENTER 1 Auto Sync (Auto Sync Adjustment) Selectable Description items Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.

  • Page 54: Fan Mode Setting

    Info • If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 69). Even if the product warranty is valid, the keycode reset will incur a charge.

  • Page 55: Keylock Function

    8 Keylock Function Use this function to lock the operation buttons on the projector. This function can be set using either the menu screen or ENTER on the projector. a Setting with the menu screen Selectable Description items All buttons on the projector, except STANDBY/ON, are locked.

  • Page 56: Standby Mode

    Adjusting the Projector Function (“PRJ-ADJ1/2” Menu) (Continued) STANDBY Mode When set to “Eco”, power consumption is reduced in Standby mode. Selectable Description items The monitor output and RS-232C are switched off in Standby mode. Quick Start The monitor output and RS-232C are activated even if the projector is in Standby mode.

  • Page 57: Maintenance

    Maintenance Cleaning the projector ■ Ensure that you have unplugged the power cord before cleaning the projector. ■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the fi nish on the cabinet.

  • Page 58: Maintenance Indicators

    Maintenance Indicators ■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector. ■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter Standby mode. After the projector has entered Standby mode, follow the procedures given below.
  • Page 59 • Relocate the projector to an area with proper ventilation. (See page 8.) • Take the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page 69) for repair. • Disconnect the power cord from the AC outlet, and then connect it again.

  • Page 60: Regarding The Lamp

    * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 61: Removing And Installing The Lamp Unit

    Removing and Installing the Lamp Unit Warning! • Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury. Info • Do not touch the glass surface of the lamp unit or the inside of the projector.

  • Page 62: Resetting The Lamp Timer

    Regarding the Lamp (Continued) Remove the lamp unit. • Loosen the securing screw from the lamp unit. Hold the lamp unit and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it. Insert the new lamp unit.

  • Page 63: Connecting Pin Assignments

    Connecting Pin Assignments COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals: mini D-sub 15 pin female connector COMPUTER Input/Output Pin No. RS-232C Terminal: mini DIN 9 pin female connector Pin No. RS-232C Terminal: D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor (optional, AN-A1RS) Pin No.
  • Page 64 Connecting Pin Assignments (Continued) RS-232C Cable recommended connection: D-sub 9 pin female connector Note Note • • Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g.

  • Page 65: Rs-232C Specifi Cations And Commands

    RS-232C Specifi cations and Commands Computer control A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type, commercially available) to the projector. (See page 24.) Communication conditions Set the serial port settings of the computer to match that of the table. Signal format: Conforms to RS-232C standard.
  • Page 66 RS-232C Specifi cations and Commands (Continued) Commands Example: When turning on the projector, make the following setting. CONTROL CONTENTS Power Status Projector Condition Status Lamp Power Status Quantity Usage Time(Hour) Usage Time(Minute) Life(Percentage) Name Model Name Check Model Name Check Projector Name Setting 1 (First 4 characters) *1 Projector Name Setting 2...
  • Page 67 CONTROL CONTENTS COMPUTER Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™ Film Mode Picture Reset Signal Type Audio Input S-VIDEO Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™ Film Mode Picture Reset...
  • Page 68 RS-232C Specifi cations and Commands (Continued) CONTROL CONTENTS C.M.S. Setting C.M.S. Saturation Value C.M.S. All Reset Clock -150 – +150 Phase -30 – +30 H-position -150 – +150 V-position -60 – +60 Fine Sync Adjustment Reset Image Shift -96 – +96 Overscan OSD Display Video System...
  • Page 69 CONTROL CONTENTS Language English Deutsch Español Nederlands Français Italiano Svenska Português polski Türkçe Magyar Setup Guide Internal Speaker RGB Frequency Check Horizontal Vertical Fan Mode Normal High Input Search *2 Start Video Setup 0 IRE 7.5 IRE Wall Color Blackboard Whiteboard Quick Start Menu ®...

  • Page 70: Computer Compatibility Chart

    Computer Compatibility Chart Computer • Multiple signal support Horizontal Frequency: 15-110 kHz, Vertical Frequency: 45-85 Hz, PC/MAC Mode Resolution 640 × 400 720 × 400 640 × 480 SVGA 800 × 600 1024 × 768 1280 × 720 1280 × 768 WXGA 1280 ×...

  • Page 71: Troubleshooting

    Troubleshooting Problem • Projector power cord is not plugged into the wall outlet. • Power to the external connected devices is off. • The lens shutter is closed. • The selected Input mode is wrong. • The AV Mute function is working. •...
  • Page 72 Troubleshooting (Continued) Problem • See “Maintenance Indicators”. Maintenance indicator on the projector illuminates or blinks in red. • Change the input signal type setting. Picture is green on COMPUTER (Component) Picture is pink (no green) on COMPUTER (RGB) • Image adjustments are incorrectly set. Picture is too bright and whitish.

  • Page 73: For Sharp Assistance

    For SHARP Assistance If you encounter any problems during setup or operation of this projector, fi rst refer to the “Troubleshooting” section on pages manual does not answer your question, please contact the SHARP Service departments listed below. U.S.A. Sharp Electronics Corporation 1-888-GO-SHARP (1-888-467-4277) lcdsupport@sharpsec.com...

  • Page 74: Specifi Cations

    Dimensions (main body only) [W × H × D] Weight (approx.) As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product improvement without prior notice. The performance specifi cation fi...

  • Page 75: Dimensions

    Dimensions Units: inches (mm) (75) (300) (50) M4 M4 (75) (137.5) (118) (32.5)

  • Page 76: Index

    RS-232C terminal ······················································ 24 SCR-ADJ ··································································· 46 Screen Size and Projection Distance ························ 19 Security bar ······························································· 13 Setup Guide ························································ 26, 48 Sharp ········································································· 42 SIG-ADJ ···································································· 44 Signal Info ·································································· 45 Signal Type ································································ 44 Speaker ····································································· 49 SPOT button ······························································...
