DATA PROJECTOR
MODEL
PG-D2510X

OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Notevision PG-D2510X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sharp Notevision PG-D2510X

Summary of Contents for Sharp Notevision PG-D2510X

  • Page 1: Operation Manual

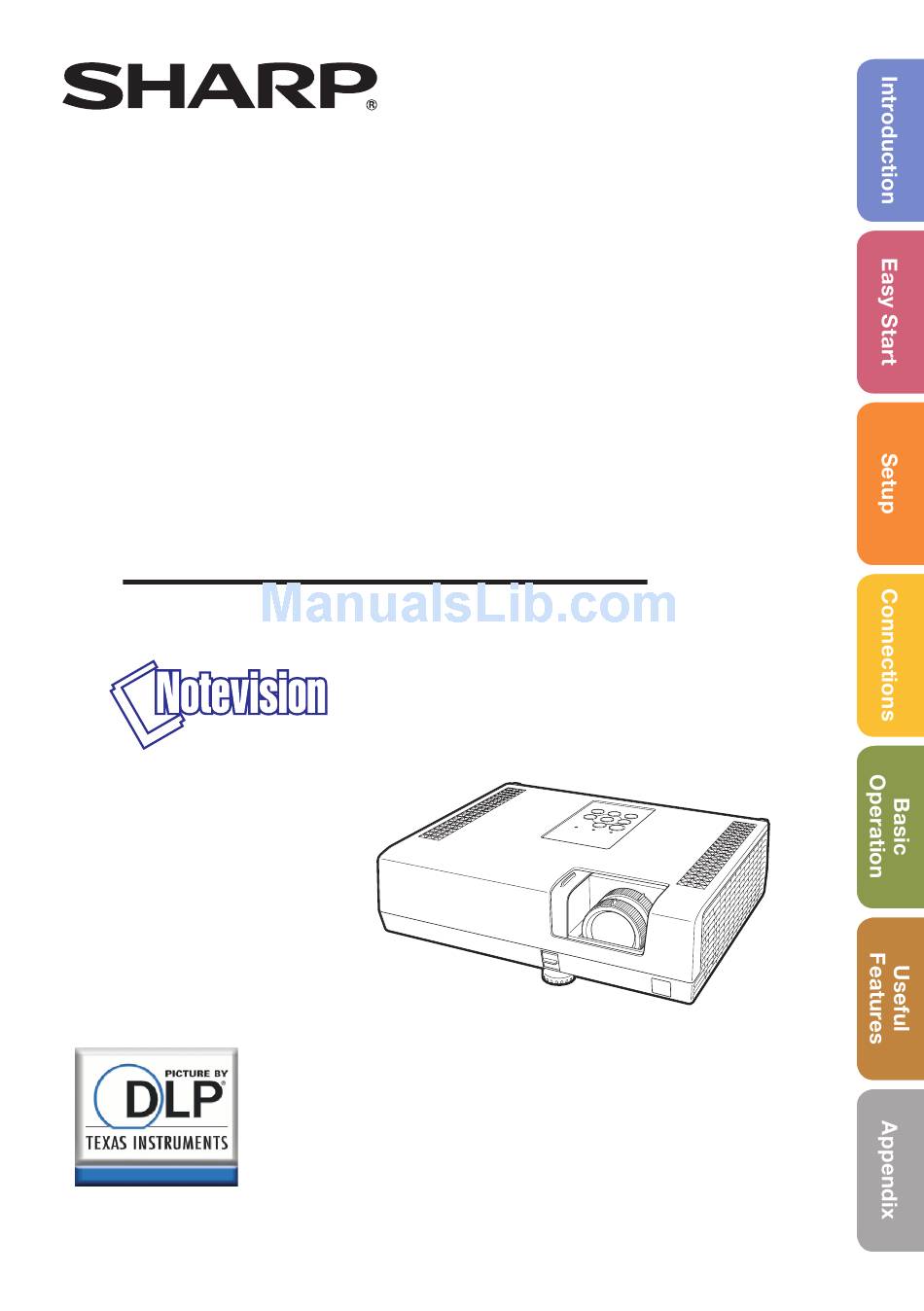

    DATA PROJECTOR MODEL PG-D2510X OPERATION MANUAL...
  • Page 2 “Supplied accessories” on page 11. The supplied CD-ROM contains operation instructions in English, French, Spanish and Portuguese. Carefully read through the operation instructions before operating the projector. Le CD-ROM fourni contient les instructions de fonctionnement en anglais, français, espagnol et portugais.
  • Page 3 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notifi cation of inspection, modifi cation, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY”...

  • Page 4: Product Disposal

    * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 5: How To Read This Operation Manual

    Adjustment buttons ( / / / ) ENTER button MENU button Menu Selections (Quick Start Menu) • This operation can also be performed by using the buttons on the projector. Press MENU. • The “Quick Start Menu” screen for the selected Input mode is displayed.

  • Page 6: Table Of Contents

    Easy Start ...16 Setup and Projection ... 16 Setup Setting Up the Projector ...18 Setting Up the Projector ... 18 Standard Setup (Front Projection) ... 18 Screen Size and Projection Distance ... 19 Projection (PRJ) Mode ... 20 Ceiling-Mount Setup ... 20...
  • Page 7 Removing and Installing the Lamp Unit ... 57 Resetting the Lamp Timer ... 58 Connecting Pin Assignments ...59 RS-232C Specifi cations and Commands ...61 Compatibility Chart ...67 Troubleshooting ...68 For SHARP Assistance ...70 Specifi cations ...71 Dimensions ...72 Index ...73...

  • Page 8: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use. Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS.
  • Page 9 15. Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fi re or electric shock. 16. Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fi...
  • Page 10 As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center. Rest your eyes occasionally.
  • Page 11 Caution regarding usage of the projector ■ If you are not to use the projector for a long time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

  • Page 12: How To Access The Pdf Operation Manuals

    Double click the “MANUALS” folder. Double click the model (name of the folder) that you want to view. Double click the language (name of the folder) that you want to view. Double click the pdf fi le to access the projector manuals. Note •...

  • Page 13: Accessories

    ■ DIN-D-sub RS-232C adaptor (5 Note • Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center. Two R-6 batteries (“AA” size, UM/SUM-3, HP-7 or similar)

  • Page 14: Part Names And Functions

    Temperature warning indicator Lamp indicator Power indicator STANDBY/ON button For turning the power on and putting the projector into Standby mode. INPUT buttons (P/R) For switching Input mode. AUTO SYNC button For automatically adjusting images when connected to a computer.

  • Page 15: Rear View (Terminals)

    Using the Kensington Lock • This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.
  • Page 16 ON button For turning the power on. STANDBY button For putting the projector into the Standby mode. INPUT buttons ( / ) For switching Input mode. BREAK TIMER button For displaying the break time.

  • Page 17: Inserting The Batteries

    Battery fl uid from leaked batteries is harmful to skin, therefore ensure you wipe them fi rst and then remove them using a cloth. • The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries. •...

  • Page 18: Easy Start

    Setup and Projection In this section, connection of the projector and the computer is explained using one example. 1. Place the projector facing a wall or a screen 2. Connect the projector to the computer and plug the power...
  • Page 19 7. Turn the computer on 8. Turn the power off Press STANDBY/ON on the projector or STANDBY on the remote control, and then press the button again while the confi rmation message is displayed to put the projector into Standby mode. On the...

  • Page 20: Setting Up The Projector

    Setting Up the Projector Setting Up the Projector For optimal image quality, position the projector perpendicular to the screen with the projector's feet fl at and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

  • Page 21: Screen Size And Projection Distance

    40'' (102 cm) 89 cm (35'') 50 cm (20'') When using the projector with screen sizes not listed in the above charts, calculate the values according to the formulas. L1: Minimum projection distance (m/ft) L2: Maximum projection distance (m/ft) H: Distance from the lens center to the bottom of the image (cm/in) S: Adjustable range of image position (cm/in) See page 46.

  • Page 22: Projection (Prj) Mode

    [Menu item ➞ “Rear”] a Ceiling-Mount Setup It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

  • Page 23: Connecting The Projector To Other Equipment

    Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the specifi c instructions in your computer's operation manual to enable your computer's external output port.
  • Page 24 “COMPUTER2 Select” to “Input” before connecting the external equipment. (See page 51.) • When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fi ts in the projector terminal you want to connect. •...
  • Page 25 RGB signals and Component signals can be output to the monitor. Cable ø3.5 mm stereo or mono audio cable (commercially available or available as Sharp service part QCNWGA038WJPZ) RCA audio cable (commercially available) Cables for a camera or a video game RGB cable (supplied or commercially available) ø3.5 mm stereo or mono audio cable...

  • Page 26: Controlling The Projector By A Computer

    Controlling the Projector by a Computer When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS- 232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector.

  • Page 27: Turning The Projector On/Off

    It should not be regarded as faulty operation. • If the projector is put into Standby mode and immediately turned on again, the lamp may take some time to start projection. •...

  • Page 28: Image Projection

    Image Projection About the Setup Guide After turning on the projector, the Setup Guide screen appears to assist you with projector setup. Guidance items 1 FOCUS 2 HEIGHT ADJUST 3 ZOOM Press ENTER to exit the Setup Guide screen. Note •...

  • Page 29: Adjusting The Height

    When lowering the projector, be careful not to get your fi ngers caught in the area between the adjustment foot and the projector. • Hold the projector fi rmly while lifting or carrying. • Do not hold by the lens area. Zoom ring...

  • Page 30: Correcting Trapezoidal Distortion

    Image Projection (Continued) Correcting Trapezoidal Distortion When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction. Note •...

  • Page 31: Switching The Input Mode

    Pressing AV MUTE again will turn the projected image back on. • When you close the lens shutter, the projector will be set to AV Mute mode and then the projector will be turned off automatically after about 30 minutes. INPUT buttons INPUT buttons...

  • Page 32: Resize Mode

    Image Projection (Continued) Resize Mode This function allows you to modify or customize the Resize mode to enhance the input image. Depending on the input signal, you can choose a desired image. Press RESIZE. • See page for setting on menu screen. COMPUTER Main resolution SVGA (800 ×...
  • Page 33 VIDEO/DTV Input signal Video/DTV Image type 4:3 aspect ratio , 480P, , 576P, NTSC, PAL, SECAM Squeeze Letter box 720P, 1035 1080 , 1080P 16:9 aspect ratio 16:9 aspect ratio 540P (4:3 aspect ratio in 16:9) : Cutout area on which images cannot be projected : Area on which the image is not included in the original signals *1 The Image Shift function can be used for these images.

  • Page 34: Operating With The Remote Control

    (up to 60 minutes). Canceling the break timer display function Press BREAK TIMER. Note • The Break Timer is not available while the projector is operating the following functions. - Auto Sync - Freeze - AV Mute - Input Search Displaying the Pointer...

  • Page 35: Auto Sync (Auto Sync Adjustment)

    Auto Sync (Auto Sync Adjustment) Auto Sync function works when detecting input signal after the projector turns on. Press AUTO SYNC to manually adjust with Auto Sync function. Note • When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments.

  • Page 36: Using The Remote Control As The Wireless Computer Mouse

    When connecting the projector and the computer with a USB cable, you can use the remote control as the computer mouse. If the computer is placed too far away from the projector to be connected via the USB cable, the remote receiver (optional, AN-MR2) makes it possible to operate the projector with the remote control.

  • Page 37: Menu Items

    Menu Items The following shows the items that can be set in the projector. “Quick Start Menu” Main menu Quick Start Menu Input Search Start Page Resolution Page Resize Page Keystone Page Eco + Quiet [On/Off] Page Language Page Information...
  • Page 38 Menu Items (Continued) “Signal adjustment (SIG-ADJ)” menu Main menu -150 +150 SIG-ADJ Clock Page Phase H-Pos -150 +150 V-Pos Reset Page Resolution Page Signal Type Page Video System Page Video Setup Page Signal Info Page *3 Items when inputting RGB signal through COMPUTER/COMPONENT 1 or 2.
  • Page 39 “Projector adjustment (PRJ-ADJ1/2)” menu Main menu PRJ-ADJ1 Auto Sync [On/Off] Page Page Auto Power Off [On/Off] Page Auto Restart [On/Off] Page Speaker [On/Off] Page RS-232C Page Fan Mode Page System Lock [Enable/Disable] Page Keylock [On/Off] Page Main menu PRJ-ADJ2 Quick Start Menu [On/Off]...

  • Page 40: Using The Menu Screen

    Adjustment buttons (P/R/O/Q) ENTER button MENU button Menu Selections (Quick Start Menu) • This operation can also be performed by using the buttons on the projector. Press MENU. • The “Quick Start Menu” screen for the selected Input mode is displayed.

  • Page 41: Quick Start Menu

    The setting of Eco+Quiet mode will be made independently for each Input mode and each Picture mode. Menu Selections (Complete Menu) Example: Adjusting “Bright”. • This operation can also be performed by using the buttons on the projector. Press MENU. • The “Quick Start Menu” screen is displayed.

  • Page 42: Press Menu

    • The adjustment is stored. Press MENU. • The menu screen will disappear. Note • The MENU button is not available while the projector is operating: - Auto Sync/Break Timer/Freeze/AV Mute/Input Search Picture Picture Picture Picture PRJ1 PRJ1 Picture Mode...

  • Page 43: Picture Adjustment ("Picture" Menu)

    Picture Adjustment (“Picture” Menu) Q PAGE1 Picture PRJ1 Picture Mode Contrast Bright Color Tint Sharp Blue SEL./ADJ. ENTER 1 Selecting the Picture Mode Selectable Description items Standard For standard image Presentation Brightens portions of image for more enhanced presentations. Movie Gives natural tint to the projected image.

  • Page 44: Adjusting The Image

    For less contrast. Bright For less brightness. Color* For less color intensity. Tint* For making skin tones purplish. Sharp* For less sharpness. Red* For weaker red. Blue* For weaker blue. BrilliantColor™* For making the effect weaker. *1 Not displayed in the RGB input mode.

  • Page 45: Selecting The Film Mode

    5 Selecting the Film Mode This function provides high-quality playback of images originally projected at 24 fps, such as movies on DVDs. Selectable Description items Auto Films are detected automatically. Films are not detected. Note • This function is available for the following signals.

  • Page 46: Signal Adjustment ("Sig-Adj" Menu)

    Signal Adjustment (“SIG-ADJ” Menu) 1 Adjusting the Computer Image If the optimum image cannot be obtained with Auto Sync adjustment, use the SIG-ADJ function. Selectable Description items Clock Adjusts vertical noise. Phase Adjusts horizontal noise (similar to tracking on your VCR). H-Pos Centers the on-screen image by moving it to the left or right.

  • Page 47: Setting The Video System

    4 Setting the Video System The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the Video signal difference. In that case, switch the Video signal. Selectable items Auto SECAM...

  • Page 48: Adjusting The Projected Image ("Scr-Adj" Menu)

    Adjusting the Projected Image (“SCR-ADJ” Menu) 1 Setting the Resize Mode Use this function to stretch the image vertically or horizontally or when the edges of the image cannot be seen. Note • For details of the Resize mode, see pages and 31.

  • Page 49: Setting The Overscan

    This does not necessarily indicate a problem with the projector. • If any button is pressed to call up the on- screen display while viewing a Closed Caption broadcast, the closed captions will disappear.

  • Page 50: Selecting The Background Image

    Adjusting the Projected Image (“SCR-ADJ” Menu) (Continued) 7 Selecting the Background Image Selectable items Logo Sharp logo screen Blue Blue screen None — 8 Selecting the Setup Guide Selectable items Displaying the Setup Guide when turning the projector on. Not displaying the Setup Guide.

  • Page 51: Adjusting The Projector Function ("Prj-Adj1/2" Menu)

    1 Auto Sync (Auto Sync Adjustment) Selectable Description items Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer. Auto Sync adjustment is not automatically performed. Note •...

  • Page 52: Fan Mode Setting

    Info • If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 70). Even if the product warranty is valid, the keycode reset will incur a charge.

  • Page 53: Keylock Function

    PRJ - ADJ1 Use this function to lock the operation buttons on the projector. (Except STANDBY/ON button) Note: You can release the keylock by holding down ENTER on the projector for about 5 seconds. Return SEL. ENTER Select “On”, then press ENTER.

  • Page 54: Setting The Function Button Operation

    The monitor output and RS-232C are activated even if the projector is in Standby mode. STANDBY Audio Out You can set audio output from the AUDIO OUTPUT terminal of the projector that is in Standby mode. Selectable Description items The audio signal is output from the AUDIO OUTPUT terminal in Standby mode.

  • Page 55: Maintenance

    ■ When the dirt is hard to remove, soak a cloth in a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector.

  • Page 56: Maintenance Indicators

    Standby mode, follow the procedures given below. Top View About the temperature warning indicator If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, the temperature warning indicator will blink. And if the temperature keeps on rising, “...
  • Page 57 If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

  • Page 58: Regarding The Lamp

    * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 59: Removing And Installing The Lamp Unit

    Removing and Installing the Lamp Unit Warning! • Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury. Info • Do not touch the glass surface of the lamp unit or the inside of the projector.

  • Page 60: Resetting The Lamp Timer

    If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector. Resetting the Lamp Timer Reset the lamp timer after replacing the lamp.

  • Page 61: Connecting Pin Assignments

    Connecting Pin Assignments COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals: mini D-sub 15 pin female connector COMPUTER Input/Output Pin No. RS-232C Terminal: mini DIN 9 pin female connector Pin No. RS-232C Terminal: D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor (optional, AN-A1RS) Pin No.
  • Page 62 Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g. computer). the controlling device (e.g. computer). USB Terminal: Type B USB connector Pin No. Pin No. Signal Projector Pin No. Signal Name USB power USB– USB data–...

  • Page 63: Rs-232C Specifi Cations And Commands

    After sending an input selection or picture adjustment command and then receiving an “OK” response code, the projector may take some time to process the command. If a second command is sent while the projector is still processing the fi rst command, you may receive an “ERR” response code. If this happens, try resending the second command.
  • Page 64 RS-232C Specifi cations and Commands (Continued) Commands Example: When turning on the projector, make the following setting. CONTROL CONTENTS Power Status Projector Condition Status Lamp Power Status Quantity Usage Time(Hour) Usage Time(Minute) Life(Percentage) Name Model Name Check Model Name Check...
  • Page 65 CONTROL CONTENTS Resize S-VIDEO VIDEO All Reset COMPUTER1 Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™ Film Mode Picture Reset Signal Type Audio Input COMPUTER2 Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™...
  • Page 66 RS-232C Specifi cations and Commands (Continued) CONTROL CONTENTS S-VIDEO Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™ Film Mode Picture Reset Audio Input VIDEO Input Picture Mode Contrast Bright Blue Color Tint Sharp CLR Temp BrilliantColor™...
  • Page 67 CONTROL CONTENTS Clock -150 – +150 Phase -30 – +30 H-position -150 – +150 V-position -60 – +60 Fine Sync Adjustment Reset Image Shift -96 – +96 Overscan OSD Display Video System Auto SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N PAL-60 Background Logo Blue None...
  • Page 68 (For Americas only) Lamp Timer Reset *5 *1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3. *2 When “COMPUTER2 Select” is set to “Monitor Output”, you may receive an “ERR” response code.

  • Page 69: Compatibility Chart

    Compatibility Chart Computer • Multiple signal support Horizontal Frequency: 15-110 kHz, Vertical Frequency: 45-85 Hz, PC/MAC Mode Resolution 640 × 400 720 × 400 640 × 480 SVGA 800 × 600 1024 × 768 1280 × 720 1280 × 768 WXGA 1280 ×...

  • Page 70: Troubleshooting

    The projection distance exceeds the focus range. • There is fog on the lens. If the projector is carried from a cold room into a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Set up the projector at least one hour before it is to be used.
  • Page 71 While the remaining lamp life draws to a close, replace the lamp. time to turn on. Picture is dark. • Operate the remote control while pointing it at the projector's remote The remote control control sensor. cannot be used. •...

  • Page 72: For Sharp Assistance

    For SHARP Assistance If you encounter any problems during setup or operation of this projector, fi rst refer to the “Troubleshooting” section on pages manual does not answer your question, please contact the SHARP Service departments listed below. U.S.A. Sharp Electronics Corporation 1-888-GO-SHARP (1-888-467-4277) lcdsupport@sharpsec.com...

  • Page 73: Specifi Cations

    Dimensions (main body only) [W × H × D] Weight (approx.) As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product improvement without prior notice. The performance specifi cation fi...

  • Page 74: Dimensions

    Dimensions Units: inches (mm) (75) (300) (50) M4 M4 (75) (137.5) (118) (32.5)

  • Page 75: Index

    RS-232C terminal ······················································ 24 SCR-ADJ ··································································· 46 Screen Size and Projection Distance ························ 19 Security bar ······························································· 13 Setup Guide ························································ 26, 48 Sharp ········································································· 42 SIG-ADJ ···································································· 44 Signal Info ·································································· 45 Signal Type ································································ 44 Speaker ····································································· 49 SPOT button ······························································...
