INIM Electronics PREVIDIA MAX Manual page 15

User's manual
[A]
[B]
[C]
[D]
Device status
[E]
Device module
[F]
User interface

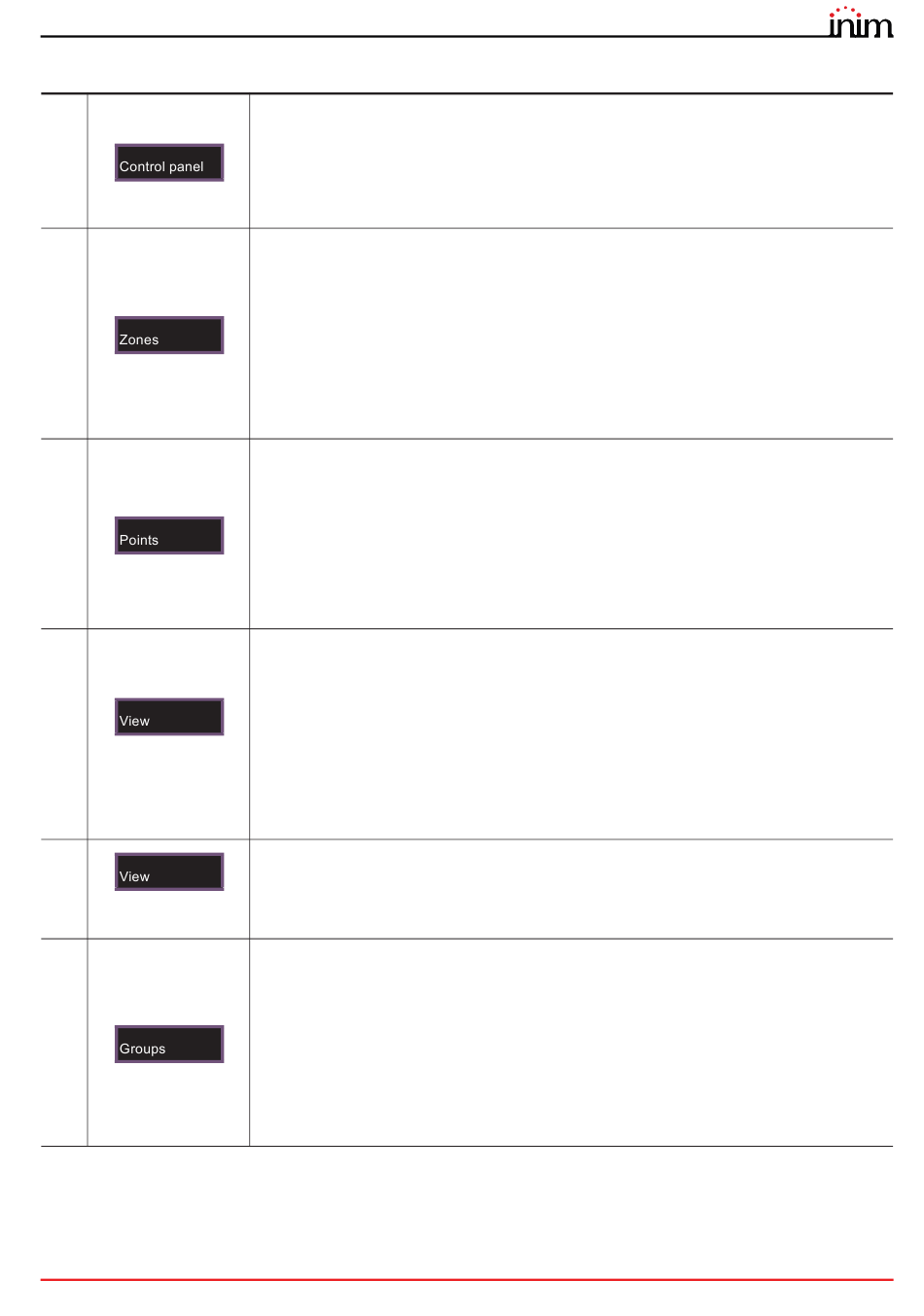

Buttons to access the template for the selection of the control panel whose parts you wish to
It is possible to select a cluster (group of control panels connected through a LAN network) and a
single control panel from the selected cluster.
After selecting the Esc button, you will be able to view the elements in the various sections
described below. If, instead, the Home button is selected or no control panel is selected the
elements shown will be those of the control panel in use.
Button to access the zones viewing section of the selected control panel.
The template is divided into pages which show a maximum of 100 zones. The arrow buttons allow
The status of each zone is shown and made distinctive by colour:
- Green, zone in standby
- Yellow, zone in fault status
- Red, zone in alarm status
- Light yellow, zone disabled
- Blue, zone selected by tapping on the screen
By selecting a zone, it is possible for access level 2 users to place it in test status and/or change its
Button to access the loops template of the selected control panel.
The status of each loop is shown and made distinctive by colour:
- Green, loop in standby
- Yellow, loop in fault status
- Red, loop in alarm status
- Light yellow, loop disabled
- Blue, loop selected by tapping on the screen
By selecting a loop and tapping on the View button it will be possible to access the loop devices
(refer to this table - [D]]). The Disable button allows you to change the operating mode (refer to
Button to access the template for the selection of the devices on selected loop.
This template is divided into pages which show a maximum of 80 devices. The arrow buttons
The status of each device is shown and made distinctive by colour:
- Green, device in standby
- Yellow, device in fault status
- Red, device in alarm status
- Light yellow, device disabled
- Blue, device selected by tapping on the screen
By selecting a device and tapping on the View button it will be possible to access the loop devices
Button to access and view the section of the selected device module.
The template shown contains all the information regarding the device and provides access to the
respective functions (paragraph 3.7 Device management).
Button to access the template for the management of the output groups of the selected control
The template is divided into pages which contain a maximum of 80 groups. The arrow buttons
The status of each group is shown and made distinctive by colour:
- Green, group activated
- Red, group disabled
- Blue, group selected by tapping on the screen
By selecting a group and tapping on the Activate/Deactivate button, it will be possible to change
its operating status (refer to this table - [L]]). The Disable button allows you to change the
view.
you to scroll through the pages.
operating mode (refer to this table - [K]]).
this table - [K]]).
allow you to scroll through the pages.
(refer to this table - [E]]).
panel.
allow you to scroll through the pages.
operating mode (refer to this table - [K]]).
15
