Viega Mono Slim 4.5L Installation Manual

Mono slim 4.5l in wall cistern and more 104 push plate
Hide thumbs

Advertisement

Quick Links

Viega More

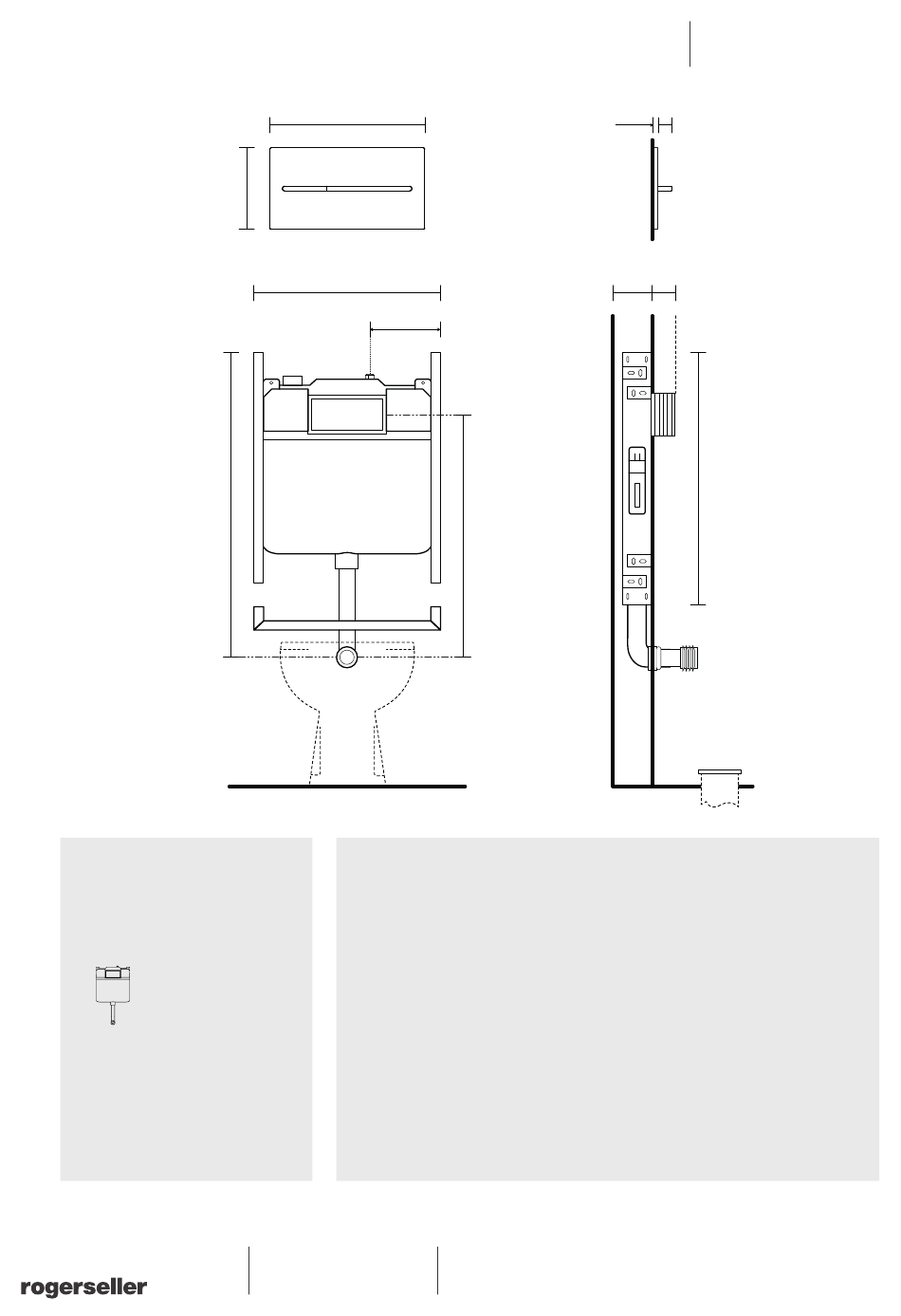

Viega Mono Slim 4.5L
in wall cistern and more
104 push plate
230323
271
140
560
911
rogerseller.com.au
210
A
580-740
Please note
• Minimum cavity depth is 90mm
• The cistern has a 1/2' Female connection
located at point A
• Finished wall lining (located at point B)
must have a thickness of 17mm (min) –
130mm (max)
• A flush pipe support bracket is supplied
with this cistern
• Access to the internal workings of
the cistern is only available through
the front mounted push plate
• To flush mount the push plate with the
finished tiled surface a flush mounting
plate (230250) is required
Dimensions are approximate. Information provided in this installation guide is representative of the
actual product available at the time of printing. Due to our policy of continuous product development,
the design and specifications depicted are subject to change without notice. Please confirm all
particulars with your sales consultant prior to purchase.
Installation Guide
4.5
17
90
B
700
• WELS 4 Star 4.5/3 litres dual flush cistern
• All dimensions are in millimetres
• Full installation instructions come
with the product
Important
Flush-mount push plate installation requires
the purchase of a Flush Mounting Plate (sold
separately). This mounting plate is required
at rough-in prior to tiling. The installation
requirements for both cistern and push plate
are different for flush mounting. Please refer
to flush mounting plate installation guide
prior to purchase and installation.

Advertisement

loading

  Summary of Contents for Viega Mono Slim 4.5L

  • Page 1 Viega More Installation Guide 580-740 Viega Mono Slim 4.5L Please note in wall cistern and more • Minimum cavity depth is 90mm • WELS 4 Star 4.5/3 litres dual flush cistern 104 push plate • The cistern has a 1/2’ Female connection •...
  • Page 2 Viega More Installation Guide STEP 01 1. Remove the duct cover. 2. Cut in the corners of the duct 3. Remove internal cover. 4. Unlock the mechanism. as far as the surface of the wall then fold up the sides. The edge of the duct must now be flush with the surface of the wall.
  • Page 3 Viega More Installation Guide STEP 03 13. Slide the Bowden wire unit 14. Replace the spacer into the 15. Turn the threaded bolts 16. Attach the Bowden wire onto the drain valve form the cistern and attach onto the back through 90˚...
