BA-0118
Operations manual
MIG/MAG / TIG Welding Power Source
Keep in secure area for future reference!
S C H W E I S S E N

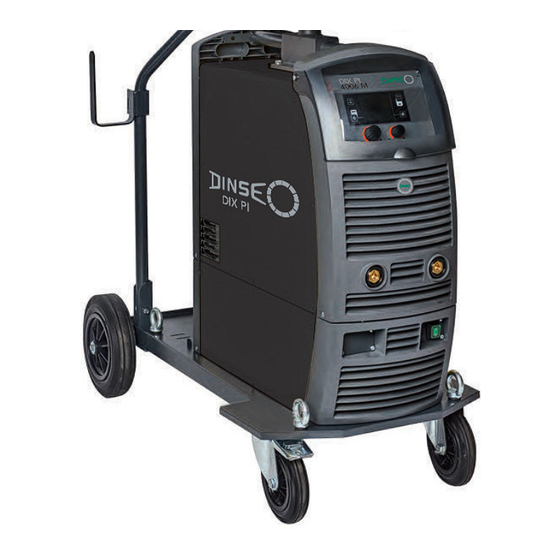

DIX PI 3006.M PULS
DIX PI 4006.M PULS
DIX PI 4606.M PULS
S C H W E I S S E N
W E L D I N G
W E L D I N G
S C H W E I S S E N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIX PI 3006.M PULS and is the answer not in the manual?

Questions and answers

Related Manuals for DINSEO DIX PI 3006.M PULS

Summary of Contents for DINSEO DIX PI 3006.M PULS

  • Page 1 BA-0118 Operations manual MIG/MAG / TIG Welding Power Source DIX PI 3006.M PULS DIX PI 4006.M PULS DIX PI 4606.M PULS Keep in secure area for future reference! S C H W E I S S E N W E L D I N G...
  • Page 2 Operating features The main feature of the welding unit DIX PI 3006.M PULS, DIX PI 4006.M PULS and DIX PI 4606.M PULS are: • Metallic main structure with shockproof plastic front frames.
  • Page 3 0,037 Ω DIX PI 3006.M PULS - 0,028 Ω DIX PI 4006.M PULS - 0,017 Ω DIX PI 4606.M PULS at the interface point between the user’s supply and the public system. It is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution net-...
  • Page 4 Pos. 6 Fast coupling reverse polarity. Pos. 7 Connector for connecting the cooling system. Pos. 8 Mains cable. Table 2 DIX PI 3006.M PULS DIX PI 4006.M PULS DIX PI 4606.M PULS Model MIG-MAG welding Input power @ I 18,8...
  • Page 5 FIG. A 2A - Connecting the cables - Welding with a HAND MIG-MAG / PULSE MIG / DOUBLE HELD TORCH SET as POSITIVE POLE (Fig. B1) PULSE MIG Welding 1) The feeder - welding power source connecting cable is used to connect the welding power source to the feeder. To begin MIG-MAG / PULSE MIG / DOUBLE PULSE MIG weld- WARNING: Do not disconnect the wire-feeder until the ing, carry out the following tasks (with the welding power source...
  • Page 6 2000FC16 FIG. B2 • Interconnection cable on welding power source side: • Interconnection cable on welding power source side: connect up tubes to their rapid couplings (blue and red connect up tubes to their rapid couplings (blue and red coloured) at the back of the coolant system. coloured) at the back of the coolant system.
  • Page 7 In those countries in which such a connection is not al- lowed, connect the part to be welded to ground using suitable On the DIX PI 3006.M PULS, DIX PI 4006.M PULS and DIX capacitors, in compliance with the national regulations.
  • Page 8 • Medium for overhead welding. • Low for vertical downwards welding and for joining small pre- DIX PI 3006.M PULS, DIX PI 4006.M PULS and heated pieces. DIX PI 4606.M PULS A fairly approximate indication of the average current to use in...
  • Page 9 • Partially (depending on the welding process selected) re- places the ENCODER - V knob on the WF 793.M feeder’s front panel. AIR AND/OR WATER COOLED UP/DOWN TORCH This command (that must be plugged into the relevant connec- tor on the front panel of the WF 793.M drawing unit) works as an alternative to: • The ENCODER - A knob on the WF 793.M feeder’s front panel.
  • Page 10 Wiring diagram 2101EA86...
  • Page 11 Key to the electrical diagram •1 •2 •3 •4 •5 •6 •7 •8 •9 •10 F-EMC •11 •12 •13 •14 •15 MV1-2 •16 •17 •18 •19 S-INT DIG S-INV S-LINK •20 •21 •22 •23 •24 S-PS •1 SNUBBER capacitor for output diodes •2 Interconnec- tion cable connector •3 Cooling system power connector •4 Quick connection protection capacitor •5 Secondary diode •6 EMC filter •7 Mains switch •8 Secondary inductor •9 Pri-...
  • Page 12 Meaning of graphic symbols on welding power source Positive pole snap-in connector Power supply switch System for use in environments with in- Negative pole snap-in connector creased risk of electroshock Product suitable for free circulation in the Warning! European Community Before using the equipment you should carefully read the instructions included in Danger! high voltage...

  • Page 13: Table Of Contents

    Control panels welding power source and wire feeder Introduction ..................15 General notes .
  • Page 14 Error condition ................. 44 SETUP Menu .

  • Page 15: Introduction

    Introduction This manual describes the functions of the software operating the following control panels: • DIX PI 3006.M PULS + WF 793.M DIX PI 4006.M PULS + WF 793.M DIX PI 4606.M PULS + WF 793.M Functioning of the panels listed above is identical (the functions are the same but the characteristics differ depending on the type of machine they are fitted on (e.g.: current regulation field).

  • Page 16: Welding Mode Selection Key

    WELDING MODE SELECTION Key Each time this is pushed the following welding modes can be selected (only for pulsed and double pulsed MIG, synergic and manual welding processes) on the feeder (on the welding machine the welding mode is selected using a specific menu - see the appropriate paragraphs) according to a specific sequence: 2T lED 4T lED...

  • Page 17: Switching On The Welding Machine

    Switching on the welding machine When the unit is switched on the welding machine's display shows a “sand glass” During this operation, all keys and encoders of the welding power source panel are disabled. Language selection MENU K ENTER/MEM K LANGUAGE ENGLISH ADVANCE CONFIGURATION...

  • Page 18: Welding Process Selection Menu (Process)

    WELDING PROCESS SELECTION Menu (PROCESS) „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the PROCESS SELECTION Menu (PROCESS) push the MENU K MENU K ENTER/MEM K MIG PULSE MIG DUAL PULSE MIG/MAG SYNERGIC MIG/MAG MANUAL VISION.COLD VISION.PIPE...

  • Page 19: Mig-Mag, Mig Pulse/Dual Pulse

    MIG-MAG, MIG pulse/dual pulse (DIX ARC COOL PIPE, DIX ARC COOL, DIX ARC HEAVY, DIX ARC MEGA FAST only if activated) 1 - PROGRAM SELECTION Menu (PROGRAM) „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU K MENU K ENTER/MEM K...

  • Page 20: Special Functions Menu (Set Up Fx)

    WElDiNG MODE SElECTiON K WElDiNG MODE SElECTiON lED WELDING MODE SELECTION K Scrolls the various welding modes available in succession. WELDING MODE SELECTION LED Displays the welding mode selected. (continued) 3 - SPECIAL FUNCTIONS Menu (SET UP Fx) „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the MENU K MENU K ENTER/MEM K...
  • Page 21 „WF 793.M“ CONTROL PANEL To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the SPECIAL FUNCTIONS (F paRaMETER D iSplay CREEN ENCODER K ENCODER K SpECial FUNCTiONS (F SpECial FUNCTiONS (F ) lED PARAMETER DISPLAY S Displays the selected SPECIAL FUNCTION (Fx). CREEN ENCODER K Used to select the various SPECIAL FUNCTIONS (Fx).
  • Page 22 PARAMETER Display Screen - V Welding mode PARAMETER Display Special function Screen - A FINAL SLOPE ● ● ● ● 1.0s (0.0 - 20.0)s FINAL CURRENT ● ● ● ● -30% -100% - +50% FINAL ARC LENGTH ● (*) ● (*) ● (*) ● (*) -30 - +30 FINAL CRATER TIME ●...
  • Page 23 • The HOLD function is not active within the SPECIAL FUNCTIONS Menu (SET UP Fx). The SPECIAL FUNCTIONS (Fx) for the MIG-MAG manual process correspond to the feeder (when fitted) as follows: Table B PARAMETER Display Screen - V Welding mode PARAMETER Display Special function Screen - A...

  • Page 24: Pre-Setting

    4 - PRE-SETTING „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL MENU K 217 29.4 SX K DX K PROGRAM 1011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2 ENCODER K - SX ENCODER K - DX Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as MENU K...

  • Page 25: Welding

    ENCODER K Adjusts the parameter displayed by the PARAMETER DISPLAY S - V. CREEN GAS K Activates the flow of gas. Only enables entering and exit afterwards from the SPECIAL FUNCTIONS Menu (SET UP SPECIAL FUNCTIONS (F Fx) on the WF 793.M panel and not on the welding power source panel. (continued) 5 - WELDING When welding takes place the fields in the displays show the same values as those included for pre-setting with the difference...

  • Page 26: Hold

    6 - HOLD When welding ends the fields in the display must show the same values that were displayed during welding, with the difference that they are now values defined as HOLD. In this phase the DISPLAY shows the HOLD box highlighted, while on the WF 793.M panel the HOLD F LED flashes until the end of the HOLD Function.

  • Page 27: Wire Loading

    7 - WIRE LOADING The purpose of this menu it to allow the operator to load the welding wire and set the loading speed, only when welding is not is progress. If the wire loading function is activated (also see the CONFIG menu), to enable it hold the torch button or the load- ing button on the feeder down for 4 seconds.

  • Page 28: Mma

    Select the MMA welding process by using the MENU as explained on page 7. 1 - PROGRAM SELECTION Menu (PROGRAM) „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the PROGRAM SELECTION Menu (PROGRAM) push the MENU K MENU K ENTER/MEM K TYPE...
  • Page 29 „WF 793.M“ CONTROL PANEL To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the SPECIAL FUNCTIONS (F paRaMETER D iSplay CREEN paRaMETER D iSplay CREEN ENCODER K ENCODER K SpECial FUNCTiONS (F SpECial FUNCTiONS (F ) lED PARAMETER DISPLAY S Displays the selected SPECIAL FUNCTION (Fx).

  • Page 30: Pre-Setting Mma

    3 - PRE-SETTING „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL MENU K ENTER/MEM K 60 70.0 SX K DX K PROGRAM 3200 MMA Cr Ni ENCODER K - SX ENCODER K - DX Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as MENU K applicable.

  • Page 31: Welding Mma

    4 - WELDING When welding takes place the fields in the displays show the same values as those included for pre-setting with the difference that now they are those measured. „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL 60 70.0 PROGRAM 3200 MMA Cr Ni...

  • Page 32: Hold Mma

    5 - HOLD When welding ends the fields in the display must show the same values that were displayed during welding, with the difference that they are now values defined as HOLD. In this phase the DISPLAY shows the HOLD box highlighted, while on the WF 793.M panel the HOLD F LED flashes until the end of the HOLD Function.

  • Page 33: Activating The Vrd Device Mma

    6 - ACTIVATING THE VRD DEVICE The Voltage Reduction Device (VRD) is a safety device that reduces voltage. It prevents voltages forming on the output termi- nals that may pose a danger to people. The standard settings and those defined beforehand by do not provide for the VRD to be active on the welding machine and so the DISPLAY does not normally provide any indication.

  • Page 34: Tig Lift

    TIG LIFT Select the TIG LIFT welding process by using the MENU as explained on page 7. 1 - SPECIAL FUNCTIONS Menu (SET UP Fx) TIG LIFT „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the SPECIAL FUNCTIONS Menu (SET UP Fx) push the MENU K MENU K ENTER/MEM K...

  • Page 35: Pre-Setting Tig Lift

    PARAMETER Display Screen - V Special function PARAMETER Display Screen - A Default Range UP SLOPE 0.0s (0.0 - 5.0)s DOWN SLOPE 2.0s (0.0 - 8.0)s TIG PULSE DELTA CURRENT -50% (-100 ÷ 1000)% TIG PULSE BALANCE (-40 ÷ 40)% TIG PULSE FREQUENCY 100.0Hz (0.1 ÷...

  • Page 36: Welding Tig Lift

    ENCODER K Adjust the value of the parameter WELDING CURRENT ( ). Displays the value of the parameter WELDING VOLTAGE ( ). PARAMETER DISPLAY S CREEN The WELDING VOLTAGE shown is the measured voltage. PARAMETER SELECTION LED - V The LED unit shows the WELDING VOLTAGE ( ) switched on. (continued) 3 - WELDING TIG LIFT...

  • Page 37: Hold Tig Lift

    4 - HOLD TIG LIFT When welding ends the fields in the display must show the same values that were displayed during welding, with the difference that they are now values defined as HOLD. In this phase the DISPLAY shows the HOLD box highlighted, while on the WF 793.M panel the HOLD F LED flashes until the end of the HOLD Function.

  • Page 38: Job/Sequences

    JOB/SEQUENCES 1 - Creating and saving / editing and overwriting a JOB/SEQUENCES (*) JOB/SEQUENCES „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL MENU K ENTER/MEM K 211 24.8 SX K DX K PROGRAM 0011 Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2 ENCODER K - SX ENCODER K...

  • Page 39: Job/Sequences Selection Menu Job/Sequences

    2 - JOB/SEQUENCES SELECTION Menu JOB/SEQUENCES WARNING: All the parameters saved within a JOB/SEQUENCE (including SPECIAL FUNCTIONS (Fx)) can be viewed but not edited! „PI 3006.M PULS“ / „PI 4006.M PULS“ / „PI 4606.M PULS“ CONTROL PANEL To access the JOB/SEQUENCES SELECTION Menu push the MENU K MENU K ENTER/MEM K JOB PRG...

  • Page 40: Pre-Setting Job/Sequences

    The LED unit indicates the welding mode saved in the JOB selected, which is coherent with WELDING MODE SELECTION LED the DISPLAY. Displays the JOB number also selected in the SEQUENCES or the value for the parameter PARAMETER DISPLAY S CREEN indicated by the PARAMETER SELECTION LED - V.

  • Page 41: Welding Job/Sequences

    „WF 793.M“ CONTROL PANEL paRaMETER D iSplay CREEN HOLD Function LED paRaMETER D paRaMETER SElECTiON lED - a iSplay CREEN paRaMETER SElECTiON lED - V paRaMETER SElECTiON K paRaMETER SElECTiON K ENCODER K ENCODER K WiRE K GaS K WElDiNG MODE SElECTiON K SpECial FUNCTiONS (F WElDiNG MODE SElECTiON lED SpECial FUNCTiONS (F...
  • Page 42 MENU K SX K DX K 1011 - Welding sequence Fe G3 SI-1 Ø 0.8 Ar 16-20% CO2 Used to access the PROCESS SELECTION Menu (PROCESS) and subsequent menus, as MENU K applicable. Scrolls the active parameters in succession, only on the DISPLAY, based on the type of SX K welding process saved in the JOB selected.

  • Page 43: Hold Job/Sequences

    5 - HOLD JOB/SEQUENCES When welding ends the fields in the display must show the same values that were displayed during welding, with the difference that they are now values defined as HOLD. In this phase the DISPLAY shows the HOLD box highlighted, while on the WF 793.M panel the HOLD F LED flashes until the end of the HOLD Function.

  • Page 44: Error Condition

    Error condition WARNING: Under normal conditions of use it is not possible to open the “ERROR LOG Menu” display since the alarm mes- sage appears instantaneously on the DISPLAY as soon as the problem arises on the welding plant. At this stage it is not pos- sible to weld! As soon as the error message appears: „PI 3006.M PULS“...

  • Page 45: Setup Menu

    In the case of an Automatically reset error once the alarm condition has ended (reinstatement completed correctly), the weld- ing plant is once again ready and the operator can recommence welding! The alarm state disappears and the DISPLAY returns to precisely the same point at which it was operating previously.

  • Page 46: Job Edit Setup Menu

    JOB EDIT SETUP Menu The purpose of this menu is to allow the operator to copy or delete a JOB (automatic welding point) entered previously. To access the JOB EDIT Menu from the SETUP Menu: • Turn the ENCODER K - SX to select the desired icon.
  • Page 47 MENU K ENTER/MEM K JOB/SEQUENCES SX K DX K ENCODER K - SX ENCODER K - DX The following image appears: NAME # JOB CREATING A SEQUENCE Use the ENTER/MEM K to create a new sequence. NAME JOB PRG PROCESS --- --- AVAILABLE JOBS: 5 1011 MIG PULSE...
  • Page 48 Select the position of the sequence to be added, using the ENCODER K - SX (e.g. in this case, position Until the DX K is pushed of a new sequence is selected using the SX K NAME # JOB , sequence 004 can be added Welding sequence 1 in all the positions it is required.

  • Page 49: Password Setup Menu

    PASSWORD SETUP Menu The purpose of this menu is to allow the operator to enter a PASSWORD for accessing the SETUP Menu. To access the PASSWORD Menu from the SETUP Menu: • Turn the ENCODER K - SX to select the desired icon. • Push the ENTER/MEM K MENU K ENTER/MEM K...

  • Page 50: Blocks Setup Menu

    BLOCKS SETUP Menu The purpose of this menu is to allow the operator to block or limit use of the welding machine and/or certain welding parame- ters / functions. To access the BLOCKS Menu from the SETUP Menu: • Turn the ENCODER K - SX to select the desired icon.

  • Page 51: Config Setup Menu

    CONFIG SETUP Menu The purpose of this menu is to allow the operator to select the language used for the DISPLAY, change the SETTINGS menu to AD- VANCED SETTINGS menu, enter advanced welding mode, set how cooling is managed, and set wire loading via the torch button. To access the CONFIG Menu from the SETUP Menu: • Turn the ENCODER K - SX to select the desired icon.

  • Page 52: Factory Reset Setup Menu

    Advanced function Description WIRE LOAD SPEED The parameter is used to set the loading speed, both for the torch (if active) and for the feeder. The range for this parameter is 1,0 m/min to 22,0 m/min. LANGUAGE ENGLISH ADVANCED CONFIGURATION DISABLED ADVANCED WELDING MODE DISABLED...

  • Page 53: Info Setup Menu

    Function Description Used to reset the counters for all the alarms (Curr. - Tot. ---- see ERROR LOG Menu) that COUNTER ALARMS RESET have occurred in the welding plant. WARNING: This operation resets the counters for the alarms but does not delete the RESET PROGRAM (0011) individual alarms! RESET PROCESS DATA MIG/MAG SYNERGIC...
  • Page 54 Software Description WIRE FEEDER SOFTWARE VERS. 1/2 This indicates the software version loaded in feeder 1/2, if applicable. POWER SOURCE SW. VERS. WIRE FEEDER SOFTWARE VER. 1 WIRE FEEDER SOFTWARE VER. 2 ROBOT INTERFACE SW. VERS. H03-04.00 F02-02.18 POWER SOURCE SW. VERS. WIRE FEEDER SOFTWARE VER.

  • Page 55: Network Setup Menu

    Software Descrizione I/O STATUS The status of the inputs and outputs on the generator. I/O STATUS WATER COOLER PUMP E0.3 UNDER VOLTAGE E0.2 OVER VOLTAGE E0.4 OVER CURRENT T°C THERMAL PROTECTION WATER COOLER PRESENCE COOLING PLANT PRESSURE REMOTE CONTROLS STATUS The status of the inputs: • ANALOGUE INPUT 1 (synergic remote control input) • ANALOGUE INPUT 2 (arc length remote control input)

  • Page 56: Error Log Setup Menu

    Function Description IP ADDRESS This indicates the IP address to which the welding machine has been assigned. LINK STATUS NOT ACTIVE CONFIGURATION DHCP IP ADDRESS 169.254.136.178 NETMASK 255.255.0.0 GATEWAY 0.0.0.0 Digitech Vision 5000 [FX00204904080100] NETMASK This indicates the sub-network template number to which the welding machine has been assigned.
  • Page 57 The counter that indicates how many times a error or alarm has occurred since the last time the machine was switched on is part of this menu, and can be zeroed as follows: • Choose the error for which the partial counter (Curr) must be reset by rotating the SX - ENCODER K ERRORS Curr.
  • Page 58 Error Error code Error description and possible diagnosis condition THERMAL PROTECTION T°C The welding stops due to an excessively high temperature (thermostat activated). Automatic reset error. COOLER PRESSURE The fluid in the cooling system is at low pressure. NON automatic reset error. CONFIG.
  • Page 59 Error Error code Error description and possible diagnosis condition MIG SYN SPECIAL FUNCTION (Fx) WRONG NON automatic reset error. E4.2 Immediately contact technical assistance dept. Error visible on DISPLAY ONLY in the event of a fault and NOT in the ERROR LOG Menu. MIG MAN SPECIAL FUNCTION (Fx) WRONG NON automatic reset error.

  • Page 60: Advanced Setup Menu

    Error Error code Error description and possible diagnosis condition NO WELDING WIRE E8.7 Error reset by a command from the robot’s board (see robot interface manual). POWER LIMITATION This alarm appears if the power limit is exceeded. The alarm alternates with the standard display every 1.5 seconds, despite which the machine continues to weld, supplying limited power, but complying with the values shown on the data plate.

  • Page 61: Advanced Config Advanced Setup Menu

    ENCODER K - SX Used to scroll the various icons (sub-menus) in the menu and then select them. ENTER/MEM K Used to access the menu related to the icon selected. (continued) WARNING: • It is impossible to weld! • If the DISPLAY is protected by a password, access to this menu will only be allowed by entering the correct password. ACCESSING THE SUB-MENUS To access the sub-menus included in the ADVANCED SETUP Menu, you must: SETUP...

  • Page 62: Advanced Mode Advanced Setup Menu

    Advanced function Description TIME WELDER ON Indicates the actual time the machine works, even when the screen saver is activated. WARNING: This time can only be zeroed by means of a TOTAL RESET (see the relevant paragraph) of the welding plant. ARC ON TIMER 0 gg.

  • Page 63: Welding Mode Selection Menu (Mode)

    Advanced function Description CYCLE If enabled, when operating in STANDARD or ADVANCED mode, this function provides the operator with a further welding mode (CYCLE) and the special functions associated with it, when using MIG (pulsed, double pulsed, synergic, or manual) welding processes: • CURRENT CYCLE, CYCLE WIRE SPEED (see TAB.

  • Page 64: Equipment Layout Advanced Setup Menu

    EQUIPMENT LAYOUT ADVANCED SETUP Menu The purpose of this menu is to allow the operator to manage connections of components and accessories that are part of the welding plant. To access the EQUIPMENT LAYOUT Menu from the SETUP Menu: • Turn the ENCODER K - SX to select the desired icon.
  • Page 65 Advanced function Description TORCH TYPE 1 / TORCH TYPE 2 Used to set the TORCH TYPE 1/2 that will subsequently be connected to the welding plant. This operation must be done in order to size the plant correctly and as a result, the welding parameters.
  • Page 66 Advanced function Description ROBOT CONN. MODE (ROBOT RI-A 1 - Means that the presence of an interface board for analogue / digital type robots CONNECTION MODE) is detected RI-D 2 - Means that the presence of an interface board for Device net type robots is detected WATER COOLER OPTIONAL...
  • Page 67 Advanced function Description GAS FLUX CONTROL NOT ACTIVE - In this mode the GAS FLOW input for the MCB-3 motor control box is ignored. ACTIVE - In this mode the GAS FLOW input for the MCB-3 motor control box is checked, WATER COOLER OPTIONAL and if necessary the relevant alarm is activated.

  • Page 68: Weld Log Advanced Setup Menu

    Advanced function Description MIN. ROBOT ANALOG VOLTAGE These parameters are used to set the maximum and minimum voltage settings used to control the robot board’s analogue inputs. The settable values are: MINIMUM ROBOT ANALOGUE V from 0V to 2V WATER COOLER OPTIONAL MAXIMUM ROBOT ANALOGUE V from 5V to 14,5V ROBOT PULSE FREQ.

This manual is also suitable for:

Dix pi 4006.m pulsDix pi 4606.m puls

Table of Contents
