Summary of Contents for Dinstar MTG1000-4E1/T1

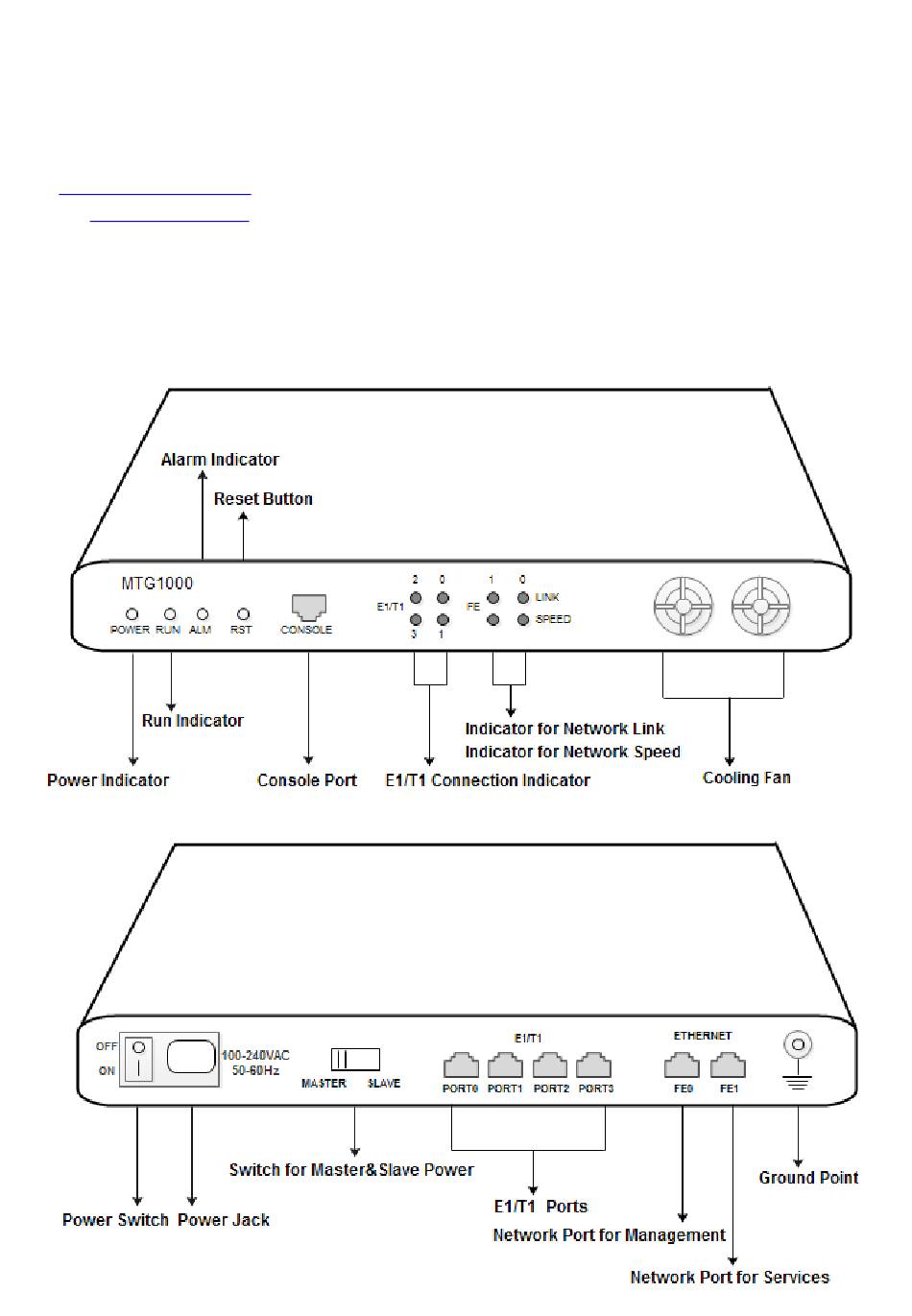

- Page 1 Thanks for Choosing Dinstar’s MTG1000 Trunk Gateway! Please read this installation guide carefully before install the gateway. If you need any technical support, please contact us. Tel: 0755-61919966. Mail: support@dinstar.com Website: www.dinstar.com MTG1000 Appearance MTG1000-4E1/T1...
-
Page 2: Number Of Ports
MTG1000-8E1/T1 Number of Ports... -
Page 3: Description Of Indicators
Description of Indicators Installation Attentions 十年专注 铸就品质 1. Ensure the cabinet to accommodate MTG1000 is well-ventilated and strong enough to bear the 客户至上 贴心服务 weight of MTG1000. It’s required that the width of the cabinet should be 482.6mm (19 inches); 2. -
Page 4: Connection Instruction
Connection Instruction Network Connection E1/T1 Port Connection... -
Page 5: Wire Sequence Of Rj48 (E1/T1) Cable
Power Connection 十年专注 铸就品质 客户至上 贴心服务 Wire Sequence of RJ48 (E1/T1) Cable The E1/T1 ports of MTG1000 trunk gateway are connected with RJ48 cables. A RJ48 cable has two PINs, and the wire sequence of each PIN is shown as follows: PIN 1 PIN 2 1 2 3 4 56 7 8... - Page 6 Enter an available IP address which is at the same network segment with “192.168.1.111”. Log into MTG1000 Open a web browser and enter the IP address of MTG1000 (the default IP of FE0 is 192.168.1.111, while the default IP of FE1 is 192.168.11.1 ). Then the login GUI will be displayed. Both the default username and password are admin.
- Page 7 (2) Configure SS7 Trunk 1. On the SS7 Config SS7 Trunk interface, add an SS7 trunk. Please consult local service provider about the information of Protocol Type (TUP/ISUP) , OPC and DPC. 2. On the SS7 Config SS7 MTP Link interface, add an SS7 signaling link for the trunk. Please consult local service provider about the information of E1/T1 Port No.
- Page 8 3. On the SS7 Config SS7 CIC interface, add an SS7 circuit for the SS7 trunk. Generally, an E1 port contains 32 channels, while a T1 port has 24 channels. Please consult local service provider about the information of CIC. Configure E1/T1 Frame Mode 2.
- Page 9 Configure SIP Trunk On the SIP Config SIP Trunk interface, add a SIP trunk. User needs to fill in the IP address of the peer device (remote address) and remote port. Other parameters can be retained as default settings . Configure Outbound and Inbound Routes (1) Configure Outbound Route On the Call Routing ...
- Page 10 (2) Configure Inbound Route On the Call Routing PSTN >IP Routing interface, add an inbound route. Select a source type and a destination type. If ‘.’ is filled in for Caller Prefix and Callee Prefix, it means any number can be caller number and callee number.
-
Page 11: Troubleshooting
‘show int’ under the ‘ROS#’ mode to query the current IP address of MTG1000. 4）Forget username and password Connect the trunk gateway’s console port to a PC via an RS232 console cable, and then ask for online technical support. Honest , Concentrated, Innovative, Open Website： http://www.dinstar.com Sina Weibo：http://weibo.com/voipdinstar...
