MTG3000 VoIP Trunk Gateway
User Manual v1.0
Dinstar Technologies Co., Ltd.
th
Address: 9
Floor, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China
Postal Code: 518052
Telephone: +86 755 61919966
Fax: +86 755 2645 6659
Emails: sales@dinstar.com, support@dinstar.com
Website:
www.dinstar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTG3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Dinstar MTG3000

Summary of Contents for Dinstar MTG3000

  • Page 1 MTG3000 VoIP Trunk Gateway User Manual v1.0 Dinstar Technologies Co., Ltd. Address: 9 Floor, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China Postal Code: 518052 Telephone: +86 755 61919966 Fax: +86 755 2645 6659 Emails: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
  • Page 2 Welcome Thanks for choosing MTG3000 Trunk Gateway! We hope you will make optimum use of this flexible, rich-feature trunk gateway. Please read this document carefully before install the gateway. About this manual This manual provides information about the introduction of the gateway and about how to install, configure or use the gateway.

  • Page 3: Table Of Contents

    2.2.4 Connect MTG3000 to PSTN ........................10 2.3 Troubleshooting ............................10 3 Basic Operation ............................11 3.1 Configuration of IP Address ........................11 3.2 Local Maintenance ..........................11 3.2.1 Example: Log in MTG3000 via Console Port ..................12 3.3 Query IP ..............................14...
  • Page 4 4 Configurations on Web Interface ......................15 4.1 How to Log in Web Interface ......................... 15 4.1.1 Network Connection ..........................15 4.1.2 Preparations for Login ..........................15 4.1.3 Log in Web Interface ..........................15 4.2 Introduction to Web Interface ....................... 16 4.3 Configuration Flows ..........................
  • Page 5 4.9.6 PSTN Profile ............................42 4.9.7 PSTN Group ............................43 4.9.8 PSTN Group Management ........................44 4.10 SIP Config .............................. 45 4.10.1 SIP Parameter ............................45 4.10.2 SIP Trunk .............................. 46 4.11 IP Group Config ............................. 50 4.11.1 IP Profile ............................... 50 4.11.2 IP Group ..............................
  • Page 6 4.17.6 ModFile Information ..........................80 4.17.7 Version Information ..........................80 4.17.8 Firmware Upgrade ..........................81 4.17.9 Password Modification ......................... 81 4.17.10 Device Restart ............................ 82 5 Abbreviation ..............................83 6 Commands..............................84 6.1 Commands under en Mode ........................84 6.1.1 Login Command ............................. 84 6.1.2 Query IP Address ............................

  • Page 7: Product Description

    AMR. It has good compatibility with Huawei SoftX3000, and other softswitches and IMS systems from ZTE, Cisco, VOS and Langxun. Compared to other similar products, MTG3000 has more advantages in terms of performance, system reliability and compatibility. It is widely used by call centers, operators and large-size enterprises for the entry into IMS network based on VoIP.

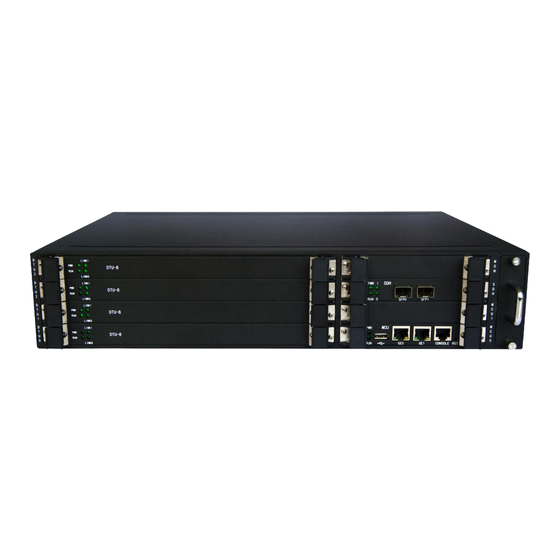

  • Page 8: Product Appearance

    1.3.2 Image of MCU and DTU MTG3000 allows users to insert or pull out DTU boards when it is still powered on, and it can automatically identify the DTU boards that have been inserted. When a DTU board is inserted or pulled out, users need to re-configure the MTG3000 device.

  • Page 9: Description Of Ports And Indicators

    1.3.3 Description of Ports and Indicators MTG3000 has four DTU boards marked from 0 to 3. Each board has 16 virtual E1/T1 ports that are integrated into the SDH port, and there are indicators to show the connection between each DTU board and the MCU board.
  • Page 10 Flash slowly The SDH board runs normally Flash quickly The SDH board is improperly connected to the MTG3000 box The SFP optical module has been inserted into the SFP port 0. Light 0 The SFP optical module has not been yet inserted into the SFP port 0.

  • Page 11: Functions And Features

     1.4.3 Physical Interfaces SDH Interfaces 2* Standard LC SDH, 155M  1+1 Redundancy Channels Protection   Master/Slave Clock Source Main Control Unit (MCU) 1+1 Redundancy, Hot Plug  MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 12: System Functions

    PSTN Group Based on E1 Port or E1 Timeslot   Configuration of IP Trunk Group Voice Codec Group  Caller/Called Number White List  Caller/Called Number Black List  Access Rule List   IP Trunk Priority MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 13: Call Features

    Operating Temperature. 0 ℃ ~ 45 ℃  Storage Temperature: -20 ℃ ~80 ℃   Humidity: 10%-90%, Non-Condensing Dimensions (W/D/H): 437× 320× 88mm (2U)   Unit Weight: 6.5kg Compliance: CE, FCC  MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 14: Quick Installation

    2.1 Preparations before Installation 2.1.1 Attentions for Installation The attentions for installing MTG3000 include: To guarantee MTG3000 works normally and to lengthen the service life of the device, the humidity of  the equipment room where MTG3000 is installed should be maintained at 10%-90% (non-condensing), and temperature should be 0 ℃...

  • Page 15: Unpacking

    3. Fix the mounting ears s of MTG3000 on the cabinet by using screws. 2.2.2 Connect Ground Wire to MTG3000 Connect one end of the ground wire to the grounding port on the back of MTG3000 and then connect the other end to the grounding bar of the shelf.

  • Page 16: Connect Mtg3000 To Pstn

    Use an optical fiber to connect MTG3000 and an optical transceiver which is under the PSTN network. The optical fiber includes the Tx wire and the Rx wire. The Tx port of MTG3000 is connected to the Tx port of the optical transceiver, while the Rx port of MTG3000 is connected to the Rx port of the optical transceiver.

  • Page 17: Basic Operation

    3.2 Local Maintenance To ensure easy maintenance, the MTG3000 trunk gateway provides a standard RJ48 console port, which has a Baud rate of 115200bps. Users can log in the MTG3000 to carry out maintenance-related configurations through the console port. MTG3000 VoIP Trunk Gateway User Manual...

  • Page 18: Example: Log In Mtg3000 Via Console Port

    If the PC does not have a COM port, please use a USB-to-COM converting tool to connect the serial cable to the PC. Step 3: Connect the M port of the serial cable to the console port of MTG3000. Step 4: Conduct configurations on login software.
  • Page 19 After finishing the above configuration, click the Open button to enter the following interface. Enter username and password, which are the same with the username and password of the Web of MTG3000. And then you will see a linux platform where you can carry out maintanance-related configurations.

  • Page 20: Query Ip

    1. Use a serial line to connect the console port of MTG3000 with a PC; 2. Modify the baud rate to 115200; 3. Click OK, and then enter ‘ifconfig’, and the IP address of GE1 or GE0 of MTG3000 will be displayed. MTG3000 VoIP Trunk Gateway User Manual...

  • Page 21: Configurations On Web Interface

    Modify the IP address of the PC to make it at the same network segment with the IP address of GE1 port of MTG3000 device. The format of PC IP is 192.168.1.XXX, since the default IP of GE1 port is 192.168.1.111.

  • Page 22: Introduction To Web Interface

    Password Modification Interface: 4.2 Introduction to Web Interface The Web Interface of the MTG3000 consists of the navigation tree and detailed configuration interfaces. Click a node of the navigation tree, and you will see a detailed display interface or configuration interface:...

  • Page 23: Configuration Flows

    4.3 Configuration Flows The following is the configuration flows of MTG3000: Log in Web Interface Configure IP Address of GE1 Configure SDH Parameters Configure PRI/SS7 Trunk Whether to Configure PSTN Group Configure PSTN Group Configure SIP Trunk Whether to Configure IP...

  • Page 24: E1/T1 Status

    Status of E1/T1 Port The E1/T1 port is not used. Alarm for loss of signal. If the LOS alarm is raised, please check physical network connection. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 25 Status of E1/T1 Port MTG3000. AIS (Alarm Indication Signal) is an alarm raised by MTG3000, indicating the peer device malfunctions, or signal/physical connections are abnormal. This alarm means physical connection is normal while signal connection is abnormal.

  • Page 26: Pstn Trunk Status

    SIP trunk is not registered, the trunk name is displayed as “---”. Trunk Mode There are two trunk modes: peer (peer-to-peer) and access. Incoming Authentication Type Incoming calls can be authenticated through password or IP address. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 27: Pri Call Statistics

    ACD = total call duration/total connected calls. 4.4.6 SS7 Call Statistics On the SS7 Call Statistics interface, information about SS7 calls and statistics about call release causes are displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 28: Sip Call Statistics

    4.4.7 SIP Call Statistics On the SIP Call Statistics interface, information about SIP calls and statistics about call release causes are displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 29: Radius Statistics

    IP address of PC to make it at the same network segment with the IP address of GE1. After completing the configurations, you need to restart the MTG3000 device for the changes to take effect. MTG3000 VoIP Trunk Gateway User Manual...

  • Page 30: Sdh Config

    Note: The IP address of GE1 and that of GE0 cannot be at the same network segment. 4.6 SDH Config SDH configuration includes Line Multiplex, Higher Order Path and Lower Order Path. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 31: Sdh Param

    J1 Expectation It is used to check whether optical transceiver telecommunicating normally with MTG3000. When it is the same with J1 local value, it means telecommunication between Higher Order Path MTG3000 and optical transceiver is normal. J1 Local Value It is used to check whether MTG3000 is telecommunicating normally with the optical fiber.

  • Page 32: Sdh Alarm

    Green: CDR successfully parses data signal and clock Red: CDR fail to parses data signal and clock Clock Green: Clock is parsed and locked Red: Clock fails to be parsed Multi/High Channel Alarm MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 33: Channel Map

    4.6.3 Channel Map Generally, mapping scheme is ITU-T. User can also customize mapping relationship on this interface. The mapping carried out on MTG3000 must be the same with that on optical transceiver. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 34: Pri Config

    Plan’, ‘Private Numbering Plan’ and ‘Unknown’. Include ‘International Number’, ‘National Number’, ‘Network Called Party Number Type Specific Number’, ‘Subscriber Number’, ‘Abbreviated Number’ and ‘Unknown’. Include ‘Speech’ and ‘3.1 kHz audio’ Information Transfer Capability MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 35: Pri Trunk

    The EI/T1 port of the PRI trunk is taken as User Side or Network Side. Alerting Indication Include Alerting and Progress Alerting: Play ring-back tone when receiving alerting signal Progress: Play ring-back tone when receiving progress signal MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 36: Ss7 Config

    SPC format includes Hex (Hexadecimal system) and ITU point code structure (decimal system) OPC: Original Point Code The signaling point code of MTG3000, which is generally assigned by telecom operators. DPC: Destination Point Code The signaling point code of the peer device, which is generally assigned by telecom operators.

  • Page 37: Ss7 Mtp Link

    Signaling Link Code If the Link No. of the trunk cannot match with that of the peer device, the SS7 trunk will be linked to the peer device according to signaling MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 38: Ss7 Cic

    Step 1: Click Add on the SS7 CIC interface. Step 2: Select a trunk and an E1/T1 port. (Trunk 0 and Port 1 are taken as example in the following figure MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 39 Step 1: Click Add on the SS7 CIC interface. Step 2: Select a trunk and E1/T1 ports. (Trunk 1, Port 0, Port1 and Port 2 are taken as example in the following figure. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 40: Ss7 Cic Maintain

    There are two objects to be maintained for SS7 CIC, namely E1/T1 ports and channels. Select E1/T1 on the right of Operation Mode, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 41 Invert, Clear, Block, Unblock, Reset and Cancel. Select Channel on the right of Operation Mode, and then select an E1/T1 port, the channels of the E1/T1 port and their statuses are displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 42: Pstn Group Config

    4.9.1 Clock Source When clock source is produced by the local crystal chip of MTG3000, it is regarded as local clock source. When clock source is obtained from the data received by E1/T1 ports, it is regarded as remote clock source.

  • Page 43: E1/T1 Parameter

    Line codes of T1 include NRZ, CMI, AMI, B8ZS, and the default value is B8ZS. Line Built-out Short Haul (-10DB) Batch Configure If Disable is selected, E1/T1 parameter cannot be configured at batch; If Enable selected, E1/T1 parameter can be configured at batch; MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 44: Codec Group

    ID of each codec group for voice ability, from 0 to 7. The codec group 0 is default setting which cannot be modified. Codec MTG3000 supports three kinds of voice codec: G711A, G711U, G729, G723, iLBC 13k and iLBC 15k. Payload Type Value Each codec has a unique payload type value (make reference to RFC3551).
  • Page 45 Step5. Enter into the PSTN Group interface to establish a PSTN group. Step6. Enter into the PSTN Group Management interface to associate the PSTN profile and PSTN group to an E1/T1 port or multiple E1/T1 ports. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 46: Dial Plan

    4.9.4 Dial Plan Dial plan is used for the MTG3000 to identify how many digits that a received number includes. Dial rules can be divided into 5 groups with dial plan IDs. The setting in dial plan 0 is the default setting.

  • Page 47: Dial Timeout

    The maximum number of digits included in a telephone number (generally from 0 to 30). If the length of a received number reaches the set maximum length, MTG3000 deems that all digits of the number have been received and will begin to analyze the telephone number, and if there are still digits being sent, MTG3000 will not received them.

  • Page 48: Pstn Profile

    PSTN profile. Click the Add button to add a new PSTN profile. Parameter Explanation PSTN Profile ID The ID of the PSTN profile Description The description of the PSTN profile MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 49: Pstn Group

    Timeout’ will work. Remove CLI CLI: Calling Line Identification Whether to remove CLI If ‘Yes’ is selected, when the called phone is offhook, MTG3000 Play busy tone to PSTN will play busy tone to the PSTN side. 4.9.7 PSTN Group On the PSTN Group interface, you can create a PSTN group and set a strategy for channel selection of the group.

  • Page 50: Pstn Group Management

    When there is a need to set several E1 ports, it defaults that all the 32 channels of each E1 port are used by the PSTN group. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 51: Sip Config

    31 by default (it means there is no need to choose a start channel and an end channel). 4.10 SIP Config 4.10.1 SIP Parameter MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 52: Sip Trunk

    MTG3000 and the IP network. One is Access (MTG3000 registers to a softswitch), and the other is Peer (MTG3000 connects to a peer device in the IP network via IP address). Configuration procedures for Peer Mode are as follows: 1.
  • Page 53 If Auto is selected, the protocol type is determined by the peer device. Remote Port (UDP) The SIP port of the peer device interfacing with the MTG3000; The default remote port is 5060. Outbound Proxy IP address SIP proxy IP address...
  • Page 54 It is defined by IETF RFC3372, which is a standard used to establish remote communication between SIP and ISUP; The default value is ‘Yes’. If ‘Yes’ is selected, MTG3000 will be registered to the peer device whose IP address is filled in ‘Remote Address’. Incoming SIP Authentication Type Incoming calls from IP network can be authenticated by IP address or password.
  • Page 55 As it is Access mode, you should select Yes for the Register to Remote parameter, and enter the IP address of a softswitch. 3. Click OK. 4. Click SIP Account in the navigation tree on the left, and then click Add to add a SIP account. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 56: Ip Group Config

    You can group several SIP trunks together, so when one SIP trunk is in an outage, communication can turn to another SIP trunk in the same group. 4.11.1 IP Profile On the IP Profile interface, you can configure the parameters about IP calls, such as whether to support MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 57 Ringback Tone to PSTN Originated Where the ringback tone to PSTN side is originated from If ‘Local’ is selected, the ringback tone is played from MTG3000. from If ‘IP’ is selected, the ringback tone is played from the IP network...

  • Page 58: Ip Group

    IP trunk that has been selected 4.11.3 IP Group Management On the IP Group Management interface, you can add IP trunks to the IP group which have been MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 59: Number Filter

    4.12 Number Filter This section is mainly to introduce how to configure white & black lists on the MTG3000 gateway. Caller White List: Calls from the numbers on the Caller White List will be allowed to pass. If a caller number cannot match with one of the numbers on the Caller White List, calls from the caller number will be rejected.

  • Page 60: Procedures To Add A Number On The Caller White List

    4. Click OK. Note: You can add 8 white or black lists at most, with ID from 0 to 7. And each white or black list can contain 1024 numbers at most. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 61: Caller Pool

    On the Filter Profile interface, you can put white lists and black lists that have been set before in a filter profile or several profiles. The white lists and black lists will not take effect until you set them in filter profiles. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 62: Call Routing

    Incoming Calls from IP Routing Priority There are two options: First IPPSTN, then IP IP First IPIP, then IP PSTN Routing & Manipulation There are two options: Routing before Manipulation Routing after Manipulation MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 63: PstnIp Routing

    ‘Any’ is selected, it means the source is any PSTN group. PSTN Trunk If source is PSTN trunk, please select a specific PRI/SS7 trunk. If ‘Any’ is selected, it means the source is any PRI/SS7 trunk. . MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 64: Pstn  Pstn Routing

    PSTN IP route. 4.13.3 PSTN  PSTN Routing On the PSTNPSTN Routing interface, you can set routing parameters for PSTN  PSTN calls. Click Add, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 65: Ip  Pstn Routing

    PSTN PSTN route. 4.13.4 IP  PSTN Routing On the PSTNIP Routing interface, you can set routing parameters for IP  PSTN calls. Click Add, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 66 If source is PRI/SS7 trunk, please select a specific PRI/SS7 trunk. Number Filter Profile ID The ID of filter profile. The white lists and black lists set in the filter profile will apply to this PSTN PSTN route. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 67: Ip Ip Routing

    IP IP route will be used. ‘.’ is a wildcard, which means this IP IP route will be used, no matter what the callee number is. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 68: Number Manipulation

    On the PSTN  IP Callee interface, you can set rules to change the actual callee number during PSTN  IP calling process. Click Add, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 69: PstnIp Caller

    You can enter ‘ 0091’ in the value box for the ‘Callee Prefix’ parameter. 4.14.2 PSTNIP Caller On the PSTN  IP Caller interface, you can set rules to change the actual caller number during PSTN  IP calling process. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 70 The suffix added to the caller number after its digits are lessened. Number of Digits to Reserve The number of the retained digits which. are counted from the right from Right of the caller number MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 71: PstnPstn Callee

    Click Add, and the following interface will be displayed. Parameter Explanation The index of this PSTN PSTN callee number manipulation, from Index 0 to 127. Each index cannot be used repeatedly. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 72: Pstn Pstn Caller

    On the PSTN  PSTN Caller interface, you can set rules to change the actual caller number during PSTN  PSTN calling process. Click Add, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 73 The number of the retained digits which. are counted from the Right right of the caller number If “Allowed” is selected, the calling number will be presented. Presentation Indicator If “Restricted” is selected, the calling number will not be presented. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 74: IpPstn Callee

    Select an IP group. The callee number will be manipulated when a call uses a trunk of this IP group, actual callee prefix matches the set callee prefix, and actual caller prefix matches the set caller prefix. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 75: IpPstn Caller

    4.14.6 IPPSTN Caller On the IP  PSTN Caller interface, you can set rules to change the actual caller number during IP PSTN calling process. Click Add, following interface will displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 76 The number of the retained digits which. are counted from the Right right of the caller number If “Allowed” is selected, the calling number will be presented. Presentation Indicator If “Restricted” is selected, the calling number will not be MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 77: Ip  Ip Callee

    The index of this IP IP callee number manipulation, from 0 to Index 127. Each index cannot be used repeatedly. The description of this IP IP callee number manipulation Description MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 78: Ip  Ip Caller

    On the IP  IP Caller interface, you can set rules to change the actual caller number during IP IP calling process. Click Add, and the following interface will be displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 79 The suffix added to the caller number after its digits are lessened. Number of Digits to Reserve from The number of the retained digits which. are counted from the right Right of the caller number MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 80: Voice & Fax

    Disconnect call when no If ‘Yes’ is selected, the call will be disconnected RTP packet when it is detected that the call’s silence time is longer than the set maximum time without MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
  • Page 81 Whether to detect CED/CNG Data Whether to enable voice data service on the Data & Fax Control MTG3000 Whether to enable fax service on the MTG3000 Continuous time The duration of a DTMF signal DTMF Parameter Signal Interval The interval between two DTMF signals...

  • Page 82: Encrypt Config

    The No. of the SIP trunk that transmits the SIP message to be encrypted. Encrypt Mode Only support VOS RC4 at present Device ID The ID of the SIP account to which the SIP trunk belongs MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 83: Maintenance

    Options include ‘None’, ‘TOS’ and ‘DS’. Qos Type TOS only supports IPv4. Time Setting Date The date displayed on the WEB interface Time The time displayed on the WEB interface MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 84: Data Backup

    4.17.3 Data Restore On the Data Restore interface, you can restore database and dialplan. If you upload a file that contains default configurations, the MTG3000 will be restored to default configurations. You can also upload a dialplan file to restore dialing rules.

  • Page 85: Signaling Call Test

    You need to select the source type, trunk type and IP trunk No. of the call, and enter the calling number and called number. If the signaling of a call fails, you can find out where errors have occurred through the messages returned in the Signaling Trace box. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 86: Modfile Information

    15 minutes, the number of the calls recognized in the past one hour and the number of the calls per day. 4.17.7 Version Information On the Version Information interface, the version information of the software, database, Web, FPGA, DSP and DTU boards are displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 87: Firmware Upgrade

    4.17.8 Firmware Upgrade On the Applications Upload interface, you can upload files to upgrade the software, the Web, and the Modfile of MTG3000. If you select ‘Package’, it means the upgrading files of the software and Web are packaged and then uploaded.

  • Page 88: Device Restart

    4.17.10 Device Restart Click the Restart button, and you can restart the MTG3000 device. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 89: Abbreviation

    Loss of Signal Remote Alarm Indicator Alarm Indication Signal Loss of Frame Alignment ISDN Integrated Services Digital Network Circuit Identification Code Signaling point code Pulse Code Modulation Calling Line Identification MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 90: Commands

    Commands 6.1 Commands under en Mode This section is aimed to guide customers to get more details of MTG3000 gateway through command lines. It introduces the command lines that are commonly used. 6.1.1 Login Command Run the PuTTY software, and login MTG3000 gateway through Telnet. Enter username and password, and then run command en to activate the privileged commands.

  • Page 91: Query Dsp Information

    CPU load at current time Performance 5s Average CPU load in recent 5 seconds Performance 60s Average CPU load in recent 60 seconds Performance 600s Average CPU load in recent 600 seconds MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 92: Query Ss7 Trunk Status

    Enter the command show ss7 err, and errors about SS7 trunks or SS7 links are displayed. 6.1.10 Query PRI Trunk Status Enter the command show q931 sta, and statuses of PRI trunks are displayed. MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 93: Query Pri Link Statistics

    Welcome to Command Shell! Username:admin Password:***** ROS>en ROS# ROS#^config ROS(config)# 6.2.2 Other Commands Used For/To Command Query version information ROS(config)# load show Call tracing ROS(config)#deb cc detail all ROS(ada)#turnon 27 MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...

  • Page 94: Commands Under Ada Mode

    Disable the printing of SIP messages ROS(ada)#turnoff 71 Disable the printing of SS7 messages ROS(ada)#turnoff 96 Disable the printing of PRI messages ROS(ada)#turnoff 64 Disable the printing of CC messages ROS(ada)#turnoff 27 MTG3000 VoIP Trunk Gateway User Manual Copyright @ 2011-2016 Dinstar...
