MTG200 Trunk Gateway User Manual V2.0
Dinstar Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTG200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinstar MTG200

Summary of Contents for Dinstar MTG200

  • Page 1 MTG200 Trunk Gateway User Manual V2.0 Dinstar Technologies Co., Ltd.
  • Page 2 MTG200 User Manual Revision Records File Name MTG200 User Manual Document Version Firmware Version 2.01.01.01 Date 17/04/2012 Revised by Technical Support Department...

  • Page 3: Table Of Contents

    MTG200 User Manual Content 1. PRODUCT INTRODUCTION ......................1 1.1 Overview ..........................1 1.2 Equipment Structure......................2 1.2.1 Rear View ......................... 2 1.2.2 Front View ........................ 3 1.2.3 RJ-48c Line sequence ....................4 1.3 Functions and Features ......................4 1.3.1 Protocol standard supported ..................4 1.3.2 System Function .......................
  • Page 4 MTG200 User Manual 2.9.3 Data Restore ......................26 2.9.4 Version Information....................26 2.9.5 Firmware Upload ....................26 2.9.6 Password Modification ................... 27 2.9.7 Device Restart ......................27 3.FAQ ............................... 28 3.1 How to get the IP address if I have modified the default IP or forgot it ? ......28 3.2 Equipment physical connection to normal, but the network cannot be connected or...

  • Page 5: Product Introduction

    1. Product Introduction 1.1 Overview MTG200 is a kind of digital trunk gateway based on embedded operating system, and designed for IPPBX and call center. MTG200 provides 1/2/4*E1/T1 interfaces for users. MTG200 mainly provide E1/T1 interface for small and medium enterprise. It supports rich GUI configuration and 120 road traffic, and the user setting and maintaining system easily.

  • Page 6: Equipment Structure

    MTG200 User Manual 1.2 Equipment Structure 1.2.1 Rear View Figure 1-2-1 MTG200 Rear View Table 1-2-1 MTG200 Rear View Description Interface Description The power interface. DC12V.1A Port0-Port3 E1/T1 Port. There are 4E1 options. The Service Ethernet Interface, standard 10/100BASE-TX Ethernet interfaces. Default IP address is 192.168.1.111，default subnet mask is 255.255.255.0...

  • Page 7: Front View

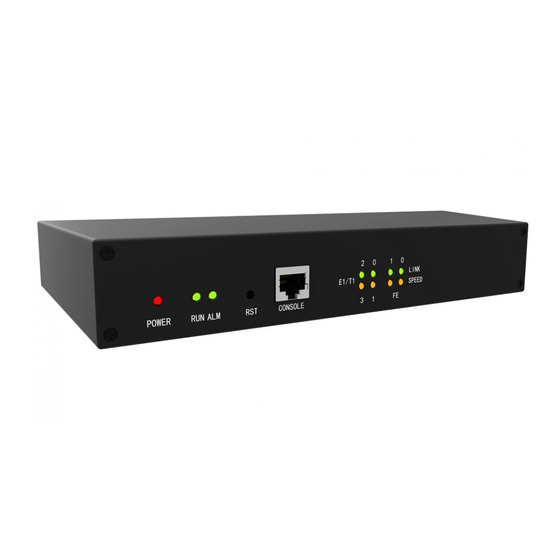

    MTG200 User Manual 1.2.2 Front View Figure 1-2-2 MTG200 Front View Table 1-2 -2 MTG200 Front View Description Function Color Work Status Off：Power is off POWER Power status indicator Green On: Power is on Slow blinking: Unregister Register indicator Green...

  • Page 8: Rj-48C Line Sequence

    MTG200 User Manual 1.2.3 RJ-48c Line sequence MTG200 trunk gateway adopts standard RJ-48C interface and impedance value is 120Ω. Connected end device by cross lines sequence. 1.3 Functions and Features 1.3.1 Protocol standard supported ● Standard SIP /PRI protocol ● Dynamic Host Configuration Protocol (DHCP) ●...

  • Page 9: Industrial Standards Supported

    MTG200 User Manual 1.3.3 Industrial standards supported ● Stationary use environment: EN 300 019: Class 3.1 ● Storage environment: EN 300 019: Class 1.2 ● Transportation environment: EN 300 019: Class 2.3 ● Acoustic noise: EN 300 753 ● CE EMC directive 2004/108/EC ●...

  • Page 10: Parameter Setting

    MTG200 User Manual 2. Parameter setting 2.1 Login First, device FE0 port connect PC with string, and then fill FE0 IP address in browser, FE0 default IP address is 192.168.1.111. It will request customer to input user name and password. Default user name and password are “admin”.

  • Page 11: Status &Statistics

    MTG200 User Manual Status &Statistics Users through to traverse the left navigation tree, and can complete view, edit and configuration device in the right configuration interface. MTG configuration flow chart below: Dinstar Technologies Co., Ltd.

  • Page 12: System Information

    Time elapsed from device power on to now Traffic Statics Total bytes of message received and sent by FE0 port Equipment Type Equipment type; this equipment is: MTG200 Hardware Version Hardware version of device DSP Version Digital signal processing chip driver version...

  • Page 13: E1/T1 Status

    MTG200 User Manual 2.2.2 E1/T1 Status Figure 2-2-2 E1/T1 Status Table 2-2-2 Description of E1/T1 status 1. LOS Alarm: Signal loss alarm, this alarm is created when receiving is lost; please check the physical connection whether disconnected. 2. RAI Alarm: Receive remote alarm indication, it is a signal transmitted in the outgoing direction when a terminal determines that it has lost the incoming signal.

  • Page 14: Pstn Trunk Status

    MTG200 User Manual Remote blocked, means that communication can only be initiated from remote 9.B-blocked: Both Sides blocked, means that the two sides cannot communication 2.2.3 PSTN Trunk Status Figure 2-2-3 PSTN Trunk Status Table 2-2-3 Description of PSTN Trunk Status...

  • Page 15: Pri Call Statistics

    MTG200 User Manual 2.2.5 PRI Call Statistics Figure 2-2-5 PRI Trunk Call Statistics Table 2-2-5 PRI Description of PRI call statistics PRI Trunk No The number of PRI trunk Trunk Name The name used to describe the PRI trunk Current Calls...

  • Page 16: Sip Call Statistics

    MTG200 User Manual 2.2.6 SIP Call Statistics Figure 2-2-6 SIP Trunk Call Statistics Table 2-2-6 Description of SIP Call Statistics SIP Trunk No The number of SIP trunk Trunk Name The name used to describe the PRI trunk Current Calls Number of lines that are being called currently 2.3 Network...

  • Page 17: Pri Config

    MTG200 User Manual Table 2-3-1 Description of Network Configuration Obtain IP address If Selected, the MTG will obtain IP address via DHCP automatically Service Use the following IP If Selected ,Set a static IP for Service Ethernet Interface .Need Ethernet...

  • Page 18: Pri Trunk

    MTG200 User Manual number, National number, Network special number, User number, Short code dialing. The default option is Unknown. Four options available: User provider, no shield; User provide, check and Screening Indicator for Displaying send; User provide, check and having failure; Network provide. The Caller Number default option is: User provider, no shield.

  • Page 19: Pstn Group Config

    MTG200 User Manual Table 2-4-2 Description of Add PRI Trunk The number of PRI trunk; when user add PRI trunk, 0~7 number will appear in the pull-down menu to be selected (the number here depends on E1/T1 physical port Trunk No number actually existed in equipment).

  • Page 20: Coder Group

    MTG200 User Manual Figure 2-5-2 E1/T1 Parameter Table 2-5-1 Description of Modify E1/T1 Parameter Work Mode E1 or T1, the default is E1 PCM Mode PCM mode: A LAW and Mu LAW, the default is A LAW Frame Mode The frame modes of E1/T1 are: DF, CRC-4, CRC4_ITU, the default is CRC-4; the frame...

  • Page 21: Dial Plan

    MTG200 User Manual Table 2-5-2 Description of Coder Group ID standard for Voice ability, total with 8 groups, where 0 is the default group ID Coder Group ID number, the codec that equipment supports in the grouping will be displayed in 0 group.

  • Page 22: Dial Timeout

    MTG200 User Manual 2.5.4 Dial Timeout Figure 2-5-4 Dial Timeout Figure 2-5-5 Dial Timeout Add Table 2-5-4 Description Dial Timeout Add Dial Time ID The number to identify a dial timeout rule Description Description of dial timeout Max Time for Collecting Prefix Generally refer to the time from user dial first digit to harvest in prefix number.

  • Page 23: Sip Config

    MTG200 User Manual Figure 2-5-7 PSTN Profile Add Table 2-5-5 Description of Add PSTN Profile PSTN Profile ID The number to PSTN Profile Description Description of the PSTN Profile Code Group ID Refer to "Coder Group" RFC2833 Payload Type The item is 101 by default...

  • Page 24: Sip Trunk

    MTG200 User Manual 2.6.2 SIP Trunk Figure 2-6-2 SIP Trunk Figure 2-6-3 SIP Trunk Add Table 2-6-1 Description of Add SIP Trunk Trunk No The range of trunk number is 0-1 Trunk Name Description the trunk Remote Address IP address of remote SIP platform i Remote Port Q.931 port of SIP of remote platform interfacing with this MTG, the...

  • Page 25: Ip Group Config

    MTG200 User Manual Incoming SIP Authentication Type There are two modes: IP address and Password. If user selects “password”, then password will be filled. IP to PSTN Call Restriction IP to PSTN side of the limitation on the number of calls; the range is 0~65535, the default is no limitation;...
  • Page 26 MTG200 User Manual Figure 2-7-2 IP Profile Add Table 2-7-1 Description of Add IP Profile IP Profile ID The number to mart the IP Profile Description Description of the PSTN Profile Declare RFC2833 in SDP Support by default Support Early Media...

  • Page 27: Voice & Fax

    MTG200 User Manual 2.8 Voice & Fax Figure 2-8-1 Voice & Fax Configuration Table 2-8-1 Description of Voice & Fax Disconnect Call when no RTP When selected “Yes”, detected call’s silence time packet longer than silence timeout that for a long time not received RTP packets, then hangup the call.

  • Page 28: Maintenance

    MTG200 User Manual answer Call from IP Call timeout of no answer from IP Two modes are provided: T.38/Pass-through; Fax Mode default option is T.38. Fax Tx Gain Gain of sending a fax Fax Parameter Fax Rx Gain Gain of receiving a fax...

  • Page 29: Data Restore

    MTG200 User Manual Table 2-9-1 Description of Management Parameter WEB Port Listening port of local WEB service, the default is 80. Telnet Port Listening port of local Telnet service, the default is 23. Syslog Enable The default is “No”. If select “Yes”, users will set syslog server address and syslog level.

  • Page 30: Data Restore

    MTG200 User Manual 2.9.3 Data Restore Figure 2-9-3 Data Restore Table 2-9-3 Description of Data Restore Database Click "Browse" to select the Database file, and then click "Restore". Dialplan Click "Browse" to select the Dialplan file, and then click "Restore".

  • Page 31: Password Modification

    MTG200 User Manual 2.9.6 Password Modification Figure 2-9-6 Password Modification The configuration items are used to change the login password of web configuration. 2.9.7 Device Restart Figure 2-9-7 Device Restart Some configuration need to restart device to take effect. Click “Restart” to restart the device.

  • Page 32: Faq

    MTG200 User Manual 3.FAQ 3.1 How to get the IP address if I have modified the default IP or forgot it ? Customers have two ways to get the IP address: 1) Press the RST button, then users can regain default IP. Refer to 1.2.1 Front View 2) Connect the CONSOLE with your PC Serial Port.

  • Page 33: Glossary

    MTG200 User Manual 4. Glossary PRI: Primary rate interface DND: Do-not-Disturb FMC: Fixed Mobile Convergence SIP: Session Initiation Protocol DTMF: Dual Tone Multi Frequency USSD: Unstructured Supplementary Service Data PSTN：Public Switched Telephone Network STUN: Simple Traversal of UDP over NAT...
