Dinstar MTG200 Installation Manual
Trunk gateway
Hide thumbs
Also See for MTG200:
- User manual (139 pages) ,
- Quick installation manual (15 pages) ,
- User manual (33 pages)
Table of Contents
Advertisement
Quick Links
Quick Installation Guide
欢迎您选购鼎信通达旗下产品！
THANKS FOR CHOOSING DINSTAR'S TRUNK GATEWAY!
安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线
Please read this guide carefully before installing the gateway. If you need any technical
技术支持，请拨打技术支持热线电话：0755-61919966。
support,
please contact us
网址：www.dinstar.cn
Tel: +86 755 61919966
Email: support@dinstar.com
Web: www.dinstar.com

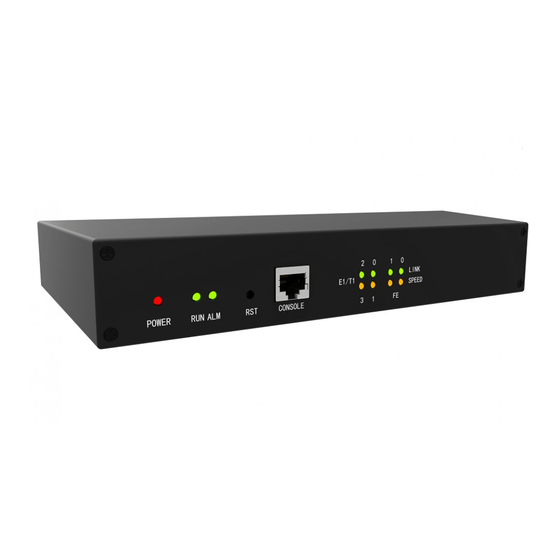

MTG200
MTG1000
MTG2000
MTG2000B
.
Advertisement
Table of Contents
Related Manuals for Dinstar MTG200
Summary of Contents for Dinstar MTG200
- Page 1 Quick Installation Guide MTG200 MTG1000 MTG2000 MTG2000B 欢迎您选购鼎信通达旗下产品！ THANKS FOR CHOOSING DINSTAR’S TRUNK GATEWAY! 安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线 Please read this guide carefully before installing the gateway. If you need any technical 技术支持，请拨打技术支持热线电话：0755-61919966。 support, please contact us 网址：www.dinstar.cn Tel: +86 755 61919966 Email: support@dinstar.com...
-
Page 2: Description Of Indicators
Product Model & Number of E1/T1 Ports E1/T1 Port Model MTG200 MTG1000 MTG2000 MTG2000B Note: the number of E1/T1 ports of MTG2000 is determined by the number of inserted DTU boards. Each DTU board has four E1/T1 ports. Description of Indicators Indicator Definition... -
Page 3: Indicators & Interfaces
Indicators & Interfaces MTG200 Power Indicator Running Indicator USB Interface Network Link Indicator E1/T1 In-use Alarm Indicator Console Port Network Speed Indicator Indicator Network Port for E1/T1 Ports Power Jack Reset Button Services Network Port for Management MTG1000 USB Interface Console Port... - Page 4 MTG2000 DTU (Digit Trunk Unit) MCU (Main Control Unit) Ground Point Power Switch Power Switch Power Jack Power Jack DTU(Digit Control Unit) MCU(Main Control Unit) Reset Button Console Port Power Indicator Screw Network Port Running Indicator Power Indicator for Services E1/T1 In-use Running Indicator Indicator...
-
Page 5: Installation Instructions
Anti-jamming: to reduce interference, please keep MTG devices away from high-powered transmitter, radar transmitting station and large-current devices . Installation Instructions Connection Diagram for MTG200 Connect Gateway with Ethernet Connect Gateway with Power Network Port for Management Network Port 192.168.11.1... - Page 6 Connection Diagram for MTG1000 Conenct Gateway with Ethernet Network Port for Management Network Port for Services 192. 168. 1. 111 192. 168. 11.1 192. 168. 1. XXX Internet/ Ethernet Connect E1/T1 Port with PSTN/PBX E1/T1 Cable RJ48 Converter Coaxial Line Coaxial Line Operator PSTN...
- Page 7 Connection Diagram for MTG2000 Conenct Gateway with Ethernet Network Port for Management Network Port for Services 192. 168. 11. 1 192. 168. 1.111 192. 168. 11. XXX Internet/ Ethernet Connect E1/T1 Port with PSTN/PBX E1/T1 Cable RJ48 TB16 Distribution Frame Operator’s Digital Distribution Frame Operator...
- Page 8 Connection Diagram for MTG2000B Connect Gateway with Ethernet Network Port for Management Network Port for Services 192. 168. 11. 1 192. 168. 1.111 192. 168. 1. XXX Internet/ Ethernet Connect E1/T1 Port with PSTN/PBX E1/T1 Cable RJ48 Coaxial Line Coaxial Line Operator PSTN E1/T1 Cable...
-
Page 9: Wire Sequence Of Rj48(E1/T1) Cable
Wire Sequence of RJ48(E1/T1) Cable The E1/T1 ports of MTG trunk gateway are connected with RJ48 cables. An RJ48 cable has two PINs, and the wire sequence of each PIN is shown as follows: PIN1 PIN2 PIN1: orange & white, orange, green & white, blue, blue & white, green, brown &... - Page 10 IP address of GE0 or Ge1 which is connected to the PC. Press Enter, and the login GUI will be displayed. Model GE0 IP GE1 IP 192. 168. 11. 1 (for management) MTG200 192. 168. 1. 111 (for services) MTG1000 192. 168. 11. 1 (for management) 192. 168. 1. 111 (for services) MTG2000 192.
- Page 11 (2) Configure SS7 Trunk On the SS7 Config → SS7 Trunk interface, add an SS7 trunk. Please consult local service provider about the information of Protocol Type (TUP/ISUP), OPC and DPC. On the SS7 Config → SS7 MTP Link interface, add an SS7 signaling link for the trunk.
- Page 12 Configure E1/T1 Frame Mode On the PSTN Group Config → E1/T1 Parameter interface, modify the frame mode of E1/T1 port to make it the same with that of the peer device. Configure SIP Trunk (1) On the SIP Config →SIP Trunk interface, user needs to fill in the IP address of the peer device (remote address) and remote port.
-
Page 13: More Details
Configure Outbound & Inbound Routes (1) Configure Outbound Route On the Call Routing → IP>PSTN Routing interface, add an outbound route. Select a source trunk and a destination trunk that have been created. If ‘.’ is filled in for Caller Prefix and Callee Prefix, it means any number can be the caller number and callee number of this outbound route. -
Page 14: Troubleshooting
IP address of the gateway. (4) Forget username and password. Connect the trunk gateway’s console port to a PC via an RS232 serial cable, and then ask for online technical support. IP COMMUNICATION SOLUTIONS Shenzhen Dinstar Co., Ltd. Web: www.dinstar.com...
