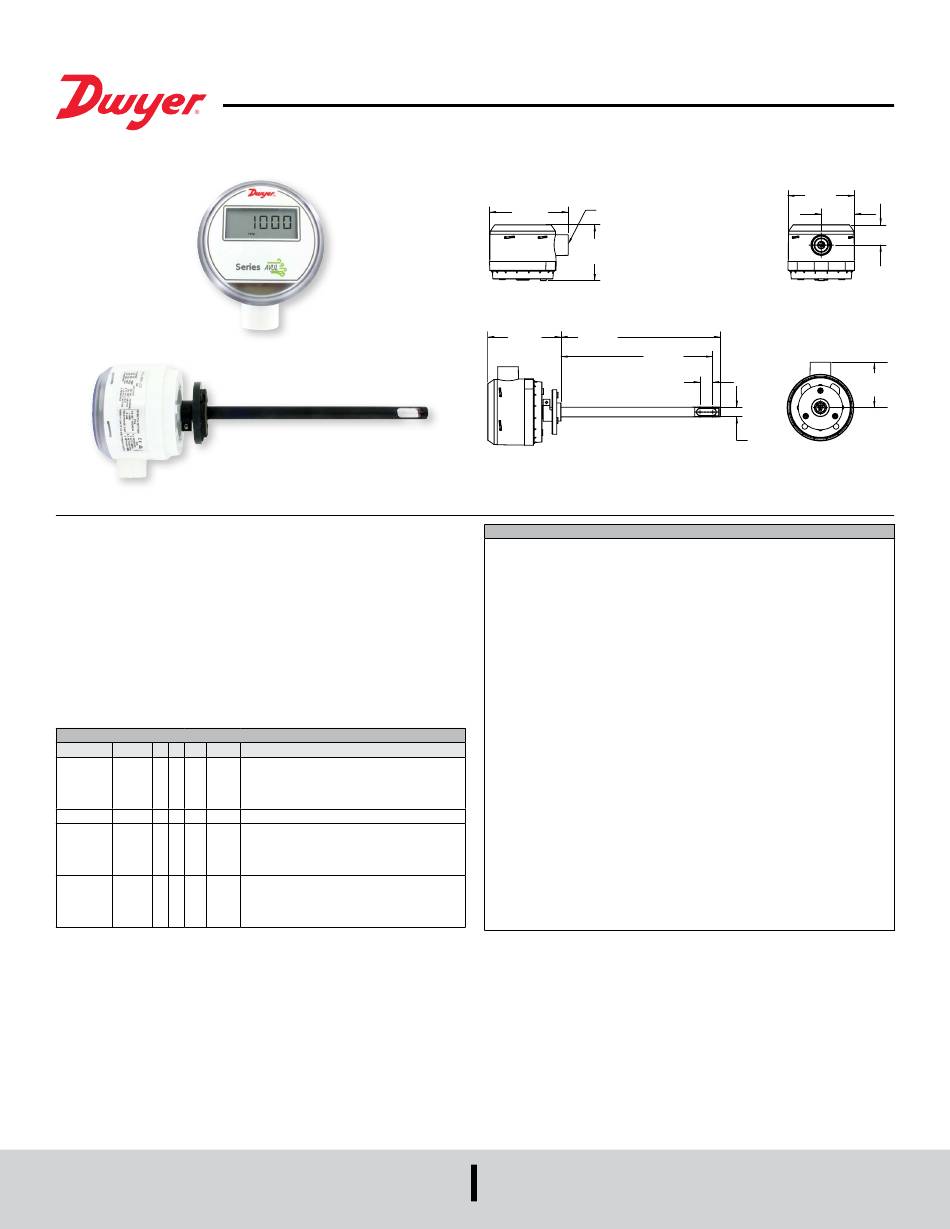

Series AVUL Air Velocity Transmitter with BACnet Communication
Specifications - Installation and Operating Instructions
The SERIES AVUL Air Velocity Transmitter quickly and accurately measures air
velocity or volumetric flow in imperial or metric units. Simultaneous current and
voltage outputs on all models provide universal inputs to monitoring equipment while
the output range, units, and 0 to 5/10 VDC output can be configured via local DIP
switches. The optional integral display, or the portable remote display tool, provide a
convenient way to locally monitor process values and configure the unit.
Models are available in 3% and 5% accuracy models to suit a variety of needs, and the
optional BACnet MS/TP or Modbus
RTU/ASCII communication protocol allows units
®
to be daisy-chained while providing access to all of the velocity and flow data, as well
as additional information such as air temperature.
MODEL CHART
Model
AVUL -3 D A1 -LCD AVUL-3DA1-LCD
Accuracy
5
3
Mounting
D
Output
A1
B1
M1
Options
LCD
FC
NIST
GLD
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
±(0.2 m/s + 5% of reading) @ standard
conditions
±(0.2 m/s + 3% of reading) @ standard
conditions
Duct mount
Analog universal (0 to 5 VDC, 0 to 10 VDC,
4 to 20 mA)
Analog + BACnet MS/TP
Analog + Modbus
RTU/ASCII
®
LCD display
Factory calibration certificate
NIST certificate
Electrical cable gland
3-49/64
1/2 NPS
[95.71]
2-43/64
[67.92]
3-33/64
7-41/64
[89.13]
[194.07]
7-17/64
[184.60]
39/64
[15.32]
SPECIFICATIONS
Service: Clean air and non-combustible, compatible gases.
Wetted Materials: Consult Factory.
Range: 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s); Field selectable.
Accuracy: ±(5% of reading + 0.2 m/s) or ±(3% of reading + 0.2 m/s) @ standard
conditions, depending on model.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: 24 VDC ±20% or 24 VAC ±20%.
Humidity Limits: 5 to 95% RH, non-condensing.
Output Signals: 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC .
Response Time (90%): 10 seconds, typical.
Zero & Span Adjustments: Digital push buttons.
Output Load Resistance: Current Output: 0 to 1100 Ω max.; Voltage Output:
Minimum load resistance 1 kΩ.
Current Consumption: 60 mA Max.
Display (optional): 5 Digit LCD.
Electrical Connections (Analog): Power and output: four wire removable
European style terminal block for 16 to 26 AWG.
Communication (optional): Connections: BACnet MS/TP or Modbus
three wire removable European style terminal block for 16 to 26 AWG; Supported
Baud Rates: 9600, 19200, 38400, 57600, 76800, 115200.
Device Load: 1/8th unit load.
Electrical Entry: 1/2˝ NPS thread. Accessory (A-151): Cable gland for 5 to 10 mm
diameter cable.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Flow direction must be parallel to the sensor tip;
See Installation section for details.
Weight: 6.0 oz (160 g).
Agency Approval: CE, RoHS.
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin P-AVUL-B
3-3/16
[80.81]
1-19/32
[40.59]
31/32
24.58
2-5/32
[54.82]
Ø15/32
[11.84]
RTU/ASCII:
®
www.dwyer-inst.com
e-mail: info@dwyermail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVUL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dwyer Instruments AVUL Series

  • Page 1 Factory calibration certificate See Installation section for details. NIST NIST certificate Weight: 6.0 oz (160 g). Electrical cable gland Agency Approval: CE, RoHS. DWYER INSTRUMENTS, INC. Phone: 219/879-8000 www.dwyer-inst.com P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: info@dwyermail.com...
  • Page 2: Installation

    INSTALLATION Although low loop resistances are recommended, the absolute maximum current loop load resistance, R , is defined by the following the equation: Duct Mount: The transmitter should be mounted away from fans, corners, heating and cooling = (V – 2.0) / 0.02 where V is the power supply voltage coils, and other equipment that will effect the measurement of the air velocity.
  • Page 3 Simultaneous Current and Voltage Output Operation Setting the Air Velocity Range The range of the instrument is selected by using DIP switches 1 and 2 on SW1. Table DO NOT EXCEED SPECIFIED SUPPLY VOLTAGE RATINGS. CAUTION 1 shows the maximum full scale value for the selected range and unit. Refer to Setting PERMANENT DAMAGE NOT COVERED BY WARRANTY WILL the Engineering Units section for information on setting the unit.
  • Page 4: Programming Menus

    CALIBRATION NOTICE There is a 5 second delay from the time the zero or span calibration buttons are released until the time that the change in calibration takes place. This delay is used to reduce vibration or disturbances of the user related to the button presses.
  • Page 5: Maintenance/Repair

    Maximum Output Adjustment Access Security The maximum output can be equivalent to air velocity or air flow. After adjusting Level Setting View Menu Edit Menu Span Zero the K-Factor, the display will indicate if the adjustment is set for velocity or air flow. Pressing the zero button will toggle between the selections.
  • Page 6: Appendix Iii: Bacnet Ms/Tp Operation

    APPENDIX III: BACnet MS/TP Operation PWR GND IOUT VOUT D1(+) D0(-) Wiring should comply with Electrical Characteristics of Generators NOTICE and Receivers for Use in Balanced Digital Multipoint Systems, TIA/ EIA-485-A-1998, Telecommunications Industry Association, 1998. Wiring should comply with ANSI/ASHRAE Standard 135-2010 NOTICE D1(+) D1(+)
  • Page 7: Appendix Iv: Programming Via Bacnet Ms/Tp Communication Protocol

    APPENDIX IV: Programming Via BACnet MS/TP Communication Protocol Device Information The default device object identifier is 607xxx, where xxx is replaced by the MS/TP Supported Baud Rates Data Size Parity Stop Bits MAC address set by the middle DIP switch SW2. The object identifier value will change 9600 None as the MS/TP MAC address changes.
  • Page 8: Appendix V: Setting Bacnet Communication Protocol Ms/Tp Mac Address Of Unit

    Read The address assignment is determined by adding the values for each of the switches Vendor Name “Dwyer Instruments, Inc.” CharacterString Read that are in the ON position. The transmitter comes from the factory with all of the DIP Vendor...
  • Page 9 Property Default Value Property Data Type Access Property Default Value Property Data Type Access Object Identifier BACnetObjectIdentifier Read Object Identifier BACnetObjectIdentifier Read Object Name Velocity MPS CharacterString Read Object Name Flow CMH CharacterString Read Object Type ANALOG_INPUT (0) BACnetObjectType Read Object Type ANALOG_VALUE (2) BACnetObjectType...
  • Page 10 Property Default Value Property Data Type Access Object Identifier BACnetObjectIdentifier Read Object Name Zero CharacterString Read Object Type BINARY_VALUE (5) BACnetObjectType Read Present Value ACTIVE (1) BACnetBinaryPV Read/Write Status Flags BACnetStatusFlags Read Event State NORMAL (0) BACnetEventState Read Reliability NO_FAULT_ BACnetReliability Read DETECTED(0)
  • Page 11: Appendix Iii: Menu Flow Chart

    APPENDIX III: Menu Flow Chart BUTTON PRESS LEGEND MENU CONVENTIONS IN HOME POSITION: ZERO = PRESS ZERO BUTTON CALIBRATE UNIT TO ZERO PRESSURE. ZERO = PRESS SPAN BUTTON SPAN DISPLAY IS NOT NECESSARY CALIBRATE UNIT TO SPAN PRESSURE. SPAN = PRESS AND HOLD ZERO BUTTON ZERO ZERO = PRESS AND HOLD SPAN BUTTON...
  • Page 12 Velocity Mode Menu FROM AVERAGING MENU SPAN ADJUST DISPLAY SPAN UPON RELEASE K FACTOR SPAN SELECT MAXIMUM OUTPUT SPAN UPON RELEASE SET BY PRESSURE OR VELOCITY SPAN INCREMENT ZERO DIGIT ADJUST VELOCITY SPAN UPON RELEASE OUTPUT HIGH SELECT SPAN DIGIT FPM OR M/S BASED ON DIP SWITCH SETTING INCREMENT...
  • Page 13 Flow Mode Menu FROM AVERAGING MENU SPAN ADJUST DISPLAY SPAN UPON RELEASE K FACTOR SPAN INCREMENT ZERO DIGIT SPAN UPON RELEASE SELECT SPAN DIGIT AREA SQ. FEET OR SQ. METERS BASED ON DIP SWITCH SETTING AREA SPAN SELECT MAXIMUM OUTPUT SPAN UPON RELEASE SET BY PRESSURE OR FLOW...
  • Page 14: Security Menu

    Security Menu FROM "UPDATE SECURITY AND SAVE" MENU UPDATE SECURITY ZERO ZERO ZERO LEVEL ZERO SPAN SPAN SPAN SPAN SAVE CHANGES SPAN UPON RELEASE ZERO ZERO SPAN SPAN HOME POSITION...
  • Page 15 NOTES __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________...
  • Page 16 __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________ ©Copyright 2017 Dwyer Instruments, Inc. Printed in U.S.A. 2/17 FR# 444386-00 Rev. 1 DWYER INSTRUMENTS, INC. Phone: 219/879-8000 dwyer-inst.com P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A. Fax: 219/872-9057 e-mail: info@dwyermail.com...
