FIREPLACE

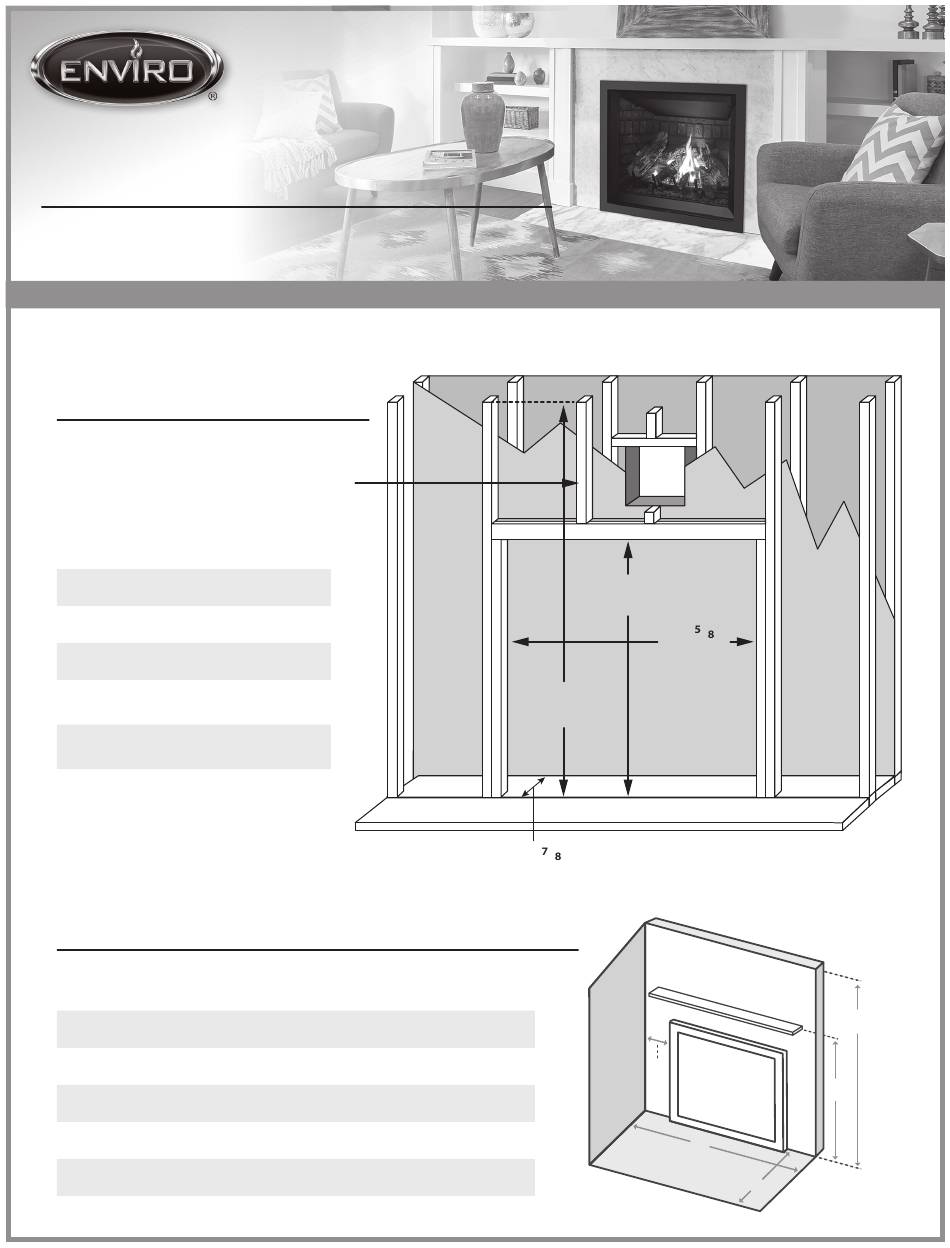

Installation Reference Guide
REFER TO OWNER'S MANUAL FOR SPECIFIC INSTALLATION REQUIREMENTS AND ADDITIONAL PRODUCT INSTRUCTIONS
Minimum
Framing Dimensions
Depth
15 7/8"
Width
34 5/8" 879.5 mm
Header Height
40"
Enclosure Ceiling
*54"
(Top Vent)
Enclosure Ceiling
43 1/2
(Rear Vent)
*Minimum dimension with only an elbow off
the top. Any additional vertical rise added will
increase the enclosure height accordingly.
Clearance to Combustibles
A - Side of unit to side wall
B - Minimum clearance to enclosure ceiling
(Top Vent)
B - Minumum clearance to enclosure ceiling
(Rear Vent)
C - Minimum clearance to mantel height
D - Front of door to edge of floor protection
E - Minimum aclove width
1"
25mm
Clearance from
framing studs
to venting
403 mm
1016 mm
1372 mm
1105 mm
4 5/8"
54"
43 1/2
See Chart See Chart
0"
48"
40"
1,016 mm
54"
1,372mm
15 / "
403 mm
117 mm
1372 mm
1105 mm
0 mm
1220 mm
34 / "
879.5 mm
A
C
E
D
B
Advertisement
Table of Contents
Related Manuals for Enviro Q2
Summary of Contents for Enviro Q2
-
Page 1: Framing Dimensions
FIREPLACE Installation Reference Guide REFER TO OWNER’S MANUAL FOR SPECIFIC INSTALLATION REQUIREMENTS AND ADDITIONAL PRODUCT INSTRUCTIONS Minimum Framing Dimensions 1” 25mm Clearance from framing studs to venting 40” Depth 15 7/8” 403 mm 1,016 mm Width 34 5/8” 879.5 mm 34 / ”... -
Page 2: Fireplace Dimensions
Non-Combustible Board Fireplace Dimensions Placement " 684mm " " 341mm 91mm " 378mm 10” 9 3/4” " 832mm 10" 254mm " 871mm 4 / ” Side wall 9” " 1014mm " " 750mm 744mm Minimum Venting Requirements " 14mm This appliance uses a 4” (101mm) exhaust / 6 5/8” (168mm) air intake vent pipe system.
