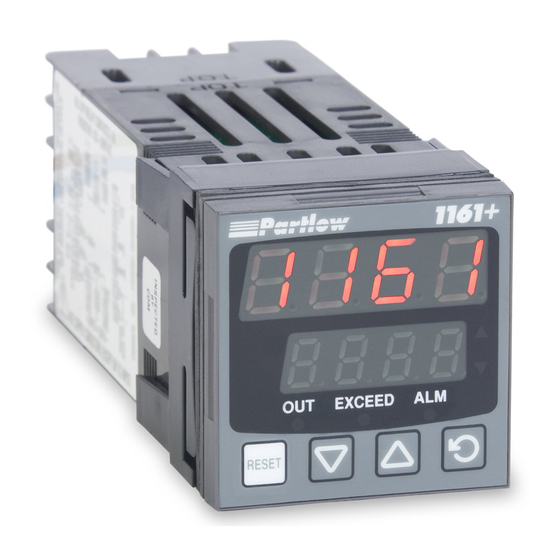

- Page 1 MIC 1161 1/16 DIN MICROBASED LIMIT CONTROLLER OPERATORS MANUAL FORM 3535 EDITION 1 © JAN. 1995 PRICE $10.00 Brand GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Partlow Corporation. This is the First Edition of the MIC 1161 manual. It was written and produced entirely on a desk-top-publishing system. Disk versions are available by written request to the Partlow Publications Department.
-
Page 3: Table Of Contents
Figure B-3 Option PWA DC Output 3 C - Hardware Definition Code D - Input Range Codes E - Specifications F - Model Number Hardware Matrix G- Software Reference MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 4: Table Of Contents
Figure 2-15 Relay Output 3 Figure 2-16 mADC Output 3 Table 3-1 Enable Mode Configuration Procedures Table 3-2 Program Mode Configuration Procedures Table 3-3 Set-Up Mode Configuration Procedures MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Product Description
Reverse. Alarm status is indicated by LED. 1.1.4 PROCESS VARIABLE/SETPOINT VALUE RE-TRANSMISSION OUTPUT If the instrument is specified with this option, this output may be scaled over any desired range and re-transmitted. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:... - Page 6 FIGURE 1-1 Keys and Indicators AUTO RESE T MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 7: Installation & Wiring
Note: The mounting clamp tongues may engage either on the sides or the top/bottom of the instrument housing. Therefore, when installing several instruments side-by-side in one cut out, use the ratchets on the top/bottom faces. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 8: Figure 2-1 Panel Cut-Out Dimensions
CUTOUT (1.77" +.024 - .000) SIZE FIGURE 2-2 Main Dimensions 110 mm (4.33 in.) 48 mm (1.89 in) Side View 10 mm (0.39 in.) 48 mm (1.89 in.) MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 9: Preparations For Wiring
2.2.1.1 INSTALLATION CONSIDERATIONS Listed below are some of the common sources of electrical noise in the industrial environment: • Ignition Transformers • Arc Welders • Mechanical contact relay(s) • Solenoids MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 10 6 inch space between the wires. If wires must cross each other, do so at 90 degrees. This will minimize the contact with each other and reduces “cross talk”. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 11 Inductive Coils - MOV’s are recommended for transient suppression in inductive coils connected in parallel and as close as possible to the coil. See Figure 2-4, page 12. Additional protection may be provided by adding an RC network across the MOV. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 12 For circuits up to 3 amps, a combination of a 47 ohm resistor and 0.1 microfarad capacitor (1000 volts) is recommended. For circuits from 3 to 5 amps, connect 2 of these in parallel. See Figure 2-5. FIGURE 2-5 Inductive Coil MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 13 2.50 6.76 9.40 8.13 3.57 10.88 5.89 70.50 8.62 3.92 10.80 14.94 12.91 8.78 27.29 14.83 178.25 21.91 9.91 27.16 37.80 32.64 See next page for Table 2 MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 14 Terr = TLe * L where; TLe = value from Table 3 if 3 wire RTD or Table 4 if 2 wire RTD L = length of lead wire in thousands of feet MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 15 What is the worst case error due to the leadwire length? Terr = TLe * L TLe = ± .46 (°F/1000 ft) from Table 3 Terr = ± .46 (°F/1000 ft) * 2000 ft Terr = ± 0.92°F MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:...
-
Page 16: Figure 2-6 Wiring
FIGURE 2-6 Wiring Label OUTPUT 3 Relay Top of controller No external connections to be made to these terminals MAINS (LINE) SUPPLY RS485 SERIAL COMMS. Relay OUTPUT 2 MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 17: Input Connections
6 as shown. A jumper wire supplied by the cus- tomer must be installed between terminals 4 and 5. Input conditioning jumper must be positioned correctly (see Appendix B) and Hardware Defini- tion Code must be correct (see Appendix C). MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 18 6 is negative. Input conditioning jumper must be positioned correctly (see Appendix B) and Hardware Definition Code must be correct (see Ap- pendix C). FIGURE 2-11 Remote Reset Make connections as shown below. N.O. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 19: Output Connections
5 amp resistive, 120/240 VAC. FIGURE 2-14 Relay Output 2 Connections are made to Output 2 relay as illustrated below. The contacts are rated at 2 amp resistive, 120/240 VAC. Relay MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 20: Figure 2-15 Relay Output 3
Connections are made to Output 3 relay as illustrated below. The contacts are rated at 2 amp resistive, 120/240 VAC. Relay FIGURE 2-16 mADC Output 3 (Recorder Output Only) Make connections for DC output 3 as illustrated below. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 21: Operation
With the DOWN key to view the current Hardware Definition Code setting. UP KEY This key is used to: Increase the displayed parameter value. Increase setpoint. With the DOWN key to reset MAX/MIN HOLD and TIME EXCEED. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 22 SCROLL key again and the upper display will then be showing the alarm status in the following format: Alarm 1 Status 1 = Energized Blank = De-energized Alarm 2 Status 2 = Energized Blank = De-energized MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 23 If the process variable attains a value lower than the input scale minimum limit, the upper display will show: If a break is detected in the sensor circuit, the upper display will show: MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 24 10 seconds, the second least significant digit will change at the rate of 25 units per second. If the key is held for another 10 seconds, the third least significant digit will change at the rate of 25 units per second. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 25 UP and DOWN keys. After about 5 seconds, the upper display will indicate ---- for another 2 seconds, then change to 0.00. The value will be held through a supply power down/power up cycle. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 26: Configuration
Depression of the SCROLL key will cycle the display (if alarms are not active) to the "Loc" feature where, after entering the correct code, the dis- play cycles through all enabled modes as follows: MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 27 "EPro". Pressing the DOWN key will display the Enable mode codes in the following sequence: EPro - - ESEt - - Loc (Continued on next page) MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 28 This display indicates all Set-Up mode parameters have been set to their default condition. To clear this condition, enter the Set-Up mode and make a parameter value change and review each parameter for its proper setting. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 29 Ad_r=Reverse Logic AND Ad_d=Direct Logic AND Or_r=Rev Logic OR Or_d=Dir Logic OR A2_r=Alm 2 Rev A2_d=Alm 2 Dir A1_r=Alm 1 Rev Com Bit Rate 1200, 2400, 4800, 4800 9600 MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 30 Time Exceeded tLE Read Only Input Filter Filt 0.0 to 100.0 seconds in .5 second increments Hysteresis HySt 0 to 10% of span, Limit Output expressed in units MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 31 1=Enable Display Enable diSP 0=Disable 1=Enable ** Setpoint Default - 150 for linear and F ranges, 65.5 for C ranges except B thermocouple which is 212F and 100C. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 32: A - Glossary Of Terms
Display code is PoL. Note: If this parameter is set to a value greater than that for the Process Output Upper Value, the relationship between the process variable/setpoint value and the retransmission output is reversed. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 33 AL-1 OFF, AL-2 ON: Relay ON AL-1 OFF, AL-2 ON: Relay OFF AL-1 ON, AL-2 ON: Relay ON AL-1 ON, AL-2 ON: Relay OFF (Continued on next page) MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 34 Maximum Hold This parameter tracks and saves the maximum excursions of the process variable, applicable to a High Limit only. This is a Read Only parameter. Display code is HiHd. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 35 100.0 to 999.5. For times greater than 999.5, the display "[HH]" will be shown. This is a Read Only parameter. Display code is tLE. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 36: B - Exploded View & Board Layout
CPU PCB Front Panel (top edge) Output 2 Option PCB Output 3 Option PCB CPU PCB Power Supply PCB Output 2 Option PCB REAR VIEW OF UNHOUSED CONTROLLER MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 37: Figure B-2 Cpu Pwa
FIGURE B-2 CPU PWA Input Conditioning Jumper Output Type Jumper RELAY RELAY (mA) (mV) MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 38: Figure B-3 Option Pwa Dc Output 3
FIGURE B-3 OPTION PWA DC OUTPUT 3 0-20mA 0-10V 0-5V 4-20mA MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 39: C - Hardware Definition Code
Relay Output 1 and Relay Output 3 would be 2101. When the code is first altered, the code display will flash, until the desired value is displayed and confirmed by pressing the RESET key. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 40 The instrument's software depends upon this code to ensure that the instrument operates correctly. To exit from the Hardware Definition Code display, depress the DOWN and SCROLL keys simultaneously. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at:...
-
Page 41: D - Input Range Codes
-200 - 206°C 2297 -101.0 - 100.0°C 2230 -328 - 403°F 2298 -149.8 - 212.0°F 2231 -100.9 - 537.3°C 7222 0 - 300°C 2251 -149.7 - 999.1°F 7223 MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 42 0 - 5V 4445 4 - 20mA 3414 1 - 5V 4434 0 - 50mV 4443 0 - 10V 4446 10 - 50mV 4499 2 - 10V 4450 MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 43: E - Specifications
Break detected within 2 seconds. Limit Relay OFF, alarms operate as if the process variable has gone under-range. Remote Reset Type: Voltage free contact, closure required to reset. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 44 0-20mA, 4-20mA, 0-10V, and 0-5V Load Impedance: 0-20mA: 500 ohm maximum 4-20mA: 500 ohm maximum 0-10V: 500 ohm minimum 0-5V: 500 ohm minimum Isolation: Isolated from all other inputs and outputs. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 45 Note: Reduced performace with Type B T/C between 100-600 °C (212-1112°F) Better than ± 0.2°C any point, any 0.1°C range Linearization: (± 0.05°C typical). Better than ± 0.5°C any point, any 1°C range. MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 46 Plug-in with panel mounting fixing strap. Panel cut-out 45mm x 45mm. Terminals: Screw type (combination head) Power Consumption: Approximately 4 watts Front Panel Sealing: IP65/NEMA 4 Weight: 8 ounces maximum Approvals: FM pending MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 47 OUTPUT 1 Relay OUTPUT 2 None Relay* OUTPUT 3 None Relay* 4-20 mA** OPTIONS None RS-485 Remote Reset SUFFIX (Blank) None *For alarm output only ** For retransmission only MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 48 Appendix G Software Record/Reference Sheet MIC 1161 Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 49 These products are warranted to be free from functional defects in materials and workmanship at the time the products leave the Partlow factory and to conform at that time to the specifications set forth in the relevant Partlow instruction manual or manuals, sheet or sheets, for such products for a period of three years.
