Step 3: Attach Grommet Base To Work Surface; Step 4: Attach Monitor Arms To Monitors - Workrite Poise–Dual Assembly Instructions Manual

3

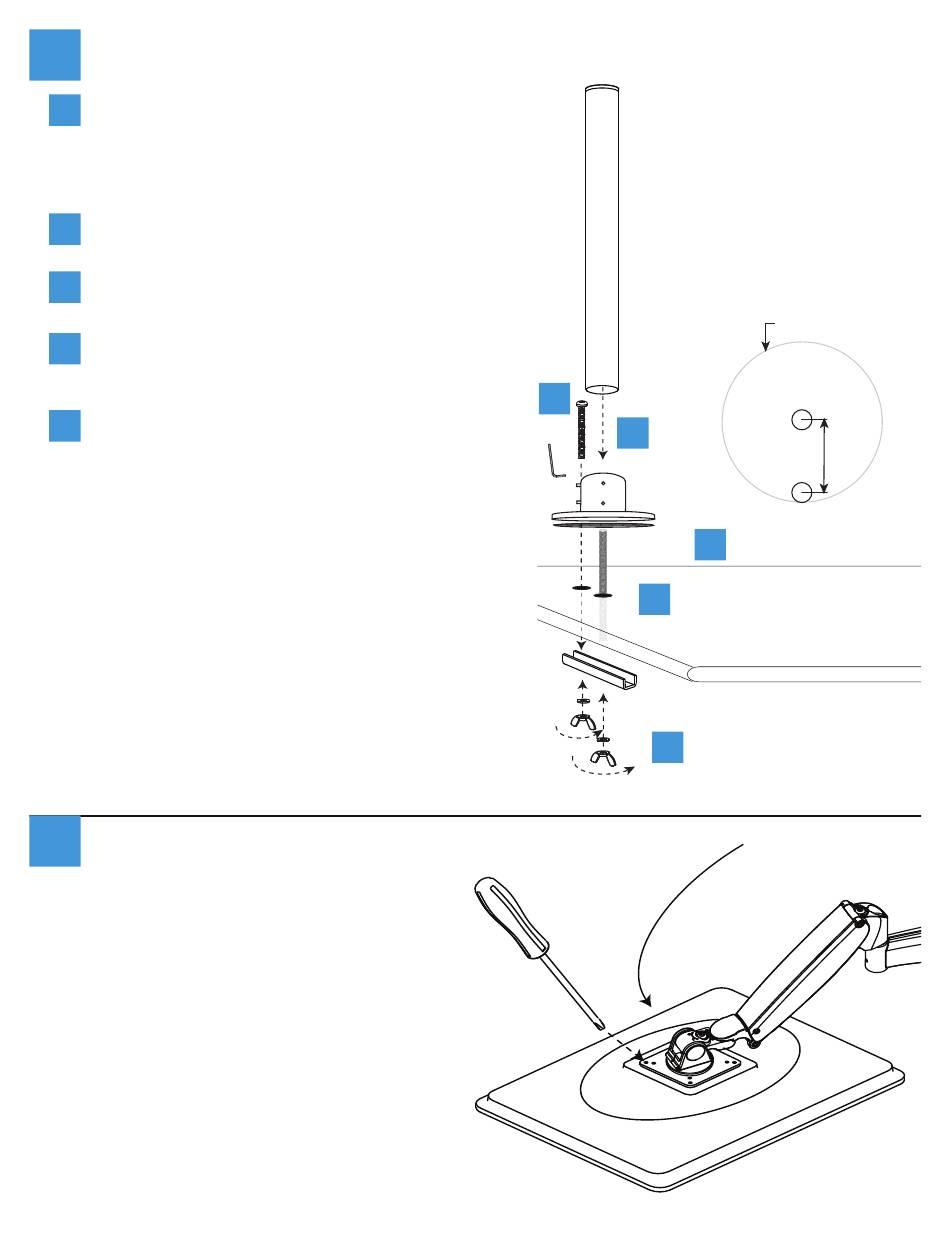

Grommet Base Only: Attach Grommet Base to Work Surface
a Remove the center hole from the base cushion,
then attach it to the underside of the base, aligning
the hole in the base with the hole in the protector.
Thread the M8 Thread Rod into the bottom of the
base. Use the M4 Allen wrench to tighten if needed.
b Attach 14" pole to base, securely tighten 4 set
screws (already in place).
c
Place the base on the work surface, centering it over
a bolting hole from ⅜" to 3" in diameter.
Position the U-Bracket and Small Washer onto the
d
M8 Thread Rod and secure the bracket by tightening
the Wing Nut.
e
To provide extra stability, especially for monitors
over 15 lbs., install additional stabilizing Button
Head Bolt. Follow appropriate instruction based on
mounting option chosen:
- For mounting holes larger than 1¾", thread the
65mm Button Head Bolt through the small hole in
the back of the base, and through the second hole in
the U-Bracket securing with the second Washer and
Wing Nut.
- For mounting holes smaller than 1¾", drill a second
hole for the Button Head Bolt behind the center
bolting hole. The two holes must be at least ⅜" each
in diameter, and their centers should be 1⅜" apart.
The Button Head Bolt should be positioned at the
back of the Grommet Base.
Proceed to step 4.
4
Attach Monitor Arms to Monitors
Place monitor carefully on a clean, flat
surface, face down.
Attach the monitor arm to the back of the
monitor with four screws, using a Phillips-
head screwdriver (not included). Use the
mounting screws provided by your moni-
tor manufacturer if available. Otherwise,
use the screws provided that best fits
your monitor.
Use the outer holes for a
100mm mount, or the inner holdes for a
75mm mount.
Repeat for the second monitor.
