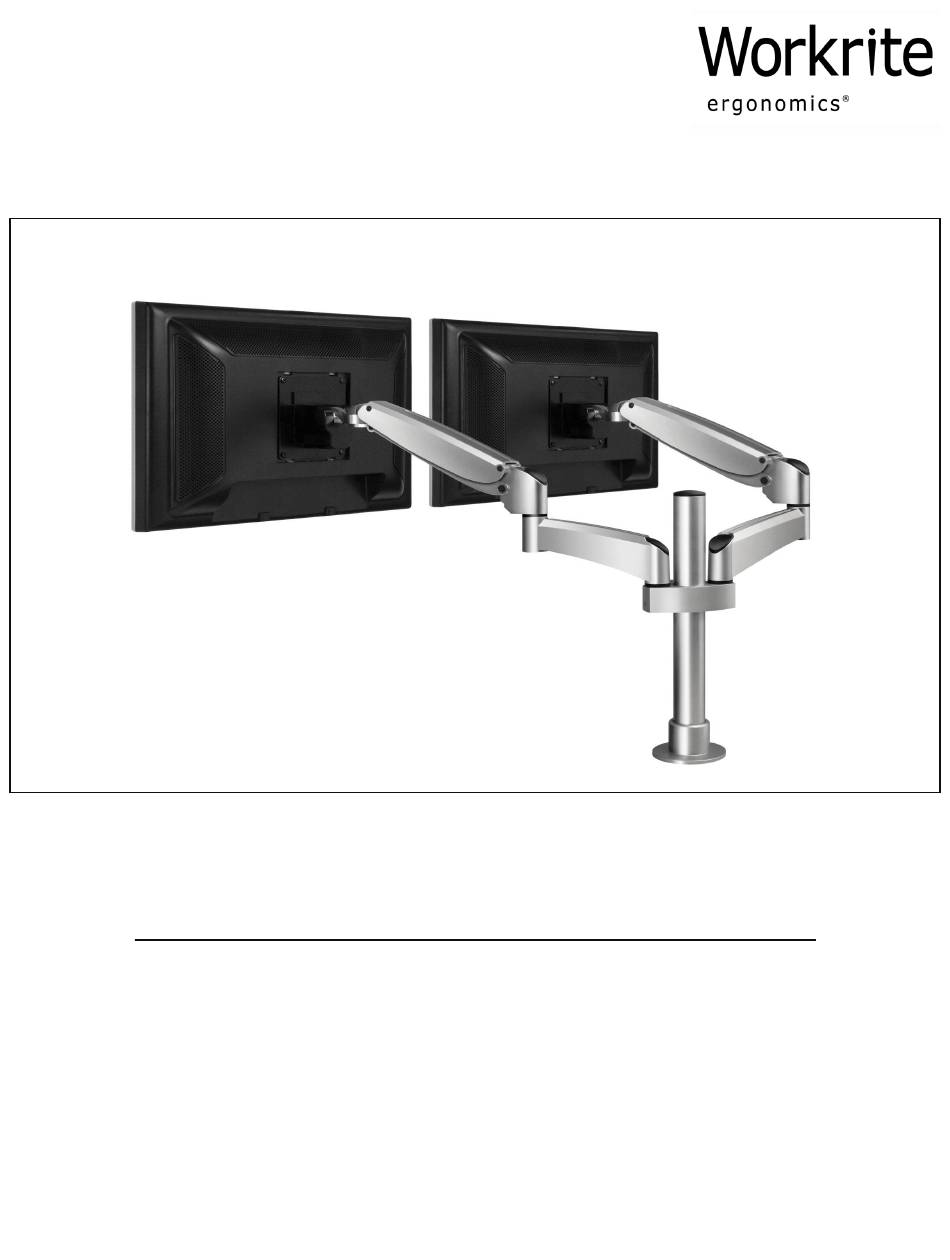

- Page 1 Workrite Poise™–Dual Assembly Instructions Clamp and Grommet Mounts...
-
Page 2: Table Of Contents
Do not mount the clamp base or the grommet base on an unstable surface (any surface that will not hold the base firmly). For safety reasons, the internal gas-strut of the Workrite Poise–Dual™ is pre-adjusted at the factory to the lowest force for the prevention of arm body recoil during installation. -
Page 3: List Of Parts
Workrite Poise–Dual™ Installation Instructions List of Parts, grouped by carton For model #: PA2000-C-_ 14" Pole Qty: 1 Clamping Bracket Clamp Base Qty: 1 Qty: 1 Cable manager hook and loop strips Qty: 2 Dual Mount Clamp M5 Hex Wrench... -
Page 4: Step 1: Verify That You Have All The Hardware And Tools Needed For The Assembly
Workrite Poise–Dual™ Installation Instructions Verify that you have all the hardware and tools needed for the assembly Check your cartons against the list on page 3 to verify that you have all the parts needed. You will also need the following tools:... -
Page 5: Step 3: Attach Grommet Base To Work Surface
Workrite Poise–Dual™ Installation Instructions Grommet Base Only: Attach Grommet Base to Work Surface Remove the center hole from the base cushion, then attach it to the underside of the base, aligning the hole in the base with the hole in the protector. -
Page 6: Step 5: Attach Pivot Base And Arms
Workrite Poise–Dual™ Installation Instructions Attach Pivot Base and Arms Place the pivot pins and the large plastic spacers onto the dual mount clamp. Place the dual mount clamp assembly onto the pole with the ratchet handle facing the back. Posi- tion the mount so that the top of it is approximately 7”... -
Page 7: Step 6: Vertical Movement Adjustment
Workrite Poise–Dual™ Installation Instructions Vertical Movement Adjustment If your monitor is too light or too heavy for the factory-set tension, Tension the arm will raise or lower too easily (or even on its own). If this is the screw case, you need to adjust the vertical movement. -
Page 8: Step 8: Final Touches: Cable Management
Workrite Poise–Dual™ Installation Instructions Final Touches: Cable Management Thread monitor cables through Cable Mount located on underside of Forearm. Place Holding Tabs in center slot as shown and slide into place along Mount track. Use four tabs on each side.
