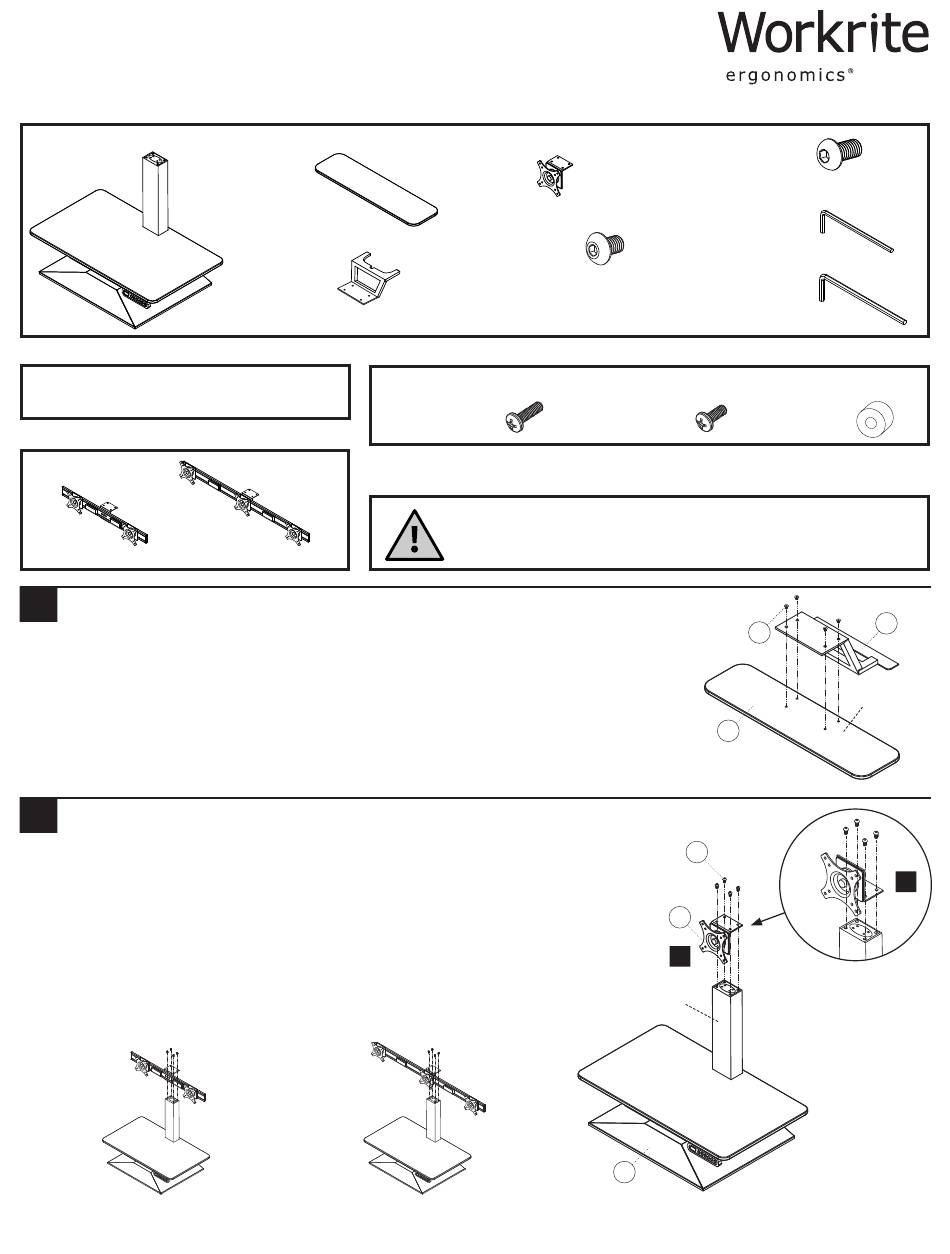

Workrite SOL-E-DT-B Assembly/Installation Instructions

Assembly & Installation Instructions:
Solace Electric SOL-E-DT-B

Parts Included

A
Solace Electric Base
Qty: 1

Tools Required

5 mm & 6 mm Allen Wrenches included
#2 Phillips Screwdriver or Drill/Driver
Optional, Sold Separately
Dual Monitor Bracket Triple Monitor Bracket
1

Attach Keyboard Platform Bracket to Keyboard Platform

Attach the Keyboard Platform Bracket (C) to the Keyboard Platform (B) using
four 5M×10 mm Allen Head Screws (E) using the 5 mm Allen Wrench (G).
2

Attach Monitor Mount to the Solace Electric Monitor Arm

2.1 Attach the Single Monitor Mount (D) to the Monitor Arm on the Solace
Electric Base (A) using four 6M×12 mm Allen Head Screws (F) using the
6 mm Allen Wrench (H).
Note: If you have purchased either the optional Dual Monitor or
Triple Monitor Brackets, attach them in the same fashion.
2.2 For taller users, an additional 3" of height can be achieved by
mounting the Single Monitor Mount (D) in the optional "Top
Mounting" position as shown.
Optional Dual Monitor Bracket
1 of 4
B
Keyboard Platform
Qty: 1
C
Keyboard Platform
Bracket
Qty: 1
Monitor Mount Kit
I
Optional Triple Monitor Bracket
D
Single Monitor Mount
Qty: 1
E
M5×10 mm Allen
Head Screws
Qty: 4
J
M4×24 mm Phillips
Head Screws
Qty: 4
Caution! Do not exceed maximum (payload) weight limit
of 110 lb. This includes monitors, optional monitor brackets
and all equipment on both surfaces.
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
F
M6×12 mm Allen
Head Screws
Qty: 4
G
M5 Allen wrench
Qty: 1
H
M6 Allen wrench
Qty: 1
K
M4×12 mm Phillips
Head Screws
Qty: 4
E
B
Shown upside-down
F
D
2.1
Optional Top Mounting
Monitor Arm
A
Single Monitor Bracket
13 mm Spacers
Qty: 4
C
Bottom
2.2
