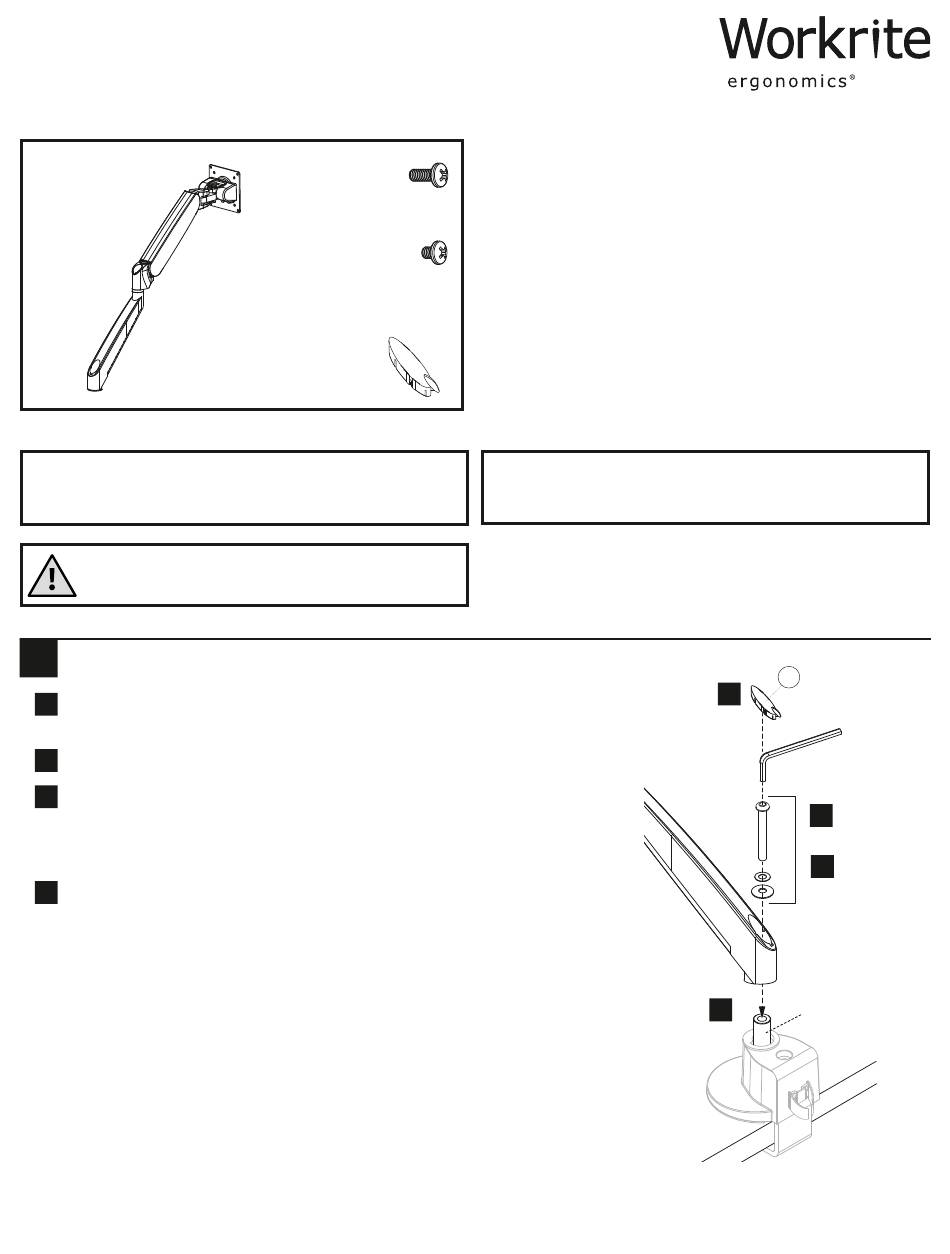

Assembly & Installation Instructions:
Conform HD Articulating Arm CONF-1HDA-WOB-S
Parts Included
A
Conform Heavy Duty
Articulating Arm
Qty: 1
Required Parts Sold Separately
CONF-1HDA-WOB-S
Selected base option with mounting hardware.
Do not use on hollow core tables.
Do not rotate or suspend arm beyond table surface.
Do not exceed 40 lb.
1
Attach Conform HD Articulating Arm to Selected Base
a
Remove the Bolt and Washers from base (if not already
removed.)
b
Place the Conform Arm on the Base Pin.
c
Assemble bolt with washers as shown. Insert through the
bottom of the arm assembly and into the base. Tighten
with 5 mm Allen wrench (included with base). Be sure
the arm is tight but rotates freely.
d
CONF-2SDS-WOB-S
Snap Pivot Cover Cap (D) into top of
arm assembly.
1 of 4
B
M4×10 VESA
mount screw
Qty: 4
C
M4×6 VESA
mount screw
Qty: 4
D
M8 Flat Head Cap Screw
Pivot Cover Cap
Qty: 1
Plastic Cap
CONF-1SDS-WOB-S
Pivot Pin
M4 8mm Screw
M4 12mm Screw
7/32" Allen Wrench
1/8" Allen Wrench
Tools Required
#2 Phillips head screwdriver
2.5 mm Allen wrench (included with base)
Button Head Allen Cap Screw
5 mm Allen wrench (included with base)
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
M4 16mm Screw
Spacer
Plastic Pivot Washer
Steel Washer
D
d
a
Remove
c
Replace
b
Base Pin
C-Clamp Mount shown
Advertisement
Related Manuals for Workrite CONF-1HDA-WOB-S
Summary of Contents for Workrite CONF-1HDA-WOB-S
- Page 1 Assembly & Installation Instructions: Conform HD Articulating Arm CONF-1HDA-WOB-S Parts Included Conform Heavy Duty M4×10 VESA Articulating Arm mount screw Qty: 1 Qty: 4 M4×6 VESA mount screw Qty: 4 M8 Flat Head Cap Screw M4 16mm Screw Spacer M4 8mm Screw...
- Page 2 Adjusting Tilt Capacity To increase capacity(+) turn clockwise using a 5 mm Allen wrench until the monitor reaches a balanced adjustment. To decrease capacity(-) turn counter-clockwise until the monitor reaches a balanced adjustment. Arm capacity 2 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 3 Replace Pivot Cover Cap (D) by snapping into top of arm assembly. Remove Replace Loosen Tighten Front Shown on C-Clamp Base 3 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 4 Single Pole Mount Adaptor ........... CONF-ADPT-SPM-S Dual Pole Mount Adaptor ............CONF-ADPT-DPM-S Quick Release Adaptor ............MON-ADPTVQR-W-B Technical Support: Please call Workrite Technical Support while at the Workrite product. (800) 959-9675 option 2. 4 of 4 Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1500264 Rev F...
